RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

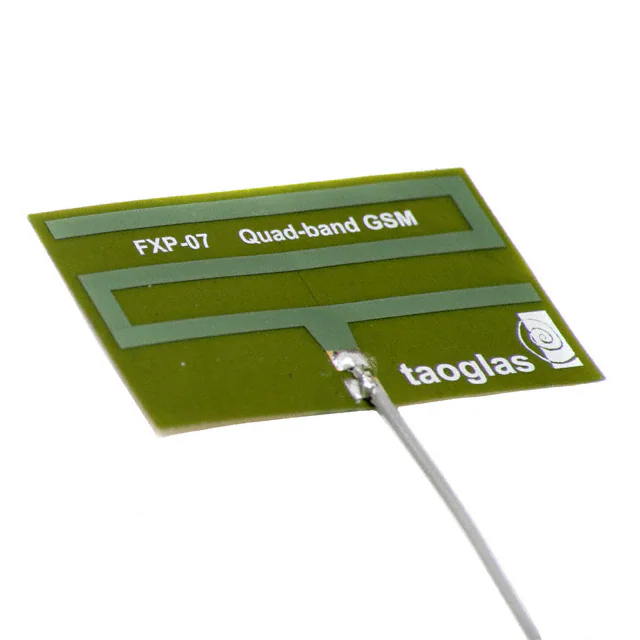

FXP07.09.0100ARF ANT 892MHZ/1.9GHZ PCB TRACE |
4,727 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | - | - | - | - | - | MMCX Male | - | - | - | Adhesive | 0.039" (1.00mm) | GSM |
|

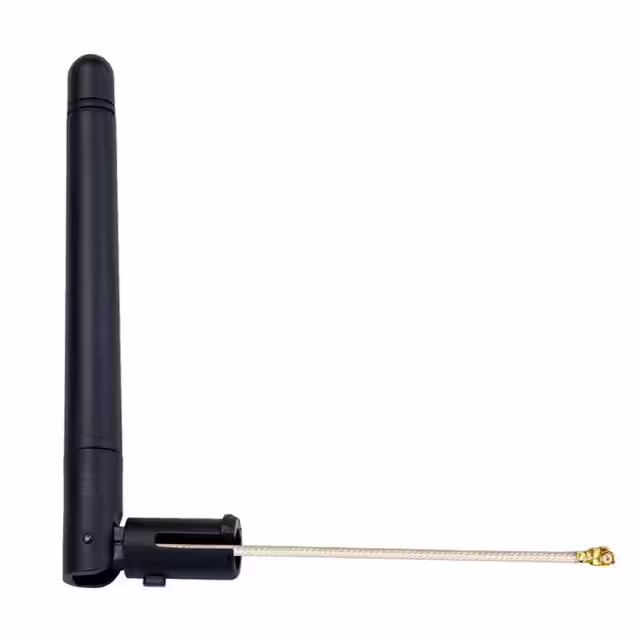

GW.17.07.0250EGW.17 2.4GHZ TERMINAL ANTENNA, I |
1,923 | - |
|
Datasheet | - | Bag | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | - | 2.7dBi | 2 W | Cable - 250mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 4.433" (112.60mm) | - |
|

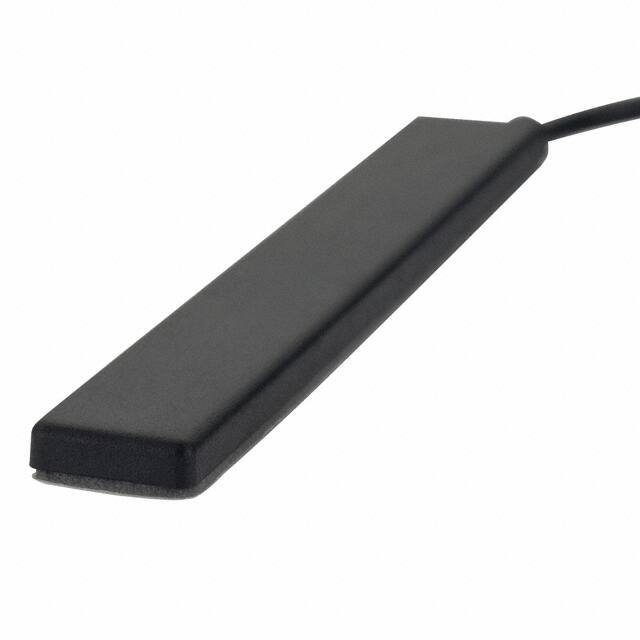

GSA.8821.A301721RF ANT 892MHZ/1.9GHZ BAR FAKRA |
4,262 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Bar | 2 | 3 | - | 3.9dBi, 3.2dBi | 10 W | - | SMB, Fakra | IP65 | - | - | Adhesive | 0.228" (5.80mm) | CDMA, GSM, UMTS |
|
GW.05.0ZZ232.4/5.8GHZ TERMINAL MOUNT MONOPO |
1,448 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | - | - | -0.83dBi, 2.92dBi, 2.64dBi, 2.91dBi, 1.41dBi, 2.61dBi | 10 W | - | SMB, Fakra | - | - | - | Connector Mount | 2.740" (69.60mm) | Wi-Fi |
|

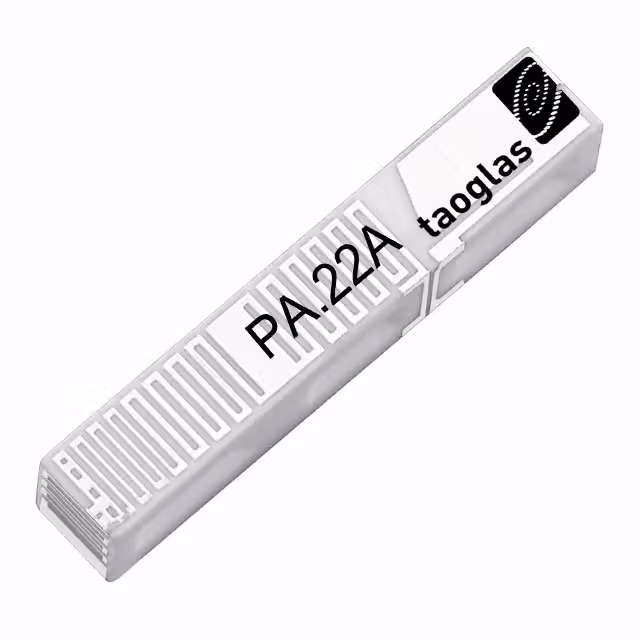

PA.22ARF ANT 920MHZ/1.9GHZ CHIP SLD |
3,353 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 920MHz, 1.9GHz | 880MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Chip | 2 | 2.5 | - | -1.96dBi, 2.48dBi | - | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | GSM |
|

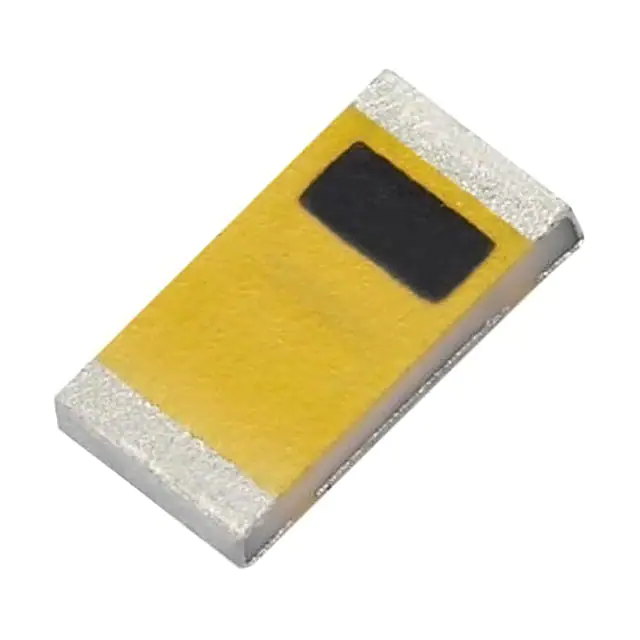

GWLA.10RF ANT 1.575GHZ/2.4GHZ CHIP SLD |
2,048 | - |
|
Datasheet | - | Tape & Reel (TR) | Not For New Designs | 802.15.4, Bluetooth, Navigation, WiFi | Wide Band | 1.575GHz, 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Chip | 3 | - | -10dB | 1.8dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Bluetooth, GPS, Wi-Fi, WLAN, Zigbee™ |
|

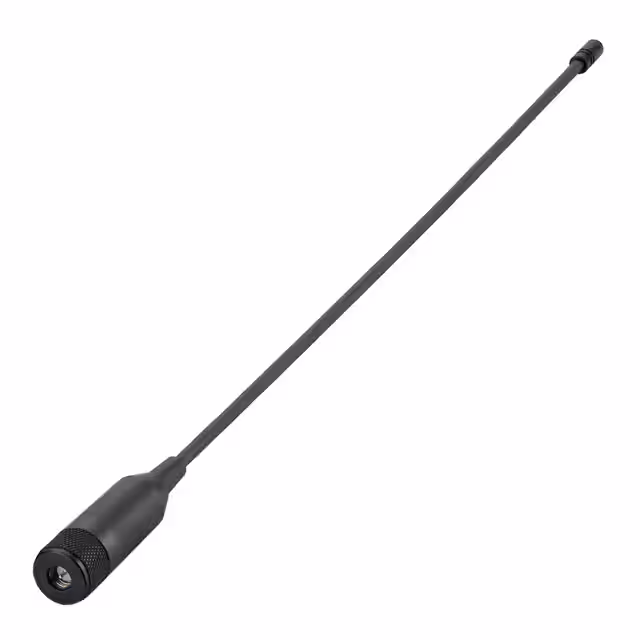

FW.81.SMA.MRF ANT 135MHZ WHIP STR SMA MALE |
4,816 | - |
|
Datasheet | Meteor | Bag | Active | - | VHF (f < 300MHz) | 135MHz | - | Whip, Straight | 1 | - | - | 0dBi | 50 W | - | SMA Male | IP67 | - | - | Connector Mount | 13.898" (353.00mm) | - |
|

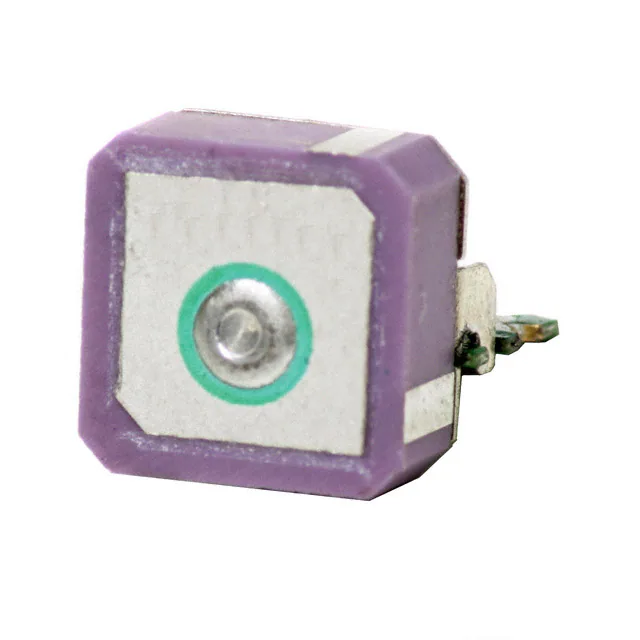

AP.10C.01RF ANT 1.575GHZ CER PATCH SLD |
2,784 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 2 | - | -3dBic | - | LNA | Solder | - | - | - | Surface Mount | 0.177" (4.50mm) | GPS |
|

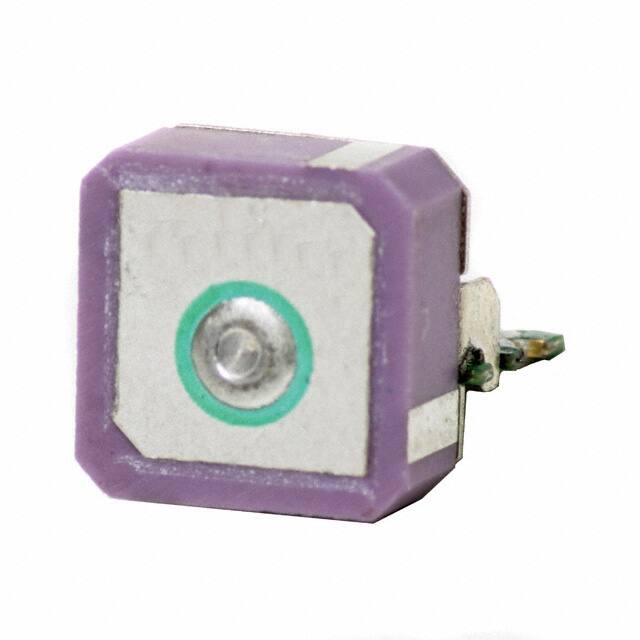

AP.10D.01RF ANT 1.575GHZ CER PATCH SLD |
1,035 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | -3dBic | - | LNA | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|

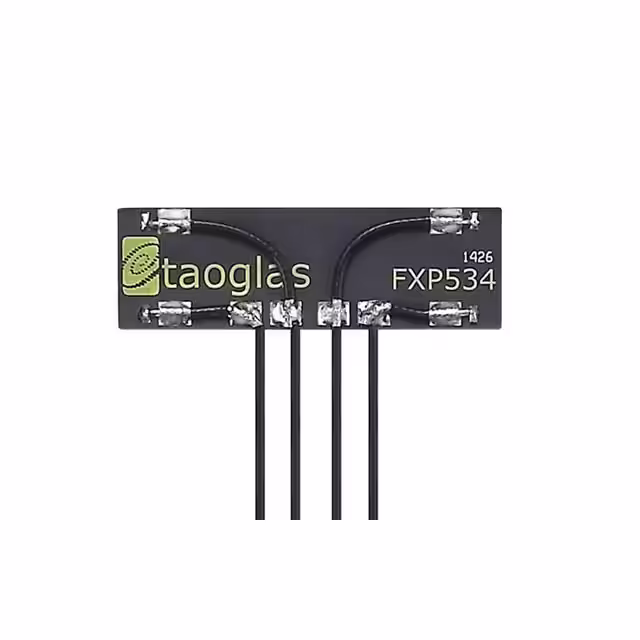

FXP534.D.07.C.001RF ANT 5.5GHZ FLAT MHFHT 100MM |
3,785 | - |
|
Datasheet | - | Bag | Obsolete | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.85GHz | Flat Patch | 1 | - | - | 5.74dBi | 2 W | - | I-PEX MHF4L (4) | - | - | - | Adhesive | 0.006" (0.15mm) | WLAN |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
