RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT160920ST-1204A1RF ANT 916MHZ CHIP SOLDER SMD |
14,881 | - |
|
Datasheet | ANT | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 916MHz | 902MHz ~ 930MHz | Chip | 1 | 3 | - | - | - | - | Solder | - | - | - | Surface Mount | - | General Purpose |
|
ANT161575ST-1202A1RF ANT 1.581GHZ CHIP SOLDER SMD |
6,400 | - |
|
Datasheet | ANT | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.581GHz | 1.557GHz ~ 1.605GHz | Chip | 1 | 3 | - | - | - | - | Solder | - | - | - | Surface Mount | - | GNSS |
|
|
ANT162442DT-2001A2RF ANT 2.4GHZ/5.5GHZ CHIP SLD |
8,051 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | 1.5 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
|
ANT016008LCS2442MA2RF ANT 2.4GHZ CHIP SOLDER SMD |
21,742 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 3 | - | 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
|
|
ANT016008LCS2442MA1RF ANT 2.4GHZ CHIP SOLDER SMD |
17,442 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 3 | - | 1.6dBi | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
|

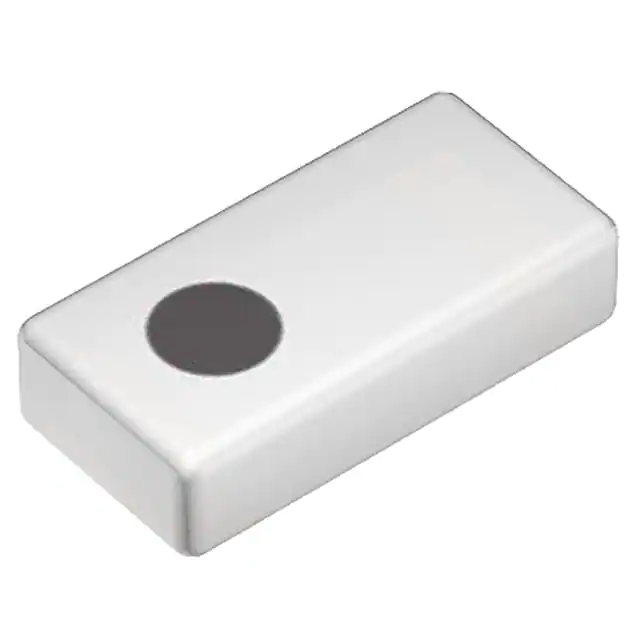

ANT162442DT-2001AM2CERAMIC ANTENNA FOR 2400-2484/51 |
9,763 | - |
|
Datasheet | ANT | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.442GHz, 5.5GHz | 2.4GHz ~ 2.484GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | 3 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
|
|
ANT161575TT-3000A1RF ANT 1.575GHZ/2.4GHZ CHIP SLD |
1,775 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | Wide Band | 1.575GHz, 2.4GHz, 5.5GHz | 1.574GHz ~ 1.577GHz, 2.4GHz ~ 2.484GHz, 5.15GHz ~ 5.85GHz | Chip | 3 | 1.2, 1.8, 3.3 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
|
ANT162442ST-1201AM1CERAMIC ANTENNA FOR 2400-2484MHZ |
6,458 | - |
|
Datasheet | ANT | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.442GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 3 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
|
|
ANT165550ST-1003A1RF ANT 5.6GHZ CHIP SOLDER SMD |
3,880 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | WiFi | SHF (f > 4GHz) | 5.6GHz | 5.15GHz ~ 5.9GHz | Chip | 1 | 1.6 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | WLAN |
|
|
ANT162442DT-2200A1RF ANT 2.4GHZ/5.5GHZ CHIP SLD |
3,450 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | Wide Band | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | 1.5, 1.9 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
