RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DP-1900RF ANT 1.9GHZ PRECISION SMA FEM |
4,620 | - |
|
Datasheet | DP | Bulk | Active | Cellular | UHF (1GHz ~ 2GHz) | 1.9GHz | 1.85GHz ~ 1.91GHz | Precision | 1 | - | - | - | - | - | SMA Female | - | - | - | Connector Mount | - | CDMA, GSM, PCS |
|
|
DP-2000RF ANT 2GHZ PRECISION SMA FEM |
1,556 | - |
|
Datasheet | DP | Bulk | Active | Cellular | UHF (1GHz ~ 2GHz) | 2GHz | 1.92GHz ~ 1.98GHz | Precision | 1 | - | - | - | - | - | SMA Female | - | - | - | Connector Mount | - | WCDMA |
|
|
DP-2400RF ANT 2.4GHZ PRECISION SMA FEM |
4,922 | - |
|
Datasheet | DP | Bulk | Active | Bluetooth | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | Precision | 1 | - | - | - | - | - | SMA Female | - | - | - | Connector Mount | - | Bluetooth |
|
HRN-0118RF ANT HORN N FEM BRKT MT |
4,687 | - |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | - | Wide Band | - | 1GHz ~ 18GHz | Horn | 1 | 1.5 | - | - | 500 W | - | N Type Female | - | - | - | Bracket Mount | 5.709" (145.00mm) | - |
|
HLP-3003CRF ANT LOG PERIODIC N FEM CHASS |
1,331 | - |
|
Datasheet | - | Bulk | Obsolete | - | Wide Band | - | 30MHz ~ 3GHz | Log Periodic | 1 | 2 | - | 6dBi | 100 W | - | N Type Female | - | - | - | Chassis Mount | 27.165" (690.00mm) | - |
|

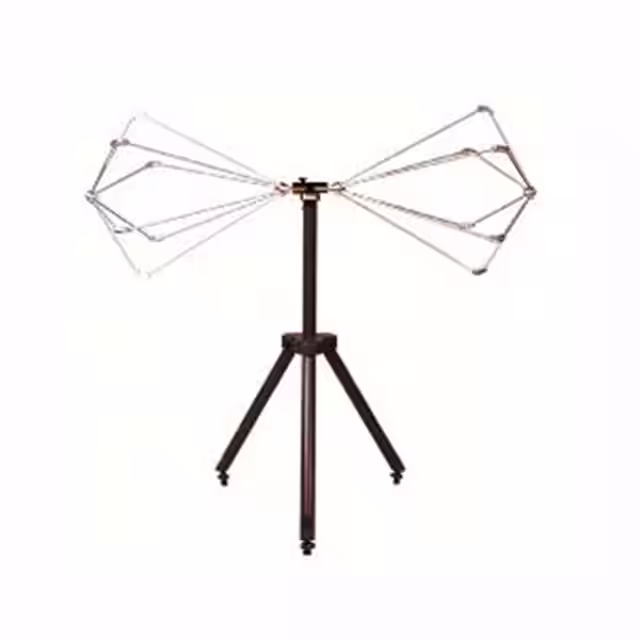

PBA-2030RF ANT 160MHZ BICONICAL N FEM |
2,110 | - |
|
Datasheet | - | Bulk | Active | - | VHF (f < 300MHz) | 160MHz | 20MHz ~ 300MHz | Biconical | 1 | 2.5 | - | - | 100 W | - | N Type Female | - | - | - | Bracket Mount | 28.346" (720.00mm) | - |
|
MBA-2060RF ANT BICONICAL SMA ML BRKT MT |
4,116 | - |
|
Datasheet | MB | Bulk | Active | - | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | - | 20MHz ~ 600MHz | Biconical | 1 | 2.5 | - | - | - | - | SMA Male | - | - | - | Bracket Mount | 10.827" (275.00mm) | - |
|
HBA-2030RF ANT 160MHZ BICONICAL CONN |
2,969 | - |
|
Datasheet | - | Bulk | Active | - | VHF (f < 300MHz) | 160MHz | 20MHz ~ 300MHz | Biconical | 1 | 2.5 | - | - | 3500 W | - | 7/16 Female | - | - | - | Bracket Mount | 54.331" (138.00cm) | - |
|
ANT8030-2R4-01ARF ANT 2.4GHZ CHIP SOLDER SMD |
1,784 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | -15dB | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN |
|

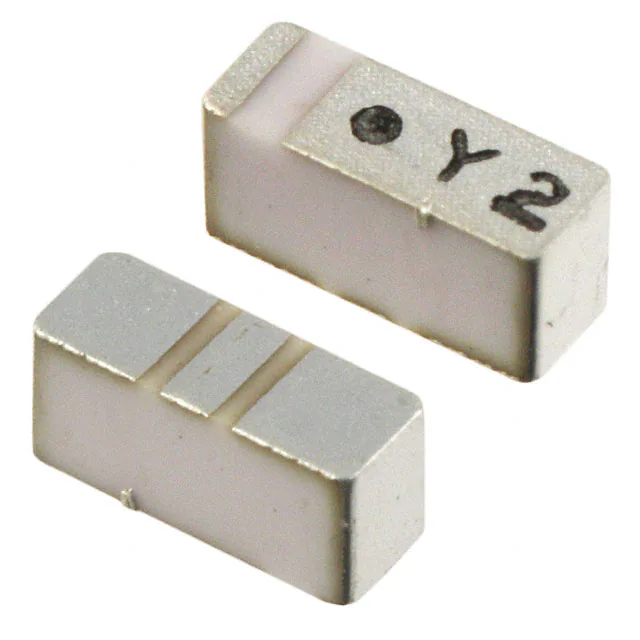

ANT040015CCS2442MA1RF ANT 2.4GHZ CHIP SOLDER SMD |
3,477 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.485GHz | Chip | 1 | 3.5 | - | 2.32dBi | - | - | Solder | - | - | - | Surface Mount | 0.073" (1.85mm) | - |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
