RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

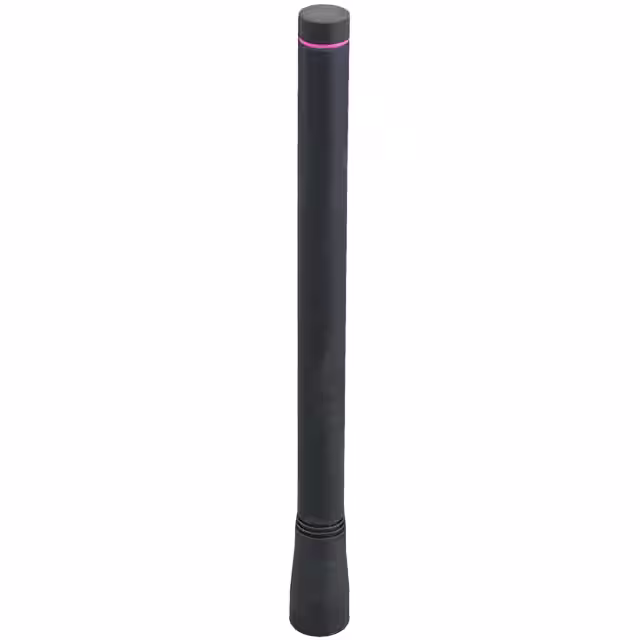

ANT-2.4-CW-HW-TRF ANT 2.4GHZ WHIP STR RP-SMA ML |
475 | - |
|
Datasheet | HWT-T | Bag | Active | Bluetooth | UHF (2GHz ~ 3GHz) | 2.475GHz | 2.35GHz ~ 2.6GHz | Whip, Straight | 1 | 2 | - | 3.2dBi | - | - | RP-SMA Female | - | - | - | Connector Mount | 4.724" (120.00mm) | General Purpose |
|

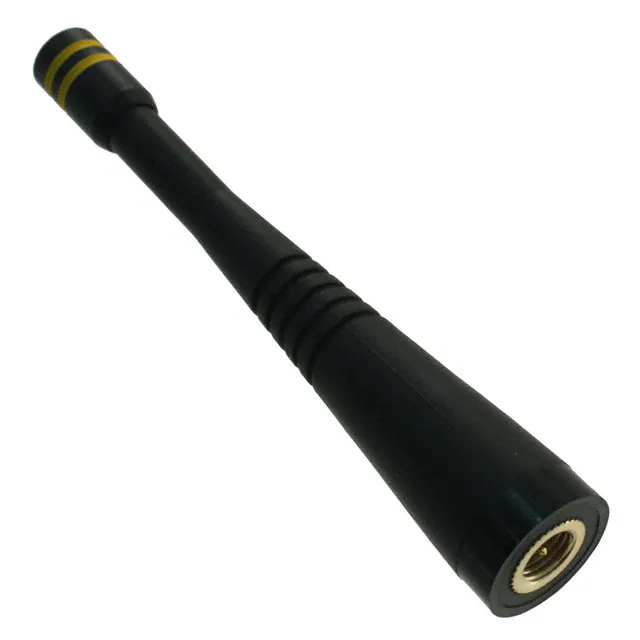

ANT-916-CW-QW-SMARF ANT 916MHZ WHIP STR SMA MALE |
195 | - |
|
Datasheet | CW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 800MHz, 900MHz, 915MHz | 865MHz ~ 965MHz | Whip, Straight | 1 | 1.9 | - | 1.8dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.150" (80.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-DB1-VDP-RPSRF ANT 892MHZ/1.85GHZ FLAT BAR |
451 | - |
|
Datasheet | VDP | Bulk | Active | - | Wide Band | 892MHz, 1.85GHz, 2.45GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 2.4GHz ~ 2.48GHz | Flat Bar | 3 | 1.5, 1.9, 1.9 | - | -1.8dBi, -1.7dBi, -1.3dBi | - | Cable - 3m | RP-SMA Male | - | - | - | Adhesive | 0.177" (4.50mm) | - |
|

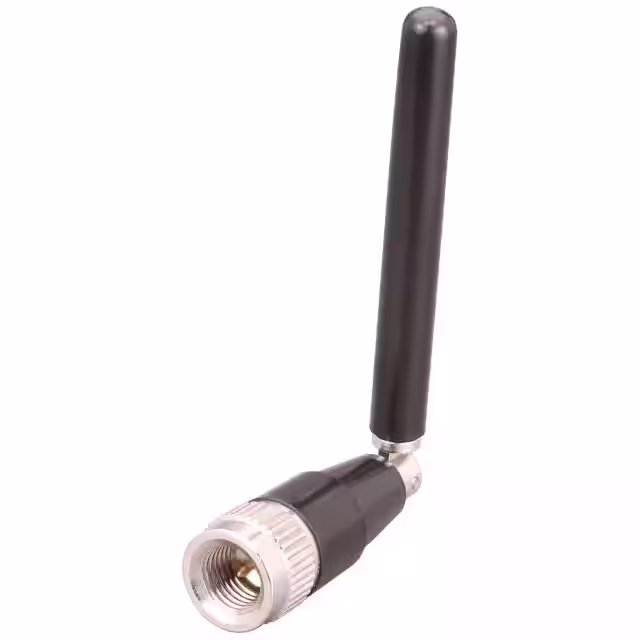

ANT-W63-MON-SMARF ANT WIFI6/6E HINGED WHIP SMA |
657 | - |
|
Datasheet | MON | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt/Swivel | 3 | 2.4, 2.3, 2 | -7.7dB, -8.1dB, -9.5dB | 3.2dBi, 4.2dBi, 3.4dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 2.835" (72.00mm) | 802.11, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi6, Wi-Fi6E, WLAN, ZigBee |
|

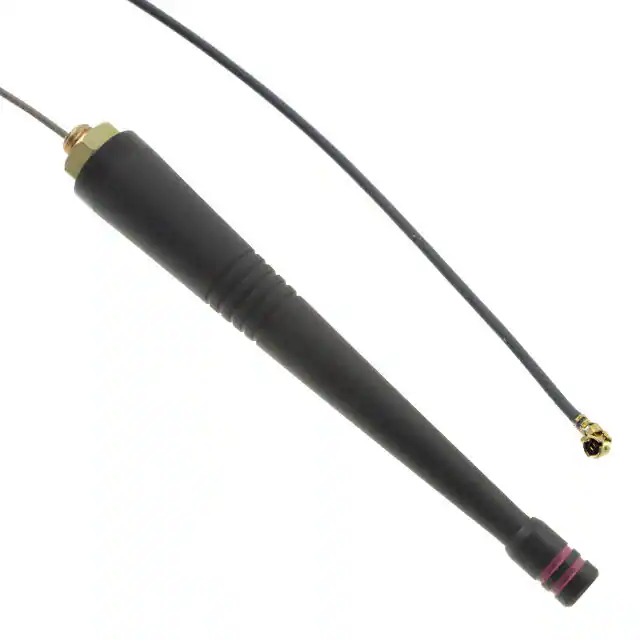

ANT-2.4-PW-QW-UFLRF ANT 2.4GHZ WHIP STR CAB PAN |
963 | - |
|
Datasheet | PW | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | Cable - 216mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 4.134" (105.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|

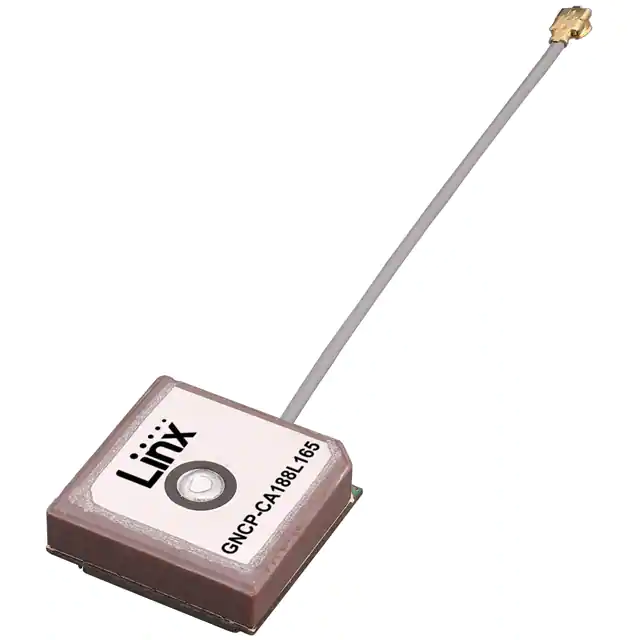

ANT-GNCP-CA188L165RF ANT GNSS GPS 15MM PATCH LNA |
1,327 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.5897GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.567GHz ~ 1.5836GHz, 1.5876GHz ~ 1.5917GHz, 1.593GHz ~ 1.6086GHz | Ceramic Patch | 4 | 1.1 | - | 10.6dBi, 13.7dBi, 14.1dBi, 14.1dBi | - | Cable - 65mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.280" (7.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
ANT-5GWWS1-SMARF ANT 617MHZ-5GHZ 5G TILT SMA |
217 | - |
|
Datasheet | 5GW | Bag | Active | Cellular, General ISM, Navigation | Wide Band | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8 GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 3.3GHz, 3.5GHz, 3.7GHz, 4.9GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 3.7GHz ~ 4.2GHz, 4.94GHz ~ 4.99GHz | Blade, Tilt | 9 | 3.1, 1.8, 2.8, 1.8, 1.9, 3.9, 1.8, 3.2, 1.8 | -5.8dB, -10.9dB, -6.5dB, 10.9dB, -10.2dB, -4.6dB, 10.9dB, -5.6dB, -10.9dB | 0.8dBi, 0.5dBi, 0.7dBi, 4dBi, 4dBi, 4dBi, 2.5dBi, 2.2dBi, 3.5dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 5.340" (135.70mm) | 4G, 5G, Cat-M1, Cellular, GSM, LPWA, LTE, LTE-M, NB-IoT, UMTS |
|

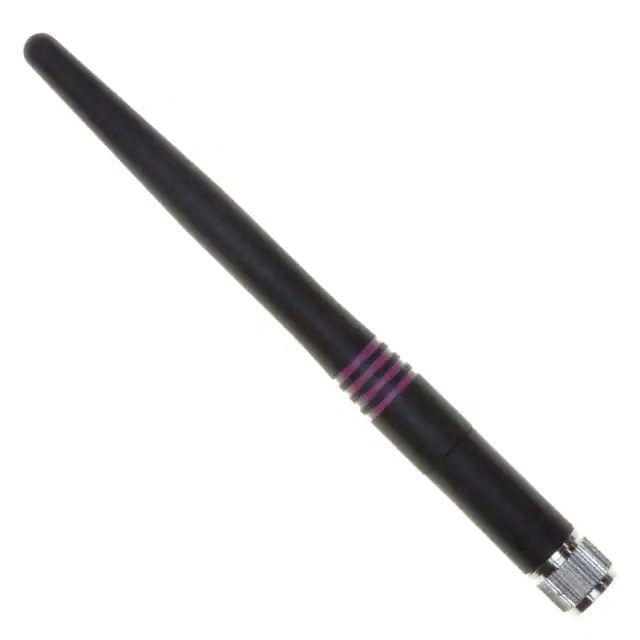

ANT-2.4-CW-CT-SMARF ANT 2.4GHZ WHIP STR SMA MALE |
123 | - |
|
Datasheet | CT | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.375GHz ~ 2.525GHz | Whip, Straight | 1 | 1.9 | - | 2.8dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.449" (113.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|

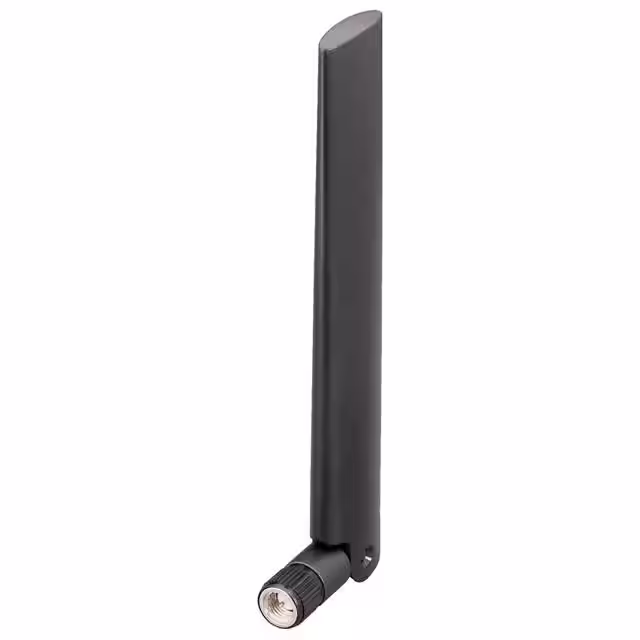

ANT-5GWWS3-SMARF ANT 617MHZ-6GHZ 5G TILT SMA |
576 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.9475GHz, 2.495GHz, 3.75GHz, 4.7GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Blade, Tilt | 10 | 1.7, 1.9, 2, 2.1, 2.3, 2.4, 2.5, 2.8, 4.5 | - | 1.4dBi, 1.1dBi, 1.1dBi, 2.3dBi, 2.8dBi, 8.5dBi, 9.9dBi, 5.4dBi, 4dBi, 5.1dBi | 30 W | - | SMA Male | - | - | - | Connector Mount | 5.252" (133.40mm) | 2G, 3G, 4G, 5G, LTE |
|
ANT-418-CW-QW-SMARF ANT 418MHZ WHIP STR SMA MALE |
119 | - |
|
Datasheet | CW | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 380MHz, 410MHz, 450MHz | 380MHz ~ 450MHz | Whip, Straight | 1 | 1.9 | - | 2.9dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.008" (178.00mm) | Alarms, ISM, Remote Control, Security Systems |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
