RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-5GWWS4-SMARF ANT 617MHZ-5GHZ 5G TILT SMA |
734 | - |
|
Datasheet | 5GW | Bag | Active | Cellular | Wide Band | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 3.3GHz, 3.5GHz, 3.7GHz, 4.9GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 3.7GHz ~ 4.2GHz, 4.94GHz ~ 4.99GHz | Blade, Tilt | 9 | 4.3, 3.9, 4.7, 3.2, 3.2, 2.5, 3.6, 3.5. 3.3, 3 | -4.1dB, -4.6dB, -3.8dB, -5.6dB, -5.6dB, -7.4dB, -5dB, -5.1dB, -5.4dB, -6dB | 1.7dBi, 2.8dBi, 2.7dBi, 4.4dBi, 4.1dBi, 3.4dBi, 4.9dBi, 4.8dBi, 4.9dBi, 5.2dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 6.900" (175.26mm) | 4G, 5G, Cat-M1, CBRS, C-Band, Cellular, GSM, LPWA, LTE, LTE-M, NB-IoT, UMTS |
|
ANT-W63RPC1-MHF4-100RF ANT WIFI 6GHZ FLEX MHF4 100MM |
3,180 | - |
|
Datasheet | W63RPC | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Rigid Patch | 3 | 1.8, 2.1, 1.6 | -10.9dB, -9dB, -12.7dB | 3.7dBi, 6.1dBi, 5.9dBi | 5 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.051" (1.30mm) | 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|
ANT-W63-CW-RCS-RPSWIFI6/6E/7 COMPACT RIGHT ANGLE W |
568 | - |
|
Datasheet | CW-RCS | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Right Angle | 3 | 2.2, 2.7 | - | 7.7dBi, 5.4dBi, 6dBi | 5 W | - | RP-SMA Female | - | - | - | Connector Mount | 2.126" (54.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

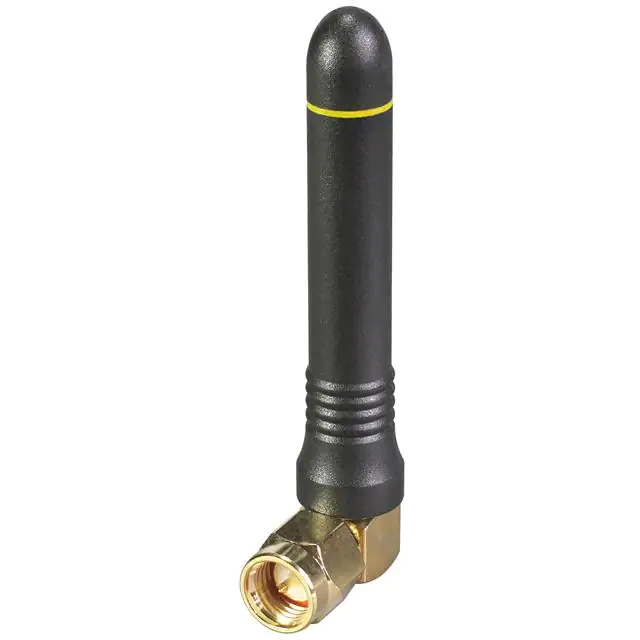

ANT-916-CW-RCS-SMA915MHZ CCOMPACT RIGHT ANGLE WHIP |
400 | - |
|
Datasheet | CW-RCS | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 930MHz | Whip, Right Angle | 1 | 2 | - | 4.8dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 2.126" (54.00mm) | ISM, LoRaWAN, LPWA |
|
ANT-W63WS4-SMARF ANT 2.4/5/6GHZ WIFI6 TILT SMA |
1,259 | - |
|
Datasheet | W63WSx | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Blade, Tilt | 3 | 1.2, 1.6, 1.8 | - | 2.6dBi, 5.5dBi, 5.5dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 7.071" (179.60mm) | 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|
ANT-916-CW-RCL-SMA915MHZ RGHT ANG DIPOLE WHIP SMA |
621 | - |
|
Datasheet | RCL | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 930MHz | Whip, Right Angle | 1 | 1.8 | -10.9dB | 4.2dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 3.846" (97.70mm) | ISM, LPWA |
|

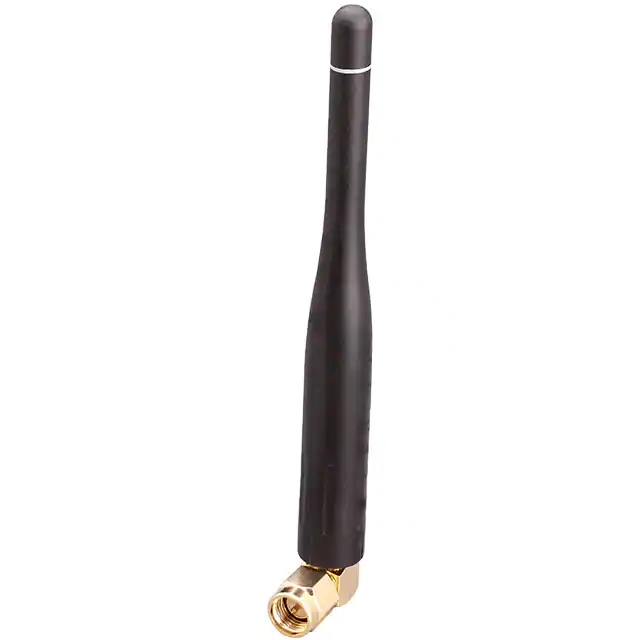

ANT-868-CW-RCL-SMA868MHZ RGHT ANG DIPOLE WHIP SMA |
540 | - |
|
Datasheet | RCL | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 862MHz ~ 876MHz | Whip, Right Angle | 1 | 1.9 | -10.2dB | 4.1dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 3.846" (97.70mm) | ISM, LPWA |
|
|
ANT-W63-FPC-SAH50UFANT WIFI6/6E FPC SQR 50MM UFL |
728 | - |
|
Datasheet | ANT-W63-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 2.4, 3.4 | - | 0.6dBi, 7.2dBi, 6.3dBi | 2 W | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/-c/ax, Bluetooth, ISM, U-NII, Wi-Fi, Zigbee™ |
|

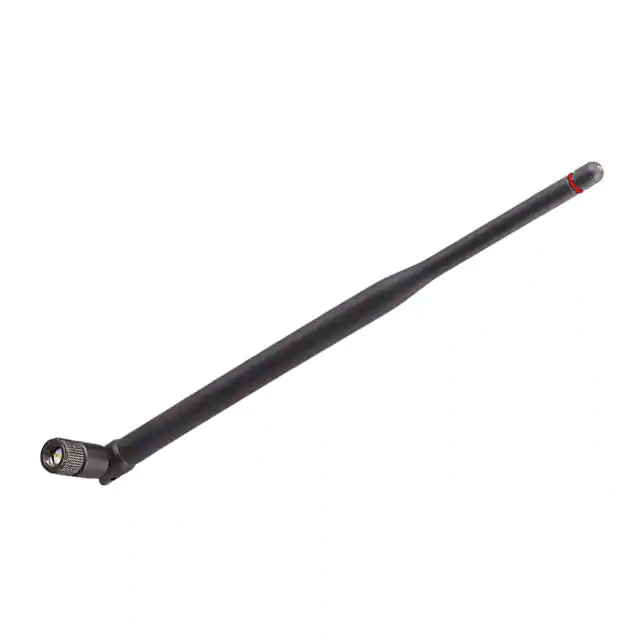

ANT-433-OC-LG-SMA433MHZ TILT/SWIV DIPOLE WHIP SMA |
718 | - |
|
Datasheet | OC | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 430MHz ~ 435MHz | Whip, Tilt | 1 | 2.1 | 9dB | 0.7dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 7.620" (193.50mm) | ISM, LPWA |
|
ANT-2.4-CW-RCS-SMARF ANT 2.4GHZ WHIP RA SMA MALE |
4,444 | - |
|
Datasheet | RCS | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.5GHz | Whip, Right Angle | 1 | 1.9 | - | -0.2dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.106" (53.50mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
