RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

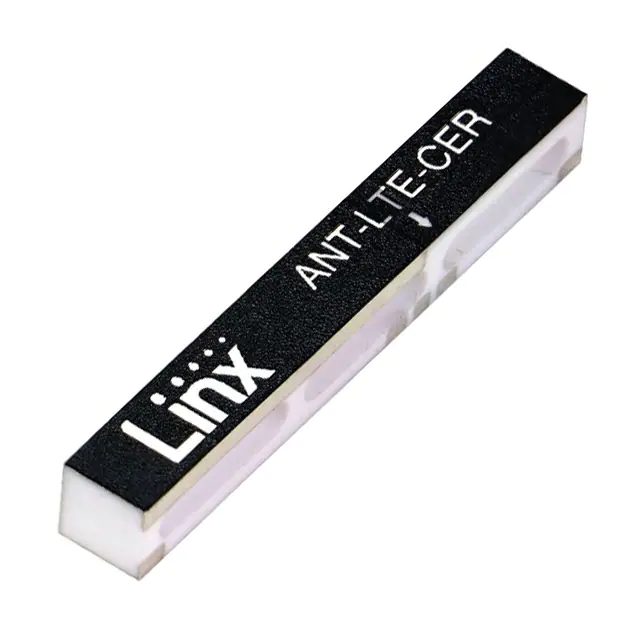

ANT-LTE-CER-TRF ANT 829MHZ/1.94GHZ CHIP SLD |
12,162 | - |
|
Datasheet | CER | Tape & Reel (TR) | Active | Cellular | Wide Band | 700MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz, 2.7GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz | Chip | 4 | 4, 3.2, 2.5, 2.5 | - | 4dBi | - | - | Solder | - | - | - | Surface Mount | 0.203" (5.15mm) | CAT-M1, Cellular, LTE, NB-IOT, 3G, 4G |
|

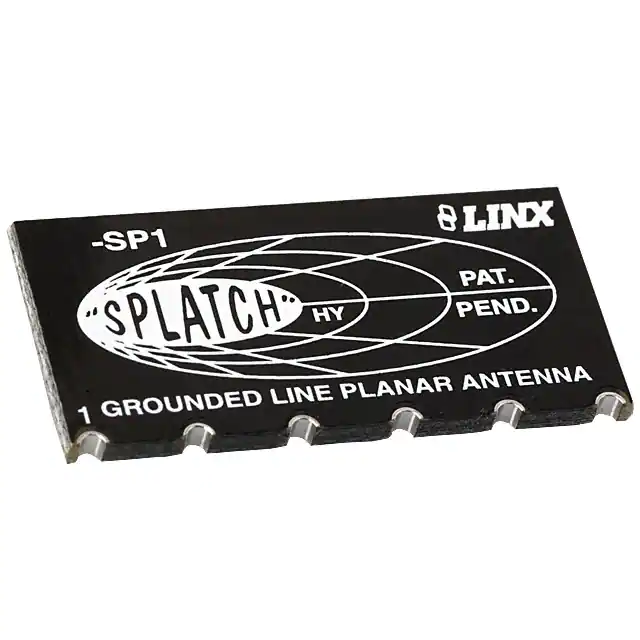

ANT-418-SPRF ANT 418MHZ CHIP SOLDER SMD |
4,256 | - |
|
Datasheet | Splatch® | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 414MHz ~ 422MHz | Chip | 1 | 1.9 | - | -8dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Alarms, ISM, Remote Control, Security Systems |
|

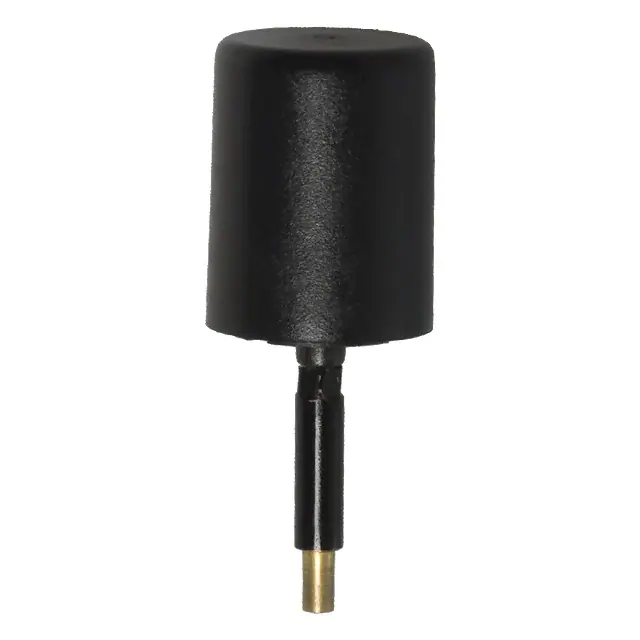

ANT-916-JJB-STRF ANT 916MHZ DOME SLD TH 7MM |
610 | - |
|
Datasheet | JJB | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 901MHz ~ 931MHz | Whip, Straight | 1 | 2 | - | -10.2dBi | - | - | Solder | - | - | - | Through Hole | 0.693" (17.60mm) | ISM, LoRa, Sensor Networks, SigFox |
|

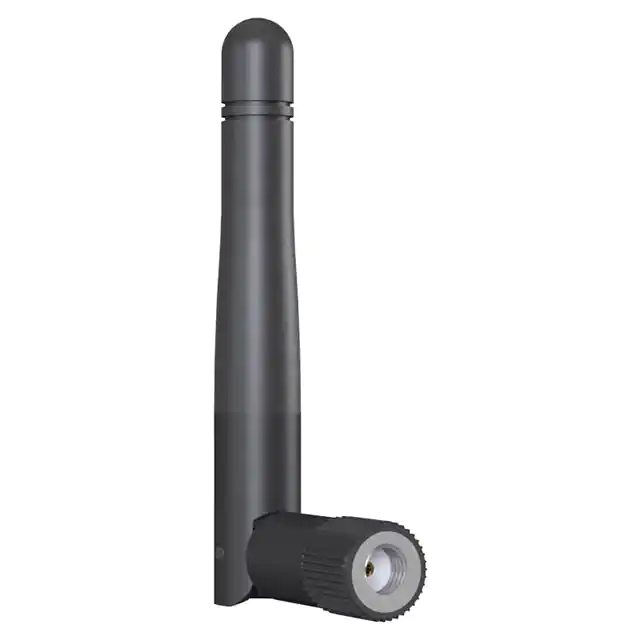

ANT-2.4-LCW-RPS2.4GHZ DIPOLE ANTENNA RP-SMA |
752 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.9 | - | 2.8dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.272" (83.10mm) | ISM, U-NII, WiFi, WLAN |
|
|
ANT-2.4-LCW-SMA2.4GHZ DIPOLE ANTENNA SMA |
400 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.9 | - | 2.8dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.272" (83.10mm) | ISM, U-NII, WiFi, WLAN |
|

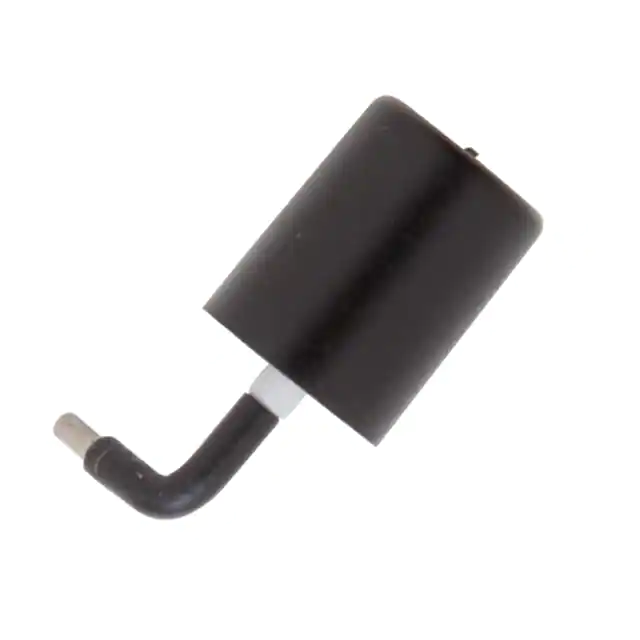

ANT-868-JJB-RARF ANT 868MHZ DOME SLD TH |
297 | - |
|
Datasheet | JJB | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 855MHz ~ 880MHz | Whip, Right Angle | 1 | 2 | - | -1dBi | - | - | Solder | - | - | - | Through Hole | 0.571" (14.50mm) | ISM, LoRa, Sensor Networks, SigFox |
.jpg "ANT-433-PW-RA")
|

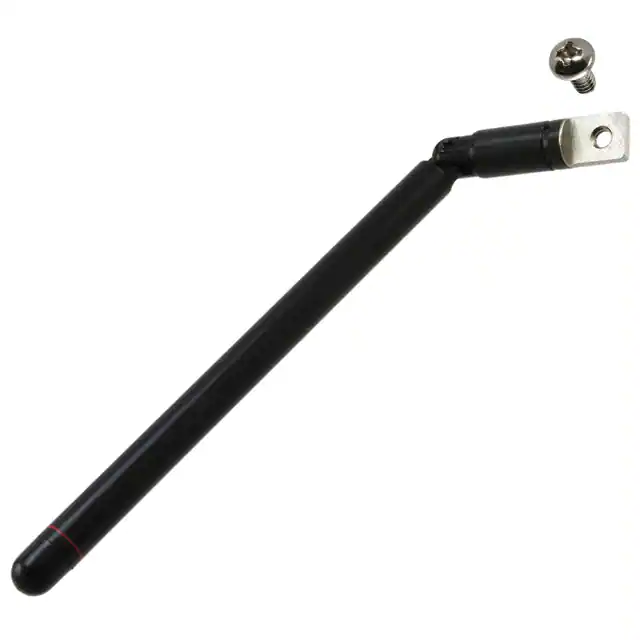

ANT-433-PW-RARF ANT 433MHZ WHIP TILT SCREW-MT |
1,108 | - |
|
Datasheet | RA | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 413MHz ~ 443MHz | Whip, Tilt | 1 | 2 | - | -0.7dBi | - | - | Screw-Mount | - | - | - | Panel Mount | 5.180" (131.57mm) | Alarms, ISM, Remote Control, Security Systems |
|

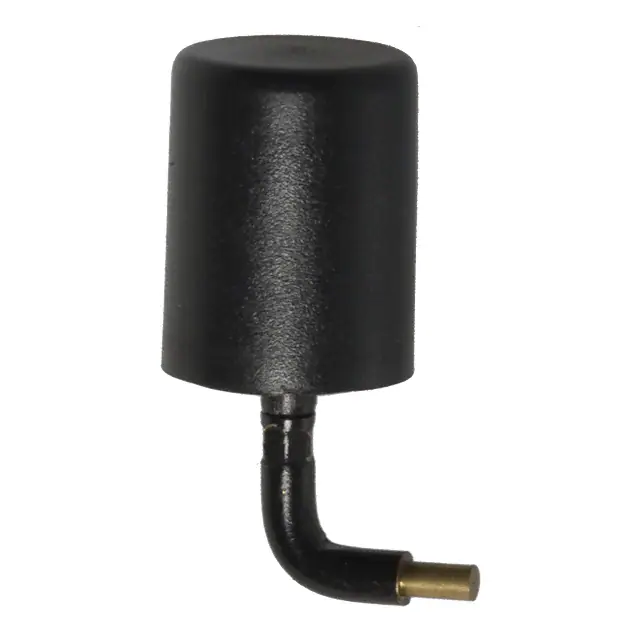

ANT-916-JJB-RARF ANT 916MHZ DOME SLD TH 7MM |
3,017 | - |
|
Datasheet | JJB | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 901MHz ~ 931MHz | Whip, Right Angle | 1 | 2 | - | -0.5dBi | - | - | Solder | - | - | - | Through Hole | 0.571" (14.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-868-JJB-STRF ANT 868MHZ DOME SLD TH |
1,970 | - |
|
Datasheet | JJB | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 855MHz ~ 880MHz | Whip, Straight | 1 | 2 | - | -8.9dBi | - | - | Solder | - | - | - | Through Hole | 0.693" (17.60mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-ELE-S01-005RF ANT 892MHZ WHIP STR M5 CONN |
1,086 | - |
|
Datasheet | MAG | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 800MHz, 850MHz, 900MHz | 824MHz ~ 960MHz | Whip, Straight | 1 | 1.5 | - | 3.8dBi | - | - | M5 | - | - | - | Magnetic | 11.630" (295.40mm) | - |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
