RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

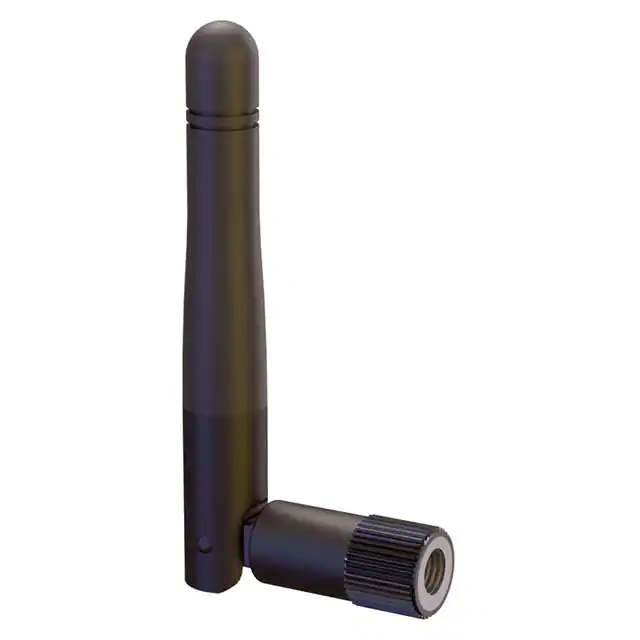

ANT-DB1-LCD-RPS2.4/5.8GHZ DIPOLE ANT RP-SMA |
520 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 2.5GHz, 5GHz, 5.7GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.12GHz ~ 5.72GHz, 5.72GHz ~ 5.88GHz | Whip, Tilt | 3 | 1.9 | - | 2.8dBi, 2.92dBi, 4.5dBi | 10 W | - | RP-SMA Male | - | - | - | Connector Mount | 3.272" (83.10mm) | ISM, U-NII, WiFi, WLAN |
|
|
ANT-DB1-LCD-SMA2.4/5.8GHZ DIPOLE ANTENNA SMA |
318 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 2.5GHz, 5GHz, 5.7GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.12GHz ~ 5.72GHz, 5.72GHz ~ 5.88GHz | Whip, Tilt | 3 | 1.9 | - | 2.8dBi, 2.92dBi, 4.5dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 3.272" (83.10mm) | ISM, U-NII, WiFi, WLAN |
|
ANT-LTE-RPC-UFLRF ANT LTE RIGID PCB ADHES UFL |
1,371 | - |
|
Datasheet | RPC | Bag | Active | Cellular, Navigation | Wide Band | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.575GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.4GHz, 2.5GHz, 3.3GHz, 3.4GHz, 3.5GHz, 3.6GHz | 600MHz ~ 3.8GHz | PCB Trace | 7 | 2.5, 1.8, 2.4, 1.8, 1.4, 2.1, 4.1 | -7.4dB, -10.9dB, -7.7dB, -10.9dB, -15.6dB, -9.0dB, -4.3dB | 3.6dBi, 4.9dBi, 6.3dBi, 5.1dBi, 5.0dBi, 4.6dBi, 3.1dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | 2G, 3G, 4G, Beidou, COMPASS, GALILEO, GLONASS, GNSS, GPS, GSM, LoRaWAN, LPWA, LTE, LTE-M, NB-Iot, UMTS |
|

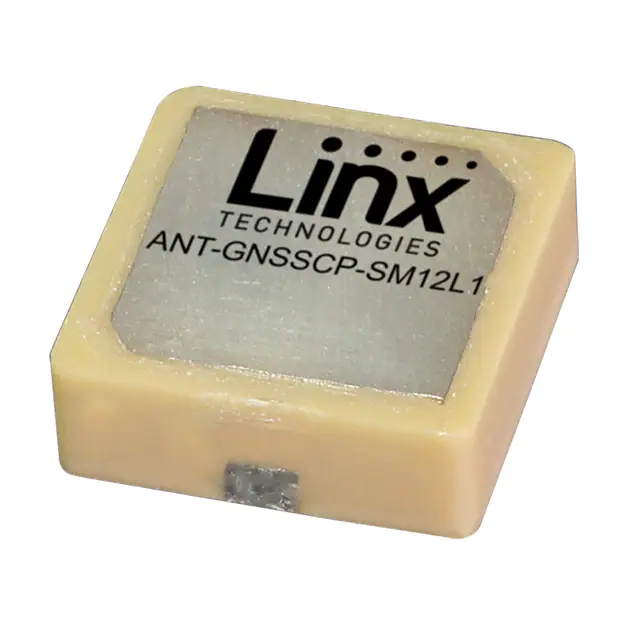

ANT-GNSSCP-SM12L1RF ANT GNSS PATCH L1 12X12 SMD |
743 | - |
|
Datasheet | GNSSCP | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.567GHz ~ 1.609GHz | Ceramic Patch | 2 | 7, 6.1 | -2.5dB, -2.9dB | 2.9dBi, 1dBi | 8 W | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
ANT-916-CW-RCSRF ANT 916MHZ WHIP RA RP-SMA MAL |
531 | - |
|
Datasheet | RCS | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 886MHz ~ 946MHz | Whip, Right Angle | 1 | 1.9 | - | 3.3dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.106" (53.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-2.4-CW-RAH-RPSRF ANT 2.4GHZ WHIP RA RP-SMA MAL |
2,513 | - |
|
Datasheet | RAH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Right Angle | 1 | 2 | - | 1.6dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.008" (25.60mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
ANT-2.4-CW-RH-RPSRF ANT 2.4GHZ WHIP STR RP-SMA ML |
328 | - |
|
Datasheet | RH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.39GHz ~ 2.49GHz | Whip, Straight | 1 | 2 | - | -0.9dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.063" (27.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|

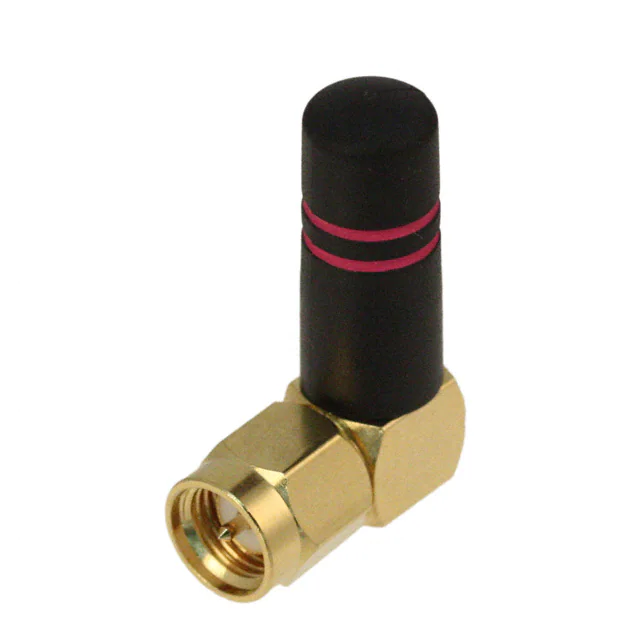

ANT-2.4-CW-RAH-SMARF ANT 2.4GHZ WHIP RA SMA MALE |
1,106 | - |
|
Datasheet | RAH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Right Angle | 1 | 2 | - | 1.6dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.008" (25.60mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
ANT-2.4-CW-RH-SMARF ANT 2.4GHZ WHIP STR SMA MALE |
247 | - |
|
Datasheet | RH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.39GHz ~ 2.49GHz | Whip, Straight | 1 | 2 | - | -0.9dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.063" (27.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
ANT-916-CW-RCLRF ANT 916MHZ WHIP RA RP-SMA MAL |
213 | - |
|
Datasheet | RCL | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 840MHz ~ 990MHz | Whip, Right Angle | 1 | 1.7 | - | -2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.465" (88.00mm) | ISM, LoRa, Sensor Networks, SigFox |
