RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-916-CW-RH-SMARF ANT 916MHZ WHIP STR SMA MALE |
273 | - |
|
Datasheet | RH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 935MHz | Whip, Straight | 1 | 1.9 | - | -1.3dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.008" (51.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|

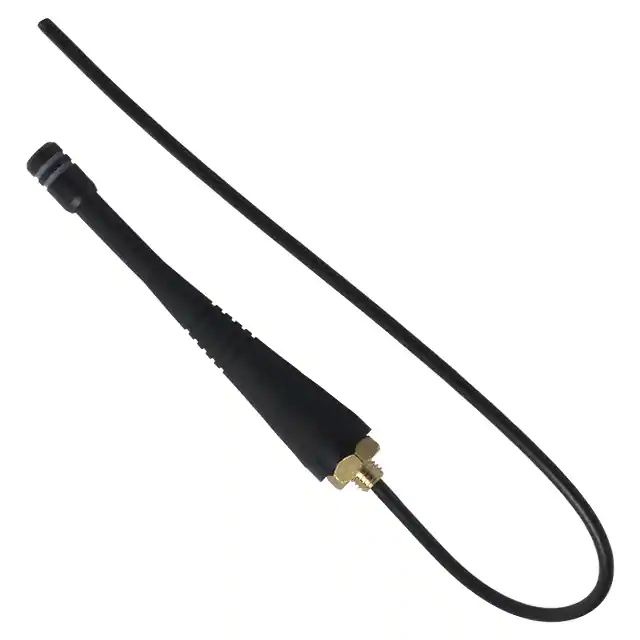

ANT-868-PW-QWRF ANT 868MHZ WHIP STR CAB PAN |
373 | - |
|
Datasheet | PW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 750MHz ~ 950MHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | Cable - 216mm | Solder | - | - | - | Panel Mount | 3.307" (84.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-433-PW-QWRF ANT 433MHZ WHIP STR CAB PAN |
174 | - |
|
Datasheet | PW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 400MHz ~ 470MHz | Whip, Straight | 1 | 1.9 | - | 3.3dBi | - | Cable - 216mm | Solder | - | - | - | Panel Mount | 6.811" (173.00mm) | Alarms, ISM, Remote Control, Security Systems |
|

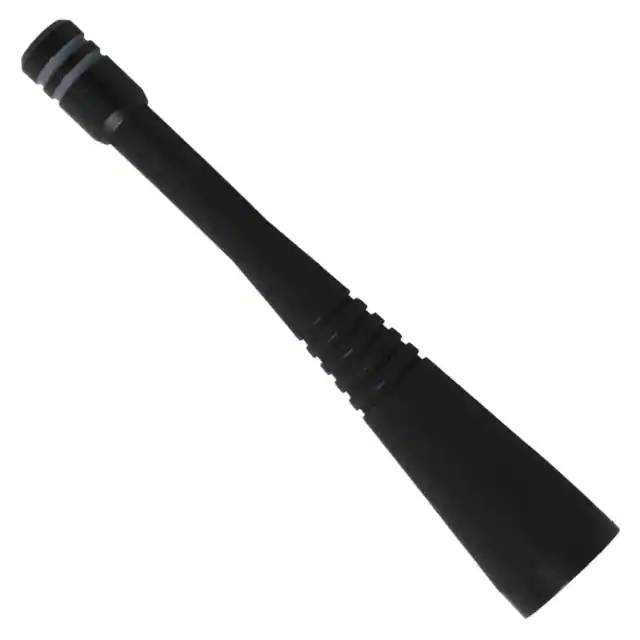

ANT-868-CW-QWRF ANT 868MHZ WHIP STR RP-SMA ML |
1,025 | - |
|
Datasheet | CW | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 700MHz, 750MHz, 800MHz, 900MHz, 950MHz | 750MHz ~ 950MHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.307" (84.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-2.4-CW-HWRF ANT 2.4GHZ WHIP STR RP-SMA ML |
1,228 | - |
|
Datasheet | HW | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.3GHz ~ 2.6GHz | Whip, Straight | 1 | 2 | - | 3.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.724" (120.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
ANT-433-CW-HD-SMARF ANT 433MHZ WHIP STR SMA MALE |
6,473 | - |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 420MHz ~ 445MHz | Whip, Straight | 1 | 2 | - | 0.7dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.465" (88.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
ANT-916-OC-LG-SMARF ANT 916MHZ WHIP TILT SMA MALE |
736 | - |
|
Datasheet | OC | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 895MHz ~ 935MHz | Whip, Tilt | 1 | 2 | - | 2.2dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.618" (193.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|

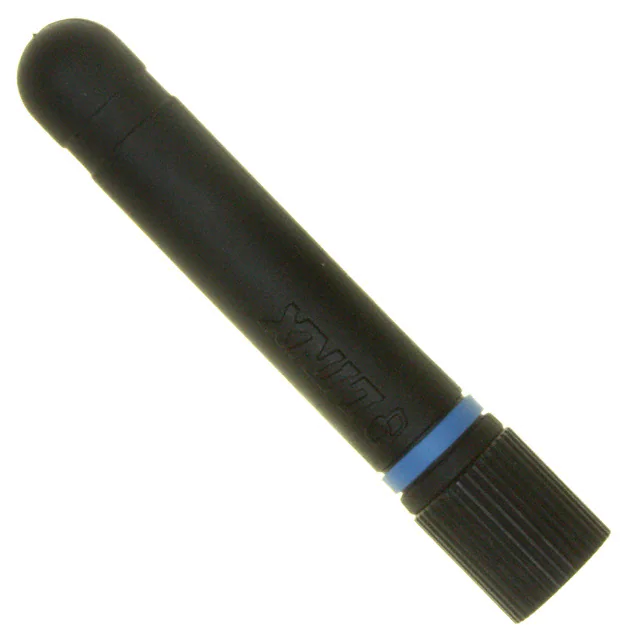

ANT-418-CW-RH-SMARF ANT 418MHZ WHIP STR SMA MALE |
266 | - |
|
Datasheet | RH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 413MHz ~ 423MHz | Whip, Straight | 1 | 1.9 | - | -6.7dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.008" (51.00mm) | Alarms, ISM, Remote Control, Security Systems |
|

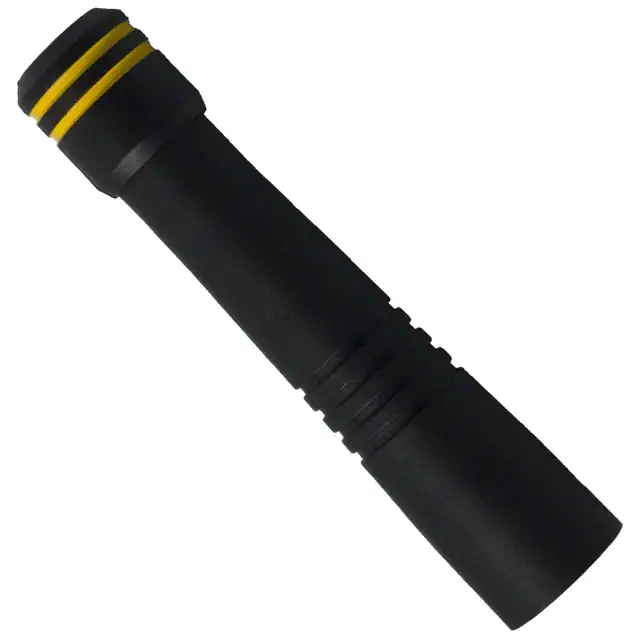

ANT-916-CW-HDRF ANT 916MHZ WHIP STR RP-SMA ML |
185 | - |
|
Datasheet | HD | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 873MHz ~ 958MHz | Whip, Straight | 1 | 2 | - | -0.3dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.559" (65.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-868-CW-HW-SMARF ANT 868MHZ WHIP STR SMA MALE |
481 | - |
|
Datasheet | HW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 855MHz ~ 880MHz | Whip, Straight | 1 | 1.9 | - | 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 5.335" (135.50mm) | ISM, LoRa, Sensor Networks, SigFox |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
