RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-916-USPRF ANT 916MHZ CHIP SOLDER SMD |
438 | - |
|
Datasheet | microSplatch™ | Tube | Discontinued at Digi-Key | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 904MHz ~ 928MHz | Chip | 1 | 1.9 | - | 0.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.100" (2.54mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-8/9-PW-LPNANT 868/915MHZ HELIC SCRW MNT |
1,586 | - |
|
Datasheet | ANT-8/9-PW-LPN | Tray | Obsolete | 802.15.4, General ISM, WiFi | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 862MHz ~ 876MHz, 902MHz ~ 930MHz | Helical | 2 | 1.7, 2.5 | - | 5.8dBi, 6.8dBi | 15 W | - | Solder | - | - | - | Screw Mount | 1.846" (46.90mm) | 802.11ah, ISM, LoRaWAN, SigFox, Wi-Fi, Zigbee™ |
|
ANT-418-USP-TRF ANT 418MHZ CHIP SOLDER SMD |
2,000 | - |
|
Datasheet | microSplatch™ | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 413MHz ~ 423MHz | Chip | 1 | 2 | - | -8.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.103" (2.62mm) | Alarms, ISM, Remote Control, Security Systems |
|
ANT-403-SPRF ANT 403MHZ CHIP SOLDER SMD |
1,815 | - |
|
Datasheet | Splatch® | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 403MHz | 400MHz ~ 405MHz | Chip | 1 | 1.9 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | MICS |
|
ANT-916-SPRF ANT 916MHZ CHIP SOLDER SMD |
143 | - |
|
Datasheet | Splatch® | Tube | Discontinued at Digi-Key | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 930MHz | Chip | 1 | 1.9 | - | 1.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-458-SPRF ANT 458MHZ CHIP SOLDER SMD |
2,735 | - |
|
Datasheet | Splatch® | Bag | Discontinued at Digi-Key | General ISM | UHF (300MHz ~ 1GHz) | 458MHz | 454MHz ~ 462MHz | Chip | 1 | 1.9 | - | -5.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Alarms, ISM, Remote Control, Security Systems |
|
|
ANT-433-SPRF ANT 433MHZ CHIP SOLDER SMD |
3,366 | - |
|
Datasheet | Splatch® | Tube | Discontinued at Digi-Key | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 429MHz ~ 437MHz | Chip | 1 | 1.9 | - | -6.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Alarms, ISM, Remote Control, Security Systems |
|

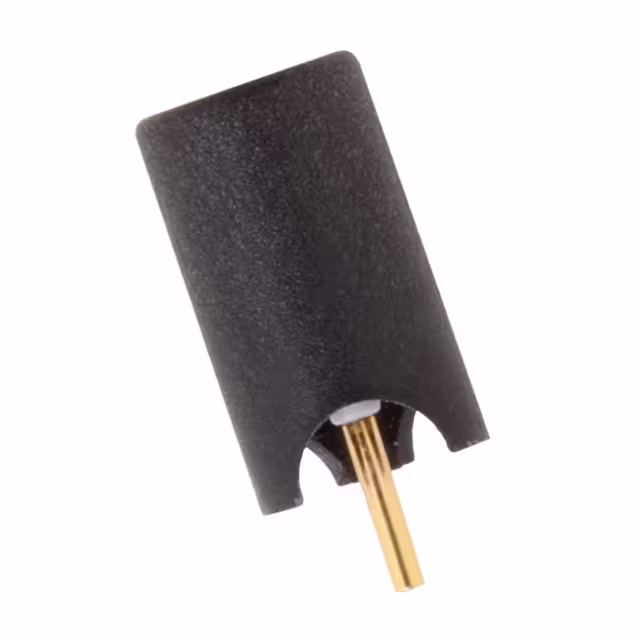

ANT-868-JJB-HT-TRF ANT 868 MHZ DOME SLD TH |
4,402 | - |
|
Datasheet | JJB-HT | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 855MHz ~ 890MHz | Whip, Straight | 1 | 2 | - | -10.5dBi | - | - | Solder | - | - | - | Through Hole | 0.480" (12.20mm) | ISM, LoRaWAN, Sigfox |
|
ANT-W63WS4-RPSRF ANT 2.4/5/6GHZ WIFI6 TILT RPS |
1,684 | - |
|
Datasheet | W63WSx | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Blade, Tilt | 3 | 1.2, 1.6, 1.8 | - | 2.6dBi, 5.5dBi, 5.5dBi | 10 W | - | RP-SMA Male | - | - | - | Connector Mount | 7.071" (179.60mm) | 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|

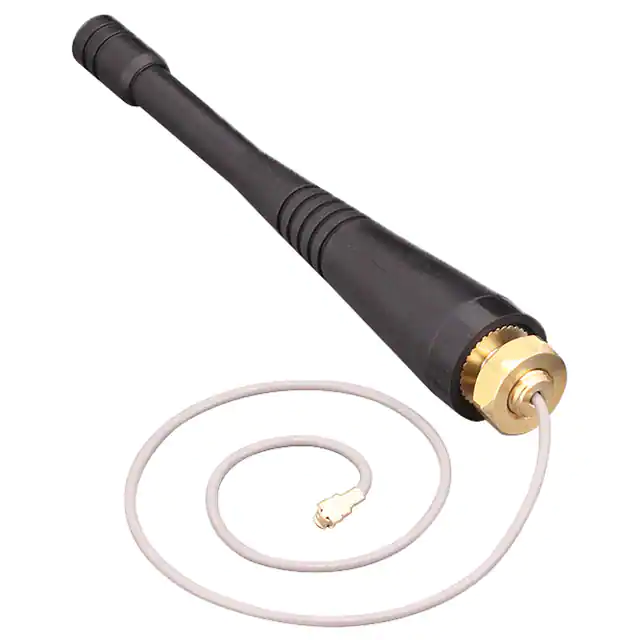

ANT-B20-PW-QW-UFLRF ANT LTE B20 WHIP STR CAB PAN |
194 | - |
|
Datasheet | PW | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 826MHz | 790MHz ~ 870MHz | Whip, Straight | 1 | 2.1 | - | 1.6dBi | 10 W | Cable - 216mm, O-Ring Compatible | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 3.531" (89.70mm) | Cellular, GSM, LTE, NB-IoT, UMTS |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
