RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-W63-FPC-LH100UFANT WIFI6 FPC 45X7 100MM UFL |
2,216 | - |
|
Datasheet | ANT-W63-FPC-LH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.4, 1.7, 1.8 | - | 4.5dBi, 6.3dBi, 10.1dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/-c/ax, Bluetooth, ISM, U-NII, Wi-Fi, Zigbee™ |
|

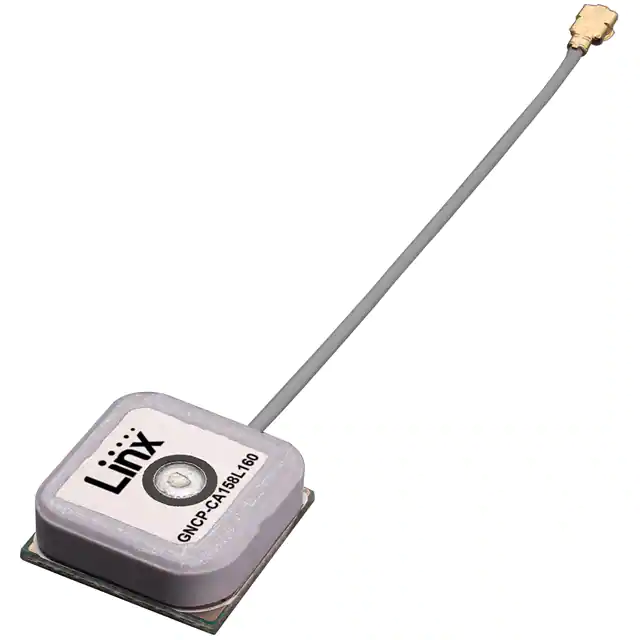

ANT-GNCP-CA158L160RF ANT GNSS GPS 18MM PATCH LNA |
1,085 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.5897GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.567GHz ~ 1.5836GHz, 1.5876GHz ~ 1.5917GHz, 1.593GHz ~ 1.6086GHz | Ceramic Patch | 4 | 1.4, 1.5, 2.4, 3.5 | - | 6.7dBi, 13.9dBi, 13.9dBi, 12.4dBi | - | Cable - 60mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.260" (6.60mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

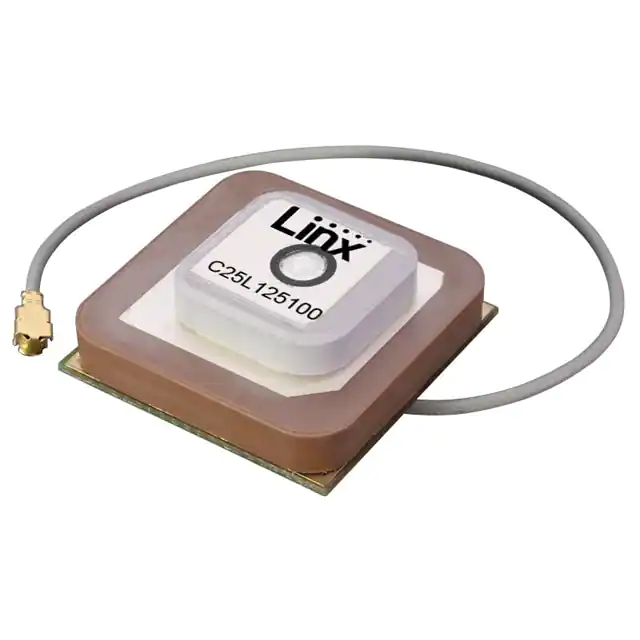

ANT-GNCP-C25L125100RF ANT GNSS L1L2L5 25X25 LNA UFL |
4,517 | - |
|
Datasheet | GNCP | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.202GHz, 1.227GHz, 1.248GHz, 1.561GHz, 1.575GHz, 1.601GHz | 1.1164GHz ~ 1.189GHz, 1.197GHz ~ 1.25GHz, 1.559GHz ~ 1.606GHz | Ceramic Patch | 7 | 2.2, 1.4, 1.6, 1.3, 1.4, 1.4, 1.4 | -8.4dB, -15.6dB, -13.2dB, -17.5dB, -15.4dB, -15.4dB, -16.4dB | 29.1dBi, 18.2dBi, 26.6dBi, 10.4dBi, 25.3dBi, 26.9dBi, 23.9dBi | - | Cable - 100mm | U.FL | - | - | - | Surface Mount | 0.472" (12.00mm) | Beidou, COMPASS, GALILEO, GLONASS, GPS, IRNSS, NavIC, Qzss |
|
ANT-W63WS5-SMARF ANT 2.4/5/6GHZ WIFI7 BLADE |
4,103 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.025GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Blade, Tilt | 3 | 1.3, 2, 2.1 | - | 8.4dBi, 4.9dBi, 4dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 5.339" (135.60mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|

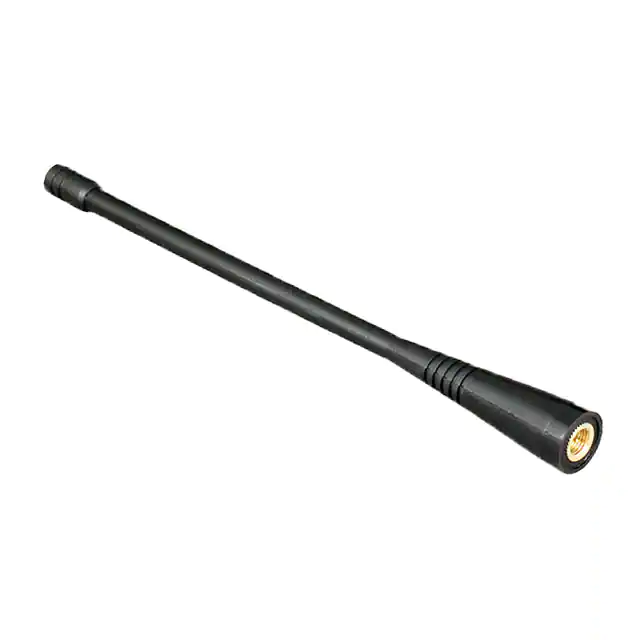

ANT-490-CW-QW-SMARF ANT 490MHZ WHIP STR SMA PLUG |
3,410 | - |
|
Datasheet | CW | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 480MHz, 500MHz | 470MHz ~ 510MHz | Whip, Straight | 1 | 1.5 | - | 1.3dBi | 10 W | O-Ring Compatible | SMA Male | - | - | - | Connector Mount | 6.209" (157.70mm) | GSM, ISM, LoRaWAN, LTE, SIGFOX |
|

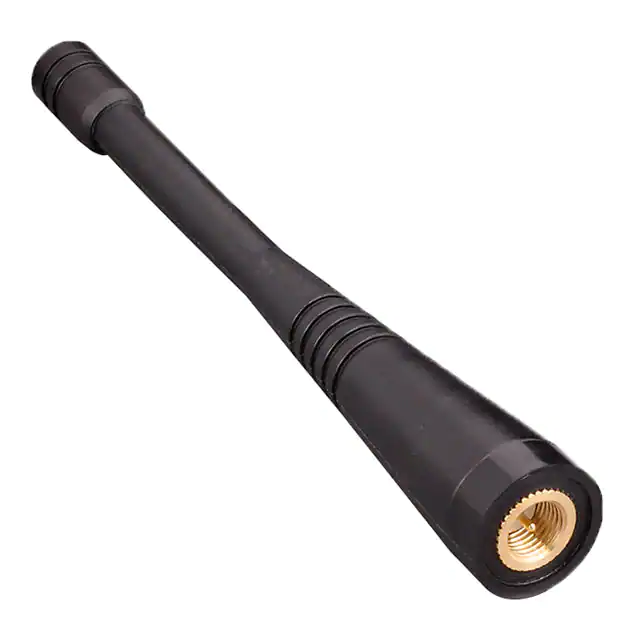

ANT-B28-CW-QW-SMARF ANT LTE B28 WHIP STR SMA PLUG |
1,899 | - |
|
Datasheet | CW | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 700MHz,750MHz, 800MHz | 703MHz ~ 810MHz | Whip, Straight | 1 | 2.7 | - | 1.7dBi | 10 W | O-Ring Compatible | SMA Male | - | - | - | Connector Mount | 3.874" (98.40mm) | GSM, LTE, NB-IoT, UMTS |
|
ANT-5GW-MMG1-SMA-1RF ANT 5G CELLULAR MAG 1M SMA |
1,211 | - |
|
Datasheet | - | Bag | Active | Cellular, General ISM | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.9475GHz, 2.495GHz, 3.75GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz | Whip, Straight | 8 | 2, 2.1, 2.2, 2.3, 2.7, 2.9, 3.1, 3.6 | - | -0.4dBi, 2.5dBi, 2.5dBi, 2.5dBi, -1.5dBi, 2.1dBi, 1.7dBi, 3.5dBi | 10 W | Cable - 1m | SMA Male | - | - | - | Magnetic | 3.260" (82.80mm) | 2G, 3G, 4G, 5G, Cellular, ISM, LTE, NB-IoT |
|

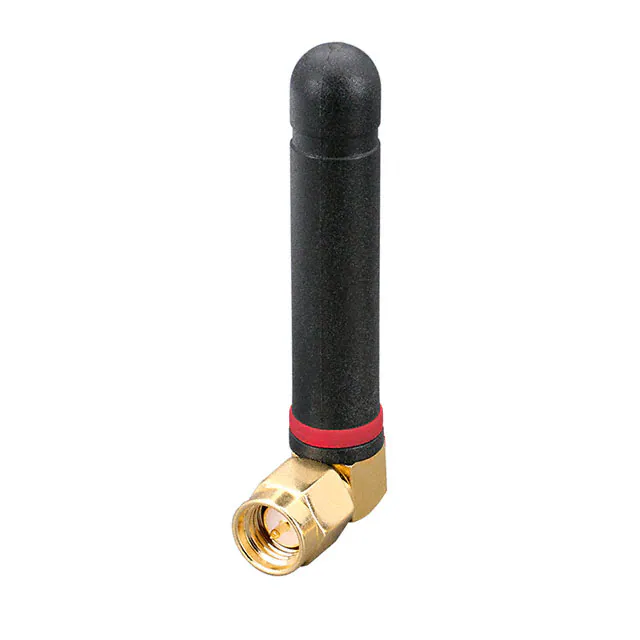

ANT-433-CW-RAH-SMARF ANT 433MHZ WHIP RA SMA MALE |
3,084 | - |
|
Datasheet | RAH | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 425MHz ~ 440MHz | Whip, Right Angle | 1 | 1.9 | - | -5dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.850" (47.00mm) | Alarms, ISM, Remote Control, Security Systems |
|

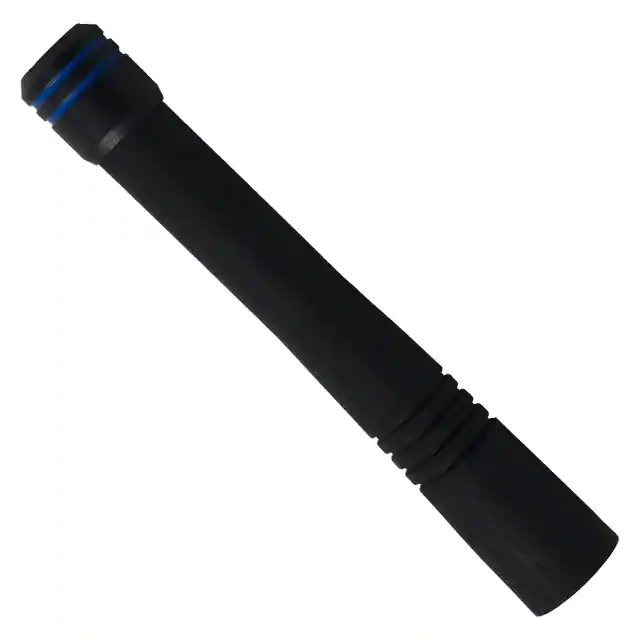

ANT-418-CW-HDRF ANT 418MHZ WHIP STR RP-SMA ML |
4,320 | - |
|
Datasheet | HD | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 410MHz ~ 425MHz | Whip, Straight | 1 | 2 | - | -1.8dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.543" (90.00mm) | Alarms, ISM, Remote Control, Security Systems |
|

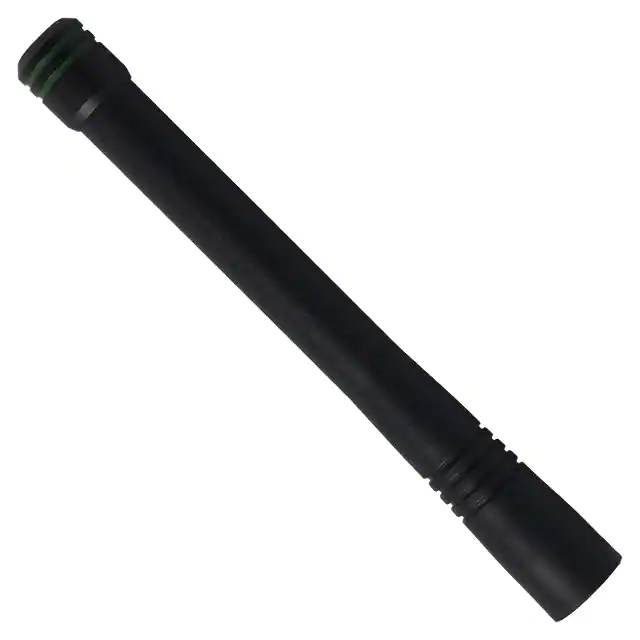

ANT-315-CW-HDRF ANT 315MHZ WHIP STR RP-SMA ML |
4,259 | - |
|
Datasheet | HD | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 315MHz | 310MHz ~ 320MHz | Whip, Straight | 1 | 2 | - | - | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.606" (117.00mm) | Alarms, ISM, Remote Control, Security Systems |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
