RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L000810-80EVALUATION BOARD ASSY - L000810- |
4,180 | - |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 3.748GHz | 2.496GHz ~ 5GHz | PCB Trace | 1 | 2.6 | - | 6dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | 5G, CBRS |
|
|
L000657-80EVALUATION BOARD ASSY - L000657- |
3,443 | - |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 2.808GHz | 617MHz ~ 5GHz | PCB Trace | 1 | 4.5 | - | 6dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | 5G, LTE, UMTS, WCDMA |
|
|
L000670-80L000670-01 ANTENNA WITH EVB ASSY |
1,296 | - |
|
Datasheet | - | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.583GHz | 1.175GHz ~ 1.177GHz, 1.56GHz ~ 1.607GHz | PCB Trace | 2 | 2.5 | - | 3dBi, 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | GNSS, GPS |
|
|
L000684-03PANEL,TRI-BAND,75CM, RP-SMAM, 2P |
2,566 | - |
|
Datasheet | - | Bag | Active | WiFi | Wide Band | 2.45GHz, 5.45GHz, 6.5625GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz, 6GHz ~ 7.125GHz | Panel | 3 | 2 | - | 6.1dBi, 6.1dBi, 5.4dBi | 2 W | Cable - 750mm | RP-SMA (2) | IP67 | - | - | Bracket Mount | 1.831" (46.50mm) | 802.11b/g/n/ac/ax, Wi-Fi, WLAN |
|
|
L000684-04PANEL,TRI-BAND,75CM, RP-SMAM, 4P |
3,588 | - |
|
Datasheet | - | Bag | Active | WiFi | Wide Band | 2.45GHz, 5.45GHz, 6.5625GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz, 6GHz ~ 7.125GHz | Panel | 3 | 2 | - | 6.1dBi, 6.1dBi, 5.4dBi | 2 W | Cable - 750mm | RP-SMA (4) | IP67 | - | - | Bracket Mount | 1.831" (46.50mm) | 802.11b/g/n/ac/ax, Wi-Fi, WLAN |
|
ANT-433-USPRF ANT 433MHZ CHIP SOLDER SMD |
3,283 | - |
|
Datasheet | microSplatch™ | Tube | Discontinued at Digi-Key | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 430MHz ~ 437MHz | Chip | 1 | 1.9 | - | -9.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.103" (2.62mm) | Alarms, ISM, Remote Control, Security Systems |
|

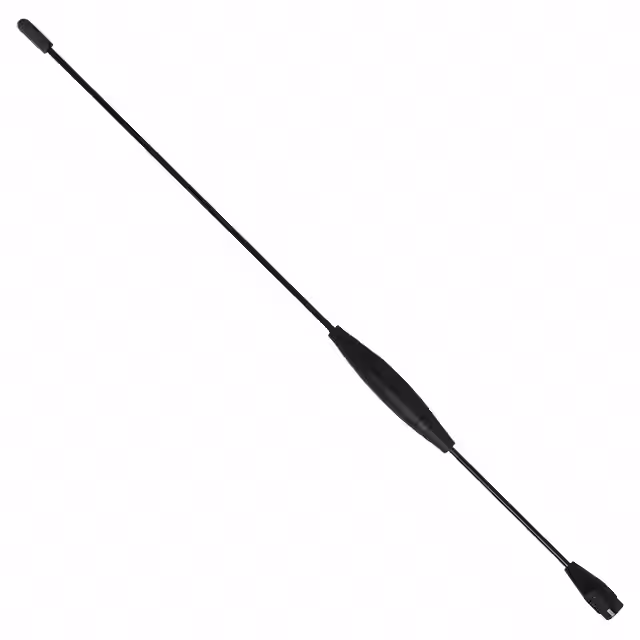

ANT-ELE-S01-008RF ANT 892MHZ/1.85GHZ WHIP STR |
4,047 | - |
|
Datasheet | MAG | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Straight | 2 | 2 | - | - | - | - | M5 | - | - | - | Magnetic | 12.750" (323.85mm) | - |
|
ANT-8/9-VDP-2000-SMARF ANT 868/915MHZ WHIP CTR FED |
4,763 | - |
|
Datasheet | VDP | Bag | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 800MHz, 850MHz, 900MHz, 916MHz | 863MHz ~ 873MHz, 902MHz ~ 928MHz | Flat Bar | 3 | 1.9 | - | 0.6dBi, 0.5dBi | 10 W | Cable - 2m | SMA Male | IP67 | - | - | Adhesive | 0.264" (6.71mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-8/9-HDP-2000-RPSRF ANT 868/915MHZ WHIP CTR FED |
1,573 | - |
|
Datasheet | HDP | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 800MHz, 850MHz, 900MHz, 916MHz | 863MHz ~ 873MHz, 902MHz ~ 928MHz | Whip, Center-Fed Double | 3 | 1.9 | - | 0.6dBi, 0.5dBi | 10 W | Cable - 2m | RP-SMA Male | IP67 | - | - | Adhesive | 0.244" (6.20mm) | ISM, LoRa, Sensor Networks, SigFox |
|
|
ANT-W63-IPW3-NPRF ANT WIFI7/6/6E WLAN WHIP N PL |
4,539 | - |
|
Datasheet | - | Bag | Obsolete | 802.15.4, Bluetooth, WiFi | Wide Band | 2.442GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Straight | 3 | 2.2, 2.9 | - | 4.4dBi, 7.2dBi, 4.1dBi | 2 W | - | N Type Male | IP67 | - | - | Connector Mount | 6.945" (176.40mm) | 802.11ac, 802.11ax, 802.11b/g, 802.11n, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
