RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L000605-04ISM FPC ANT, VDP, MHF4L-TYPE, 50 |
2,510 | - |
|
Datasheet | FPC | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 440MHz | 410MHz ~ 470MHz | Flat Patch | 1 | 1.5 | - | 3dBi | 10 W | Cable - 48.77mm | MHF4 | - | - | - | Adhesive | 0.060" (1.52mm) | ISM |
|

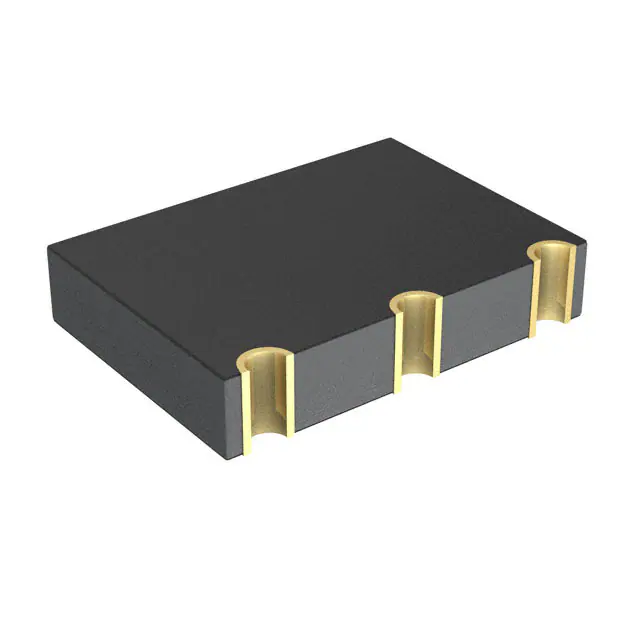

ANT-433-USP-TRF ANT 433MHZ CHIP SOLDER SMD |
3,958 | - |
|
Datasheet | microSplatch™ | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 429MHz ~ 437MHz | Chip | 1 | 2 | - | -9.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.103" (2.62mm) | Alarms, ISM, Remote Control, Security Systems |
|
ANT-W63-FPC-SH200UFANT WIFI6 FPC 25X20 200MM UFL |
4,624 | - |
|
Datasheet | ANT-W63-FPC-SH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.5, 1.6, 1.8 | - | 4.7dBi, 7.8dBi, 8.5dBi | 2 W | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/ac/ax, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee™ |
|
|
ANT-W63-FPC-SH150M4ANT WIFI6 FPC 25X20 150MM MHF4 |
2,418 | - |
|
Datasheet | ANT-W63-FPC-SH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.5, 1.6, 1.8 | - | 4.7dBi, 7.8dBi, 8.5dBi | 2 W | Cable - 150mm | I-PEX MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/ac/ax, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee™ |
|
|
L000607-03LPWA FPC ANT, VDP, MHF-TYPE, 150 |
4,186 | - |
|
Datasheet | FPC | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 440MHz | 410MHz ~ 470MHz | Flat Patch | 1 | 2.7 | - | 0dBi | 10 W | Cable - 149.352mm | MHF1 | - | - | - | Adhesive | 0.060" (1.52mm) | ISM |
|
|
L000604-06ISM FPC ANT, HDP, MHF4L-TYPE, 15 |
4,647 | - |
|
Datasheet | FPC | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 440MHz | 410MHz ~ 470MHz | Flat Patch | 1 | 1.4 | - | 0dBi | 10 W | Cable - 149.352mm | MHF4 | - | - | - | Adhesive | 0.060" (1.52mm) | ISM |
|
|
L000605-03ISM FPC ANT, VDP, MHF-TYPE, 150M |
1,680 | - |
|
Datasheet | FPC | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 440MHz | 410MHz ~ 470MHz | Flat Patch | 1 | 1.9 | - | 0dBi | 10 W | Cable - 149.352mm | MHF1 | - | - | - | Adhesive | 0.060" (1.52mm) | ISM |
|
|
L000606-06LPWA FPC ANT, HDP, MHF4L-TYPE, 1 |
1,459 | - |
|
Datasheet | FPC | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 440MHz | 410MHz ~ 470MHz | Flat Patch | 1 | 2.9 | - | 0dBi | 10 W | Cable - 149.352mm | MHF4 | - | - | - | Adhesive | 0.060" (1.52mm) | ISM |
|
ANT-2.4-FPC-SF150UFANT 2.4 FPC 25X20 150 CBL UFL |
4,901 | - |
|
Datasheet | ANT-2.4-FPC-SF | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.9 | - | 3.9dBi | 2 W | Cable - 150mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
ANT-GNFPC-SHL1200UFRF ANT GNSS FPC L1 200MM UFL |
3,740 | - |
|
Datasheet | ANT-GNFPC-SHL1 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Flat Patch | 4 | 1.6, 1.9 | - | 3.2dBi, 3.2dBi, 2.6dBi, 2.6dBi | 2 W | Cable - 200mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
