RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L000694-01CERAMIC PATCH ANT, 1561-1602MHZ, |
2,941 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.581GHz | 1.561GHz ~ 1.602GHz | Ceramic Patch | 1 | 2.6 | - | 6dBi | - | - | Solder | - | - | - | Solder | 0.236" (6.00mm) | GNSS, GPS |
|
|
L000694-80CERAMIC PATCH WITH EVB, 1561-160 |
1,958 | - |
|
Datasheet | - | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.52GHz | - | Ceramic Patch | 1 | 2.6 | - | 6dBi | - | - | Solder | - | - | - | Solder | 0.236" (6.00mm) | GNSS, GPS |
|
|
L000697-01CERAMIC PATCH ANT, 2400-2500MHZ, |
3,964 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | 2.7 | - | 6dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | 802.11a/b/g/n, Bluetooth, WiMax, Zigbee™ |
|
ANT-2.4-USPRF ANT 2.4GHZ CHIP SOLDER SMD |
4,192 | - |
|
Datasheet | microSplatch™ | Tube | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.37GHz ~ 2.54GHz | Chip | 1 | 2 | - | 3.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|

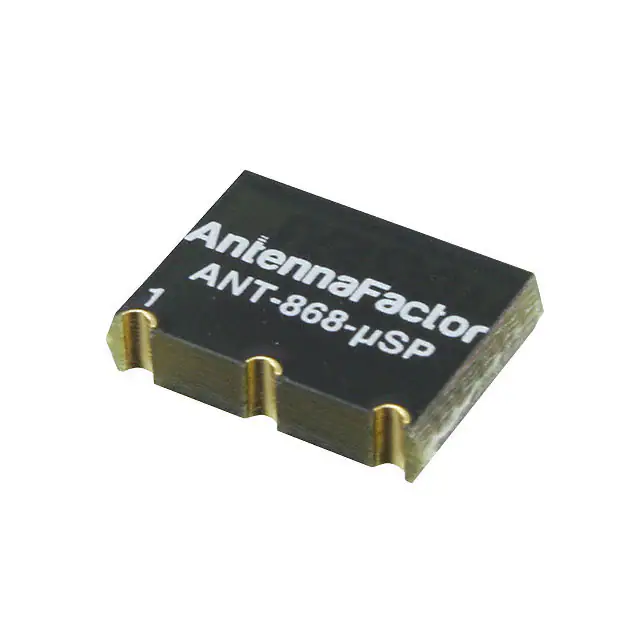

ANT-868-USPRF ANT 868MHZ CHIP SOLDER SMD |
4,742 | - |
|
Datasheet | microSplatch™ | Tube | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 859MHz ~ 877MHz | Chip | 1 | 1.9 | - | 0.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.100" (2.54mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-W63-FPC-LH50UFANT WIFI6 FPC 45X7 50MM UFL |
2,581 | - |
|
Datasheet | ANT-W63-FPC-LH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.4, 1.7, 1.8 | - | 4.5dBi, 6.3dBi, 10.1dBi | 2 W | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/ac/ax, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee™ |
|
|
ANT-W63-FPC-LV50UFANT WIFI6 FPC 45X7 50MM UFL |
3,511 | - |
|
Datasheet | ANT-W63-FPC-LV | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.522GHz, 6.537GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.5, 1.6 | - | 4.8dBi, 6.3dBi, 7.4dBi | 2 W | Cable - 50mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
ANT-W63-FPC-LH150UFANT WIFI6 FPC 45X7 150MM UFL |
4,093 | - |
|
Datasheet | ANT-W63-FPC-LH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.4, 1.7, 1.8 | - | 4.5dBi, 6.3dBi, 10.1dBi | 2 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/ac/ax, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee™ |
|
|
ANT-W63-FPC-LV150UFANT WIFI6 FPC 45X7 150MM UFL |
3,426 | - |
|
Datasheet | ANT-W63-FPC-LV | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.522GHz, 6.537GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.5, 1.6 | - | 4.8dBi, 6.3dBi, 7.4dBi | 2 W | Cable - 150mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
ANT-W63-FPC-LH50M4ANT WIFI6 FPC 45X7 50MM MHF4 |
3,084 | - |
|
Datasheet | ANT-W63-FPC-LH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.4, 1.7, 1.8 | - | 4.5dBi, 6.3dBi, 10.1dBi | 2 W | Cable - 50mm | I-PEX MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g/ac/ax, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee™ |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
