RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

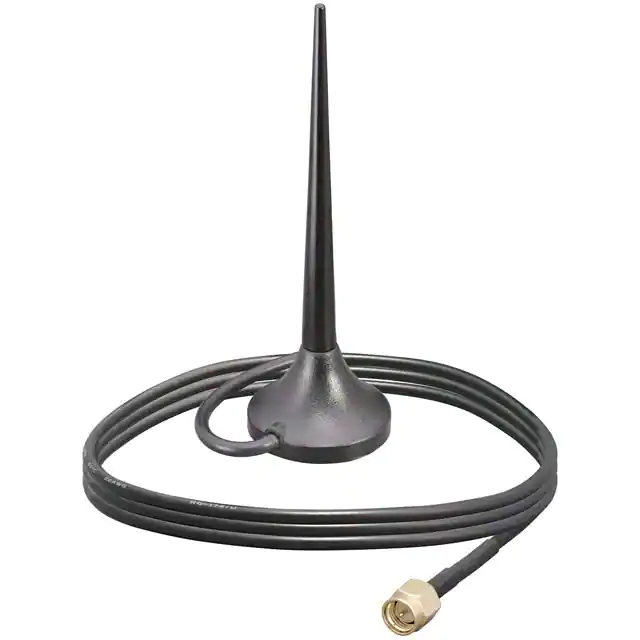

ANT-5GW-MMG2-SMA-2RF ANT 5G CELLULAR MAG 2M SMA |
3,191 | - |
|
Datasheet | ANT-5GW-MMG2-SMA | Bag | Active | Cellular, General ISM | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.9475GHz, 2.495GHz, 3.75GHz, 4.7GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Whip, Straight | 9 | 1.6, 2.3, 2.4, 2.5, 2.8, 3.1, 5.7 | - | -0.5dBi, 3.4dBi, 3.4dBi, 3.3dBi, 0.7dBi, 3.2dBi, 3.6dBi, 4.7dBi, 2.4dBi | 10 W | Cable - 2m | SMA Male | - | - | - | Magnetic | 3.484" (88.50mm) | 2G, 3G, 4G, 5G, Cellular, ISM, LTE, NB-IoT |
|
|
ANT-5GW-MMG2-SMA-3RF ANT 5G CELLULAR MAG 3M SMA |
4,434 | - |
|
Datasheet | ANT-5GW-MMG2-SMA | Bag | Active | Cellular, General ISM | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.9475GHz, 2.495GHz, 3.75GHz, 4.7GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Whip, Straight | 9 | 1.6, 2.3, 2.4, 2.5, 2.8, 3.1, 5.7 | - | -0.5dBi, 3.4dBi, 3.4dBi, 3.3dBi, 0.7dBi, 3.2dBi, 3.6dBi, 4.7dBi, 2.4dBi | 10 W | Cable - 3m | SMA Male | - | - | - | Magnetic | 3.484" (88.50mm) | 2G, 3G, 4G, 5G, Cellular, ISM, LTE, NB-IoT |
|

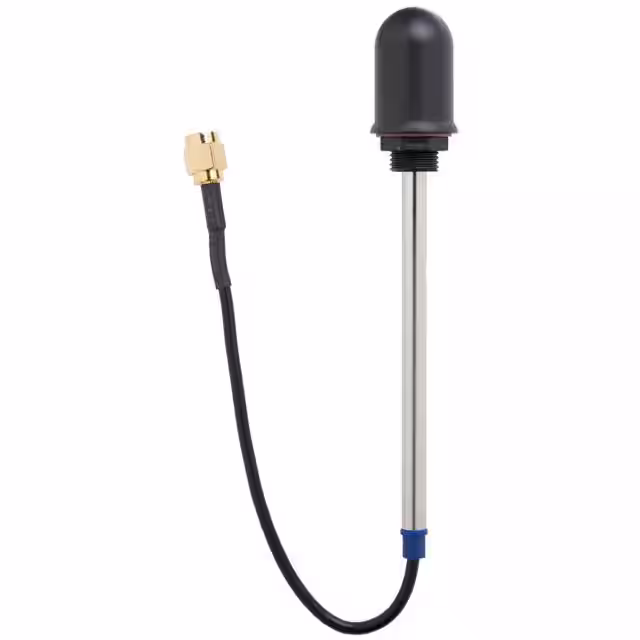

ANT-410-WRT-UFL-150RF ANT 410MHZ DOME UFL -150 |
2,317 | - |
|
Datasheet | WRT | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 418.5MHz | 410MHz ~ 427MHz | Dome | 1 | 2.5 | - | -0.5dBi | 5 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 1.063" (27.00mm) | LTE, Sensor Networks |
|
ANT-DB1-VDP-TNCRF ANT 892MHZ/1.85GHZ FLAT BAR |
3,763 | - |
|
Datasheet | VDP | Bulk | Active | - | Wide Band | 892MHz, 1.85GHz, 2.45GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 2.4GHz ~ 2.48GHz | Flat Bar | 3 | 1.5, 1.9, 1.9 | - | -1.8dBi, -1.7dBi, -1.3dBi | - | Cable - 3m | TNC | - | - | - | Adhesive | 0.177" (4.50mm) | - |
|

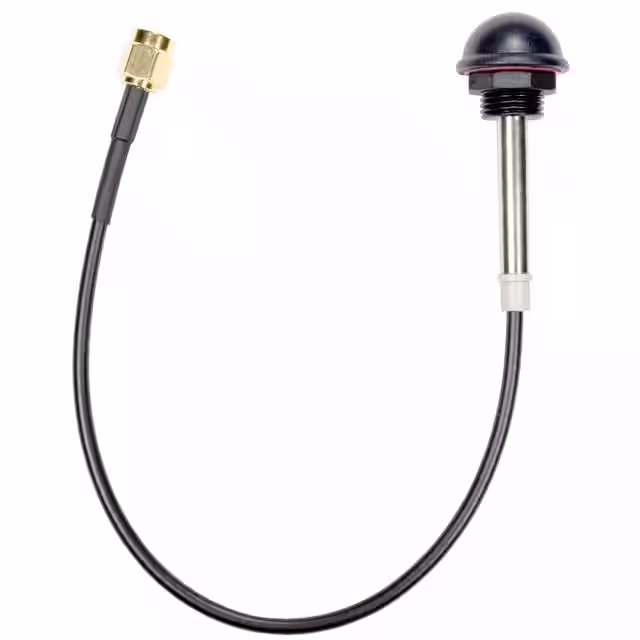

ANT-DB1-WRT-SMA-150RF ANT 2.4/5GHZ DOME SMA -150 |
2,864 | - |
|
Datasheet | WRT | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.9, 3.7, 4 | - | 3.2dBi, 6.8dBi, 7dBi | 5 W | Cable - 150mm | SMA Male | - | - | - | Panel Mount | 0.394" (10.00mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
ANT-410-WRT-UFL-250RF ANT 410MHZ DOME UFL -250 |
3,035 | - |
|
Datasheet | WRT | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 418.5MHz | 410MHz ~ 427MHz | Dome | 1 | 2.5 | - | -0.5dBi | 5 W | Cable - 250mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 1.063" (27.00mm) | LTE, Sensor Networks |
|
ANT-DB1-HDP-TNCRF ANT 892MHZ/1.85GHZ FLAT BAR |
2,227 | - |
|
Datasheet | HDP | Bulk | Active | - | Wide Band | 892MHz, 1.85GHz, 2.45GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 2.401GHz ~ 2.483GHz | Flat Bar | 3 | 1.5, 1.9, 1.9 | - | 0.2dBi, -3.3dBi, 0dBi | - | Cable - 3m | TNC | - | - | - | Adhesive | 0.476" (12.10mm) | - |
|

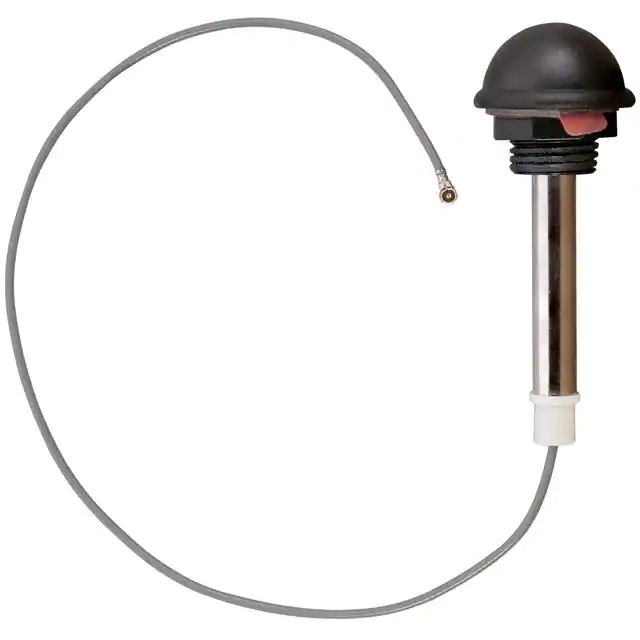

ANT-DB1-WRT-UFL-150RF ANT 2.4/5GHZ DOME UFL -150 |
4,367 | - |
|
Datasheet | WRT | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.9, 3.7, 4 | - | 3.2dBi, 6.8dBi, 7dBi | 5 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.394" (10.00mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
ANT-DB1-WRT-MHF3RF ANT 2.4/5/6GHZ DOME PNL MT MH |
3,029 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.9, 3.7, 4 | - | 3.2dBi, 6.8dBi, 7dBi | 5 W | Cable - 216mm | I-PEX MHF3 | - | - | - | Panel Mount | 0.394" (10.00mm) | 802.11n/ac/ax, Bluetooth, ISM, Wi-Fi, Zigbee™ |
|

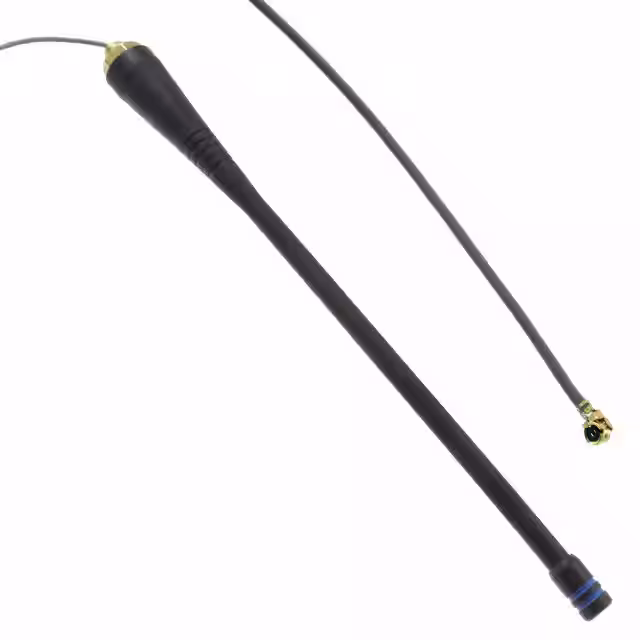

ANT-418-PW-QW-UFLRF ANT 418MHZ WHIP STR CAB PAN |
3,858 | - |
|
Datasheet | PW | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 380MHz ~ 450MHz | Whip, Straight | 1 | 1.9 | - | 2.9dBi | - | Cable - 216mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 7.008" (178.00mm) | Alarms, ISM, Remote Control, Security Systems |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
