RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

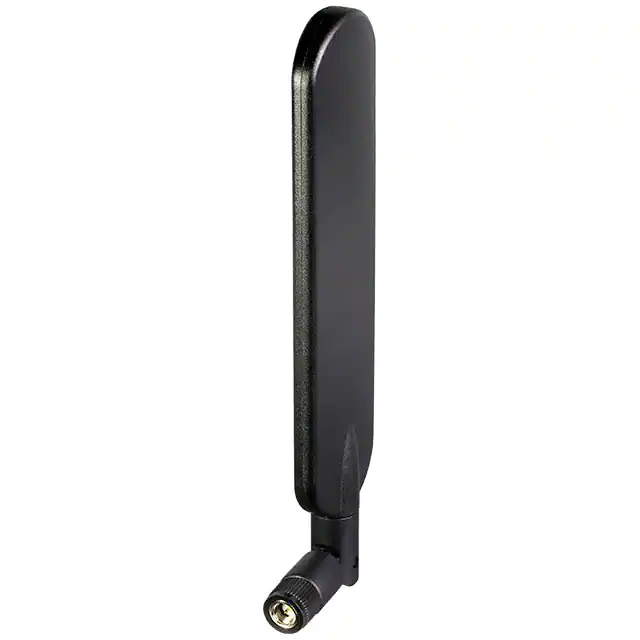

ANT-5GWWS2-SMARF ANT 617MHZ-5GHZ 5G TILT SMA |
4,282 | - |
|
Datasheet | 5GW | Bag | Obsolete | 802.15.4, Bluetooth, Cellular, General ISM | Wide Band | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8 GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 3.3GHz, 3.5GHz, 3.7GHz, 4.9GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 3.7GHz ~ 4.2GHz, 4.94GHz ~ 4.99GHz | Blade, Tilt | 9 | 4, 3.5, 3.5, 2.5, 2.4, 2, 2.3, 2.4, 1.8 | -4.4dB, -5.1dB, -5.1dB, 7.4dB, -7.7dB, -9.5dB, 8.1dB, -7.7dB, -10.9dB | 0.5dBi, 0.5dB, 3.5dBi, 2.9dBi, 1.4dBi, 4dBi, 3.9dBi, 3.5dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 7.323" (186.00mm) | 4G, 5G, Cat-M1, Cellular, GSM, LPWA, LTE, LTE-M, NB-IoT, UMTS |
|

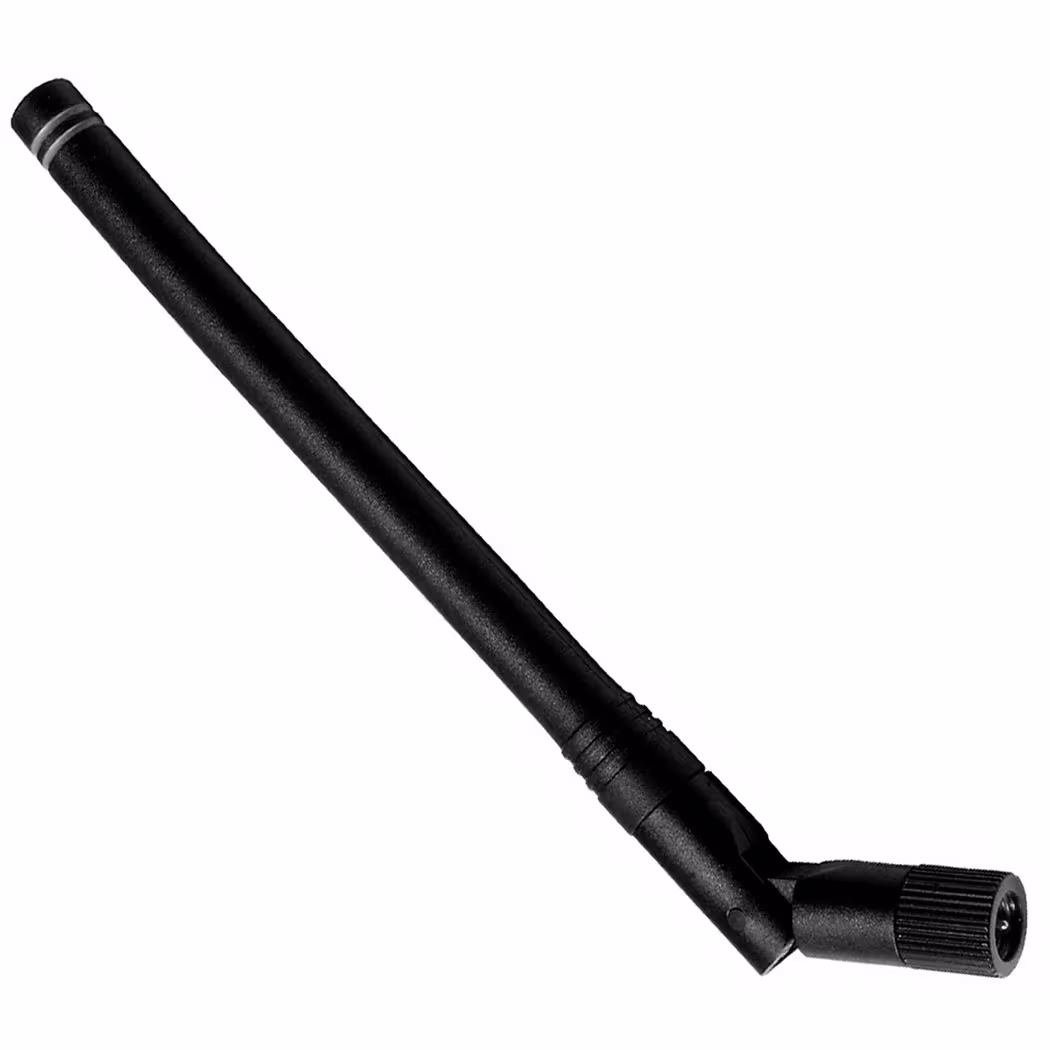

ANT-1.4-CW-HWR-RPSRF ANT 1.4GHZ WHIP TILT RP-SMA |
4,113 | - |
|
Datasheet | HWR | Bulk | Active | - | UHF (1GHz ~ 2GHz) | 1.4GHz | 1.35GHz ~ 1.45GHz | Whip, Tilt | 1 | 2 | - | 2.4dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 5.591" (142.00mm) | - |
|

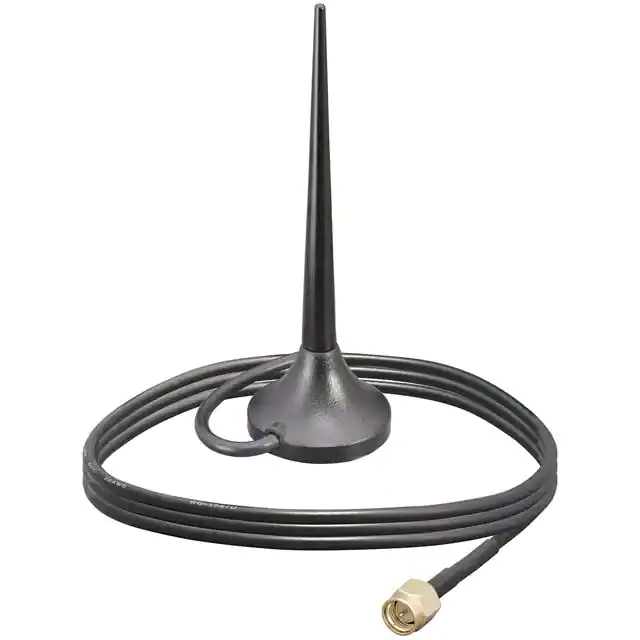

ANT-2.4-MMG2-SMA-2RF ANT 2.4GHZ MAGNETIC 2M SMA |
3,325 | - |
|
Datasheet | ANT-2.4-MMG2-SMA | Bag | Obsolete | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2.2 | - | 2.8dBi | 10 W | Cable - 2m | SMA Male | - | - | - | Magnetic | 3.484" (88.50mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|

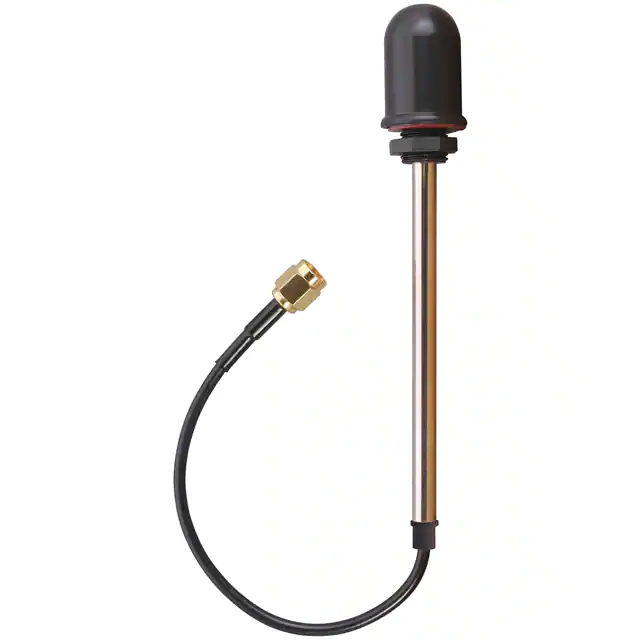

ANT-W63-WRT-RPSRF ANT 2.4/5/6GHZ DOME PNL RP-SM |
3,287 | - |
|
Datasheet | WRT | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.5, 1.4, 2.2 | -14dB, -15.6dB, -8.5dB | 4.5dBi, 4.5dBi, 6.4dBi | 5 W | Cable - 131mm | RP-SMA | IP67 | - | - | Panel Mount | 1.094" (27.79mm) | 802.11, 802.15.4, Bluetooth, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|
|
ANT-2.4-MMG2-SMA-3RF ANT 2.4GHZ MAGNETIC 3M SMA |
3,493 | - |
|
Datasheet | ANT-2.4-MMG2-SMA | Bag | Obsolete | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2.2 | - | 2.8dBi | 10 W | Cable - 3m | SMA Male | - | - | - | Magnetic | 3.484" (88.50mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
ANT-GNRM-L1A-1ANTENNA, REMOTE ACTIVE CERAMIC P |
1,839 | - |
|
Datasheet | GNRM | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.6015GHz | 1.601GHz ~ 1.602GHz | Module | 3 | 1.2, 1.3, 1.5 | -14.5dB, -19dB, -19.9dB | 32.8dBi, 33.5dBi, 33.4dBi | - | Cable - 1m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.591" (15.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

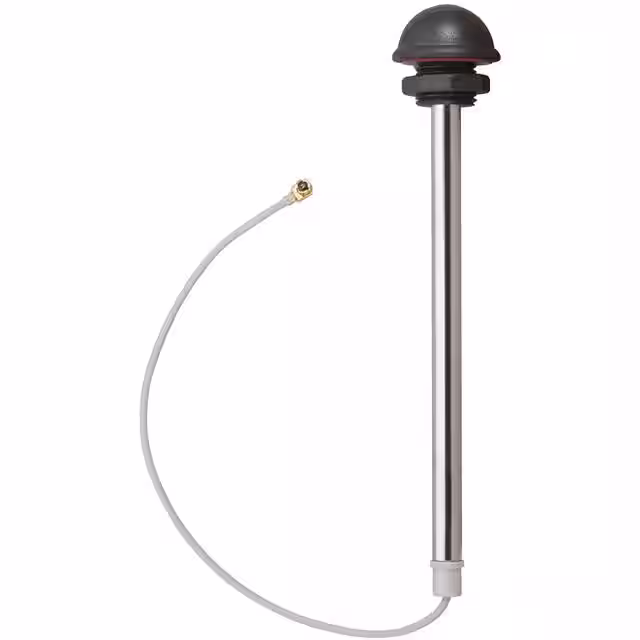

ANT-868-WRT-UFL-300RF ANT 868MHZ DOME UFL -300 |
1,531 | - |
|
Datasheet | WRT | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 862MHz ~ 876MHz | Dome | 1 | 1.4 | - | 3.8dBi | 5 W | Cable - 300mm | SMA Male | - | - | - | Panel Mount | 0.394" (10.00mm) | ISM, LoRaWAN, LPWA, Sigfox |
|
|
ANT-MAG-B85-SMAMAGNETIC BASE, SMA , 85MM |
1,084 | - |
|
Datasheet | - | Bulk | Active | General ISM | - | - | - | Module | - | - | - | - | - | Cable - 332.74mm | SMA | - | - | - | Magnetic | 1.160" (29.46mm) | General Purpose |
|

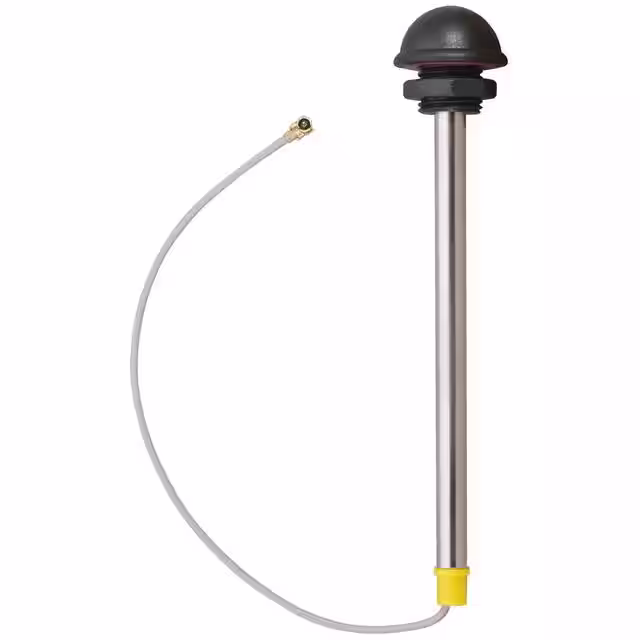

ANT-916-WRT-UFL-300RF ANT 915MHZ DOME UFL -300 |
1,820 | - |
|
Datasheet | WRT | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 930MHz | Dome | 1 | 1.5 | - | 4.4dBi | - | Cable - 300mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.394" (10.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
|
ANT-2.4-CW-RCTA-RPRF ANT 2.4GHZ WHIP TILT RP-SMA |
4,459 | - |
|
Datasheet | RCTA | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Whip, Tilt | 1 | 1.9 | - | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.882" (124.00mm) | - |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
