RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-433-WRT-SMARF ANT 433MHZ DOME SMA ML PNL MT |
4,198 | - |
|
Datasheet | WRT | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 400MHz, 410MHz | 425MHz ~ 441MHz | Dome | 1 | 1.9 | - | -0.9dBi | - | Cable - 216mm | SMA Male | - | - | - | Panel Mount | 1.063" (27.00mm) | Alarms, ISM, Remote Control, Security Systems |
|

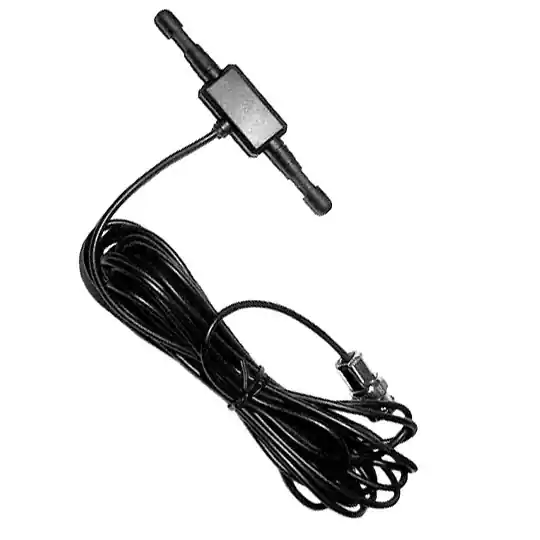

ANT-418-MHW-SMA-SRF ANT 418MHZ WHIP CTR CAB 79" |
1,104 | - |
|
Datasheet | MHW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 408MHz ~ 428MHz | Whip, Center-Fed Double | 1 | 1.9 | - | 2.1dBi | - | Cable - 2m | SMA Male | - | - | - | Adhesive | 5.906" (150.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
|
ANT-418-MHW-SMA-LRF ANT 418MHZ WHIP CTR CAB 180" |
1,504 | - |
|
Datasheet | MHW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 408MHz ~ 428MHz | Whip, Center-Fed Double | 1 | 1.9 | - | 2.1dBi | - | Cable - 4.6m | SMA Male | - | - | - | Adhesive | 5.906" (150.00mm) | Alarms, ISM, Remote Control, Security Systems |
|

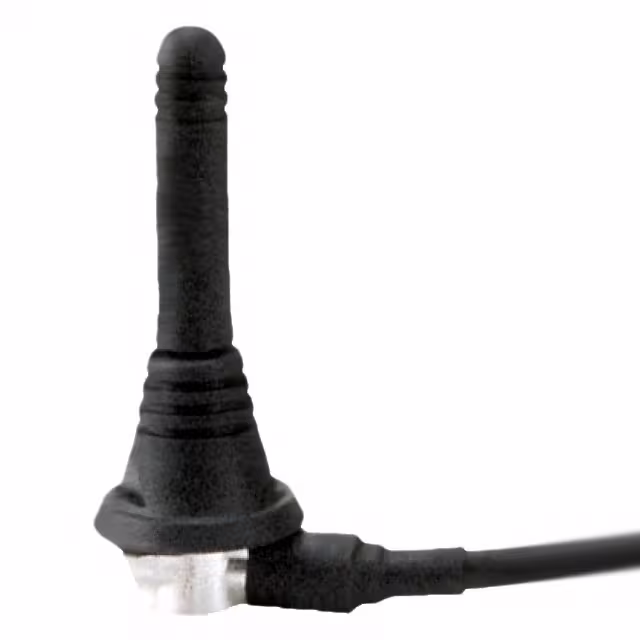

ANT-DB1-RMS-TNCRF ANT 892MHZ/1.9GHZ WHIP STR |
4,580 | - |
|
Datasheet | RMS | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Straight | 2 | 1.5, 2 | - | -0.6dBi, 5.3dBi | - | Cable - 4.3m | TNC | - | - | - | Panel Mount | 2.583" (65.60mm) | - |
|
|
ANT-DB1-RMS-RPSRF ANT 892MHZ/1.9GHZ WHIP STR |
2,416 | - |
|
Datasheet | RMS | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Straight | 2 | 1.5, 2 | - | -0.6dBi, 5.3dBi | - | Cable - 4.3m | RP-SMA Male | - | - | - | Panel Mount | 2.583" (65.60mm) | - |
|
ANT-2/5-HDP-2000-SMARF ANT 2.4GHZ/5.42GHZ FLAT CTR |
4,229 | - |
|
Datasheet | HDP | Bag | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 2.5GHz, 5GHz, 5.7GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.12GHz ~ 5.72GHz, 5.72GHz ~ 5.88GHz | Flat Bar | 3 | 1.9 | - | 4dBi, 1.5dBi, 1.5dBi | 10 W | Cable - 2m | SMA Male | IP67 | - | - | Adhesive | 0.244" (6.20mm) | Bluetooth, Thread, Wi-Fi, Zigbee™, 802.15.4, 802.11, U-NII |
|
ANT-DB1-RMS-SMAMULTI-BAND RMS SERIES VEHICLE RO |
4,435 | - |
|
Datasheet | - | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.85GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Straight | 2 | 1.5, 2 | - | -0.6dBi, 5.3dBi | - | Cable - 358.14mm | SMA | - | - | - | Through Hole | 3.060" (77.72mm) | General Purpose |
|

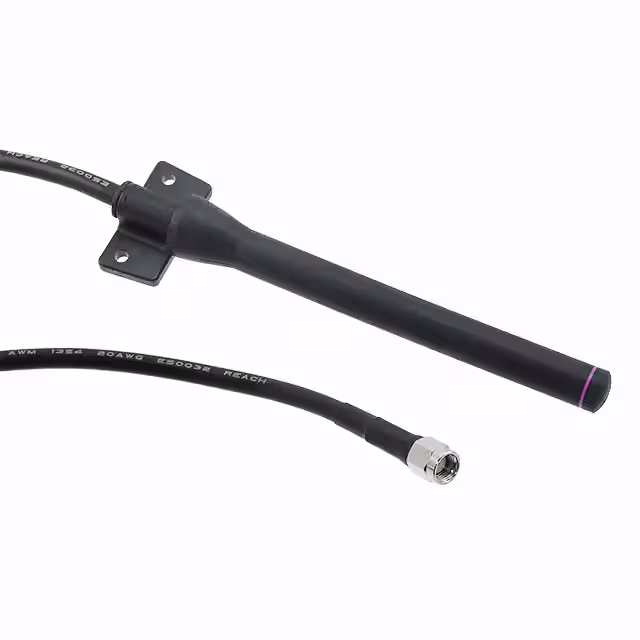

ANT-2.4-ID-1000-RPSRF ANT 2.4GHZ WHIP STR BRK MT 1M |
1,701 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Straight | 1 | 1.9 | - | 3dBi | - | Cable - 1m | RP-SMA Male | IP67 | - | - | Bracket Mount | 4.110" (104.40mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
ANT-916-ID-1000-SMARF ANT 916MHZ WHIP STR BRKT 1M |
1,577 | - |
|
Datasheet | - | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 895MHz ~ 945MHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | Cable - 1m | SMA Male | IP67 | - | - | Bracket Mount | 4.906" (124.60mm) | ISM, LoRa, Sensor Networks, SigFox |
|

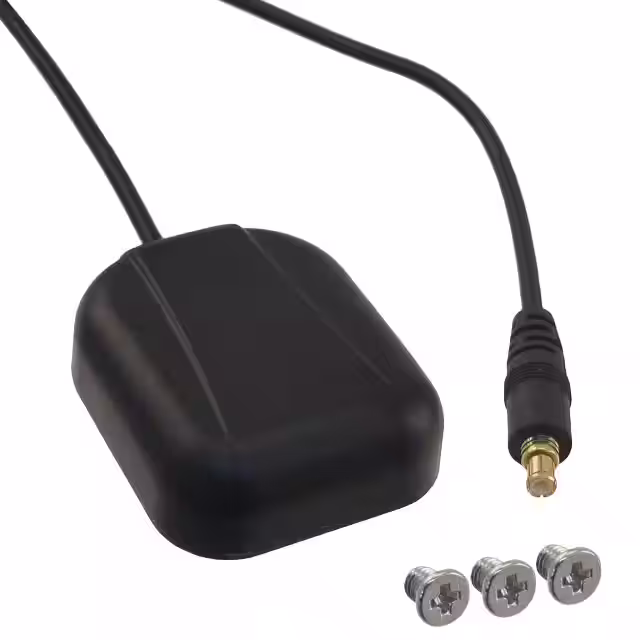

ANT-GPS-SH-MCXRF ANT 1.575GHZ MOD MCX CONN 3M |
2,353 | - |
|
Datasheet | SH | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.570GHz ~ 1.580GHz | Module | 1 | 1.5 | - | 5dB | - | LNA | MCX | - | - | - | Magnetic, Chassis Mount | 0.492" (12.50mm) | GPS |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
