RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H2U66J1K2C0100915MHZ ISM 902-928MHZ MONOPOLE C |
3,714 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM, WiFi | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Chip | 1 | 2 | - | -0.98dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | ISM, Wi-Fi |
|

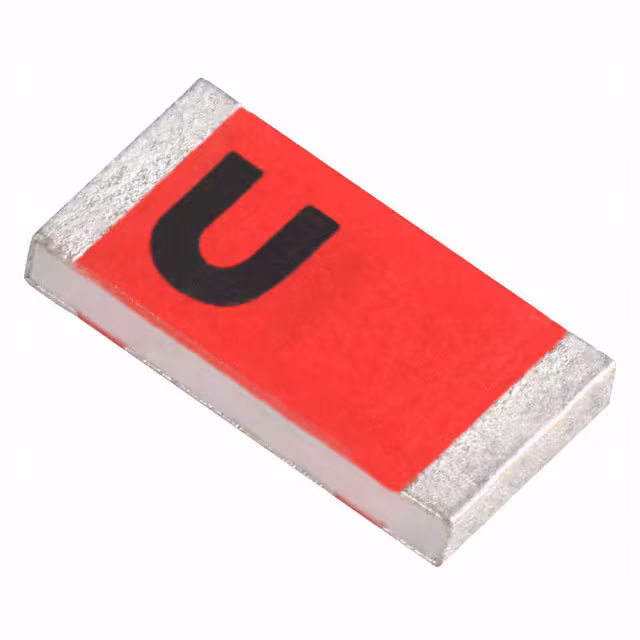

H2U94W1H1G0300WIFI+GNSS 1560-1610 2400-2500MHZ |
3,783 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 1.575GHz, 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 2 | 2 | - | 1.3dBi, 1.8dBi | - | - | Solder | - | Automotive | AEC-Q200 | Surface Mount | 0.020" (0.50mm) | Bluetooth, GPS, Wi-Fi, Zigbee™ |
|
|
H2UC4W1H2D0300DUAL BAND WIFI+GNSS 1560-1610 24 |
3,561 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation, WiFi | Wide Band | 1.575GHz, 2.45GHz, 5.5GHz | 1.575GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Chip | 3 | 2, 3 | - | 0.4dBi, 1.5dBi, 2.3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | 802.11a/b/g/n/ac, GPS, Wi-Fi |
|
|
H2B4KF1F1N0200GSM 3G 824-960 1710-2170 MHZ FPC |
3,110 | - |
|
Datasheet | - | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | 3 | - | 0.8dBi, 2.7dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.006" (0.15mm) | 3G, GSM |
|
H2U36D2K1B0100PILLAR CHIP ANTENNA WIFI/BT 2400 |
2,798 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 3.4dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.394" (10.00mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi |
|
|
H2U66K1K2J0100433MHZ ISM 433-434.8MHZ MONOPOLE |
4,639 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 433.92MHz, 460MHz | 433.05MHz ~ 434.79MHz, 450MHz ~ 470MHz | Chip | 2 | 2, 2.5 | - | -0.2dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | ISM, LTE |
|
|
H2UA6K2K1N0200GSM 3G CHIP 824-960 1710-2170 MH |
1,549 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 2 | 3 | - | 1.1dBi, 2.4dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | 3G, GSM |
|
|
H2UE6P1K2G0100UNICTRON CC40D7 - GSM & 3G, CHIP |
4,884 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 2 | 3 | - | 1.7dBi, 2.9dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | 2G, 3G, GSM |
|
|
H2UE6Q1K2G0100LTE/4G+ FULL BAND 617-698 698-96 |
2,297 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | Wide Band | 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.59GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz | Chip | 5 | 3.5 | - | 2.1dBi, 2.3dBi, 5.8dBi, 6.4dBi, 6.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | 2G, 3G, CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|
|
H2UE6P1K2R0100GSM 3G CHIP 824-960 1710-2170 MH |
2,966 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 2 | 3 | - | 1.7dBi, 2.9dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | 3G, GSM |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
