RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

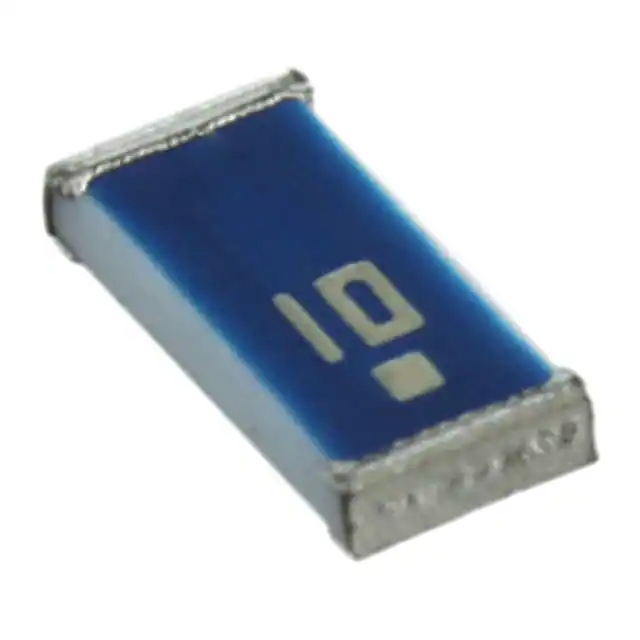

RFECA3216060A1TRF ANT 2.4GHZ CHIP SOLDER SMD |
12,650 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 2.1 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.024" (0.60mm) | - |
|

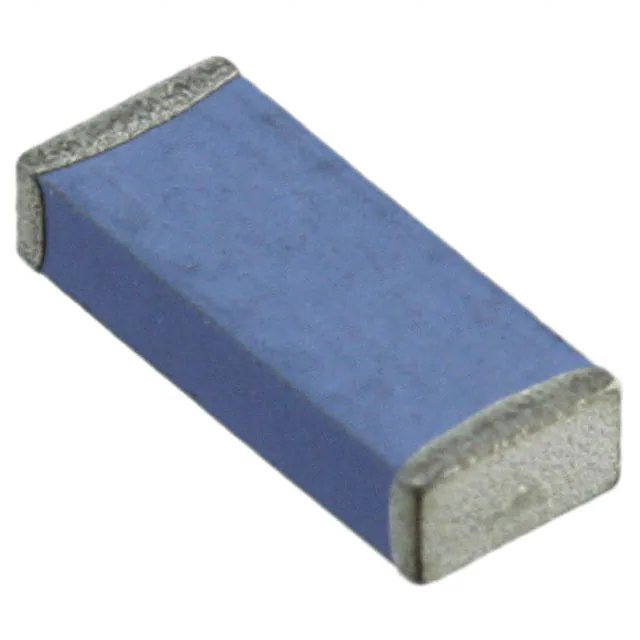

RFANT5220110A2TRF ANT 2.4GHZ CHIP SOLDER SMD |
4,125 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.045" (1.15mm) | Bluetooth, WLAN |
|

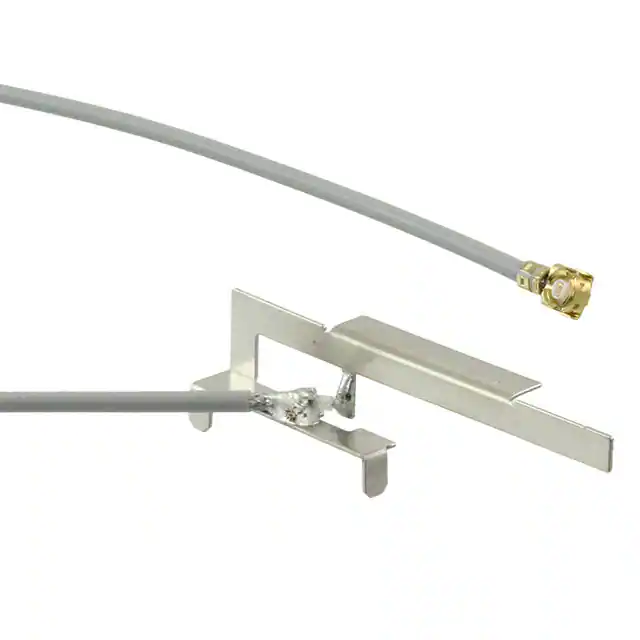

RFMTA310819IMAB701RF ANT 2.4GHZ STAMPED MET IPEX |
3,014 | - |
|
Datasheet | - | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | -10dB | 5.8dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.331" (8.40mm) | ISM |
|

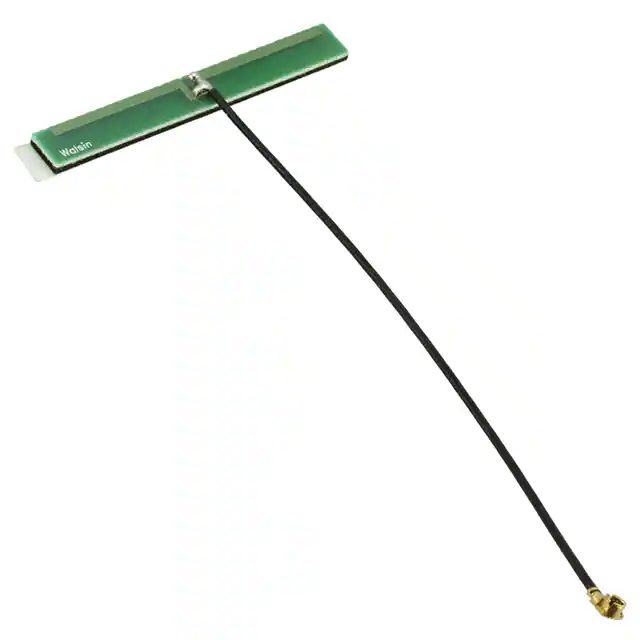

RFPCA460611IMAB301RF ANT 2.4GHZ PCB TRACE IPEX MAL |
399 | - |
|
Datasheet | - | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | -10dB | 3.8dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.051" (1.30mm) | ISM |
|

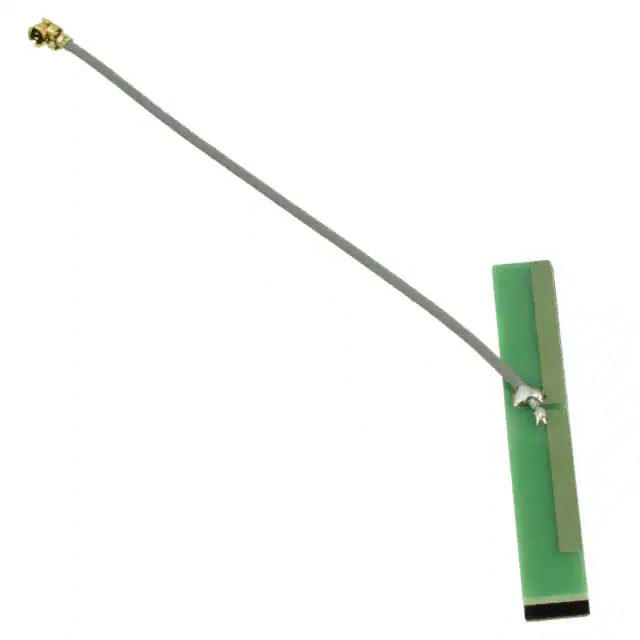

RFPCA500609IMAB301RF ANT 2.4GHZ PCB TRACE IPEX MAL |
369 | - |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | -10dB | 4.5dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.087" (2.20mm) | - |
|

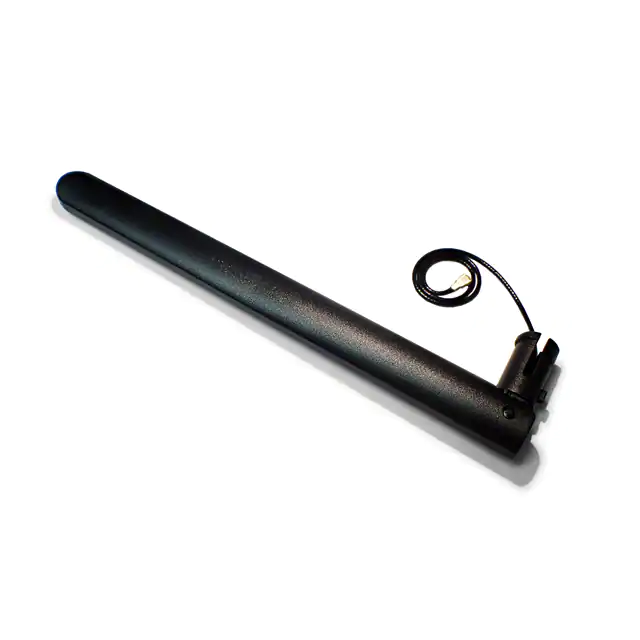

RFDPA131015IMBB301RF ANT 863-928MHZ IPEX DIPOLE |
2,776 | - |
|
Datasheet | - | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 895.5MHz | 863MHz ~ 928MHz | Whip, Tilt | 1 | 2 | -10dB | 0.9dBi | - | Cable - 150mm | I-PEX | - | - | - | Connector Mount | 6.024" (153.00mm) | GSM |
|
RFDPA870900SBAB8G1RF ANT 2.4GHZ WHIP TILT RP-SMA |
755 | - |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Tilt | 1 | 2 | -10dB | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.425" (87.00mm) | - |
|

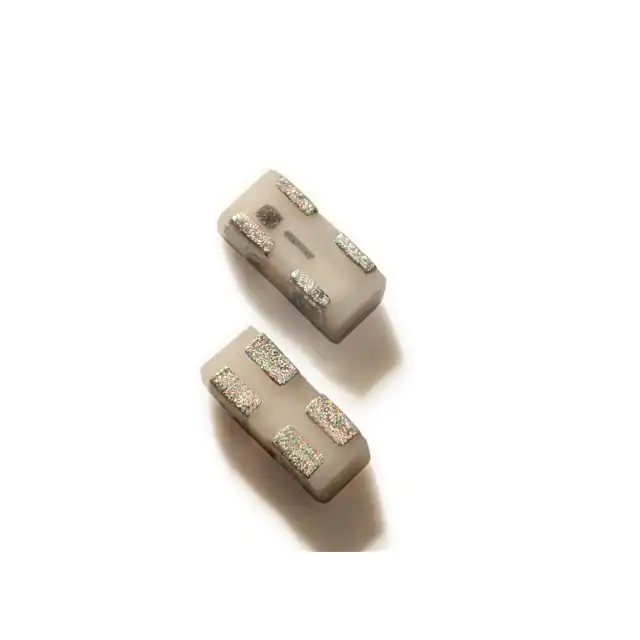

RFANT1005040A1TRF ANT 2.4GHZ ISM SMD |
3,224 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2.6 | -7dB | 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.015" (0.37mm) | ISM |
|

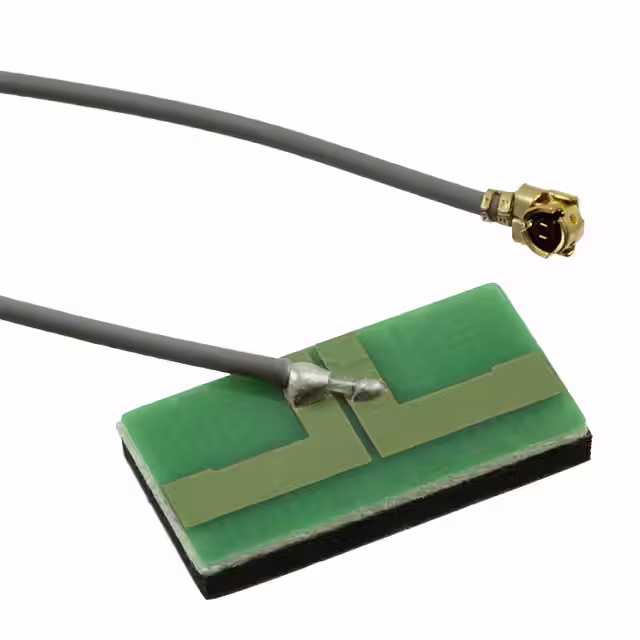

RFPCA201018IM5B301RF ANT 5.5GHZ PCB TRACE IPEX MAL |
1,043 | - |
|
Datasheet | - | Bulk | Active | - | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.85GHz | PCB Trace | 1 | 2 | -10dB | 5.4dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.087" (2.20mm) | - |
|

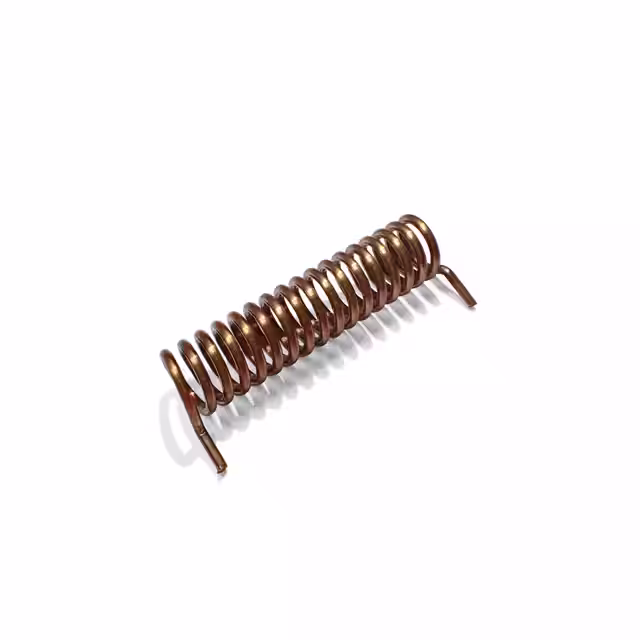

RFMTA080217NNUB002RF ANT 315MHZ METAL |
1,525 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 315MHz | - | Helical | 1 | 2 | -10dB | - | - | - | Solder | - | - | - | Surface Mount | 1.500" (38.10mm) | - |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
