RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

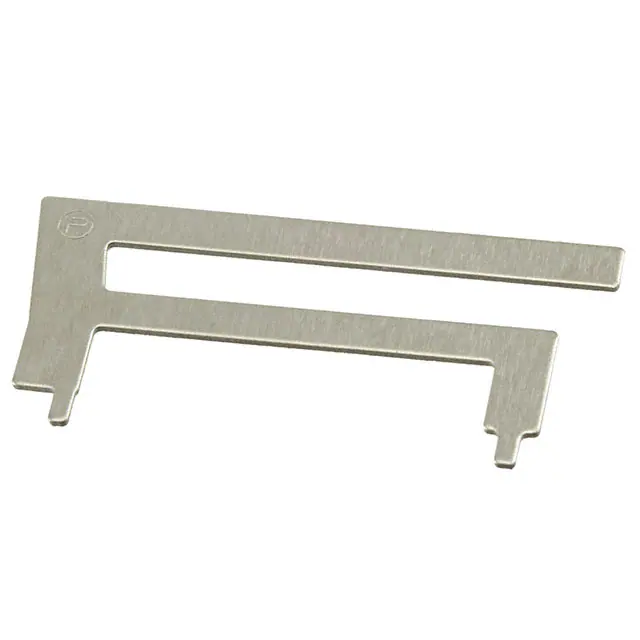

RFMTA271200NNAB001RF ANT 2.4GHZ STAMPED MET SLD |
154 | - |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | -10dB | 3.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
|

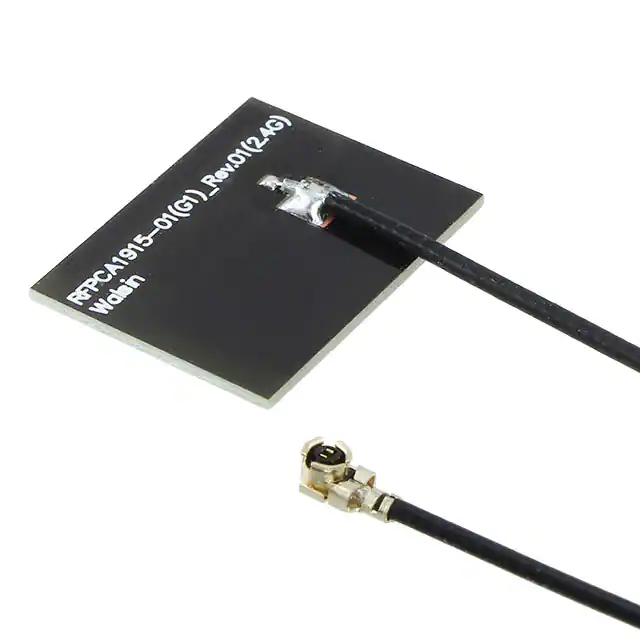

RFPCA191515IMAB3G1RF ANT 2.4GHZ PCB TRACE IPEX ADH |
4,240 | - |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | PCB Trace | 1 | - | - | - | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | - |
|

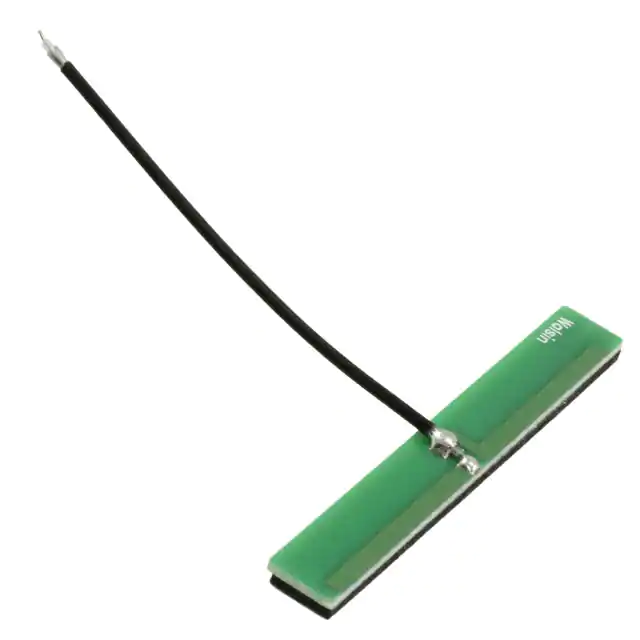

RFPCA460605NNAB301RF ANT 2.4GHZ PCB TRACE CAB ADH |
221 | - |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | -10dB | 3.8dB | 1 W | Cable - 50mm | - | - | - | - | Adhesive | 0.051" (1.30mm) | - |
|

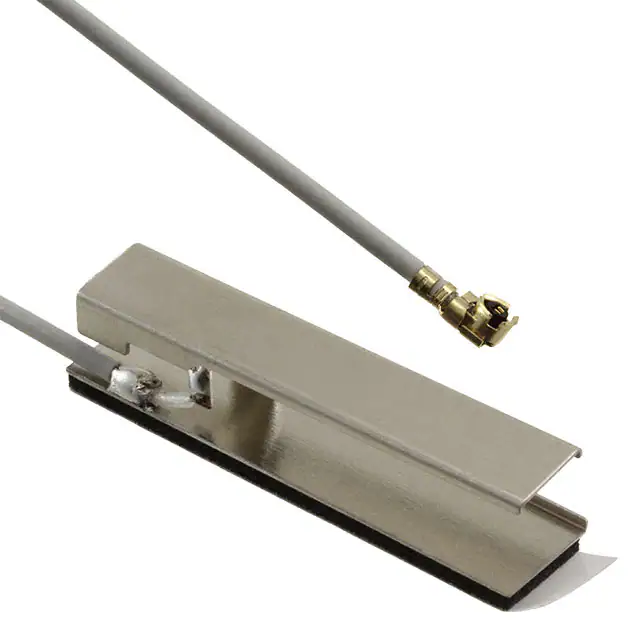

RFMTA340745IMAB701RF ANT 2.4GHZ STAMPED MET IPEX |
1,854 | - |
|
Datasheet | - | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | -10dB | 3.4dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.236" (6.00mm) | ISM |
|

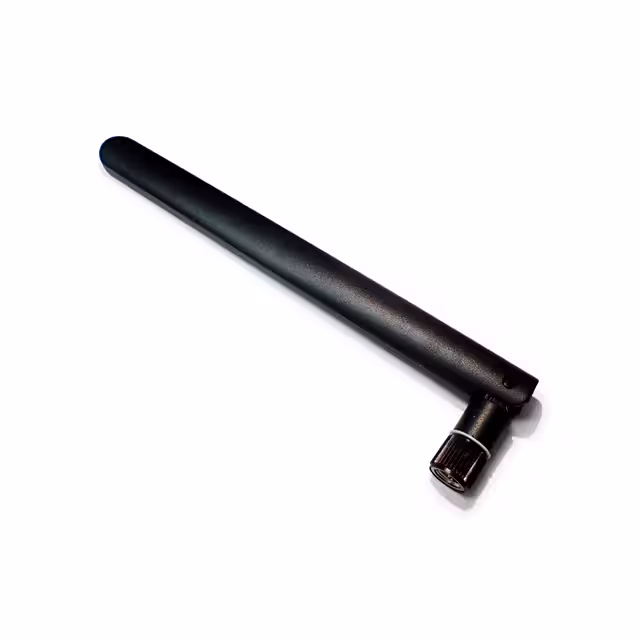

RFDPA131000SMRB801RF ANT 863-928MHZ SMA DIPOLE |
562 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 895.5MHz | 863MHz ~ 928MHz | Whip, Tilt | 1 | 2.5 | - | 3.01dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 5.681" (144.30mm) | - |
|

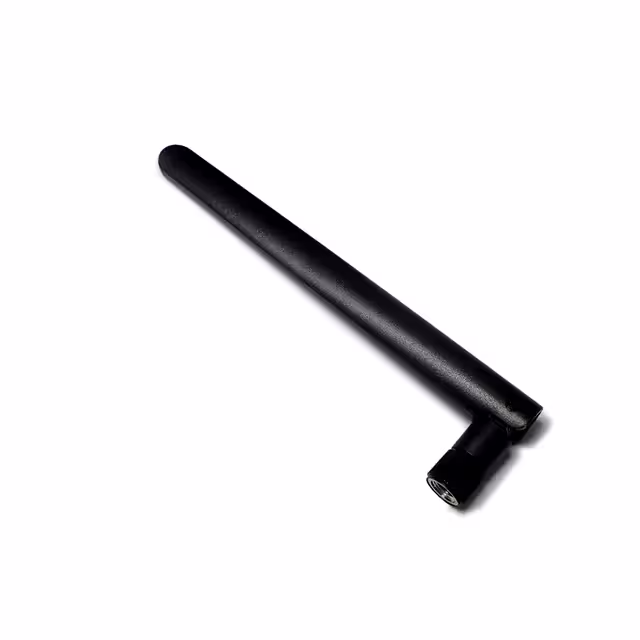

RFDPA131000SBUB802RF ANT 433MHZ REVERSE SMA DIPOLE |
539 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Tilt | 1 | 2 | - | - | 1 W | - | RP-SMA Male | - | - | - | Connector Mount | 6.102" (155.00mm) | - |
|
RFANT3216120A1TANTENNA |
2,000 | - |
|
Datasheet | RFANT | Tape & Reel (TR) | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.45GHz | - | Chip | 1 | - | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.472" (12.00mm) | Bluetooth, ISM |
|
|
RFANT5220110A0TANTENNA |
1,780 | - |
|
Datasheet | RFANT | Tape & Reel (TR) | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | - | 1 | 2 | - | 2dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.049" (1.25mm) | Bluetooth, ISM |
|

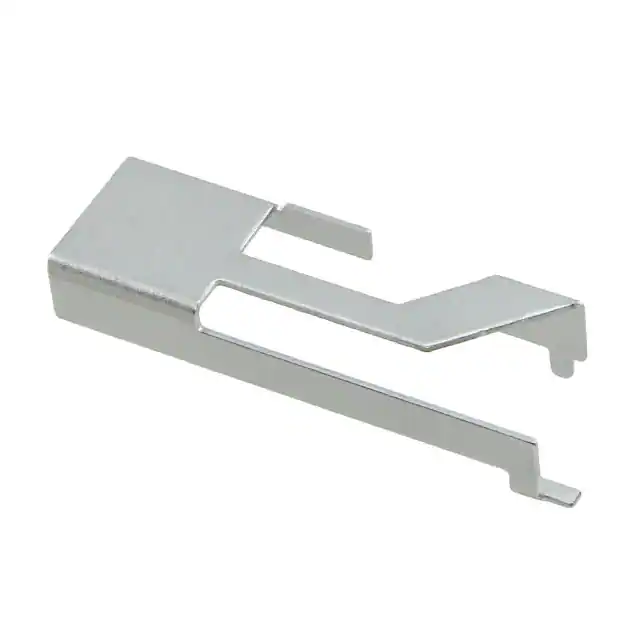

RFMTA250800NNLB001RF ANT 2.4GHZ/5.5GHZ STAMPED MET |
4,900 | - |
|
Datasheet | - | Tray | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Stamped Metal | 2 | 2 | -10dB | 4.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
|

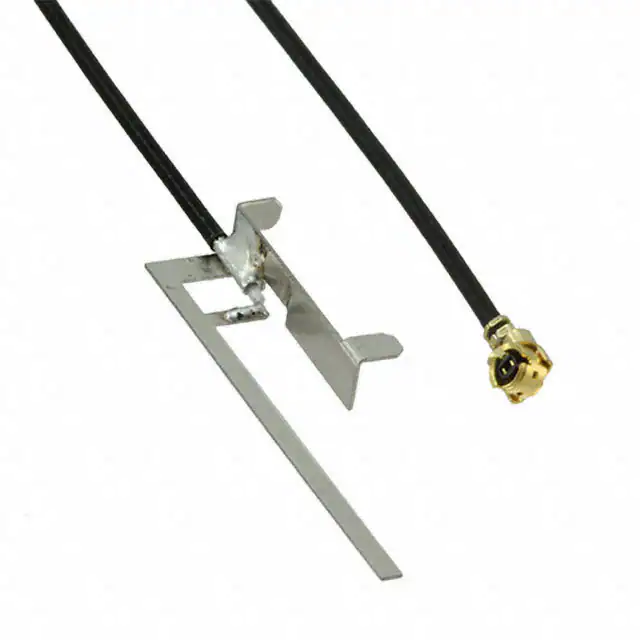

RFMTA280715IMAB301RF ANT 2.4GHZ STAMPED MET IPEX |
765 | - |
|
Datasheet | - | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Stamped Metal | 1 | 2 | -10dB | 2.8dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.142" (3.60mm) | ISM |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
