RF Antennas
Browse available RF Antennas part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

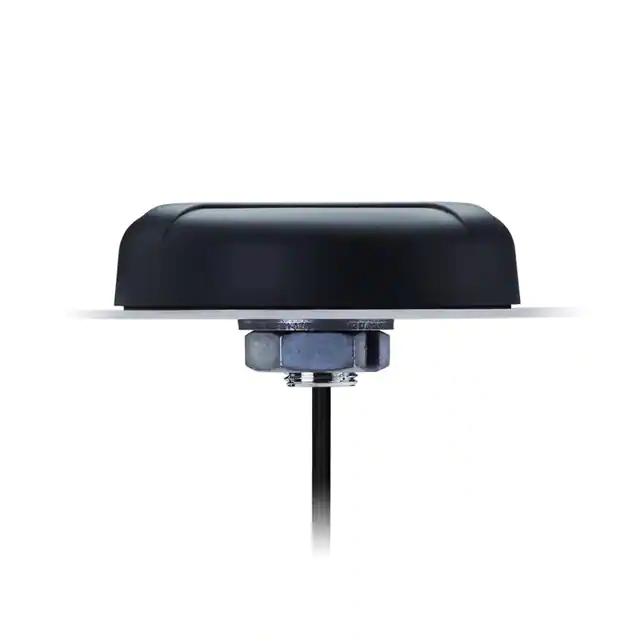

A.93.A.101111BOLT - LOW PROFILE HIGH RF IMMUN |
3,917 | - |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Dome | 3 | - | - | 4.49dBi, 4.84dBi, 5.09dBi | - | Cable - 1m, LNA | SMA Male | IP67 | - | - | Panel Mount | 1.000" (25.40mm) | GPS |
|
33-HC871-28DUAL BAND ANTENNA |
117 | - |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2345GHz, 1.5825GHz | 1.215GHz ~ 1.254GHz, 1.559GHz ~ 1.606GHz | Helical | 2 | 1.8 | - | 28dB | - | - | SMA Male | IP67 | - | - | Connector Mount | 2.488" (63.20mm) | Beidou, Galileo, GLONASS, GPS |
|

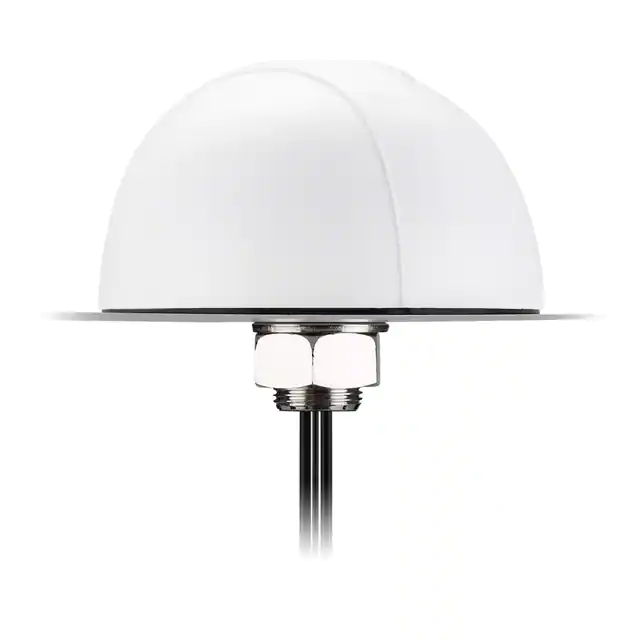

MA700.W.A.ABC.001RF ANT 750MHZ/850MHZ DOME PNL MT |
202 | - |
|
Datasheet | Pantheon | Box | Active | Cellular, Navigation | Wide Band | 750MHz, 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | 700MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 5.9GHz | Dome | 12 | 2, 1.7 | - | 2.4dBi, 1.6dBi, 1.7dBi, 2.1dBi, 2.4dBi, 2.1dBi, 2.9dBi, 3.8dBi, 2.8dBi | - | Cable - 3m, LNA, Filter | SMA Male (3) | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | GLONASS, GPS, LTE |
|
GPSGL-TMG-SPI-40NCBRF ANT GNSS 40DB NF SURGEP BRKT |
4,144 | - |
|
Datasheet | Timing Ref | Bulk | Active | PNT | UHF (1GHz ~ 2GHz) | 1.59GHz | 1.56GHz ~ 1.62GHz | Dome | 1 | 2 | - | 40dBi | - | LNA, Filter | N Type Female | IP67 | - | - | Bracket Mount, Through Hole | 7.244" (184.00mm) | Galileo, GLONASS, GNSS, GPS |
|
EAHP.125.01.0100DEMBEDDED ACTIVE QUAD HELIX ANTEN |
3,179 | - |
|
Datasheet | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

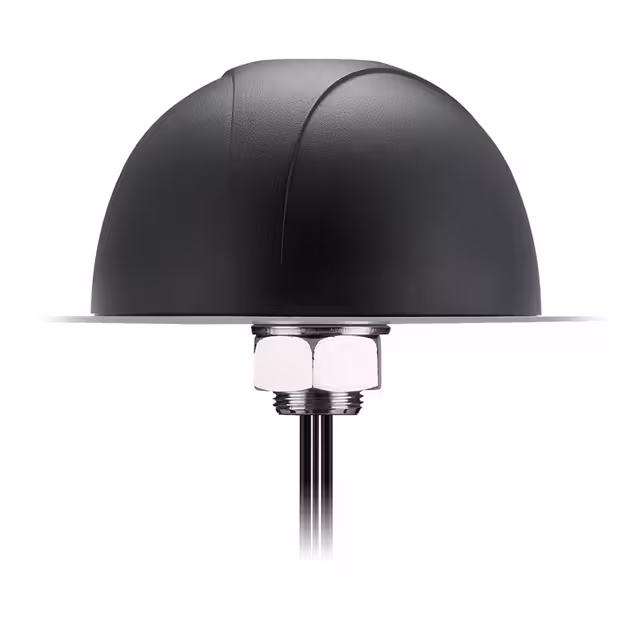

MA710.A.ABI.001RF ANT 742/892MHZ DOME SMA MALE |
248 | - |
|
Datasheet | Pantheon | Box | Active | Cellular, Navigation | Wide Band | 742MHz, 892MHz, 1.575GHz, 1.9GHz, 2.8GHz | 698MHz ~ 787MHz, 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.6GHz ~ 3.5GHz | Dome | 6 | 2.5, 3, 2.5, 3, 2.5, 2 | - | 2.52dBi, 1.48dBi, 32dBi, 1.22dBi, 0.15dBi, 3.2dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | CDMA, GPS, GSM, LTE, UMTS |
|
MA741.B.BI.001RF ANT 829MHZ/1.94GHZ DOM SMA 3M |
119 | - |
|
Datasheet | Pantheon | Box | Active | Cellular, Navigation | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Dome | 3 | - | -6dB | 4.16dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | CDMA, GPS, GSM, LTE, UMTS |
|
33-7872-07GPS L1/L2+GLONASS G1/G2 + GALILE |
4,517 | - |
|
Datasheet | Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.237GHz, 1.5815GHz | 1.213GHz ~ 1.261GHz, 1.557GHz ~ 1.606GHz | Dome | 2 | 1.8 | - | 3.8dBi, 4.5dBi | - | LNA | SMA Female | IP67 | - | - | Magnetic | 0.866" (22.00mm) | Beidou, Galileo, GLONASS, GPS |
|

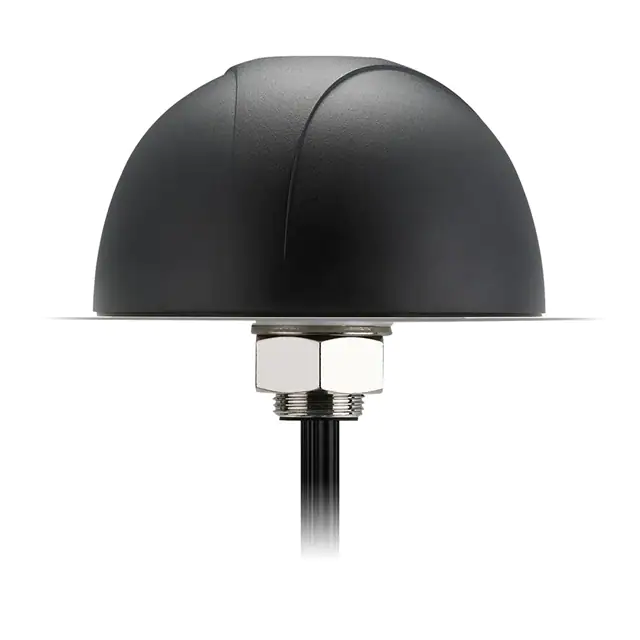

MA760.A.ABIC.003RF ANT DOME SMA MALE PANEL MT |
193 | - |
|
Datasheet | Pantheon | Box | Active | Cellular, Navigation, WiFi | Wide Band | - | 698MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.9GHz ~ 3.5GHz, 4.7GHz ~ 5.9GHz | Dome | 5 | 3, 1.7, 2 | - | 2.1dBi, 2.9dBi, 3.8dBi, 2.8dBi | - | Cable - 3m, LNA, Filter | SMA Male (3), RP-SMA (1) | IP67 | - | - | Panel Mount | 3.138" (79.70mm) | GLONASS, GPS, LTE, Wi-Fi |
|

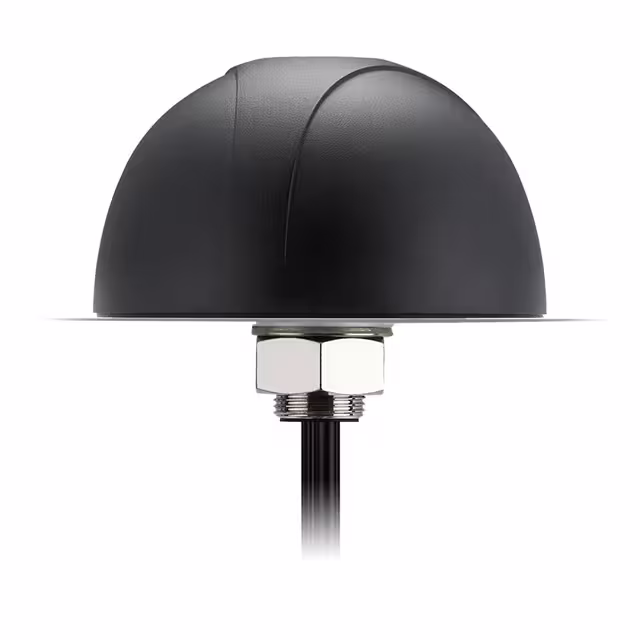

MA750.A.ABICG.003RF ANT 829MHZ/1.6GHZ DOME SMA ML |
1,344 | - |
|
Datasheet | Pantheon | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.6GHz, 1.9GHz, 2.5GHz, 3.2GHz, 4.7GHz | 698MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.9GHz ~ 3.5GHz, 4.5GHz ~ 4.85GHz | Dome | 6 | 3, 2 | - | 32dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | GLONASS, GPS, LTE, WLAN |
|
GNSS-L125-TNCRF ANT GNSS 28DB PRECIS TNCF LP |
4,449 | - |
|
Datasheet | Precision | Bulk | Active | PNT | Wide Band | 1.22GHz, 1.5575GHz | 1.16GHz ~ 1.3GHz, 1.52GHz ~ 1.615GHz | Dome | 2 | 2 | - | 28dBi | - | LNA, Filter | TNC Female | IP67 | - | - | Bracket Mount, Through Hole | 1.460" (37.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

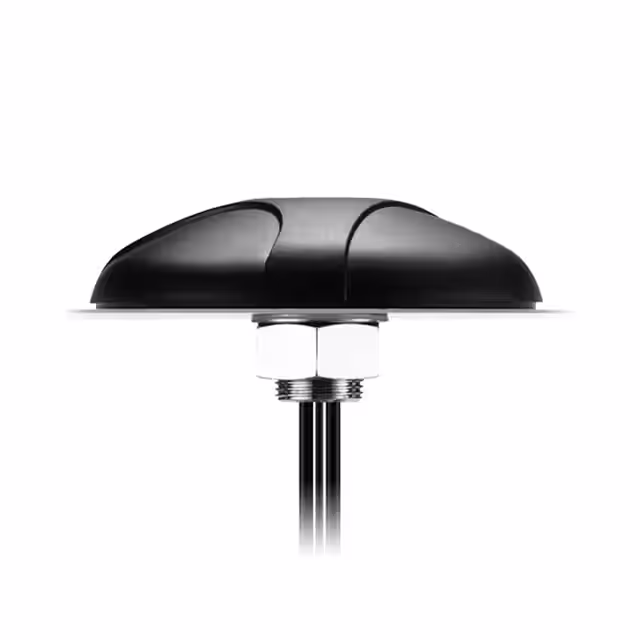

MA673.A.CGH.004RF ANT 2.4/5.38GHZ DOME RP-SMA |
1,386 | - |
|
Datasheet | Spartan | Box | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.38GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | Dome | 2 | - | - | 5.64dBi | 5 W | - | RP-SMA Male | IP67 | - | - | Panel Mount | 1.575" (40.00mm) | - |
|
PLTE7027MRF ANT 600-960/1710-2700 PNL NF |
1,618 | - |
|
Datasheet | FP | Bulk | Active | Cellular/LTE | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Panel | 2 | 2 | - | 8.2dBi, 8dBi | 50 W | - | N Type Female (2) | IP67 | - | - | Pole Mount, Wall Mount | 4.402" (111.80mm) | 2G, 3G, 5G, Cellular, LTE |
|

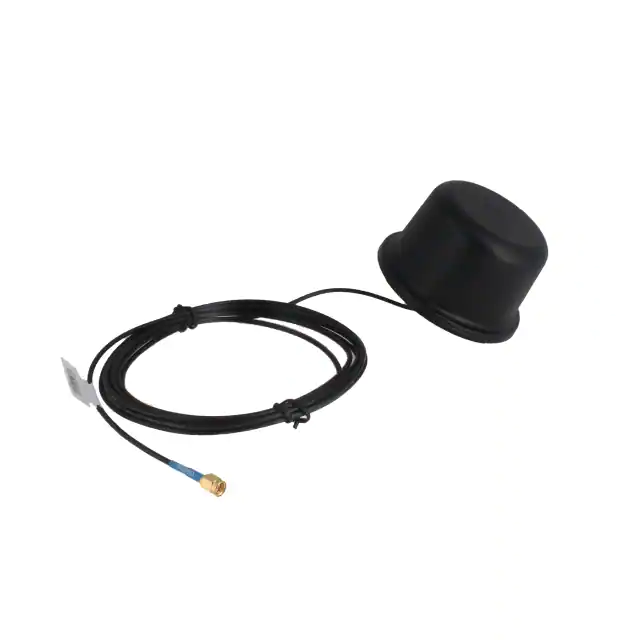

XAHP.50.A.301111ACTIVE MULTI-BAND GNSS ANTENNA 3 |
4,328 | - |
|
Datasheet | - | Box | Active | Navigation | Wide Band | 1.176GHz, 1.2276GHz, 1.27875GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Dome | 6 | 1.3, 1.4, 1.5 | - | 7.4dBi, 6.2dBi, 6.8dBi, 3.2dBi, 4.2dBi, 4.2dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 2.283" (58.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
33-HC977-35TRIPLE BAND ANTENNA + L BAND |
2,607 | - |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.209GHz, 1.565GHz | 1.164GHz ~ 1.254GHz, 1.525GHz ~ 1.606GHz | Helical | 3 | 1.8 | - | 0.3dBi, 1.4dBi, 1.5dBi, 2dBi, 2.1dBi, 2.2dBi, 2.5dBi | - | LNA, Filter | SMA | IP67 | - | - | Screw | 2.457" (62.40mm) | Beidou, Galileo, GLONASS, GPS |
|
|
MA1504.AK.0016 IN 1 BRAIDED ANT |
3,348 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.47GHz, 1.79GHz, 1.92GHz, 2.05GHz, 2.49GHz, 4.15GHz, 5.54GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.43GHz ~ 1.52GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.93GHz | Dome | 10 | - | - | -2.7dBi, -1.6dBi, 1.8dBi, 2.3dBi, 2.7dBi, 2.9dBi, 3.3dBi, 4.5dBi, 1.6dBi, 2.4dBi | 2 W | Cable - 300mm | SMA Male | IP67 | - | - | Bracket Mount | 2.263" (57.47mm) | 4G, 5G |
|

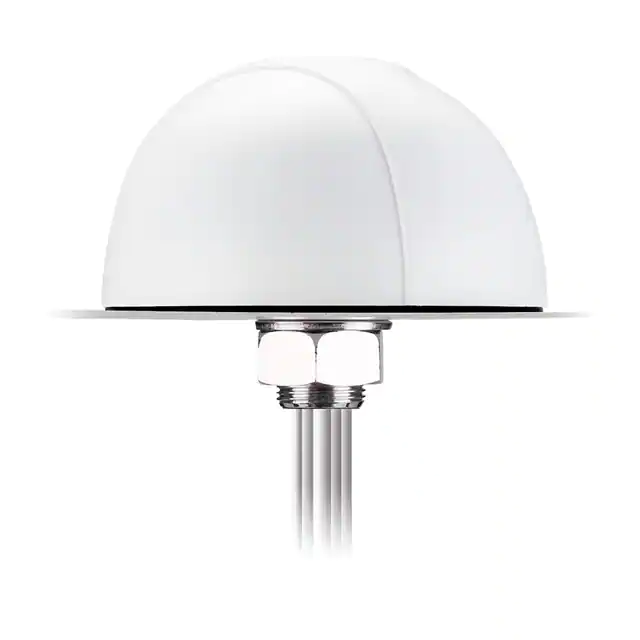

MA750.W.A.ABICG.003PANTHEON MA750 WHITE 5-IN-1 PERM |
3,222 | - |
|
Datasheet | Pantheon | Box | Active | Cellular, Navigation | Wide Band | 829MHz, 1.57542GHz, 1.602GHz, 1.94GHz, 2.45GHz, 2.5GHz, 3.2GHz, 5.175GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.5GHz, 2.4GHz ~ 2.7GHz, 2.9GHz ~ 3.5GHz, 4.5GHz ~ 5.85GHz | Dome | 8 | 2, 3 | - | 4dBi | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | 2G, 3G, 4G, Galileo, GLONASS, GPS, LTE |
|

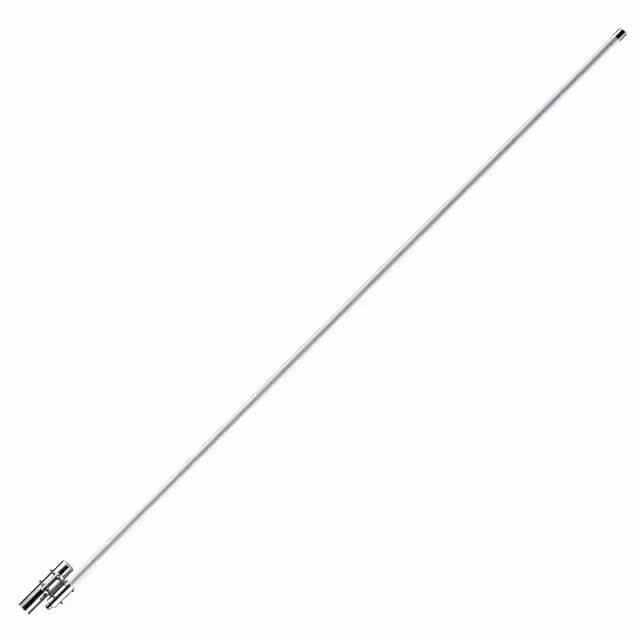

OMB.868.B12F21868MHZ 12DBI OMNI ANTENNA WITH N |
2,435 | - |
|
Datasheet | - | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 865MHz | 860MHz ~ 870MHz | Whip, Straight | 1 | 2 | - | 11.4dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 0.087" (2.20mm) | ISM |
|
33-7972-00-3000TRI-BAND + L-BAND (PRE-FILTERED) |
4,444 | - |
|
Datasheet | Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.209GHz, 1.5655GHz | 1.164GHz ~ 1.254GHz, 1.525GHz ~ 1.606GHz | Dome | 2 | 1.8 | - | -1.5dBi, 2.5dBi, 3dBi, 4dBi | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.866" (22.00mm) | Beidou, Galileo, GLONASS, GPS |
|
33-7972-07TRI-BAND + L-BAND (PRE-FILTERED) |
3,166 | - |
|
Datasheet | Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.209GHz, 1.5655GHz | 1.164GHz ~ 1.254GHz, 1.525GHz ~ 1.606GHz | Dome | 2 | 1.8 | - | -1.5dBi, 2.5dBi, 3dBi, 4dBi | - | LNA | SMA Female | IP67 | - | - | Magnetic | 0.866" (22.00mm) | Beidou, Galileo, GLONASS, GPS |
RF Antennas FAQ
Common questions about selecting, comparing and sourcing RF Antennas components through Winsun (HK) Electronics.
What should I check when selecting RF Antennas components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Antennas part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Antennas parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Antennas components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
