RF Antennas
Browse available RF Antennas part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
33-3972-01-10ANTENNA TW3972 SERIES |
1,118 | - |
|
Datasheet | Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.209GHz, 1.5655GHz | 1.164GHz ~ 1.254GHz, 1.525GHz ~ 1.606GHz | Dome | 2 | 1.8 | - | -1.5dBic, 2.5dBic, 4dBic | - | LNA, Filter | TNC Female | IP67 | - | - | Through Hole | 0.827" (21.00mm) | Beidou, Galileo, GLONASS, GPS |
|

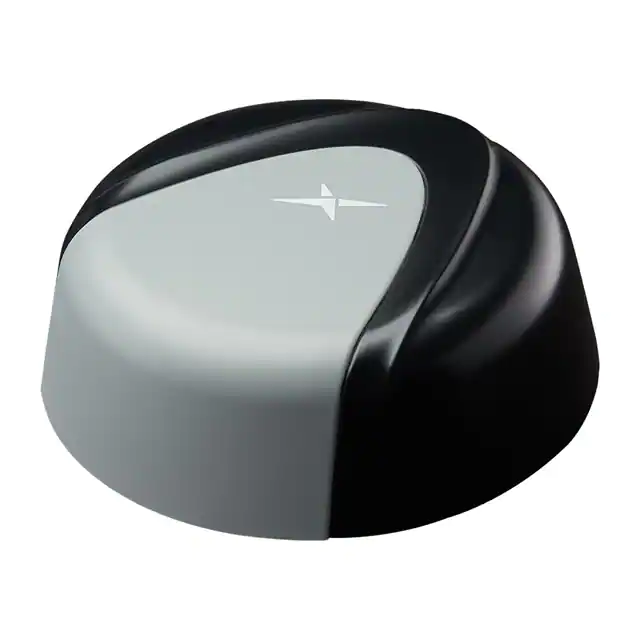

MA1508.AK.001SYNERGY 8-IN-1 GNSS SMA(M):4*5G/ |
161 | - |
|
Datasheet | Synergy | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 2.45GHz, 3.55GHz, 5.5GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.88GHz, 1.92GHz ~ 1.99GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.85GHz, | Dome | 15 | 2, 2.5 | - | 0.25dBi, 1.44dBi, 2.93dBi, 3.76dBi, 3.75dBic, 4.44dBic, 4.54dBic, 4.55dBi, 2.93dBi, 3.97dBi, 5.06dBi, 3.12dBi, 5.99dBi, 7.03dBi, 6.28dBi | 2 W | Cable - 300mm, LNA, Filter | RP-SMA Male, SMA Male | IP67 | - | - | Panel Mount | 2.263" (57.47mm) | 4G/5G, Beidou, Galileo, GLONASS, GPS, GNSS, Wi-Fi |
|
2108964-1STAMPING ELEMENT FOR BT WIFI ANT |
4,157 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.3875GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.875GHz | Stamped Metal | 2 | 2 | - | 2.4dBi, 2.7dBi, 4.3dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.098" (2.50mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
RFECA3216060A1TRF ANT 2.4GHZ CHIP SOLDER SMD |
12,650 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 2.1 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.024" (0.60mm) | - |
|
ANT1005LL14R2400ARF ANT 2.442GHZ CHIP SOLDER SMD |
40,360 | - |
|
Datasheet | 1005 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.442GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 3 | - | 2.21dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.015" (0.37mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
WLA.042.4~2.5GHZ CERAMIC SUBSTRATE LOO |
5,337 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2.7dBi | - | - | - | - | - | - | Surface Mount | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
ANT2012LL13R2400ARF ANT 2.4GHZ CHIP SOLDER SMD |
17,098 | - |
|
Datasheet | 2012 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.408GHz ~ 2.492GHz | Chip | 1 | - | -22dB | 2.72dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
ANT3216A063R2400ARF ANT 2.4GHZ CHIP SOLDER SMD |
11,408 | - |
|
Datasheet | 3216 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.335GHz ~ 2.565GHz | Chip | 1 | - | -10dB | 1.69dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | Bluetooth, WLAN, Zigbee™ |
|
RFANT5220110A2TRF ANT 2.4GHZ CHIP SOLDER SMD |
4,125 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.045" (1.15mm) | Bluetooth, WLAN |
|
SRCW004RF ANT 2.4GHZ CHIP SOLDER SMD |
70,258 | - |
|
Datasheet | ceriiANT®, Weii | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 1.6 | -10dB | 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Bluetooth, WLAN, Zigbee™ |
|
ANT-2.4-MSA-TH1ANTENNA 2.4GHZ STAMPED TH |
1,521 | - |
|
Datasheet | - | Tray | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 1.3 | - | 3.7dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.213" (5.40mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
ANT1608LL14R2400ARF ANT 2.45GHZ CHIP SOLDER SMD |
22,206 | - |
|
Datasheet | 1608 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 6 | - | 2dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
2450AD14A5500001TRF ANT 2.4GHZ/5.5GHZ CHIP SLD |
6,886 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | - | -6dB | 4dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | WLAN |
|
ANT8010LL05R1516ARF ANT 1.575GHZ/1.602GHZ CHIP |
8,768 | - |
|
Datasheet | 8010 | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Chip | 2 | - | 10dB | 1.53dBi, 1.69dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Galileo, GLONASS, GPS |
|
ANT8010LL04R2400ARF ANT 2.4GHZ CHIP SOLDER SMD |
16,465 | - |
|
Datasheet | 8010 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | -24.9dB | 5.46dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
74889302450WE-MCA SMT-MULTILAYER CHIP ANTEN |
1,939 | - |
|
Datasheet | WE-MCA | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 0.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
ANT5320LL45R2400AANTENNA CHIP 2.4G HELIX |
14,149 | - |
|
Datasheet | 5320 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | 10dB | 5.22dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
ANT-868-HESM868MHZ HELICAL ANT SURFACE MNT |
3,989 | - |
|
Datasheet | HE | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 862MHz ~ 876MHz | Helical | 1 | 2.2 | -8.5dB | 5.6dBi | 15 W | - | Solder | - | - | - | Surface Mount | 0.350" (8.90mm) | ISM, LPWA |
|
|
2450AT18D0100002ERF ANT 2.4GHZ CHIP SOLDER SMD |
10,294 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | 10dB | 1.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
|
2450AT14A0100001TRF ANT 2.4GHZ CHIP SOLDER SMD |
24,601 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.48GHz | Chip | 1 | - | 9dB | 0.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | - |
RF Antennas FAQ
Common questions about selecting, comparing and sourcing RF Antennas components through Winsun (HK) Electronics.
What should I check when selecting RF Antennas components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Antennas part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Antennas parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Antennas components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
