RF Antennas
Browse available RF Antennas part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

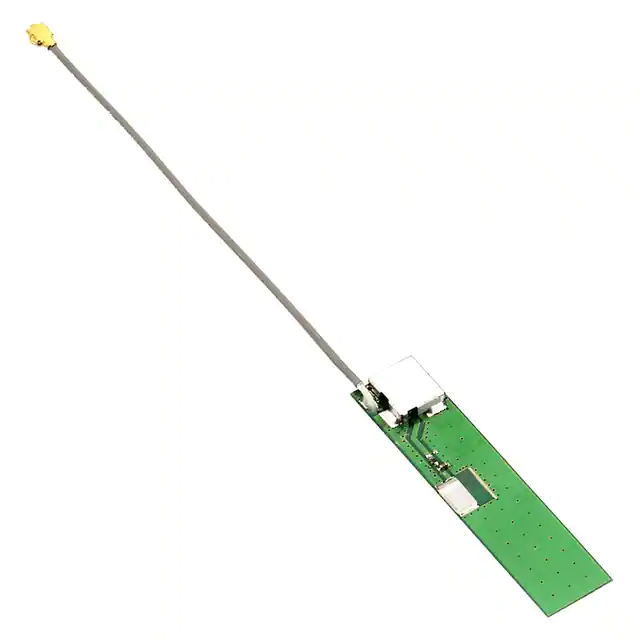

ALA.01.07.0095ARF ANT 1.575GHZ PCB TRACE IPEX |
232 | - |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.54GHz ~ 1.61GHz | PCB Trace | 1 | 2 | -10dB | 3.1dBi | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Chassis Mount | 0.020" (0.50mm) | GPS |
|
TD.95.6H31G868/915MHZ DIPOLE ANTENNA N-TYPE |
104 | - |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | - | Blade | 2 | - | - | 1.33dBi, 1.54dBi | 10 W | - | N Type Male | IP67 | - | - | Connector Mount | 8.976" (228.00mm) | ISM, LoRa, Sigfox |
|

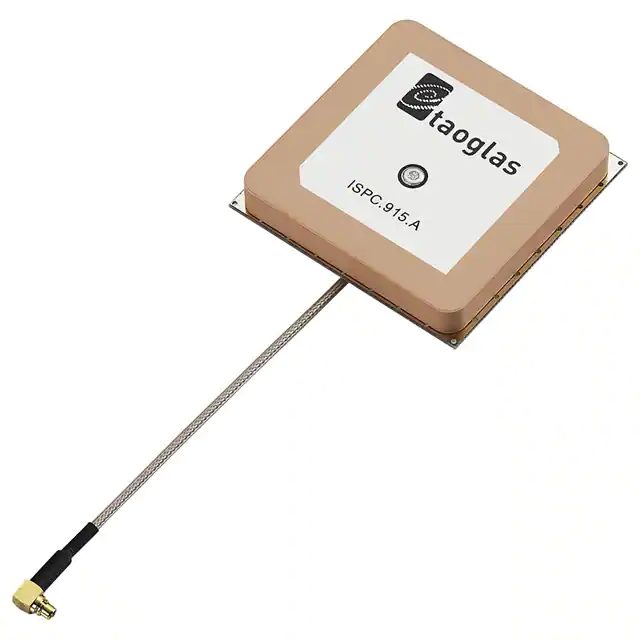

ISPC.91A.09.0092ERF ANT 915MHZ CER PATCH MMCX ML |
202 | - |
|
Datasheet | - | Box | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Ceramic Patch | 1 | - | -9.7dB | 5.21dBi | 5 W | - | MMCX Male | - | - | - | - | 0.256" (6.50mm) | - |
|
S171AH-2450SRF ANT 2.4GHZ WHIP TILT RP-SMA |
245 | - |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 7dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 10.551" (268.00mm) | - |
|

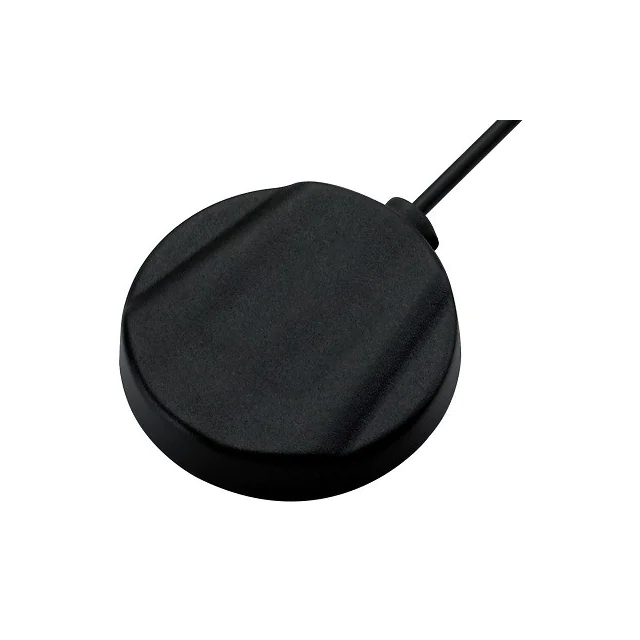

WA.500W.301151RF ANT 2.4GHZ/5.8GHZ MODULE ADH |
108 | - |
|
Datasheet | Stingray | Bag | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Module | 2 | 1.92 | - | 5.382dBi, 4.308dBi | - | Cable - 3m | RP-SMA Male | IP65 | - | - | Adhesive | 0.425" (10.80mm) | Wi-Fi, Zigbee™ |
|
ANT-GNCP-C357L160RF ANT GNSS GPS L1 37X37 LNA UFL |
161 | - |
|
Datasheet | GNCP | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz | 1.559GHz ~ 1.606GHz | Ceramic Patch | 3 | 1.5, 1.7, 1.3 | -14dB, -11.7dB, -18.5dB | 24.6dBi, 29.2dBi, 28.5dBi | - | Cable - 60mm | U.FL | - | - | - | Surface Mount | 0.272" (6.90mm) | Beidou, COMPASS, GALILEO, GLONASS, GPS, IRNSS, NavIC, Qzss |
|
ANT-2.4-ID-2000-SMARF ANT 2.4GHZ WHIP STR BRKT 2M |
190 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Straight | 1 | 1.9 | - | 3dBi | - | Cable - 2m | SMA Male | IP67 | - | - | Bracket Mount | 4.110" (104.40mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
|
TD.66.AH31BLADE WIDEBAND 600-6000MHZ 5G/4G |
108 | - |
|
Datasheet | - | Bulk | Active | Cellular, WiFi | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Whip, Straight | 8 | - | - | 1.8dBi, 1.6dBi, 2.6dBi, 3.9dBi, 2.5dBi, 3.9dBi, 4.4dBi, 5.4dBi | 10 W | - | N Type Male | IP67 | - | - | Connector Mount | 9.016" (229.00mm) | 4G, 5G, Cat-M, HSPA, HSPA+, LTE, NB-IoT, NR, WCDMA, Wi-Fi |
|
|
ANT-916-ID-2000-SMARF ANT 916MHZ WHIP STR BRKT 2M |
145 | - |
|
Datasheet | - | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 895MHz ~ 945MHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | Cable - 2m | SMA Male | IP67 | - | - | Bracket Mount | 4.906" (124.60mm) | ISM, LoRa, Sensor Networks, SigFox |
|
|
2118879-2FPC ANTENNA,CABLE,SMA,690-2700MH |
727 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Cellular, General ISM | Wide Band | 829MHz, 859MHz, 869MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.5GHz | 698MHz ~ 960MHz, 824MHz ~ 894MHz, 868MHz ~ 870MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 8 | 3 | - | 3.9dBi | - | Cable - 120mm | SMA | - | - | - | Adhesive | 0.008" (0.20mm) | CDMA, GSM, ISM, LTE, UMTS, ZigBee™ |
|

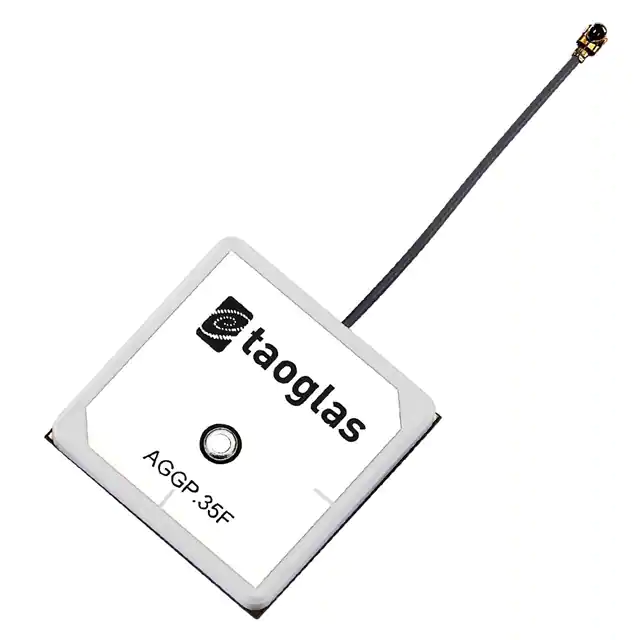

AGGP.35F.07.0060ARF ANT 1.575GHZ CER PATCH MHF1 |
282 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.61GHz | Ceramic Patch | 1 | 2 | - | 1dBic, 0.5dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.146" (3.70mm) | GLONASS, GNSS, GPS |
|

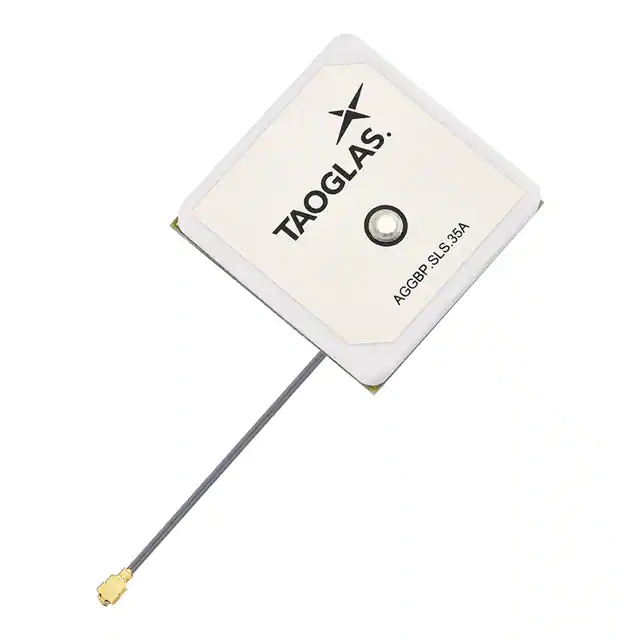

AGGBP.SLS.35A.07.0060A2 IN 1 PERMANENT MOUNT GPS (1M R |
563 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | - | 2.79dBi, 2.23dBi, 1.32dBi | - | Cable - 60mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.339" (8.60mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
2134993000GNSS EXT ANTENNA MAG MNT 3.0M CA |
169 | - |
|
Datasheet | 213499 | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Module | 3 | - | -10dB | -1.7dBi, -0.4dBi, -1.4dBi | - | Cable - 3m | SMA Male | - | - | - | Magnetic | 0.657" (16.70mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
TANGO21/0.3M/SMAM/S/S/26RF ANT 1.575GHZ MOD SMA PAN MT |
436 | - |
|
Datasheet | TANGO 21 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | 1.5 | - | 28dB | - | LNA | SMA Male | - | - | - | Panel Mount | 0.547" (13.90mm) | GPS |
|
21350005002-IN-1 LTE / GPS EXT ANTENNA 500 |
364 | - |
|
Datasheet | 213500 | Box | Active | Cellular, Navigation | Wide Band | 892MHz, 1.575GHz, 2.2GHz | 824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.69GHz | Module | 3 | - | -5dB, 1.5dB | 0.77dBi, 0.77dBi, 3.73dBi | - | Cable - 500mm | SMA Male (2) | - | - | - | Adhesive, Panel Mount | 0.587" (14.90mm) | LTE, GPS |
|
AEACBK081014-S6984G/ LTE SCREW MOUNT ANTENNA |
293 | - |
|
Datasheet | AEAC | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Dome | 2 | 3 | - | 3dBi | - | Cable - 3m | SMA Male | IP67 | - | - | Screw Mount | 0.575" (14.60mm) | 2G, 3G, 4G, LTE |
|
A24-HASM-525RF ANT 2.4GHZ WHP TILT RP-SMA 6" |
351 | - |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Tilt | 1 | - | - | 2.1dBi | - | - | RP-SMA Female | - | - | - | Connector Mount | 5.394" (137.00mm) | - |
|

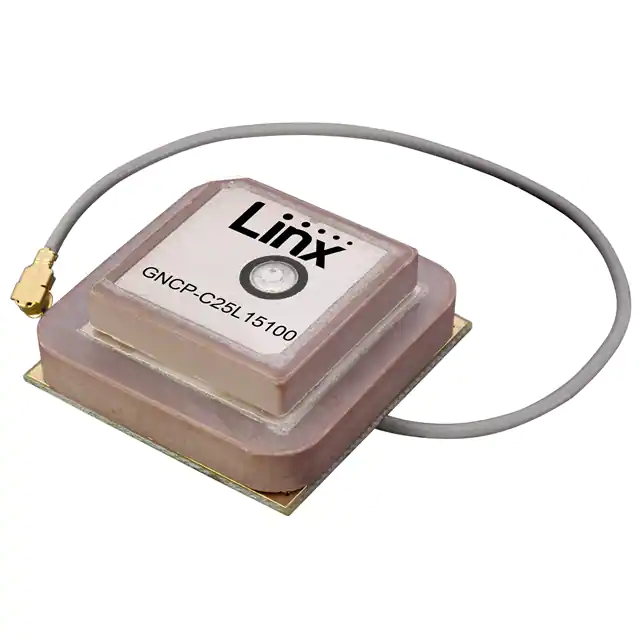

ANT-GNCP-C25L15100RF ANT GNSS GPS L1L5 25X25 LNA |
159 | - |
|
Datasheet | GNCP | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.601GHz | 1.164GHz ~ 1.189GHz, 1.559GHz ~ 1.606GHz | Ceramic Patch | 4 | 1.8, 1.3, 1.3, 1.2 | -11.2dB, -18.1dB, -18.1dB, -20.7dB | 26.8dBi, 25.3dBi, 26.6dBi, 24.4dBi | - | Cable - 100mm | U.FL | - | - | - | Surface Mount | 0.472" (12.00mm) | Beidou, COMPASS, GALILEO, GLONASS, GPS, IRNSS, NavIC, Qzss |
|
|
MA322.A.001COMET 2-IN-1 2*5G/4G MIMO ADHES |
242 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 3.55GHz, 3.75GHz, 4.7GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Module | 10 | - | - | 1.1dBi, 2dBi, 2.2dBi, -0.4dBi, 4.6dBi, 4.2dBi, 1.8dBi, 2.4dBi, 4dBi, 4.6dBi | 2 W | Cable - 2m | SMA Male | IP67 | - | - | Adhesive, Magnetic | 0.709" (18.00mm) | 4G, 5G, HSPA, HSPA+, LTE, NR, WCDMA |
|

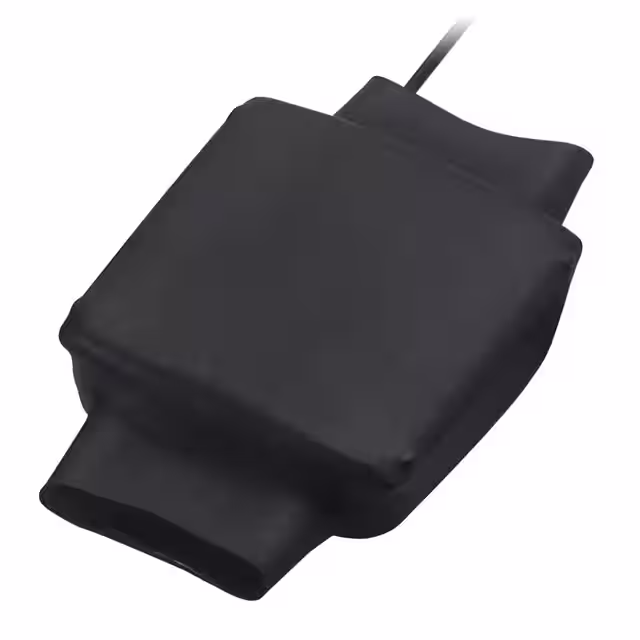

ISA.05.A.033822RF ANT 915MHZ MOD IPEX MHFHT ADH |
1,035 | - |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Module | 1 | 3 | -11dB | 5.1dBi | 5 W | - | I-PEX MHFHT | IP65 | - | - | Adhesive | 0.433" (11.00mm) | ISM |
RF Antennas FAQ
Common questions about selecting, comparing and sourcing RF Antennas components through Winsun (HK) Electronics.
What should I check when selecting RF Antennas components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Antennas part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Antennas parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Antennas components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
