RF Antennas
Browse available RF Antennas part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2116240001GPS L1/L5 & GLONASS 36MM STACKED |
201 | - |
|
Datasheet | 211624 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz, 1.602GHz | 1.171GHz ~ 1.181GHz, 1.57GHz ~ 1.58GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 3 | - | -10dB | 2.1dBi, 4.5dBi, 4.2dBi | - | - | Solder | - | - | - | Adhesive | 0.276" (7.00mm) | GLONASS, GPS |
|

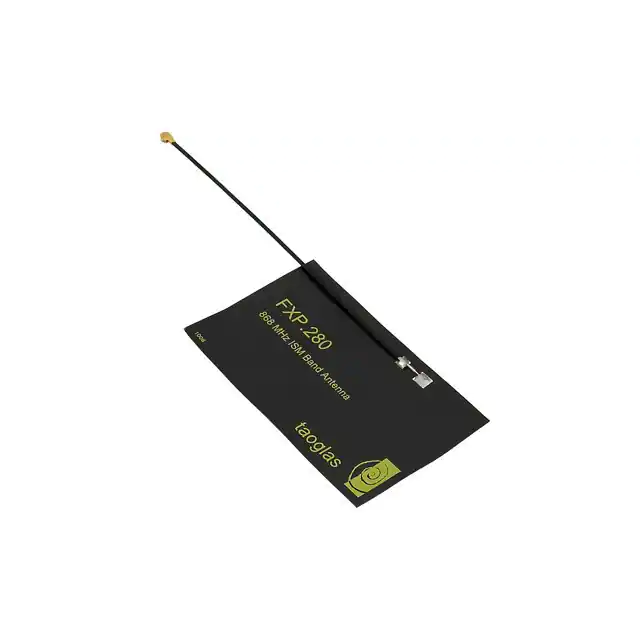

FXP280.07.0100ARF ANT 866MHZ FLAT PATCH IPEX |
214 | - |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 866MHz | 863MHz ~ 870MHz | Flat Patch | 1 | 2 | -20dB | 1.5dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|
AP.25F.07.0078ARF ANT 1.575GHZ CER PATCH CAB |
551 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 2 | - | 2dBic | - | Cable - 80mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.327" (8.30mm) | GPS |
|

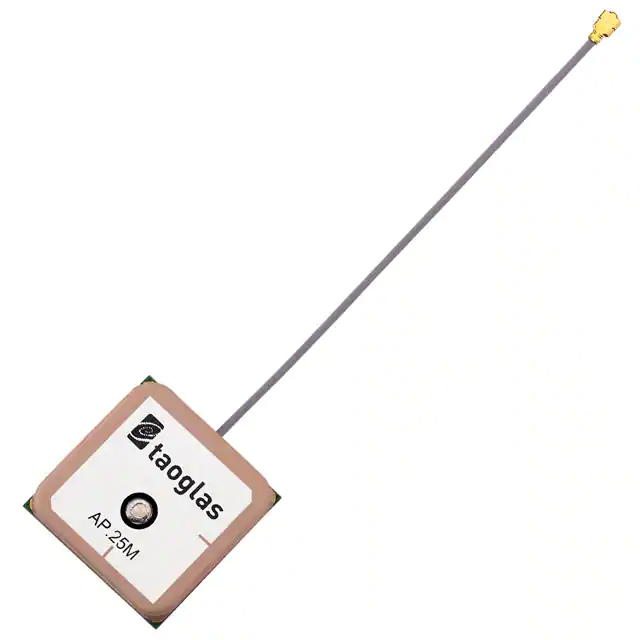

AP.25M.07.0080ARF ANT 1.575GHZ CER PATCH IPEX |
436 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | 2dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.079" (2.00mm) | GPS |
|
ANT-916-WRT-UFL-150RF ANT 915MHZ DOME UFL -150 |
452 | - |
|
Datasheet | WRT | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 930MHz | Dome | 1 | 1.5 | - | 4.4dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.394" (10.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
W5097RF ANT 2.4GHZ/5.5GHZ WHIP STR |
159 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 6GHz | Whip, Straight | 2 | 2 | - | 3.5dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 5.921" (150.40mm) | Bluetooth, WLAN, Zigbee™ |
|

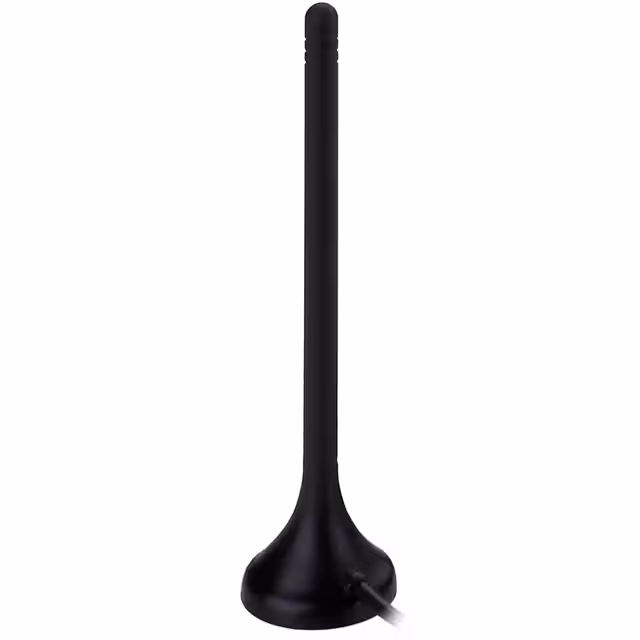

GA.107.201111RF ANT 1.5GHZ WHIP STR SMA MALE |
1,096 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 1.5GHz | 800MHz ~ 2.2GHz | Whip, Straight | 1 | 2 | - | 5dBi | - | - | SMA Male | - | - | - | Base Mount | 4.567" (116.00mm) | GSM, UMTS |
|

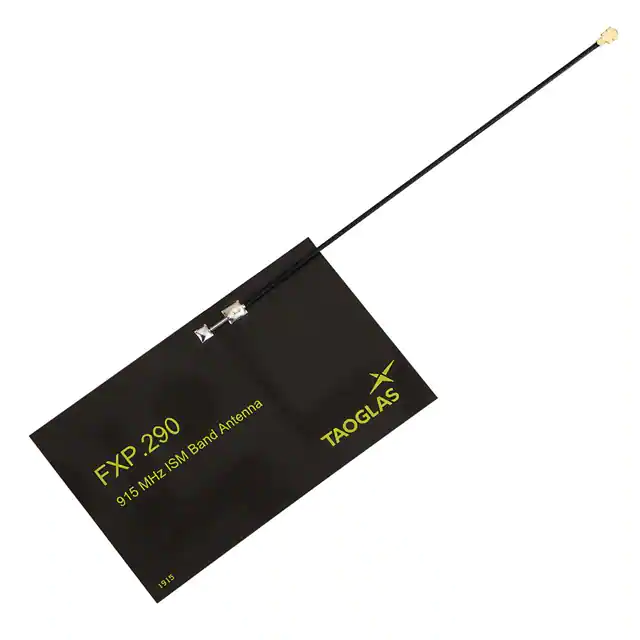

FXP290.07.0100ARF ANT 915MHZ FLAT PATCH CAB ADH |
4,246 | - |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Patch | 1 | 2 | -20dB | 1.5dBi | 5 W | Cable - 100mm | I-PEX MHF2 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|

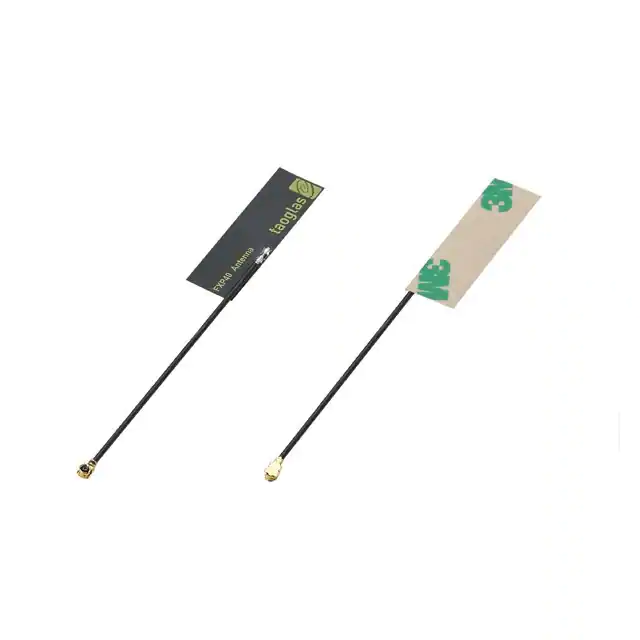

FXP40.07.0085ARF ANT 850MHZ/900MHZ FLAT PATCH |
1,433 | - |
|
Datasheet | - | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 824MHz ~ 896MHz, 1.71GHz ~ 1.99GHz | Flat Patch | 4 | - | -5dB, -3dB | -3.83dBi, -3.83dBi, 1.37dBi, 1.03dBi | 5 W | Cable - 85mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | GSM, DCS, PCS |
|
DELTA12/X/SMAM/S/S/17RF ANT 151MHZ/173MHZ WHIP STR |
446 | - |
|
Datasheet | DELTA 12 | Bulk | Active | General ISM | VHF (f < 300MHz) | 151MHz, 173MHz | - | Whip, Straight | 2 | 2 | - | 3dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 5.118" (130.00mm) | ISM |
|
FXP522.A.07.A.001RF ANT 2.4GHZ/5.8GHZ FLAT 120MM |
1,233 | - |
|
Datasheet | Venti | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | - | 3.78dBi, 4.63dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Wi-Fi |
|
ECHO19/0.1M/UFL/S/S/17RF ANT 1.575GHZ CER PATCH U.FL |
422 | - |
|
Datasheet | ECHO 19 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 1.8 | - | 16dB | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.256" (6.50mm) | GPS |
|
AGGBLA.125.AACTIVE MULTI-BAND GNSS CHIP ANTE |
266 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | Wide Band | 1.176GHz, 1.561GHz, 1.575GHz, 1.603GHz | - | Chip | 4 | - | -6.3dB, -6.8dB, -7.1dB | -0.38dBi, -0.95dBi, -0.95dBi, -0.94dBi | - | LNA, Filter | Solder | - | - | - | Surface Mount | 0.110" (2.80mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
T6140AM-AGDPU-SRF ANT 850MHZ/900MHZ WHIP TILT |
483 | - |
|
Datasheet | - | Bulk | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Tilt | 5 | 2, 3 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 6.283" (159.60mm) | AMPS, DCS, GSM, PCS, UMTS |
|
ANT-DB1-WRT-MON-RPSRF ANT 2.45/5.8GHZ DOME PANEL MT |
451 | - |
|
Datasheet | WRT-MON | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz | Dome | 2 | 2.2, 10.8 | - | 1.0dBi, 2.8dBi | 5 W | Cable - 216mm | RP-SMA Male | - | - | - | Panel Mount | 1.063" (27.00mm) | 802.11b/g/n/ac, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Zigbee™ |
|
|
YEMA003AA2IN1 COMBO ADH LTE&GNSS FAKRA |
321 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 830MHz, 1.228GHz, 1.505GHz, 1.561GHz, 1.575GHz, 1.94GHz, 2.2GHz, 2.43GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 700MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.58GHz, 1.556GHz ~ 1.566GHz, 1.57GHz ~ 1.61GHz, 1.71GHz ~ 1.71GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GH | Dome | 12 | 3 | - | 4dBi, 0.42dBi, 4dBi, -2.08dBi, 5dBi, 5dBi | - | Cable - 3m, LNA | Fakra | IP66 | - | - | Adhesive | 0.689" (17.50mm) | GNSS, LTE, Wi-Fi |
|
|
YB0008AA3IN1 2LTE 1 GNSS 300MM SMAM ADH |
101 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 849MHz, 1.561GHz, 1.575GHz, 2.2GHz | 698MHz ~ 1GHz, 1.556GHz ~ 1.566GHz, 1.57GHz ~ 1.58GHz, 1.7GHz ~ 2.7GHz | Module | 4 | 3, 6 | - | 2.94dBi, 5dBi | - | LNA | SMA Male | IP66 | - | - | Adhesive | 0.689" (17.50mm) | GNSS, LTE, Wi-Fi |
|
S331AH-915RF ANT 915MHZ WHIP STR RP-SMA |
172 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | 1dBi | - | - | RP-SMA Female | - | - | - | Connector Mount | 3.465" (88.00mm) | - |
|
GPSGB1315RF ANT 1.575/1.602GHZ CER PATCH |
184 | - |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | 2 | - | 1dBic | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.321" (8.15mm) | GPS |
|

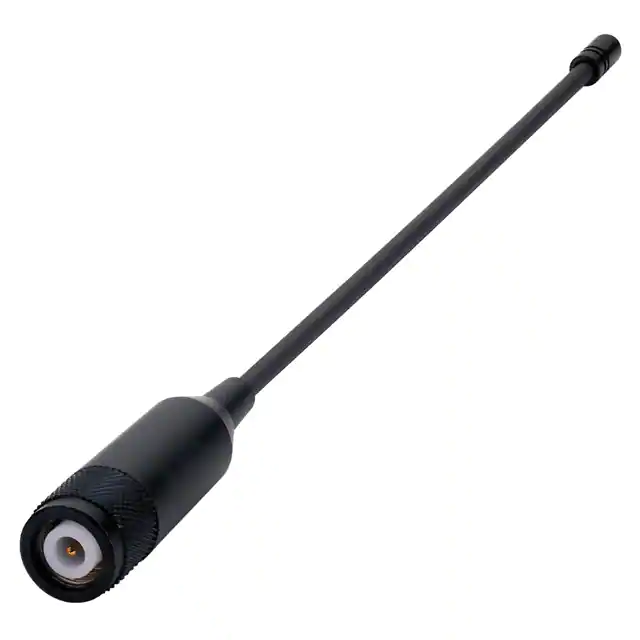

FW.91.TNC.MRF ANT 892MHZ/1.9GHZ WHIP STR |
1,213 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 2 | - | - | 3dBi, 4.5dBi | - | - | TNC Male | IP65 | - | - | Connector Mount | 10.039" (255.00mm) | GSM |
