RF Antennas
Browse available RF Antennas part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

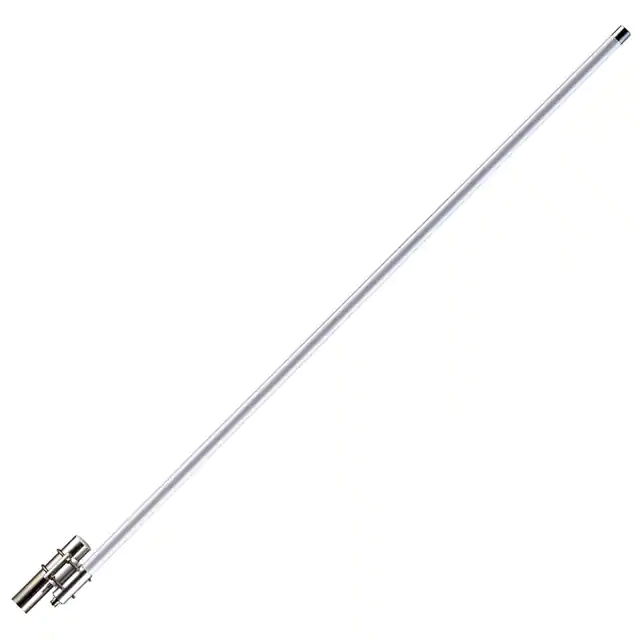

OMB.868.B05F21RF ANT 868MHZ WHIP STR N FEM |
385 | - |
|
Datasheet | - | Tube | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 860MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | 5dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 43.071" (109.40cm) | - |
|
MA602.A.ABJ.002RF ANT 892MHZ/1.94GHZ DOM SMA 1M |
3,230 | - |
|
Datasheet | Spartan | Box | Not For New Designs | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Dome | 2 | 1.92 | -10dB | 5dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 1.555" (39.50mm) | Iridium, GLONASS, GPS |
|
MA600.A.ABC.006RF ANT 850MHZ/900MHZ DOME PNL MT |
381 | - |
|
Datasheet | Spartan | Box | Not For New Designs | Cellular, Navigation, WiFi | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 4.85GHz, 5.2GHz, 5.65GHz | 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 5.9GHz | Dome | 11 | 2, 1.6 | - | 2.1dBi, -0.2dBi, 2.9dBi, 3dBi, 5.1dBi, 2.1dBi, 2.9dBi, 3.8dBi, 2.8dBi | - | Cable - 3m, LNA, Filter | SMA Male (3) | IP67 | - | - | Panel Mount | 1.555" (39.50mm) | CDMA, GLONASS, GPS, GSM, HSPA, UMTS, Wi-Fi |
|
YG0063AAGEOMATRICAL L1/L2/L5 EXTERNAL AN |
258 | - |
|
Datasheet | - | Bulk | Active | Navigation | - | - | - | Dome | 1 | - | - | - | - | - | TNC Female | - | - | - | Screw | 2.677" (68.00mm) | Galileo, GLONASS, GNSS, GPS |
|

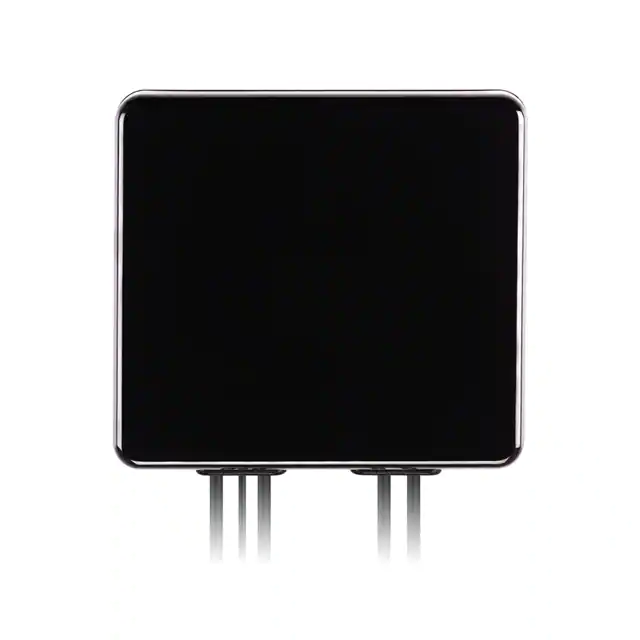

MA952.A.LBIVW.0015IN1 GUARDIAN 3M:GNSS RG-174 :LT |
4,783 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 5.15GHz ~ 5.925GHz | Module | 13 | 2, 2, 2 | - | 1.42dBi, 1.28dBi, 3.56dBi, 3.24dBi, 3.55dBi, 3.21dBi, 3.21dBi, 3.11dBi, 3.06dBi, 3.84dBi | 2 W | Cable - 3m | SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | Beidou, DCS, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, Wi-Fi |
|
GPS-TMG-40NCSRF ANT 1.575GHZ DOME N TYP F POL |
2,354 | - |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 1.5 | - | 3.5dBic | - | - | N Type Female | - | - | - | Pole Mount | 4.961" (126.00mm) | GNSS, GPS |
|
GPSGL-TMG-SPI-40NRF ANT 1.575GHZ/1.6085GHZ DOME |
1,261 | - |
|
Datasheet | - | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.6085GHz | 1.565GHz ~ 1.585GHz, 1.602GHz ~ 1.615GHz | Dome | 2 | 1.5 | - | 3.5dBic, 3dBic | - | - | - | - | - | - | Panel Mount | 7.244" (184.00mm) | Galileo, GLONASS, GPS |
|
|
GPS-TMG-40NMSRF ANT GPS 40DB NF BRKT DOME |
3,455 | - |
|
Datasheet | Timing Ref | Bulk | Active | PNT | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 1.5 | - | 40dBi | - | LNA, Filter | N Type Female | IP67 | - | - | Bracket Mount, Through Hole | 4.961" (126.00mm) | GPS |
|

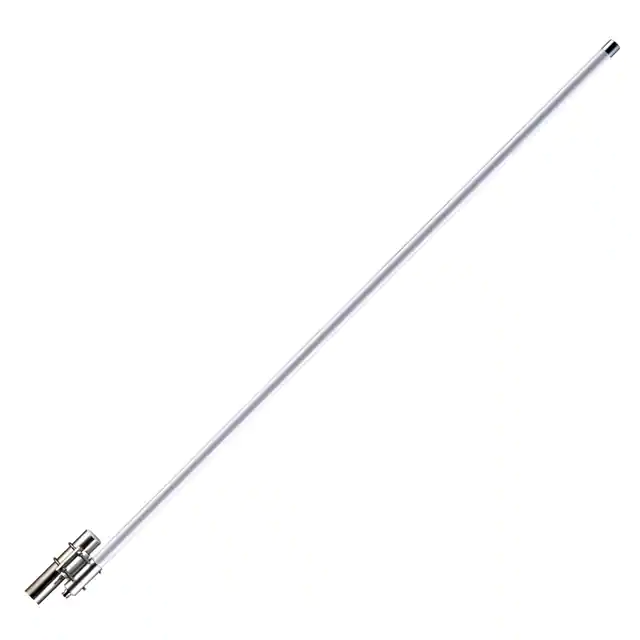

OMB.915.B08F21915MHZ 8DBI OMNI ANTENNA WITH N |
2,696 | - |
|
Datasheet | - | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 1.5 | - | 8dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 58.032" (147.40cm) | ISM |
|

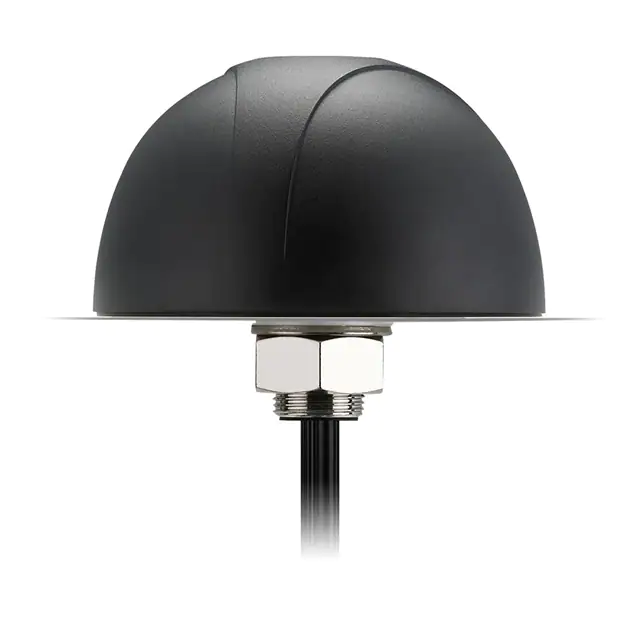

MA761.B.BICG.003RF ANT DOME SMA MALE PAN MT 3M |
239 | - |
|
Datasheet | Pantheon | Box | Active | Cellular, WiFi | Wide Band | - | - | Dome | 5 | - | -6dB | 2.4dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 3.327" (84.50mm) | LTE, Wi-Fi |
|

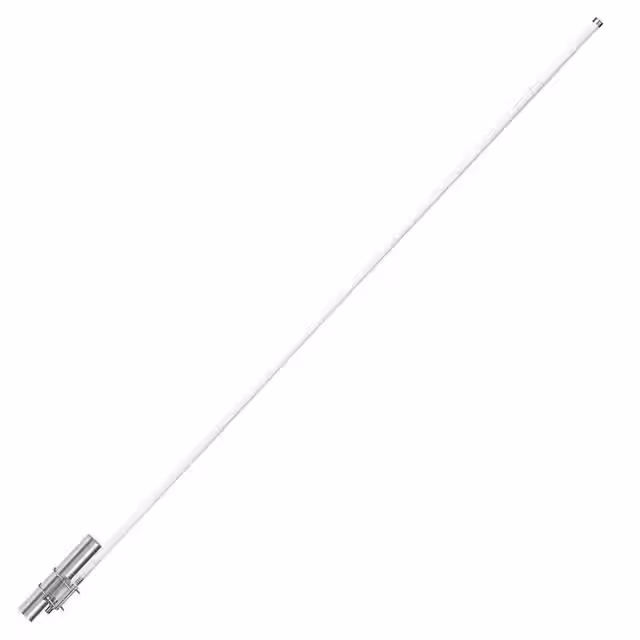

OMB.868.A10F21868MHZ 10DBI ANTENNA |
3,115 | - |
|
Datasheet | - | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 860MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | 10dBi | 50 W | - | N Type Female | IP67 | - | - | Bracket Mount | 88.189" (224.00cm) | ISM |
|
|
ADFGP.60A.01.0150DACTIVE ALL BAND GNSS HIGH PRECIS |
3,024 | - |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.227GHz, 1.278GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Module | 6 | 2 | - | 1.3dBi, 1.8dBi, -1.3dBi, 4.1dBi, 4.4dBi, 3.7dBi | - | Cable - 150mm, LNA, Filter | SMA Male | - | - | - | Chassis Mount | 0.752" (19.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
A09-F5NF-MRF ANT 900MHZ WHIP STR N FEM 25" |
1,817 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | - | Whip, Straight | 1 | - | - | 5.1dBi | - | - | N Type Female | - | - | - | Bracket Mount | 25.000" (635.00mm) | - |
|

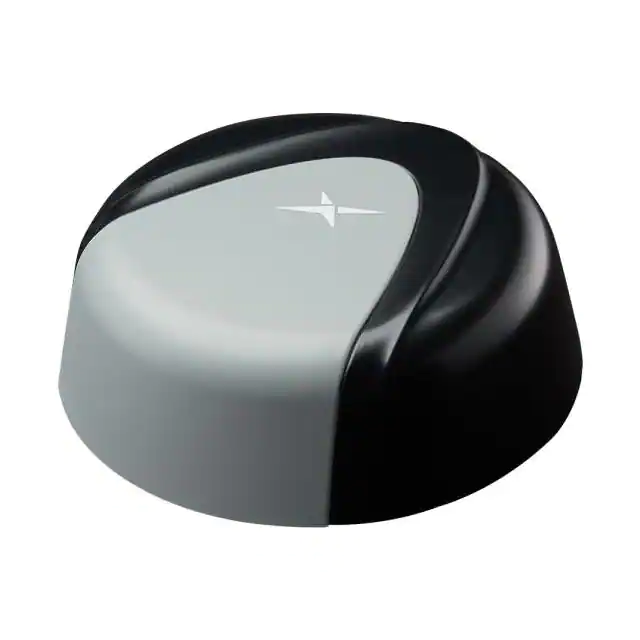

MA1505.AK.0015IN1 GNSS 5G WIFI ANTENNA |
110 | - |
|
Datasheet | - | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz | Module | 13 | 2, 2.5 | - | -0.08dBi, 1.04dBi, 2.03dBi, 3.76dBi, 31.7dBic, 32.4dBic, 32.4dBic, 4.55dBi, 1.4dBi, 4.96dBi, 5.82dBi, 2.55dBi, 5.89dBi | 2 W | Cable - 300mm, LNA, Filter | SMA Male (2), RP-SMA | IP67 | - | - | Panel Mount | 2.263" (57.47mm) | 3G, 4G, 5G, Beidou, GLONASS, GPS, GNSS, LTE, Wi-Fi |
|

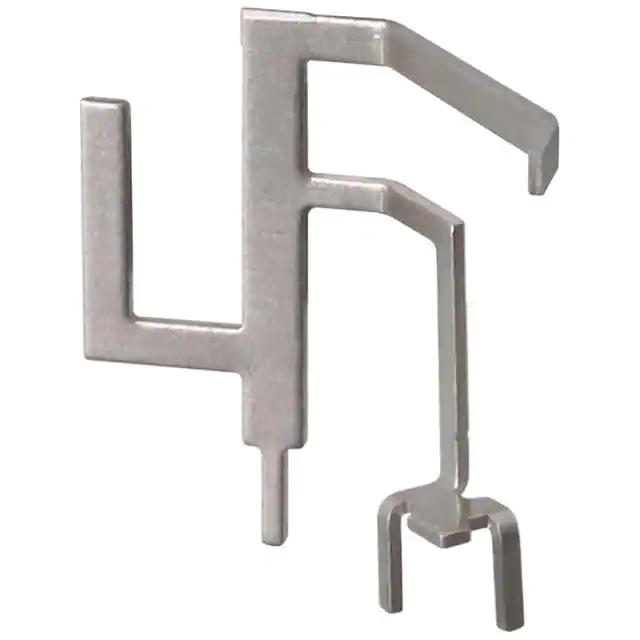

ANT-W63-MSA-TH1ANT WIFI6 2.4/5/6GHZ STAMPD TH |
6,154 | - |
|
Datasheet | - | Tray | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Stamped Metal | 3 | 1.9, 2.9, 3.2 | - | 3.5dBi, 3.8dBi, 3.8dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.728" (18.50mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
ANT3216LL11R2455AANTENNA CHIP 2.5/5G PIFA-C |
2,617 | - |
|
Datasheet | 3216 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | - | Chip | 2 | - | 6.5dB | 0.45dBi, 0.64dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | 4G, 5G, Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
ANT3216LL11R2400ARF ANT 2.45GHZ CER PATCH SLDR |
6,721 | - |
|
Datasheet | 3216 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | - | 6.5dB | 3.68dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
H2UB4K1H1B0100WIFI/BT 2400-2500MHZ TELA CERAMI |
10,850 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2.5 | - | -0.3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.012" (0.30mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
5400AT18A1000001ERF ANT 5.4GHZ CHIP SOLDER SMD |
5,715 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.9GHz | Chip | 1 | - | -8.5dB | 2dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | - |
|
|
H2U36D1K1B0300WIFI/BT 2400-2500 MHZ MONOPOLE C |
2,950 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1.9dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, Zigbee™ |
RF Antennas FAQ
Common questions about selecting, comparing and sourcing RF Antennas components through Winsun (HK) Electronics.
What should I check when selecting RF Antennas components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Antennas part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Antennas parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Antennas components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
