RF Antennas
Browse available RF Antennas part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2195846-8FPC ANT, MHF4L, 200MM, 698-7125 |
1,078 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 7 | 4 | - | 4.99dBi | - | Cable - 200mm | MHF4L | - | - | - | Adhesive, Chassis Mount | - | 4G, LTE, GNSS |
|
2344657-4FPC ANTENNA, CABLE, MHF, WI-FI T |
4,730 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2.7 | - | 5.3dBi | - | Cable - 200mm | MHF | - | - | - | Adhesive | 0.007" (0.19mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1461850050RF ANT 892MHZ/1.9GHZ FLAT PATCH |
2,509 | - |
|
Datasheet | 146185 | Bulk | Active | Cellular, WiFi | Wide Band | 892MHz, 1.9GHz, 4.5GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3GHZ ~ 6GHz | Flat Patch | 3 | - | -6dB | 4.2dB | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | WLAN |
|
W2P15X7W04-U100D3B0AANT ASSY, WLAN2 04 100 D0230 |
1,690 | - |
|
Datasheet | - | Bulk | Active | WiFi | SHF (f > 4GHz) | 5.5GHz, 6.525GHz | 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 2 | - | -9dB, -7.3dB | 4.3dBi, 3.9dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Wi-Fi |
|
2118909-1WLAN TRIPLE BAND ANT MHF CABLE 1 |
1,577 | - |
|
Datasheet | - | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.5GHz, 5.5125GHz, 6.525GHz | 2.3GHz ~ 2.7GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2, 2.5 | - | 4.2dBi, 4.2dBi, 4.2dBi | - | Cable - 120mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1461860150RF ANT 1.561/1.575GHZ FLAT 150MM |
2,578 | - |
|
Datasheet | 146186 | Bulk | Active | Navigation, WiFi | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | 1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | Flat Patch | 5 | - | -10dB | 2.85dBi, 3.75dBi, 4.5dBi | 2 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
|
1513273-1RF ANT 850MHZ/900MHZ PCB TRACE |
3,565 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.85GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | PCB Trace | 2 | 3 | - | 2dBi | 10 W | - | Solder | - | - | - | Through Hole | 0.595" (15.11mm) | CDMA, GSM, LTE, ZigBee™ |
|
APAKN2504-S2448-TRF ANT 2.4GHZ CER PATCH SLDR SMD |
2,486 | - |
|
Datasheet | APAK | Tray | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.412GHz ~ 2.484GHz | Ceramic Patch | 1 | - | -10dB | 7dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
1513353-1RF ANT 2.4GHZ PCB TRACE SLDR SMD |
5,372 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | PCB Trace | 1 | 2 | - | 2dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.78mm) | Bluetooth, WLAN, Zigbee™ |
|
|
1-2118909-2PCB ANT, MHF, 100MM, WI-FI 6E TR |
2,843 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | - | 4.2dBi | - | Cable - 100mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
RFMTA310819IMAB701RF ANT 2.4GHZ STAMPED MET IPEX |
3,014 | - |
|
Datasheet | - | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | -10dB | 5.8dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.331" (8.40mm) | ISM |
|

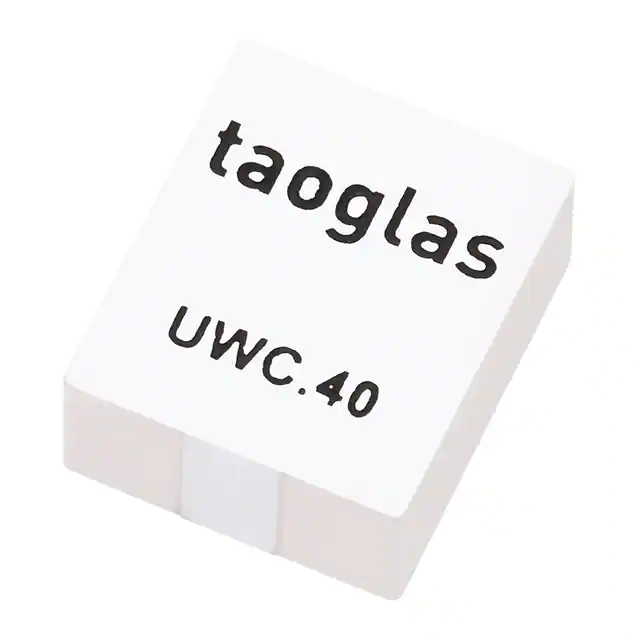

UWC.403~5GHZ ULTRA-WIDE BAND (UWB) SMD |
1,831 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 3.49GHz, 3.985GHz, 3.99GHz, 4.49GHz | 3.1GHz ~ 4.75GHz | Chip | 4 | 2.5, 2.8, 3.8, 2.8 | -7.5dB, -6.5dB, -5dB, -5dB | 3.5dBi, 4.5dBi, 4dBi, 4dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | General Purpose |
|
1462000011RF ANT CER PATCH SOLDER SMD |
8,592 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Ceramic Patch | 2 | - | -5dB | 0.5dBi, 3.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | LTE |
.jpg "ANT-418-PW-RA")
|
ANT-418-PW-RARF ANT 418MHZ WHIP TILT SCREW-MT |
377 | - |
|
Datasheet | RA | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 409MHz ~ 427MHz | Whip, Tilt | 1 | 2 | - | 2dBi | - | - | Screw-Mount | - | - | - | Panel Mount | 5.180" (131.57mm) | Alarms, ISM, Remote Control, Security Systems |
|
|
SR4L069ALLANI SMD 5G CELLULAR ANTENNA |
1,720 | - |
|
Datasheet | lamiiANT® | Tape & Reel (TR) | Active | Cellular | Wide Band | 720.5MHz, 892MHz, 1.94GHz, 2.35GHz, 2.595GHz, 3.55GHz | 617MHz ~ 698MHz, 824MHz ~ 803MHz, 1.71GHz ~ 894MHz, 2.3GHz ~ 1.518GHz, 2.5GHz ~ 1.661GHz, 3.3GHz ~ 2.2GHz, | Flat Bar | 6 | 2.2, 2.3, 2.4, 3.3, 3.6 | -8.5dB, -8dB, -7.7dB, -5.5dB, -5dB | -0.2dBi, 1.6dBi, 4.1dBi, 3.4dBi, 5.1dBi, 5.4dBi | - | - | - | - | - | - | Surface Mount | 0.130" (3.30mm) | 4G, 5G, DCS, GSM, LTE, WCDMA |
|
|
1-2118909-4PCB ANT, MHF, 200MM, WI-FI 6E TR |
2,644 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | - | 4.3dBi | - | Cable - 200mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
ANT-LPC-FPC-150RF ANT LTE CBRS FLEX ADHES UFL |
1,731 | - |
|
Datasheet | FPC | Bag | Active | 802.15.4, Bluetooth, General ISM, Navigation, WiFi | Wide Band | 750MHz, 876MHz, 1.58GHz, 1.96GHz, 2.35GHz, 2.44GHz, 2.59GHz, 3.55GHz | 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.553GHz ~ 1.609GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.485GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Flat Patch | 8 | 8.2, 4.8, 1.7, 4.9, 3.5, 2.7, 3.1, 2 | - | 0.1dBi, 3.7dBi, 3.3dBi, 2.2dBi, 3.3dBi, 3.9dBi, 5dBi, 5.7dBi | 2 W | Cable - 150mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.008" (0.20mm) | General Purpose |
|
1462200100RF ANT 1.561/1.575GHZ PCB 100MM |
724 | - |
|
Datasheet | 146220 | Bulk | Active | Navigation, WiFi | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | PCB Trace | 5 | - | -8dB | 2.4dBi, 2.9dBi, 3.5dBi, 3.8dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.032" (0.81mm) | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
|
W2P15X7W04-H100D3B0AANT ASSY, WLAN2 04 100 D0230 |
910 | - |
|
Datasheet | W | Box | Active | WiFi | SHF (f > 4GHz) | 5.5GHz, 6.525GHz | 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 2 | - | -9dB, -7.3dB | 4.3dBi, 3.9dBi | - | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.016" (0.40mm) | Wi-Fi |
|
W1697ANT EXT 0.617-3.8GHZ RPSMA |
291 | - |
|
Datasheet | Stubby Antenna | Tray | Active | Cellular | Wide Band | 788.5MHz, 2.2GHz, 3.6GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | Whip, Straight | 3 | - | -5dB, -4dB | -0.5dBi, 1dBi, 0dBi | 5 W | - | RP-SMA Male | IP42 | - | - | Connector Mount | 1.953" (49.60mm) | LTE |
RF Antennas FAQ
Common questions about selecting, comparing and sourcing RF Antennas components through Winsun (HK) Electronics.
What should I check when selecting RF Antennas components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Antennas part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Antennas parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Antennas components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
