RF Antennas
Browse available RF Antennas part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APAKN2504-C2G-TRF ANT 1.575/1.602GHZ CER PATCH |
1,923 | - |
|
Datasheet | APAK | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | - | -10dB, -10dB | 3.6dBi, 3.6dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Galileo, GLONASS, GNSS, GPS |
|
W3213RF ANT 1.575GHZ CER PATCH PIN |
843 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 1.6 | - | -1.5dBic | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
W3230RF ANT 2.45GHZ CER PATCH PIN ADH |
182 | - |
|
Datasheet | Ceramic Patch Antenna | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | - | -4dB | 6dBi | 5 W | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | Bluetooth, Wi-Fi |
|
W3F35X8W01-U100D3B0CANTENNA ASSY, WLAN 04 100 F |
785 | - |
|
Datasheet | W | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | -15dB, -10dB, -6dB | 2.3dBi, 5dBi, 2.5dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
1-2118909-1PCB ANT, MHF, 50MM, WI-FI 6E TRI |
2,775 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | - | 5dBi | - | Cable - 50mm | MHF | - | - | - | Adhesive | 0.039" (1.00mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
AFAG7020-S824RF ANT 2G/3G/GSM FLEX PCB |
1,147 | - |
|
Datasheet | AFAG | Bulk | Active | Cellular | Wide Band | 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.2GHz | 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.71GHz ~ 1.99GHz, 1.85GHz ~ 2.69GHz | PCB Trace | 5 | 3 | - | 2dBi, 3.5dBi | 10 W | Cable - 120mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | 2G, 3G, DCS, GSM, PCS, UMTS |
|
|
YCGS004AACERAMIC ANTENNA,GNSS,SMD,9*9*4 |
956 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.576GHz | Ceramic Patch | 1 | 2 | - | -6.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | BeiDou, Galileo, GNSS, GPS |
|
7488910043RF ANT 433MHZ CHIP SOLDER SMD |
1,306 | - |
|
Datasheet | WE-MCA | Tape & Reel (TR) | Active | Bluetooth, Cellular, WiFi | UHF (300MHz ~ 1GHz) | 433MHz | 423MHz ~ 443MHz | Chip | 1 | 2 | - | -4dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, GSM, WLAN |
|
RFPCA460611IMAB301RF ANT 2.4GHZ PCB TRACE IPEX MAL |
399 | - |
|
Datasheet | - | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | -10dB | 3.8dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.051" (1.30mm) | ISM |
|

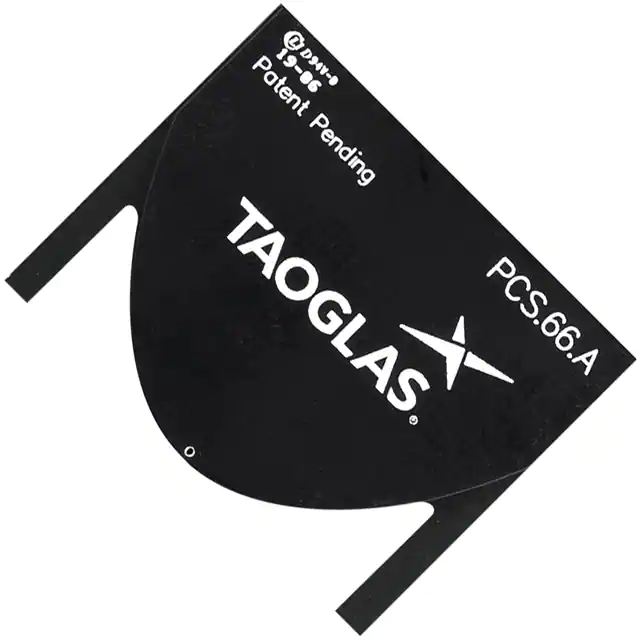

PCS.66.AREACH PCS.66.A WIDEBAND 5G/4G SM |
3,263 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular, WiFi | Wide Band | 788.5MHz, 1.4725GHz, 1.85GHz, 2.045GHz, 2.45GHz, 2.6GHz, 4.15GHz, 5.55GHz | 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 5GHz, 5.25GHz ~ 5.85GHz | Module | 8 | 3 | - | 1.3dBi, 2.5dBi, 3.2dBi, 3.5dBi, 3.5dBi, 5.7dBi, 5.5dBi, 3.5dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | CDMA, GSM, HSPA, LTE, UMTS, Wi-Fi |
|

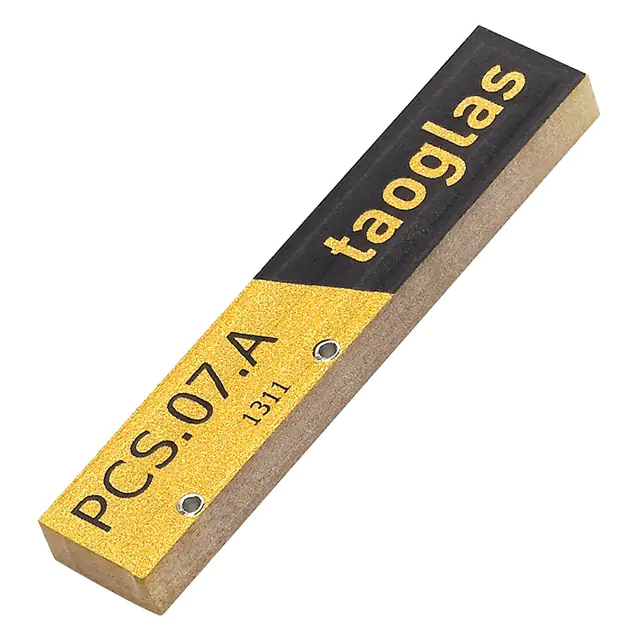

PCS.07.ARF ANT 850MHZ/900MHZ CHIP SLD |
2,768 | - |
|
Datasheet | Nemesis | Tape & Reel (TR) | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 5 | - | -3dB, -4dB, -5dB, -7dB, -6dB | -1.96dBi, 1.77dBi, 2.9dBi, 2.83dBi, 2.57dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA |
|

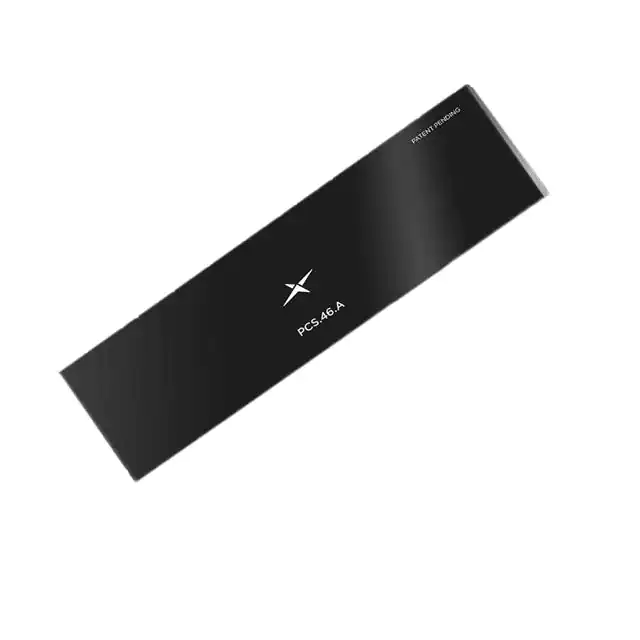

PCS.46.A5G/4G WIDEBAND 400-6000MHZ SMD A |
748 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular, WiFi | Wide Band | 440MHz, 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz | 400MHz ~ 480MHz, 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Chip | 9 | - | - | -0.5dBi, 1.6dBi, 2.6dBi, 2.5dBi, 3.6dBi, 5.6dBi, 5.6dBi, 4.8dBi, 4.5dBi | 20 W | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | 3G, 4G, 5G, LTE, Wi-Fi |
|
|
ANT-5GW-FPC-LH100M4ANT 5G FPC 120X20 100MM MHF4 |
929 | - |
|
Datasheet | ANT-5GW-FPC-LH | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.947GHz, 2.495GHz, 3.75GHz, 4.7GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Flat Patch | 9 | 1.6, 1.7, 1.8, 1.9, 2, 2.5, 2.7, 4.7 | - | 5dBi, 5dBi, 5.5dBi, 6dBi, 5.2dBi, 5.1dBi, 7dBi, 6.2dBi, 6.8dBi | 2 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 2G, 3G, 4G, 5G, LTE |
|
2047740001RF ANT CHIP SOLDER SMD |
8,896 | - |
|
Datasheet | 204774 | Tape & Reel (TR) | Active | - | Wide Band | - | 790MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Chip | 2 | - | -6dB | 4.84dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | - |
|
W3216RF ANT 1.575/1.602GHZ CER PATCH |
131 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz, 1.598GHz ~ 1.606GHz | Ceramic Patch | 2 | 1.4, 2.3 | - | -2dBi | - | - | Pin | - | - | - | Adhesive | 0.218" (5.53mm) | GLONASS, GPS |
|
|
EFF6060A3S-10MHF1REVIE 600 5G CAT M1 NB-IOT ANT |
815 | - |
|
Datasheet | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Adhesive | - | - |
|
1001039ANTENNA |
1,127 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | - | -20dB | 5.3dBic | - | - | Pin | - | - | - | Adhesive | 0.177" (4.50mm) | GPS |
|
W3513RF ANT 2.4GHZ/5GHZ PCB TRACE SMD |
1,351 | - |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | 2dBi | - | Cable - 250mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.035" (0.90mm) | Wi-Fi, WLAN |
|
RFPCA500609IMAB301RF ANT 2.4GHZ PCB TRACE IPEX MAL |
369 | - |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | -10dB | 4.5dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.087" (2.20mm) | - |
|
2118907-1WLAN TRIPLE BAND ANTENNA ASSEMBL |
226 | - |
|
Datasheet | - | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 1.8 | - | 4.4dBi, 4.4dBi, 4.4dBi | - | Cable - 120mm | MHF | - | - | - | Adhesive | 0.013" (0.34mm) | 802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
RF Antennas FAQ
Common questions about selecting, comparing and sourcing RF Antennas components through Winsun (HK) Electronics.
What should I check when selecting RF Antennas components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Antennas part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Antennas parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Antennas components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
