RF Antennas
Browse available RF Antennas part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3929B0100ANTENNA 0.617-3.9GHZ I-PEXMHF |
207 | - |
|
Datasheet | GEMINI | Bag | Active | - | Wide Band | 788.5MHz, 2.2GHz, 3.65GHz | 617MHz ~ 3.9GHz | PCB Trace | 3 | - | -6dB | 2dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | - | General Purpose |
|
ANT-2.4-FPC-SAH100UFANT 2.4 FPC 12X8 100MM CBL UFL |
639 | - |
|
Datasheet | ANT-2.4-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 4.1 | - | 0.1dBi | 2 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
AFAC110020-S698RF ANT 4G/LTE FLEX PRINTED |
1,765 | - |
|
Datasheet | AFAC | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 2 | 3 | - | 3dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 4G, LTE |
|
1003468ANTENNA CERAMIC, 2.4GHZ 18X18X4 |
400 | - |
|
Datasheet | - | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | Ceramic Patch | 1 | 2 | - | 3.83dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

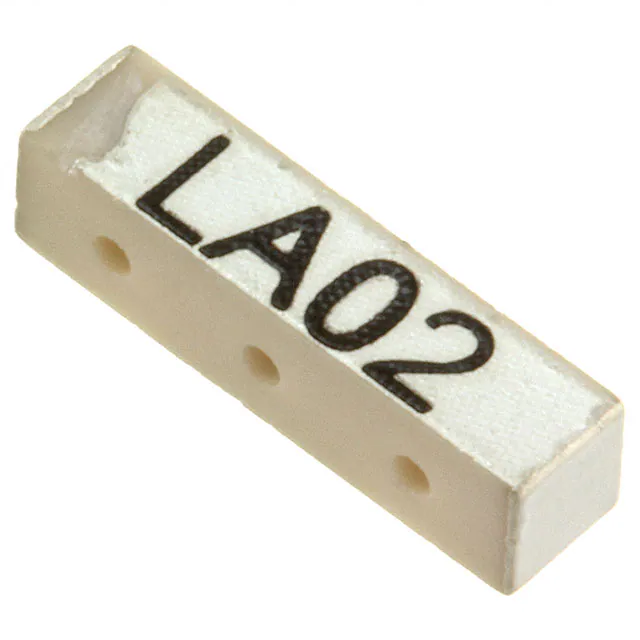

LA.02RF ANT 2.4GHZ CHIP SOLDER SMD |
11,311 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

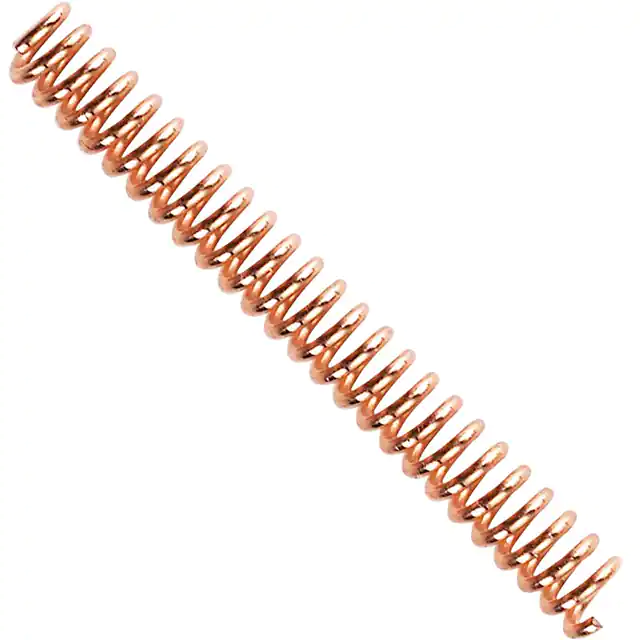

HA.10.ARF ANT 169MHZ HELICAL SOLDER SMD |
148 | - |
|
Datasheet | - | Bag | Active | - | VHF (f < 300MHz) | 169MHz | - | Helical | 1 | - | -10dB | - | - | - | Solder | - | - | - | Surface Mount | 1.004" (25.50mm) | - |
|
W6102B0100RF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
500 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Flat Patch | 2 | 2 | - | 6dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
W5100RF ANT 2.4GHZ FLAT PATCH SLDR |
5,187 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.48GHz | Flat Patch | 1 | 3 | - | 1dBi | - | - | Solder | - | - | - | Adhesive | 0.047" (1.20mm) | Bluetooth, WLAN, Zigbee™ |
|
PRO-OB-572ANT GSM/NB-IOT SMD |
1,406 | - |
|
Datasheet | Embedded Antenna | Tape & Reel (TR) | Active | Cellular | Wide Band | 875.5MHz, 1.94GHz | 791MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Stamped Metal | 2 | - | -6dB | - | - | - | Solder | - | - | - | Surface Mount | 0.394" (10.00mm) | GSM, UMTS |
|

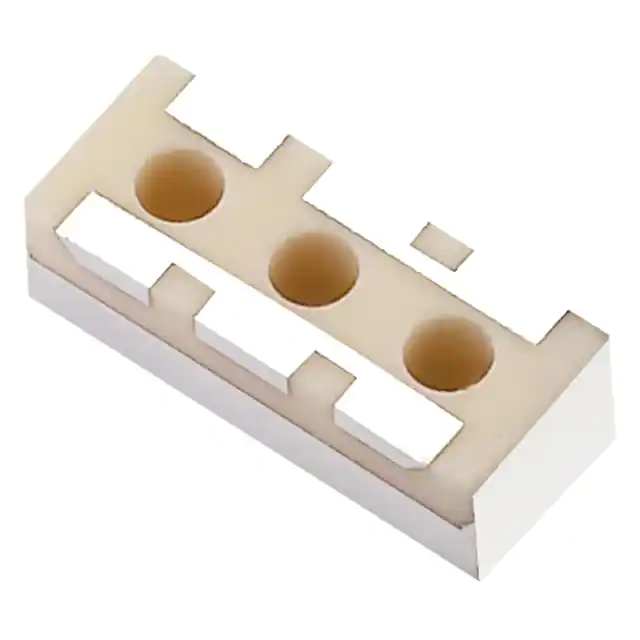

PA.11RF ANT 2.4GHZ CHIP SOLDER SMD |
9,400 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 2 | - | 1.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | Bluetooth, WLAN, Zigbee™ |
|

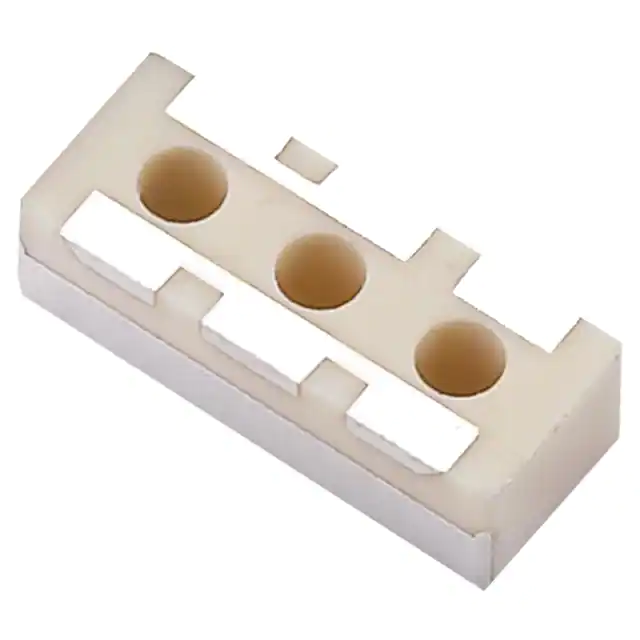

PA.12RF ANT 2.4GHZ CHIP SOLDER SMD |
4,251 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 2 | - | 1.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | Bluetooth, WLAN, Zigbee™ |
|

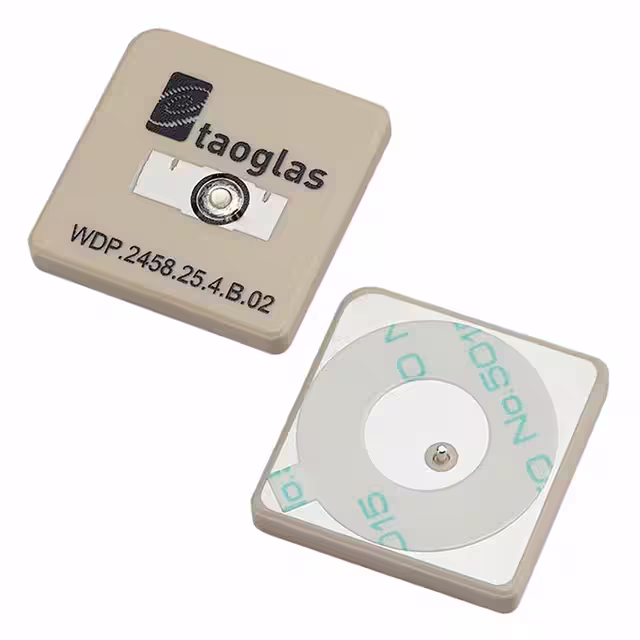

WDP.2458.25.4.B.02RF ANT 2.4/5.5GHZ CER PATCH PIN |
822 | - |
|
Datasheet | - | Tray | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Ceramic Patch | 2 | - | -19dB, -5dB | 6dBi, 8dBi | 10 W | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | WLAN |
|
ANT-GFPCB1540-UFLRF ANT 830MHZ/2.25GHZ FLAT CAB |
255 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 830MHz, 2.25GHz | 700MHz ~ 960MHz, 1.8GHz ~ 2.7GHz | Flat Patch | 2 | 2 | - | 5dBi | 1 W | Cable - 150mm | - | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|
1462340100RF ANT 829MHZ/2.1GHZ FLAT 100MM |
929 | - |
|
Datasheet | 146234 | Tray | Active | - | Wide Band | 829MHz, 2.1GHz, 4.35GHz | 698MHz ~ 6GHz | Flat Patch | 3 | - | -4dB, -5dB | 1.8dBi, 2.8dBi, 5.0dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | General Purpose |
|
0600-00057RF ANT 2.4GHZ WHIP STR IPEX MHF |
171 | - |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | -10dB | 2dBi | 1 W | - | U.FL (UMCC), I-PEX MHF4 | - | - | - | Connector Mount | 4.094" (104.00mm) | - |
|
ANT-868-CW-RCSRF ANT 868MHZ WHIP RA RP-SMA MAL |
102 | - |
|
Datasheet | RCS | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 850MHz ~ 880MHz | Whip, Right Angle | 1 | 2 | - | 3.6dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.106" (53.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|
SG901-1066 ANTENNARF ANT 2.4GHZ PCB TRACE IPEX SMD |
13,075 | - |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.49GHz | PCB Trace | 1 | 2 | - | 3.8dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.087" (2.20mm) | - |
|
ACTPAT154-01-IPRF ANT 1.575GHZ CER PATCH CAB |
138 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.583GHz | Ceramic Patch | 1 | 1.5 | -10dB | 0.5dBi | - | Cable - 63mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.276" (7.00mm) | GPS |
|
W1037RF ANT 2.4GHZ WHIP TILT 6.5" |
336 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 3.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.819" (198.60mm) | Bluetooth, WLAN, Zigbee™ |
|
W5011RF ANT 2.4GHZ WHIP STR SMA MALE |
254 | - |
|
Datasheet | - | Bulk | Active | 802.15.4 | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | -10dB | 1.5dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 5.122" (130.09mm) | ZigBee™ |
RF Antennas FAQ
Common questions about selecting, comparing and sourcing RF Antennas components through Winsun (HK) Electronics.
What should I check when selecting RF Antennas components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Antennas part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Antennas parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Antennas components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
