RF Directional Coupler
Browse available RF Directional Coupler part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coupler Type | Frequency | Coupling Factor | Applications | Insertion Loss | Power - Max | Isolation | Return Loss | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE2239-30Directional 30 dB N Coupler From |
2,243 | - |
|
Datasheet | - | Retail Package | Active | Standard | 1GHz ~ 8GHz | 30 ± 1dB | General Purpose | 0.2dB | 600W | - | - | Module |
|
|
PEWCT1089WR-112 Waveguide 30 dB Crossguid |
3,404 | - |
|
Datasheet | - | Retail Package | Active | Standard | 7.05GHz ~ 10GHz | 30dB | Radar | 0.1dB | 5W | 25dB | - | - |
|
|
PEWCT1079WR-90 Waveguide 50 dB Crossguide |
2,667 | - |
|
Datasheet | - | Retail Package | Active | Standard | 8.2GHz ~ 12.4GHz | 50dB | Radar | 0.1dB | 4W | 10dB | - | - |
|

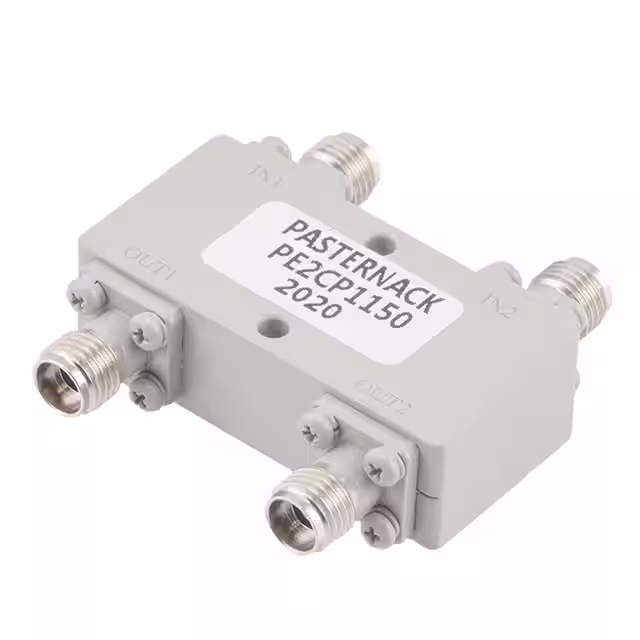

PE2CP115090DEG HYB CPL 2-40GHZ 20W |
4,425 | - |
|
Datasheet | - | Bag | Active | Standard | 2GHz ~ 40GHz | 3dB | General Purpose | 1.3dB | 20W | 10dB | - | Module |
|

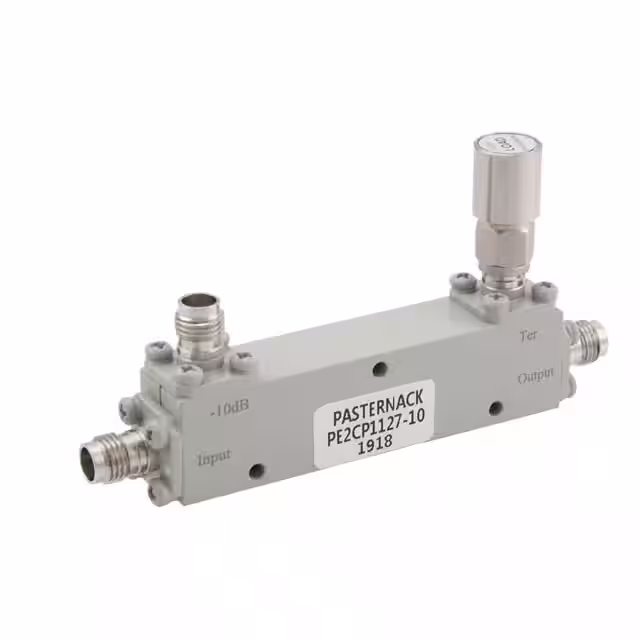

PE2CP1127-10CPLR 10DB1.85MM 1-67GHZ 20W |
4,646 | - |
|
Datasheet | - | Bag | Active | Standard | 1GHz ~ 67GHz | 10dB | 5G, GSM, LTE | 1.4dB | 20W | - | - | Module |
|
|
PEWCT1086WR-112 WAVEGUIDE 40 DB CROSSGUID |
1,700 | - |
|
Datasheet | - | Retail Package | Active | Standard | 7.05GHz ~ 10GHz | 40dB | General Purpose | 0.1dB | 5W | 20dB | - | - |
|
|
PEWCT1062WR-75 Waveguide 40 dB Crossguide |
2,552 | - |
|
Datasheet | - | Retail Package | Active | Standard | 10GHz ~ 15GHz | 40dB | Radar | 0.1dB | 2.5W | 15dB | - | - |
|
|
PEWCT1112WR-137 Waveguide 20 dB Crossguid |
1,436 | - |
|
Datasheet | - | Retail Package | Active | Standard | 5.85GHz ~ 8.2GHz | 20dB | Radar | 0.1dB | 6W | 20dB | - | - |
|

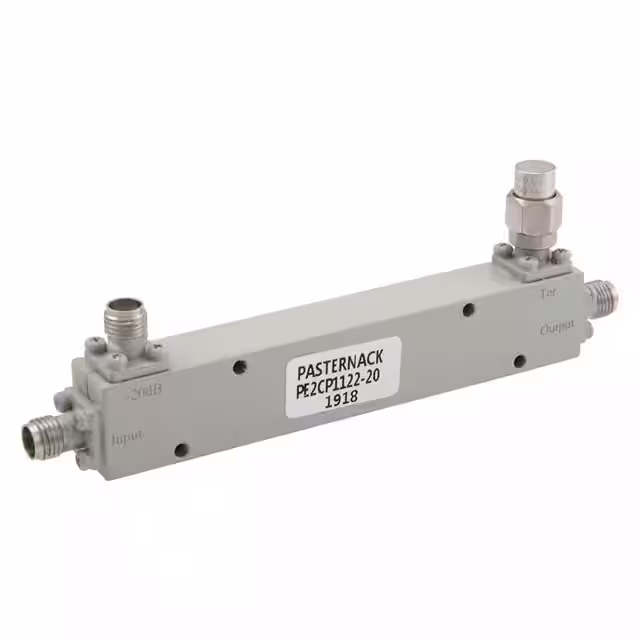

PE2CP1122-20CPLR 20DB2.92MM 1-40GHZ 30W |
1,547 | - |
|
Datasheet | - | Bag | Active | Standard | 1GHz ~ 40GHz | 20dB | 5G, GSM, LTE | 2dB | 30W | - | - | Module |
|
|
PE2CP1016Dual Directional 40 dB N Coupler |
3,081 | - |
|
Datasheet | - | Retail Package | Active | Standard | 800MHz ~ 4.2GHz | 40 ± 1dB | General Purpose | 0.3dB | 200W | - | - | Module |
|
|
PE2215-10Directional 10 dB SMA Coupler Fr |
3,001 | - |
|
Datasheet | - | Retail Package | Active | Standard | 2GHz ~ 18GHz | 10 ± 1dB | General Purpose | 0.8dB | 25W | - | - | Module |
|

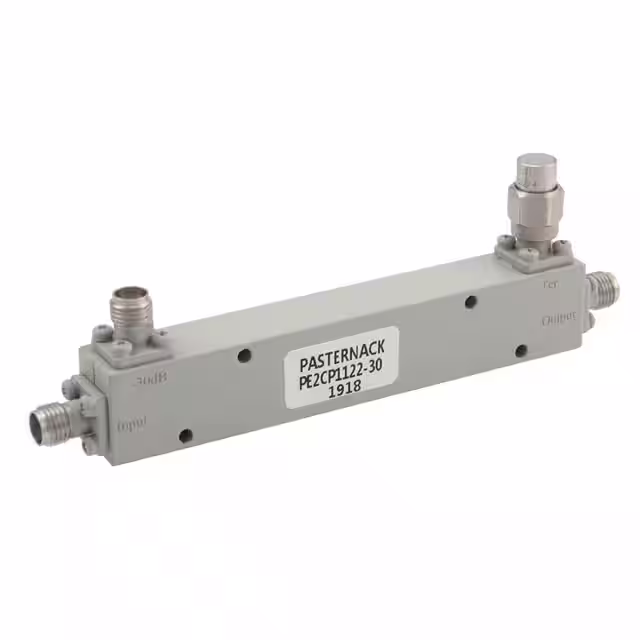

PE2CP1122-30CPLR 30DB2.92MM 1-40GHZ 30W |
1,763 | - |
|
Datasheet | - | Bag | Active | Standard | 1GHz ~ 40GHz | 30dB | 5G, GSM, LTE | 1.6dB | 30W | - | - | Module |
|
|
PEWCT1045WR-34 Waveguide 30 dB Crossguide |
2,660 | - |
|
Datasheet | - | Retail Package | Active | Standard | 22GHz ~ 33GHz | 30dB | Radar | 0.1dB | 1W | 20dB | - | - |
|
|
PE-W15CP001-10WR-15 Waveguide 10 dB Broadwall |
4,954 | - |
|
Datasheet | - | Retail Package | Active | Standard | 50GHz ~ 75GHz | 10dB | General Purpose | 1.4dB | - | 30dB | - | Module |
|
|
PEW137CP001-30WR-137 Waveguide 30 dB Broadwall |
1,832 | - |
|
Datasheet | - | Retail Package | Active | Standard | 5.38GHz ~ 8.17GHz | 30dB | General Purpose | 0.1dB | 500W | 30dB | - | - |
|
|
PEW137CP001-10WR-137 Waveguide 10 dB Broadwall |
1,301 | - |
|
Datasheet | - | Retail Package | Active | Standard | 5.38GHz ~ 8.17GHz | 10dB | General Purpose | 0.6dB | 150W | 38dB | - | - |
|
|
PE2CP1003Dual Directional 50 dB N Coupler |
2,739 | - |
|
Datasheet | - | Retail Package | Active | Standard | 20MHz ~ 500MHz | 50 ± 1dB | General Purpose | 0.1dB | 1000W | - | - | Module |
|
|
PEW22CP010-40WR-22 WAVEGUIDE 40 DB BROADWALL |
4,010 | - |
|
Datasheet | - | Retail Package | Active | Standard | 33GHz ~ 50GHz | 40dB | General Purpose | 0.4dB | 70W | 25dB | - | - |
|
|
PE2CP1008Precision Dual Directional 50 dB |
3,145 | - |
|
Datasheet | - | Retail Package | Active | Standard | 80MHz ~ 1GHz | 50dB | General Purpose | 0.25dB | 1000W | - | - | Module |
|
|
PE2236-35Directional 35 dB N Coupler From |
2,575 | - |
|
Datasheet | - | Retail Package | Active | Standard | 1GHz ~ 11GHz | 35 ± 1.5dB | General Purpose | 0.2dB | 600W | - | - | Module |
RF Directional Coupler FAQ
Common questions about selecting, comparing and sourcing RF Directional Coupler components through Winsun (HK) Electronics.
What should I check when selecting RF Directional Coupler components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Directional Coupler part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Directional Coupler parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Directional Coupler components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
