RF Directional Coupler
Browse available RF Directional Coupler part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coupler Type | Frequency | Coupling Factor | Applications | Insertion Loss | Power - Max | Isolation | Return Loss | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE2CP1000Dual Directional 50 dB N Coupler |
2,585 | - |
|
Datasheet | - | Retail Package | Active | Standard | 3MHz ~ 30MHz | 50dB | General Purpose | 0.15dB | 2.5kW | - | - | Module |
|
|
PEWRD650CP02-30WRD-650 Double Ridge Waveguide 3 |
1,057 | - |
|
Datasheet | - | Retail Package | Active | Standard | 6.5GHz ~ 18GHz | 30dB | General Purpose | 0.3dB | 400W | 25dB | - | - |
|
|
PEWRD650CP02-40WRD-650 Double Ridge Waveguide 4 |
2,697 | - |
|
Datasheet | - | Retail Package | Active | Standard | 6.5GHz ~ 18GHz | 40dB | General Purpose | 0.3dB | 400W | 20dB | - | - |
|
|
PEWRD650CP02-10WRD-650 Double Ridge Waveguide 1 |
3,048 | - |
|
Datasheet | - | Retail Package | Active | Standard | 6.5GHz ~ 18GHz | 10dB | General Purpose | 0.8dB | 200W | 30dB | - | - |
|
|
PEWRD750CP01-40WRD-750 Double Ridge Waveguide 4 |
2,151 | - |
|
Datasheet | - | Retail Package | Active | Standard | 7.5GHz ~ 18GHz | 40dB | General Purpose | 0.3dB | 400W | 20dB | - | - |
|
|
PEWRD750CP01-50WRD-750 Double Ridge Waveguide 5 |
4,612 | - |
|
Datasheet | - | Retail Package | Active | Standard | 7.5GHz ~ 18GHz | 50dB | General Purpose | 0.3dB | 400W | 20dB | - | - |
|
|
PEWRD750CP02-50WRD-750 Double Ridge Waveguide 5 |
3,608 | - |
|
Datasheet | - | Retail Package | Active | Standard | 7.5GHz ~ 18GHz | 50dB | General Purpose | 0.3dB | 400W | 20dB | - | - |
|
|
PEWRD650CP01-40WRD-650 Double Ridge Waveguide 4 |
3,205 | - |
|
Datasheet | - | Retail Package | Active | Standard | 6.5GHz ~ 18GHz | 40dB | General Purpose | 0.3dB | 400W | 20dB | - | - |
|
|
PEWRD650CP01-30WRD-650 Double Ridge Waveguide 3 |
4,200 | - |
|
Datasheet | - | Retail Package | Active | Standard | 6.5GHz ~ 18GHz | 30dB | General Purpose | 0.3dB | 400W | 25dB | - | - |
|
|
PEWRD750CP02-30WRD-750 Double Ridge Waveguide 3 |
2,386 | - |
|
Datasheet | - | Retail Package | Active | Standard | 7.5GHz ~ 18GHz | 30dB | General Purpose | 0.3dB | 400W | 20dB | - | - |
|
|
PEWRD180CP01-30WRD-180 Double Ridge Waveguide 3 |
3,188 | - |
|
Datasheet | - | Retail Package | Active | Standard | 18GHz ~ 40GHz | 30dB | General Purpose | 0.5dB | 250W | 20dB | - | - |
|
|
PEWRD180CP01-40WRD-180 DOUBLE RIDGE WAVEGUIDE 4 |
2,332 | - |
|
Datasheet | - | Retail Package | Active | Standard | 18GHz ~ 40GHz | 40dB | General Purpose | 0.5dB | 250W | 18dB | - | - |
|

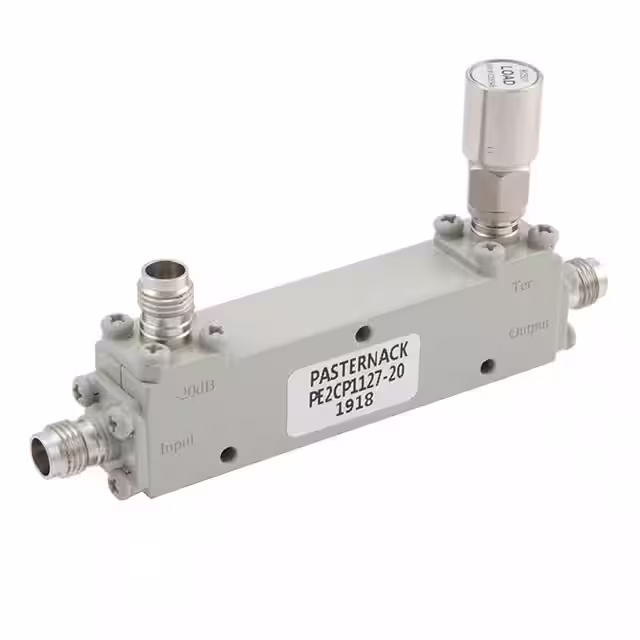

PE2CP1127-20CPLR 20DB1.85MM 1-67GHZ 20W |
2,179 | - |
|
Datasheet | - | Bag | Active | Standard | 1GHz ~ 67GHz | 20dB | 5G, GSM, LTE | 0.8dB | 20W | - | - | Module |
|
|
PE2CP1162Directional 1.0 mm Coupler From |
3,767 | - |
|
Datasheet | - | Retail Package | Active | Standard | 20GHz ~ 110GHz | 17 ± 8dB | General Purpose | 5.5dB | 1W | 23dB | - | - |
|
FPC06913RF DIR COUPLER 6GHZ-18GHZ SMD |
4,061 | - |
|
Datasheet | - | Bulk | Active | Standard | 6GHz ~ 18GHz | 20dB | General Purpose | 1dB | - | - | 18dB | - |
|
|
SCBD-10-63HP+10 DB SMT BI-DIR COUP |
1,587 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 50MHz ~ 6GHz | 36 ± 12dB | Cellular, GSM, PCN, WiMAX | 0.4dB | 100W | - | 30dB | - |
|
FPC06078RF DIR COUPLER 12GHZ-18GHZ SMD |
4,399 | - |
|
Datasheet | - | Bulk | Active | Standard | 12GHz ~ 18GHz | 22dB | General Purpose | 0.3dB | - | - | 15dB | - |
|
HH-128-PINRF DIR COUPLER 20MHZ-2GHZ FPCASE |
2,956 | - |
|
Datasheet | - | Bulk | Active | Standard | 20MHz ~ 2GHz | - | - | 1.5dB | 500mW | 20dB | - | FP-Case |
|
CPL-5230-10-SMA-79RF DIR COUPLER 500MHZ-18GHZ SMA |
1,597 | - |
|
Datasheet | - | Bulk | Active | Standard | 500MHz ~ 18GHz | 10dB ± 1.5dB | - | 0.8dB | 50W | - | - | - |
|
XC2100A-20SRF DIR COUPLER 2GHZ-2.3GHZ SMD |
2,117 | - |
|
Datasheet | Xinger® II | Tape & Reel (TR) | Active | Standard | 2GHz ~ 2.3GHz | 20dB | General Purpose | 0.15dB | 150W | - | - | - |
