RF Directional Coupler
Browse available RF Directional Coupler part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coupler Type | Frequency | Coupling Factor | Applications | Insertion Loss | Power - Max | Isolation | Return Loss | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
X4C40K1-30SRDIRECTIONAL COUPLER 5G 30DB ATTO |
15,337 | - |
|
Datasheet | Xinger® IV | Tape & Reel (TR) | Active | Standard | 3.2GHz ~ 4GHz | 30 ± 1.5dB | LTE | 0.075dB | 25W | - | - | 1210 |
|
DBTC-20-4L+RF DIR COUPLER 20MHZ-1GHZ 5SMD |
1,898 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 20MHz ~ 1GHz | 20.4 ± 0.5dB | Cellular | - | 1W | - | 31.8dB | - |
|
DBTC-17-5LX+RF DIR COUPLER 50MHZ-2GHZ 5SMD |
1,172 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 50MHz ~ 2GHz | 17.2 ± 0.9dB | Cellular, PCS | - | 2W | - | 28.07dB | - |
|
DCW-14-472+14 DB SMT DIRECTIONAL COUPLER, 3 |
213 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 3.6GHz ~ 4.7GHz | 14dB | General Purpose | - | - | - | - | - |
|
X3C21P1-05SRF DIR COUPLER 2GHZ-2.3GHZ SMD |
901 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 2GHz ~ 2.3GHz | 5dB | General Purpose | 0.15dB | 60W | - | - | SMD |
|
|
X3C35P1-03SIC HYBRID COUPLER |
351 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Standard | 3.1GHz ~ 4.2GHz | - | DCS, LTE, PCS, WCDMA | 0.25dB | 85W | 23dB | - | 5-SMD |
|
X3C25P1-05SRF DIR COUPLER 2.3GHZ-2.7GHZ SMD |
660 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 2.3GHz ~ 2.7GHz | 5dB | General Purpose | 0.18dB | 60W | - | - | SMD |
|

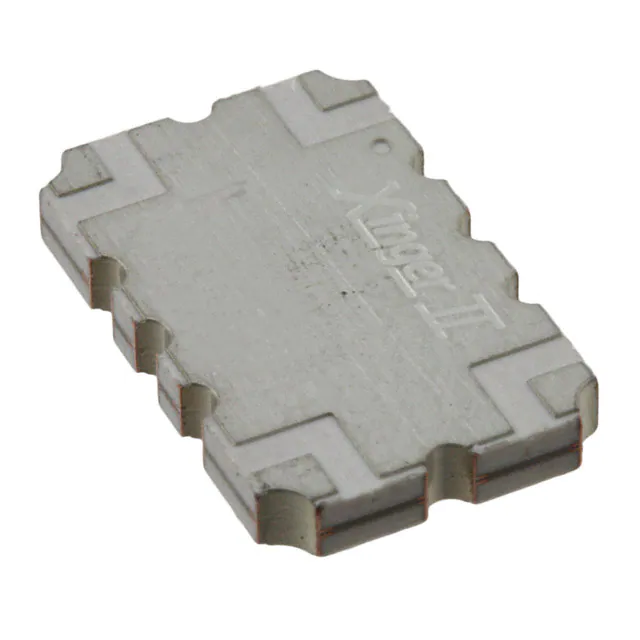

XC1900A-03SRF DIR COUPLER 1.4GHZ-2GHZ SMD |
3,004 | - |
|
Datasheet | Xinger® II | Tape & Reel (TR) | Active | Standard | 1.4GHz ~ 2GHz | 3dB | AMPS | 0.15dB | 150W | 25dB | 24.9dB | SMD |
|
|
JHS-139-PINHYBRID,QUADRATURE |
3,244 | - |
|
Datasheet | - | Tray | Active | Standard | 250MHz ~ 500MHz | - | General Purpose | 0.5dB | 4W | 15dB | - | SF-1 |
|
SEDC-10-63+RF DIR COUPLER 50MHZ-6GHZ 24SMD |
3,799 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 50MHz ~ 6GHz | 10dB | General Purpose | - | 1W | - | 18dB | - |
|

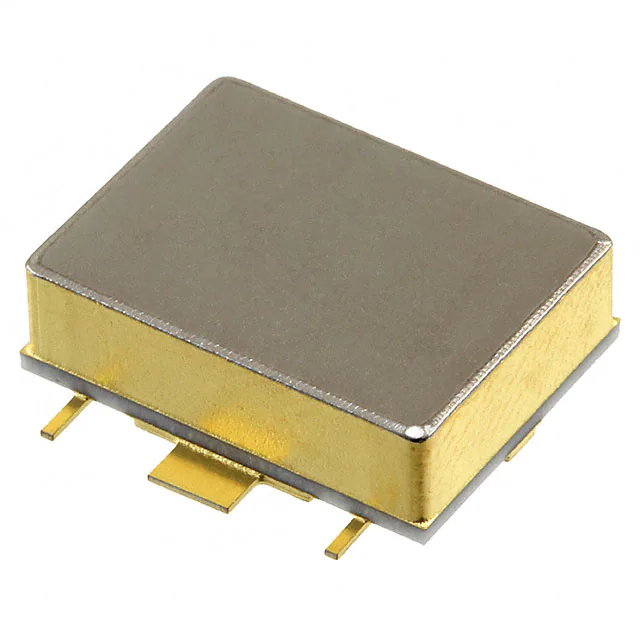

JHS-115-PINRF DIR COUPLER 40MHZ-80MHZ SF1 |
4,112 | - |
|
Datasheet | - | Bulk | Active | Standard | 40MHz ~ 80MHz | - | - | 0.5dB | 1W | 20dB | - | SF-1 |
|
CH-140-PINCOUPLER,BROAD-BAND S/D |
2,527 | - |
|
Datasheet | - | Tray | Active | Standard | 5MHz ~ 1GHz | 19.75dB | General Purpose | 0.75dB | 3W | - | - | FP-2 |
|
|
CPL1608LL12RWHEXACOUPLER SMD LTE 5G 4G |
10,639 | - |
|
Datasheet | 1608 | Tape & Reel (TR) | Active | Standard | 689MHz ~ 960MHz, 1.425GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | 25.5 ± 2.5dB, 24 ± 2.5dB, 25 ± 2.5dB | General Purpose | 0.15dB, 0.25dB, 0.3dB | - | 42dB, 38dB, 35dB | - | 0603 |
|
|
CPL0605AT13R2455ACOUPLER SMD 2.4G/5G |
10,000 | - |
|
Datasheet | 605 | Tape & Reel (TR) | Active | Standard | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.95GHz | 19 ± 2dB, 12.5 ± 2dB | General Purpose | 0.55dB | - | - | - | 0202 |
|
SLCP18-2R700G-01TDIRECTIONAL COUPLER 2700MHZ 0603 |
7,900 | - |
|
Datasheet | SLCP | Tape & Reel (TR) | Active | Standard | 698MHz ~ 2.69GHz | 25.5 ± 2dB, 22.5 ± 2dB, 23.5 ± 2dB | LTE | 0.23dB, 0.25dB, 0.28dB | - | - | - | 0603 |
|
TFSC06053925-2111B2XTHIN-FILM DIRECTIONAL COUPLER |
7,206 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | 21.8dB | General Purpose | 0.22dB | 35dBm | - | 50dB | 0202 |
.jpg "CP0603A0836ANTR")
|
CP0603A0836ANTRRF DIR COUPLER 824-849MHZ 0603 |
3,000 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 824MHz ~ 849MHz | 20dB | AMPS | 0.25dB | 3W | -45dB | 28dB | 0603 |
|
|
CP0603A2442BNTRRF DIR COUPLER 2.4-2.484GHZ 0603 |
1,972 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 2.4GHz ~ 2.484GHz | 14.2dB | Wireless LAN | 0.35dB | 3W | -32dB | 23dB | 0603 |
|
|
X4C25L1-04GIC 5G DIRECTIONAL COUPLER 0805 |
3,870 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Dual Band, Dual Path | 2.2GHz ~ 2.8GHz | 4dB | Cellular | - | - | - | - | 0603 |
|
|
X4C25L1-02GIC 5G DIRECTIONAL COUPLER 0805 |
3,706 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Dual Band, Dual Path | 2.2GHz ~ 2.8GHz | 2dB | Cellular | - | - | - | - | 0603 |
RF Directional Coupler FAQ
Common questions about selecting, comparing and sourcing RF Directional Coupler components through Winsun (HK) Electronics.
What should I check when selecting RF Directional Coupler components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Directional Coupler part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Directional Coupler parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Directional Coupler components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
