RF Directional Coupler
Browse available RF Directional Coupler part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coupler Type | Frequency | Coupling Factor | Applications | Insertion Loss | Power - Max | Isolation | Return Loss | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DBTC16-282LX+DIR COUP, 5 - 2850 MHZ, 50 |
648 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 5MHz ~ 2.85GHz | 16.8dB | Cellular, DECT, GSM, PCN | - | - | - | 24dB | - |
|
|
X3C30F1-20SRF DIR COUPLER 2GHZ-4GHZ SMD |
6,207 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 2GHz ~ 4GHz | 20dB ± 1.5dB | Cellular | 0.075dB | 25W | 27dB | 27dB | - |
|
|
X3C19F1-20SRF DIR COUPLER 1.4GHZ-2.7GHZ SMD |
732 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 1.4GHz ~ 2.7GHz | 20dB | General Purpose | 0.1dB | 25W | - | - | - |
|
DCW-30-272+RF DIR CPLR 700MHZ-2.7GHZ 0603 |
1,008 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 700MHz ~ 2.7GHz | 30 ± 1.5dB | PCS | - | 2W | - | 23dB | 0603 |
|
|
DCW-22-332+RF DIR CPLR 1.2GHZ-3.3GHZ 0603 |
839 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 1.2GHz ~ 3.3GHz | 22 ± 2dB | PCS, LTE, ISM, UMTS, WiMAX, Wi-Fi | - | 2W | - | 23dB | 0603 |
|
X3C19P1-03SRF DIR COUPLER 1.4GHZ-2GHZ SMD |
6,207 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 1.4GHz ~ 2GHz | 3dB | DCS, LTE, PCS, WCDMA | 0.22dB | 90W | 23dB | 24.9dB | SMD |
|
X3C07P1-03SRF DIR COUPLER 600-900MHZ 4SMD |
5,396 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 600MHz ~ 900MHz | 3dB | General Purpose | 0.2dB | 130W | 23dB | - | 4-SMD |
.JPG "X3C26P1-03S")
|
X3C26P1-03SRF DIR COUPLER 2.3GHZ-2.9GHZ SMD |
3,753 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 2.3GHz ~ 2.9GHz | 3dB | LTE, WiMAX | 0.2dB | 80W | 20dB | 20.1dB | SMD |
|

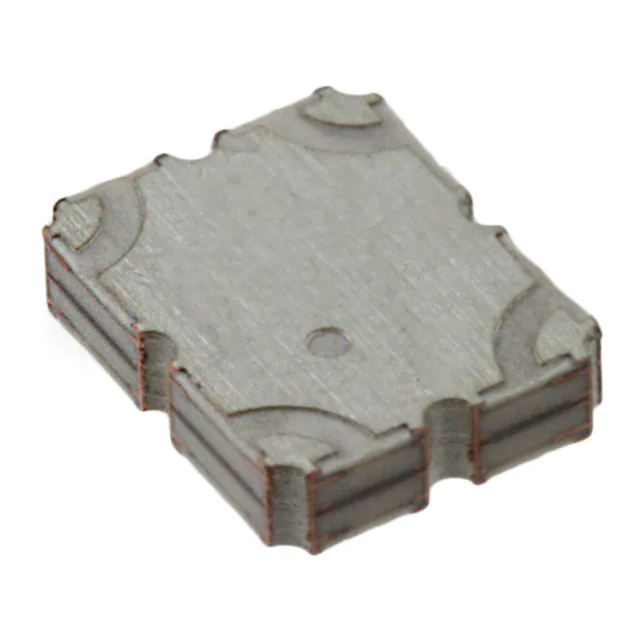

X3C21P1-03SRF DIR COUPLER 1.8GHZ-2.4GHZ SMD |
3,569 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 1.8GHz ~ 2.4GHz | 3dB | LTE, WiMAX | 0.22dB | 90W | 23dB | 24.9dB | SMD |
|
XC0900P-10SRF DIR COUPLER 800MHZ-1GHZ SMD |
6,857 | - |
|
Datasheet | Xinger® II | Tape & Reel (TR) | Active | Standard | 800MHz ~ 1GHz | 10dB | General Purpose | 0.38dB | 55W | - | - | - |
|
DCW-6-722+6 DB SMT DIRECTIONAL COUPLER, 44 |
3,328 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 4.4GHz ~ 7.2GHz | 6.75dB | General Purpose | - | - | - | - | - |
|
BDCN-15-25+RF DIR CPLR 824MHZ-2.525GHZ 6SMD |
4,672 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 824MHz ~ 2.525GHz | 15dB | CDMA, DCS, GPS, ISM, PCS, TDMA, UMTS | - | 16W | - | 28.45dB | - |
|
|
X4C20F1-30SRF DIR COUPLER 1GHZ-3GHZ SMD |
4,168 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Standard | 1GHz ~ 3GHz | 30 ± 1.5dB | DCS, LTE, PCS, WiMax | 0.1dB | 100W | - | - | - |
|
|
X4C09F1-30SRF DIR COUPLER 400MHZ-1GHZ SMD |
2,511 | - |
|
Datasheet | Xinger® IV | Tape & Reel (TR) | Active | Standard | 400MHz ~ 1GHz | 30dB | AMPS, GSM, LTE, WCDMA | 0.15dB | 100W | 27dB | 27dB | - |
|
|
X4C30F1-30SIC DIR COUPLR 2-4GHZ 30DB |
467 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 2GHz ~ 4GHz | 30 ± 1.5dB | LTE, WiMAX | 0.075dB | 100W | - | 30dB | - |
|
|
XC2100A-03SRF DIR COUPLER 2GHZ-2.3GHZ SMD |
935 | - |
|
Datasheet | Xinger® II | Tape & Reel (TR) | Active | Standard | 2GHz ~ 2.3GHz | - | General Purpose | 0.15dB | 145W | 25dB | - | - |
|
|
XC3500M-20SRF DIR COUPLER 3.3GHZ-3.8GHZ SMD |
3,620 | - |
|
Datasheet | Xinger® II | Tape & Reel (TR) | Active | Standard | 3.3GHz ~ 3.8GHz | 20dB | General Purpose | 0.2dB | 80W | - | - | SMD |
|
11306-3SRF DIR COUPLER 2GHZ-4GHZ SMD |
5,969 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Standard | 2GHz ~ 4GHz | - | General Purpose | 0.35dB | 100W | 20dB | - | - |
|
|
X3C26P1-30SRF DIR COUPLER 2.3GHZ-2.9GHZ SMD |
1,951 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 2.3GHz ~ 2.9GHz | 30dB | LTE, WiMAX | 0.1dB | 200W | - | 24.9dB | SMD |
|

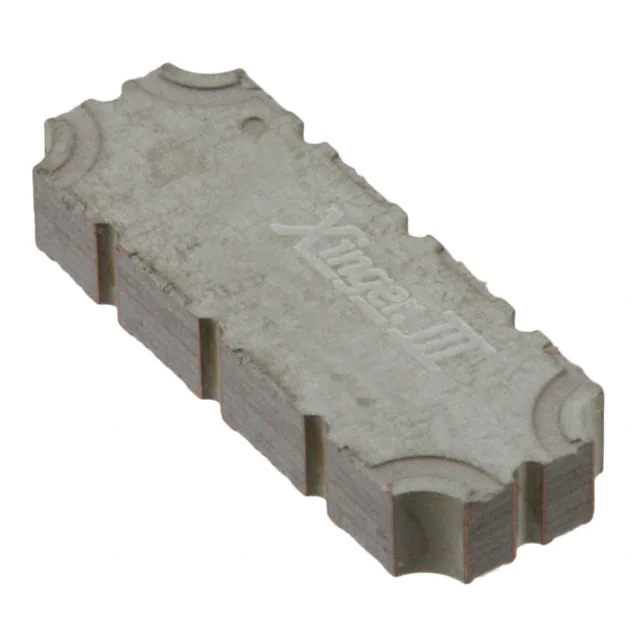

X3C09E2-20SRF DIR COUPLER 800MHZ-1GHZ 4SMD |
1,736 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 800MHz ~ 1GHz | 20dB | AMPS, CDMA, WCDMA | 0.075dB | 225W | - | 20dB | 4-SMD |
RF Directional Coupler FAQ
Common questions about selecting, comparing and sourcing RF Directional Coupler components through Winsun (HK) Electronics.
What should I check when selecting RF Directional Coupler components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Directional Coupler part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Directional Coupler parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Directional Coupler components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
