RF Multiplexers
Browse available RF Multiplexers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE8DP1008Diplexer 75 Ohm Type F Female, 5 |
1,337 | - |
|
Datasheet | - | Module | Retail Package | Active | Diplexer | 5MHz ~ 42MHz / 54MHz ~ 1GHz | - | - | 13.0dB / 13.0dB | - | - | Chassis Mount |
|
|
PE8DP1006Diplexer 75 Ohm Type F Female, 5 |
4,441 | - |
|
Datasheet | - | Module | Retail Package | Active | Diplexer | 5MHz ~ 42MHz / 54GHz ~ 1.25GHz | - | - | 12.0dB / 12.0dB | - | - | Chassis Mount |
|
|
BK-21EDpl 80-2170/2400-2500MHz |
4,220 | - |
|
Datasheet | - | Module | Tape & Box (TB) | Active | Diplexer | 80MHz ~ 2.17GHz / 2.4GHz ~ 2.5GHz | - | - | - | - | - | Chassis Mount |
|
|
AM2355-2130D1178-C2355 MHZ / 2130 MHZ CONNECTORIZE |
1,759 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 2.35GHz ~ 2.36GHz / 1.125GHz ~ 2.135GHz | - | - / 40.00dB | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AM763-793D1132-C758-768 MHZ / 788-798 MHZ CONNEC |
4,092 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 758MHz ~ 768MHz / 788MHz ~ 798MHz | - | - | 14.0dB / 14.0dB | - | - | Chassis Mount |
|
|
AM710-740D1179-C704-716 MHZ / 734-746 MHZ CONNEC |
3,033 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 704MHz ~ 716MHz / 734MHz ~ 746MHz | - / 55.00dB | - / 55.00dB | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AM751-782D1039-C751 / 782 MHZ CONNECTORIZED CERA |
3,756 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 746MHz ~ 756MHz / 777MHz ~ 787MHz | - | - | - | - | - | Chassis Mount |
|
|
AM2355-2310D1176-C2355 MHZ / 2310 MHZ CONNECTORIZE |
1,121 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 2.35GHz ~ 2.36GHz / 2.305GHz ~ 2.315GHz | - / 40.00dB | - / 40.00dB | 15.0dB / 15.0dB | - | - | Chassis Mount |
|

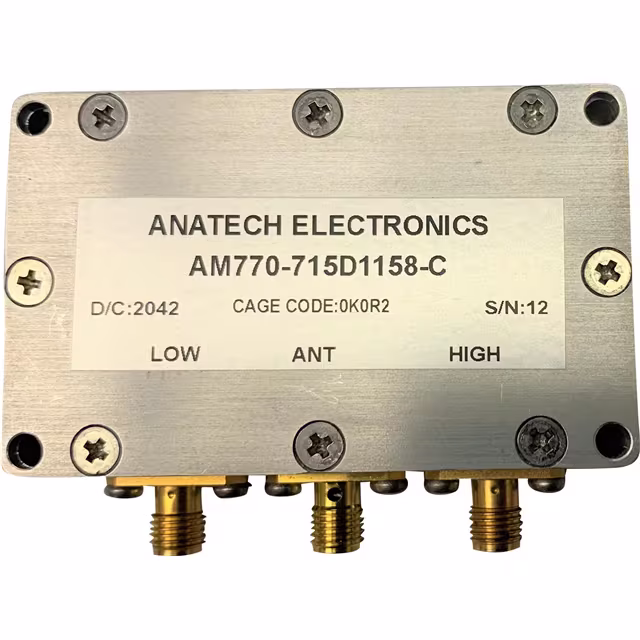

AM770-715D1158-C770.5 / 715.5 MHZ CONNECTORIZED |
3,267 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 703MHz ~ 728MHz / 758MHz ~ 783MHz | - | - | - | - | - | Chassis Mount |
|
|
AM806-847D1073-C806/847 MHZ CONNECTORIZED CERAMI |
3,429 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 791MHz ~ 821MHz / 832MHz ~ 862MHz | 35.00dB / 50.00dB | 30.00dB / 50.00dB | - | - | - | Chassis Mount |
|
|
AE680-634CD1204-C663-698 MHZ / 617-652 MHZ CONNEC |
1,837 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 663MHz ~ 698MHz / 617MHz ~ 652MHz | - | - | 13.0dB / 13.0dB | - | - | Chassis Mount |
|

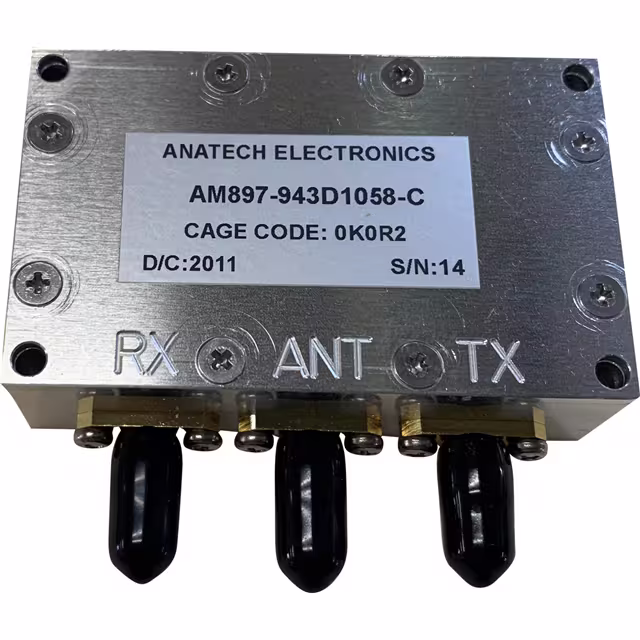

AM897-943D1058-C897-943 MHZ CONNECTORIZED CERAMI |
2,136 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 879MHz ~ 915MHz / 925MHz ~ 961MHz | - | - | - | - | - | Chassis Mount |
|
|
BK-2005EDplx AWS1/AWS3 Low PIM 4.3-10 |
2,404 | - |
|
Datasheet | - | Module | Tape & Box (TB) | Active | Diplexer | 1.71GHz ~ 1.735GHz / 2.16GHz ~ 2.18GHz | - | - | 20.0dB / 20.0dB | - | - | Chassis Mount |
|
|
BK-2028EDPlx 698-803/824-2700 10W 4.3-10 |
1,406 | - |
|
Datasheet | - | Module | Tape & Box (TB) | Active | Diplexer | 698MHz ~ 803MHz / 2.5GHz ~ 2.7GHz | - | - | - | - | - | Chassis Mount |
|
|
BK-2021NDplx 808-810/853-855 60W N IP67 |
1,338 | - |
|
Datasheet | - | Module | Tape & Box (TB) | Active | Duplexer | 808MHz ~ 810MHz / 853MHz ~ 855MHz | - | - | 20.0dB / 20.0dB | - | - | Chassis Mount |
|
|
MCC200-301MCC Tplx 600-700/PCS/AWS 4.3-10 |
1,469 | - |
|
Datasheet | MCC | Module | Tape & Box (TB) | Active | Triplexer | 617MHz ~ 798MHz / 2.11GHz ~ 2.2GHz | - | - | - | - | - | Chassis Mount |
|
|
MCC200-302MCC Tplx PCS/AWS/BRS 4.3-10 |
1,714 | - |
|
Datasheet | MCC | Module | Tape & Box (TB) | Active | Triplexer | 1.695GHz ~ 1.78GHz / 2.496GHz ~ 2.7GHz | - | - | - | - | - | Chassis Mount |
|
|
MCC200-403Quad 600-700/PCS/AWS/BRS 4.3-10 |
4,038 | - |
|
Datasheet | MCC | Module | Tape & Box (TB) | Active | Quadplexer | 617MHz ~ 798MHz / 2.496GHz ~ 2.69GHz | - | - | - | - | - | Chassis Mount |
|
|
MCC200-401Quad 600-700/850/PCS/AWS 4.3-10 |
4,392 | - |
|
Datasheet | MCC | Module | Tape & Box (TB) | Active | Quadplexer | 617MHz ~ 798MHz / 2.11GHz ~ 2.2GHz | - | - | - | - | - | Chassis Mount |
|
|
MCC200-501MUX 600-700/850/PCS/AWC/WCS 4310 |
2,456 | - |
|
Datasheet | MCC | Module | Tape & Box (TB) | Active | Pentaplexer | 617MHz ~ 798MHz / 2.305GHz ~ 2.36GHz | - | - | - | - | - | Chassis Mount |
