RF Multiplexers
Browse available RF Multiplexers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD454-464D275-S452.5-457.475 MHZ, 462.5-467.47 |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 452.5MHz ~ 457.475MHz / 462.5MHz ~ 467.745MHz | - | - | 19.0dB / 19.0dB | - | - | Chassis Mount |
|
|
AD765-795C132763-768 / 793-798 MHZ SINGLE IN/ |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 793.3MHz ~ 798.3MHz / 763.3MHz ~ 768.3MHz | - | - | 14.0dB / 14.0dB | - | - | Chassis Mount |
|
|
DB5248T1542 / 1643 MHZ SINGLE IN/OUT D |
100 | - |
|
Datasheet | - | TNC In-Line Module | Box | Active | Duplexer | 1.524GHz ~ 1.56GHz / 1.6265GHz ~ 1.6605GHz | - | - | 16.0dB / 16.0dB | - | - | Chassis Mount |
|
|
AE915-1830-2745TR1271915 MHZ / 1830 MHZ / 2745 MHZ TR |
100 | - |
|
Datasheet | - | Module | Box | Active | Triplexer | 898MHz ~ 932MHz / 2.715GHz ~ 2.775GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AE660-3750-5100TR1272LTE & 5G N77 AND N78 C-BAND TRIP |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Triplexer | 660MHz ~ 2.7GHz / 5.1GHz ~ 5.9GHz | - | - | 14.0dB / 14.0dB | - | - | Chassis Mount |
|

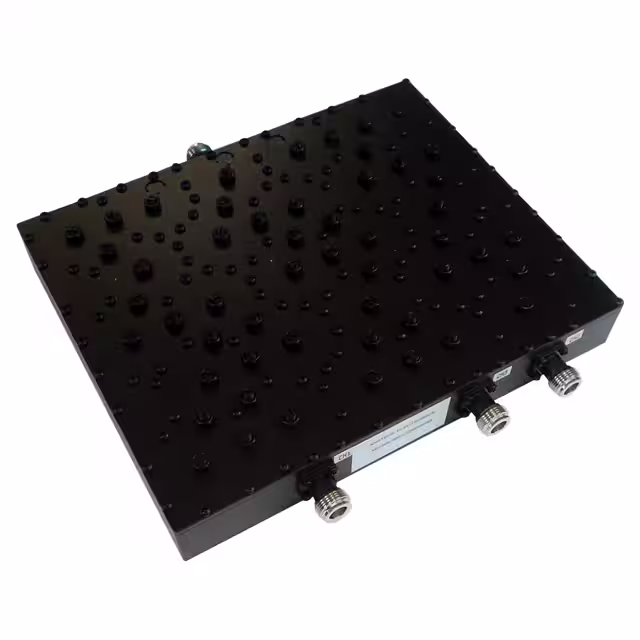

AD1800-2072-2250TR2931800 MHZ / 2072 MHZ / 2250 MHZ C |
100 | - |
|
Datasheet | - | Module | Box | Active | Triplexer | 1.75GHz ~ 1.85GHz / 2.2GHz ~ 2.3GHz | - | - | 17.0dB / 17.0dB | - | - | Chassis Mount |
|
|
AE881-881DB5388869-894 MHZ NOTCH/BANDPASS DUPLE |
100 | - |
|
Datasheet | - | HEX In-Line Module | Box | Active | Duplexer | 869MHz / 894MHz | - | - | 14.0dB / 14.0dB | - | - | Chassis Mount |
|
|
AE660-4700-5100TR1273LTE & 5G N79 C-BAND TRIPLEXER / |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Triplexer | 660MHz ~ 2.7GHz / 5.1GHz ~ 5.9GHz | - | - | 14.0dB / 14.0dB | - | - | Chassis Mount |
|
|
AE2G-3G-6G-10GQP8354DC-2 GHZ / 2-4 GHZ / 4-8 GHZ / 8 |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Quadplexer | 0Hz ~ 1.9GHz / 8.4GHz ~ 11.6GHz | - | - | - | - | - | Chassis Mount |
|
|
ZDPLX-592-S+DIPLEXER,5100-5900/2400-2500 MHZ |
2,352 | - |
|
Datasheet | - | Module, SMA Connectors | Tray | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.1GHz ~ 5.9GHz | - | - | 10.0dB / 8.0dB | - | - | Chassis Mount |
|
|
ZDPLX-2150-S+DIPLEXER, 50-2150/DC-10 MHZ |
4,865 | - |
|
Datasheet | - | Module | Box | Active | Diplexer | 0Hz ~ 10MHz / 50MHz ~ 2.15GHz | - | - | 16.0dB / 12.0dB | - | - | Chassis Mount |
|
|
ZX75-2R15-S+LUMPED LC DIPLEXER |
3,355 | - |
|
Datasheet | - | Module | Tray | Active | Diplexer | 0Hz ~ 20MHz / 950MHz ~ 2.15GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
DP2458-NFDI2.4GHZ - 5.8GHZ DIPLEXER |
1,449 | - |
|
Datasheet | DP | Module | Bag | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.875GHz | - | - | - | - | - | Chassis Mount |
|
DPX252690DT-5032B1RF DIPLEXER 829.5MHZ/2.2GHZ 0402 |
565 | - |
|
Datasheet | DPX | 0402 (1005 Metric), 8 PC Pad | Tape & Reel (TR) | Active | Diplexer | 699MHz ~ 960MHz / 1.71GHz ~ 2.69GHz | 20.00dB / 39.00dB | 5.00dB / 30.00dB | - | - | - | Surface Mount |
|
DPX165950DT-8026D1RF DIPLEXER 2.45/5.425GHZ 0603 |
595 | - |
|
Datasheet | DPX | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | - | - | - | - | - | Surface Mount |
|
DPX205925DT-4213A4MULTILAYER DIPLEXER FOR LTE |
738 | - |
|
Datasheet | - | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 617MHz ~ 2.69GHz / 3.3GHz ~ 5.925GHz | 30.00dB / 39.90dB | 30.00dB / 37.10dB | - | - | - | Surface Mount |
|
RFDIP2510G15ATDIPLEXER 5-1002MHZ/1125-1675MHZ |
255 | - |
|
Datasheet | RFDIP | 1008 (2520 Metric), 8 PC Pad | Tape & Reel (TR) | Active | Diplexer | 5MHz ~ 1.002GHz / 1.125GHz ~ 1.675GHz | 3.70dB / - | 2.00dB / - | - | - | - | Surface Mount |
|
TPX205950MT-7110A1RF TRIPLEXER 2.45/5.425GHZ 0805 |
135 | - |
|
Datasheet | TPX | 0805 (2012 Metric), 8 PC Pad | Tape & Reel (TR) | Active | Triplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 13.00dB / 17.00dB | 20.00dB / 33.00dB | - | - | - | Surface Mount |
|
DPX205850DT-9036A1-HRF DIPLEXER 2.45GHZ/5.5GHZ 0805 |
911 | - |
|
Datasheet | DPX | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.85GHz | 30.00dB / 36.00dB | 23.00dB / 38.00dB | 9.54dB / 9.54dB | - | - | Surface Mount |
|
DPX205950DT-9026A1RF DIPLEXER 2.45/5.425GHZ 0805 |
253 | - |
|
Datasheet | DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 10.00dB / 35.00dB | 15.00dB / 27.00dB | 15.5dB / 17.0dB | - | - | Surface Mount |
RF Multiplexers FAQ
Common questions about selecting, comparing and sourcing RF Multiplexers components through Winsun (HK) Electronics.
What should I check when selecting RF Multiplexers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Multiplexers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Multiplexers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Multiplexers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
