RF Multiplexers
Browse available RF Multiplexers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE1791-2237DB53461741.75-1841.75 MHZ / 2187.5-228 |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 1.74175GHz ~ 1.84175GHz / 2.1875GHz ~ 2.2875GHz | - | - | 16.0dB / 16.0dB | - | - | Chassis Mount |
|
|
AE897-942D479880-915 MHZ / 925-960 MHZ LTE FR |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 880MHz ~ 915MHz / 925MHz ~ 960MHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|

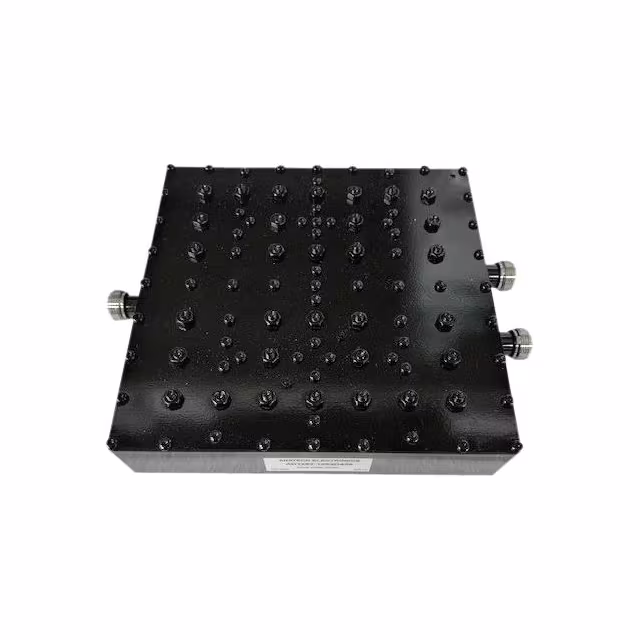

AD1882-1962D4391850-1915/1930-1995 MHZ LTE FREQ |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 1.85GHz ~ 1.915GHz / 1.93GHz ~ 1.995GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AE1801-2250DB52441761-1842 MHZ/ 2200-2300 MHZ CAV |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Diplexer | 1.761GHz ~ 1.842GHz / 2.2GHz ~ 2.3GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AD836-881D430836.5 MHZ / 881.5 MHZ CAVITY DUP |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 824MHz ~ 849MHz / 869MHz ~ 894MHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AD2000-2185D3001985-2015 /2170-2200 MHZ CAVITY |
1,158 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 2.17GHz ~ 2.2GHz / 1.985GHz ~ 2.015GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AD902-947D211890-915 MHZ, 935-960 MHZ CAVITY |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 890MHz ~ 915MHz / 935MHz ~ 960MHz | - | - | - | - | - | Chassis Mount |
|
|
AE4300-4700DB5452DC-4300 / 4700-9000 MHZ DIPLEXER |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Diplexer | 0Hz ~ 4.3GHz / 4.7GHz ~ 9GHz | - | - | 10.88dB / 10.88dB | - | - | Chassis Mount |
|
|
AD836-881D430-S836.5 MHZ / 881.5 MHZ CAVITY DUP |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 824MHz ~ 849MHz / 869MHz ~ 894MHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AD2395-2465D3722365-2425 MHZ / 2435-2 495 MHZ C |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 2.365GHz ~ 2.425GHz / 2.435GHz ~ 2.495GHz | - | - | 17.0dB / 17.0dB | - | - | Chassis Mount |
|
|
AD4512-4887D2324512-4887 MHZ CAVITY DUPLEXER |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 4.4GHz ~ 4.625GHz / 4.775GHz ~ 5GHz | - | - | - | - | - | Chassis Mount |
|

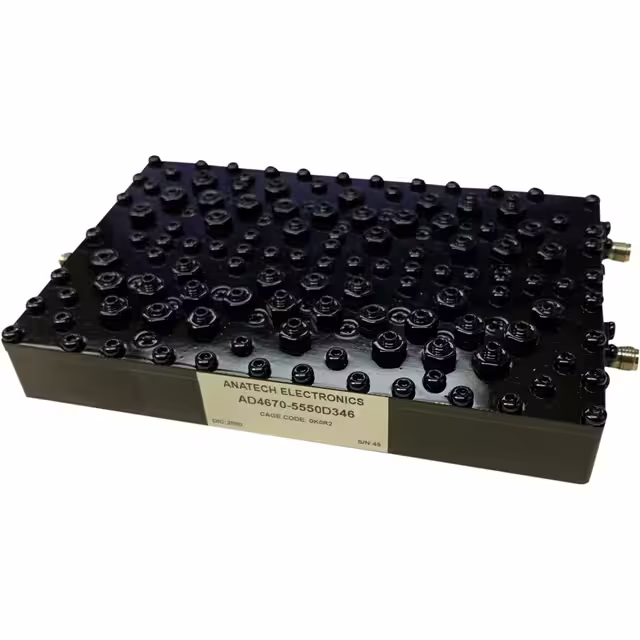

AD4670-5550D3464400-4940 MHZ / 5250-5850 MHZ CA |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Diplexer | 4.4GHz ~ 4.94GHz / 5.25GHz ~ 5.85GHz | - | - | 16.0dB / 16.0dB | - | - | Chassis Mount |
|
|
AD2650-5300-7950TR3022650 MHZ / 5300 MHZ / 7950 MHZ T |
100 | - |
|
Datasheet | - | Module | Box | Active | Triplexer | 2.61GHz ~ 2.69GHz / 7.89GHz ~ 8.01GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|

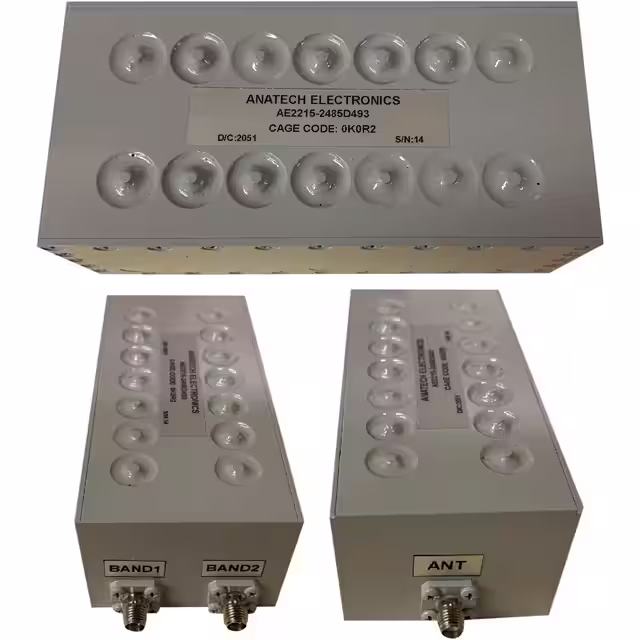

AE2215-2485D4932200-2230 MHZ / 2470-2500 MHZ CA |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 2.2GHz ~ 2.23GHz / 2.47GHz ~ 2.5GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|

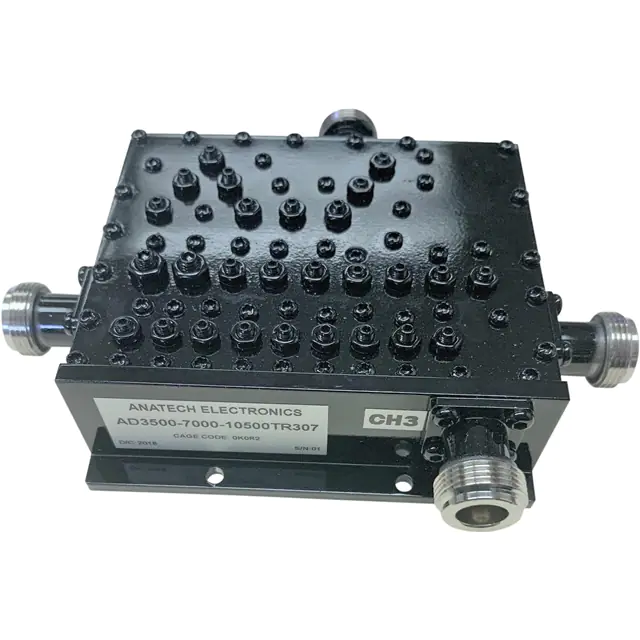

AD3500-7000-10500TR3073500 MHZ / 7000 MHZ / 10500 MHZ |
100 | - |
|
Datasheet | - | Module | Box | Active | Triplexer | 3.43GHz ~ 3.57GHz / 10.4GHz ~ 10.6GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|

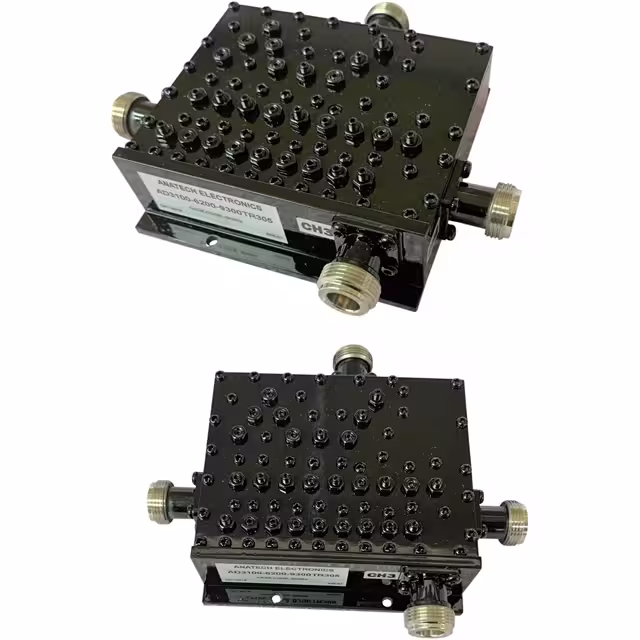

AD3100-6200-9300TR3053100 MHZ / 6200 MHZ / 9300 MHZ T |
100 | - |
|
Datasheet | - | Module | Box | Active | Triplexer | 3.03GHz ~ 3.17GHz / 9.2GHz ~ 9.4GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
AE1745-2155DB54721745 MHZ / 2155 MHZ CAVITY DUPLE |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 1.71GHz ~ 1.78GHz / 2.11GHz ~ 2.2GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AD800-1600-2400TR295800 MHZ / 1600 MHZ / 2400 MHZ TR |
100 | - |
|
Datasheet | - | Module | Box | Active | Triplexer | 783MHz ~ 817MHz / 2.37GHz ~ 2.43GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|

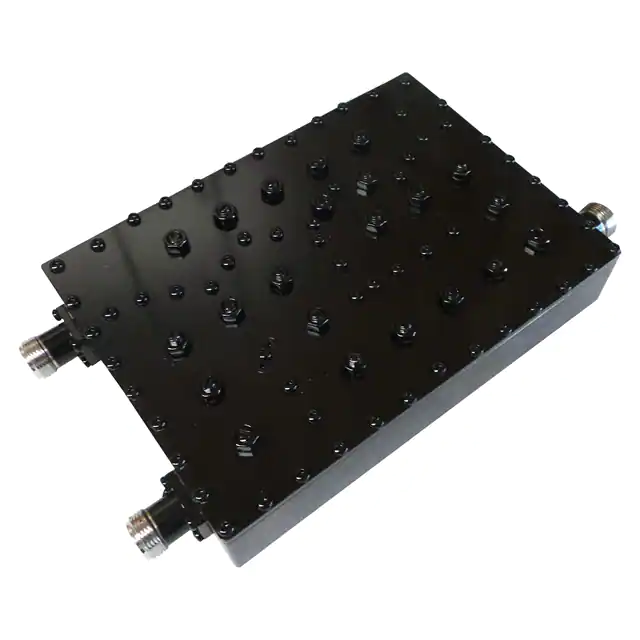

AE1950-2140DB54561950 MHZ / 2140 MHZ CAVITY DUPLE |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 1.92GHz ~ 1.98GHz / 2.11GHz ~ 2.17GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AD1747-1842D3351710-1785 MHZ / 1805-1880 MHZ LT |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 1.71GHz ~ 1.785GHz / 1.805GHz ~ 1.88GHz | - | - | 14.0dB / 14.0dB | - | - | Chassis Mount |
