RF Multiplexers
Browse available RF Multiplexers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

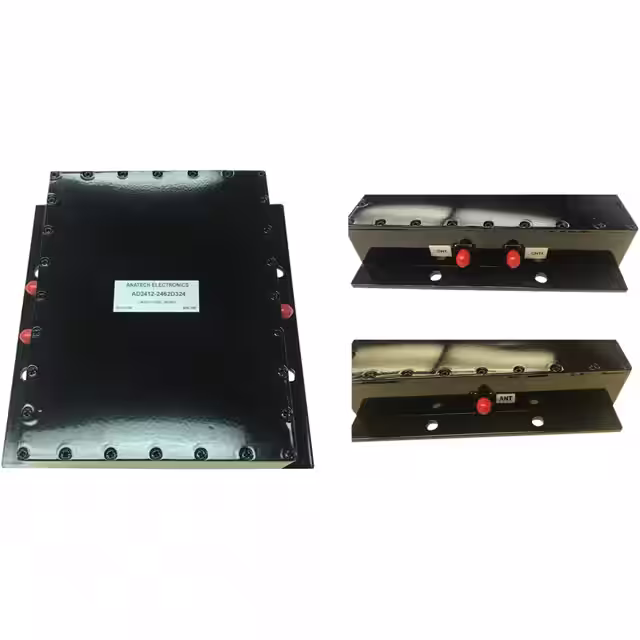

AD2412-2462D3242412 / 2462 MHZ CAVITY DUPLEXER |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 2.412GHz / 2.462GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|

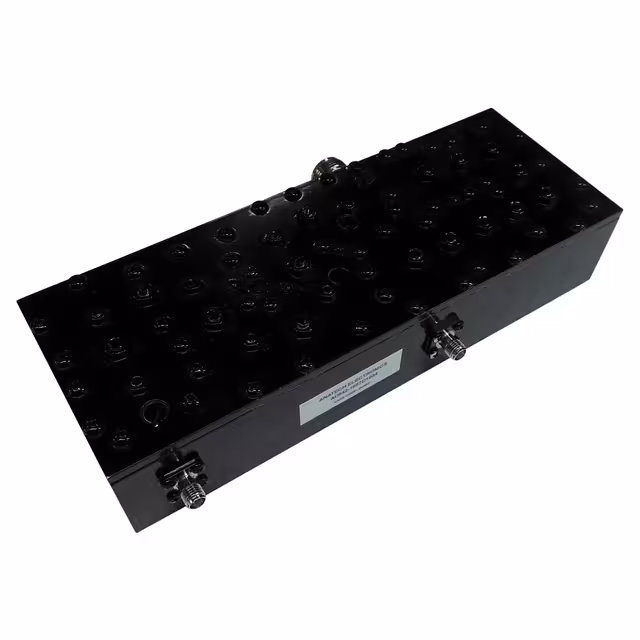

AD942-1857D1034925-960 MHZ / 1805-1910 MHZ CAVI |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 925MHz ~ 960MHz / 1.805GHz ~ 1.91GHz | - | - | 16.0dB / 16.0dB | - | - | Chassis Mount |
|
AD815-860D349806-824 MHZ / 851-869 MHZ CAVITY |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 806MHz ~ 824MHz / 851MHz ~ 869MHz | - | - | 17.0dB / 17.0dB | - | - | Chassis Mount |
|
|
AE4965-6475DB54864940-4990 MHZ / 6425-6525 MHZ CA |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 4.94GHz ~ 4.99GHz / 6.425GHz ~ 6.525GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AE2035-2100DB54932024-2046 MHZ /2089-2111 MHZ CA |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 2.024GHz ~ 2.046GHz / 2.089GHz ~ 2.011GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
AD2510-2680D3712510 MHZ / 2680 MHZ CAVITY DUPLE |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 2.5GHz ~ 2.52GHz / 2.67GHz ~ 2.69GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AE200-1925DB53010-400 MHZ / 1710-2140 MHZ CAVITY |
100 | - |
|
Datasheet | - | Module | Box | Active | Diplexer | 0Hz ~ 400MHz / 1.71GHz ~ 2.14GHz | - | - | 14.0dB / 14.0dB | - | - | Chassis Mount |
|
|
AD754-785D406746-763 MHZ / 777-793 MHZ CAVITY |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 746MHz ~ 763MHz / 777MHz ~ 793MHz | - | - | 14.0dB / 14.0dB | - | - | Chassis Mount |
|
|
AD1030-1090D4131025-1035 MHZ / 1085-1095 MHZ CA |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 1.025GHz ~ 1.035GHz / 1.085GHz ~ 1.095GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AD2442-2557D4712442.5 / 2557.5 MHZ CAVITY DUPLE |
1,684 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 2.395GHz ~ 2.49GHz / 2.51GHz ~ 2.605GHz | - | - | 14.0dB / 14.0dB | - | - | Chassis Mount |
|
|
AE3215-3500DB54273115-3315 MHZ / 3400-3600 MHZ CA |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 3.115GHz ~ 3.315GHz / 3.4GHz ~ 3.6GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AD1232-1568D2631164-1301 MHZ / 1525-1612 MHZ CA |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 1.164GHz ~ 1.301GHz / 1.525GHz ~ 1.612GHz | - | - | -10.0dB / -10.0dB | - | - | Chassis Mount |
|
|
AD2412-2462D2462401-2423 MHZ / 2451-2473 MHZ CA |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 2.401GHz ~ 2.423GHz / 2.451GHz ~ 2.473GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AD1232-1568D4051164-1301/1525-1612 MHZ CAVITY D |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 1.164GHz ~ 1.301GHz / 1.525GHz ~ 1.612GHz | - | - | 10.0dB / 10.0dB | - | - | Chassis Mount |
|
|
AE5720-5805DB55125700-5740 MHZ / 5785-5825 MHZ CA |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 5.7GHz ~ 5.74GHz / 5.785GHz ~ 5.825GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|

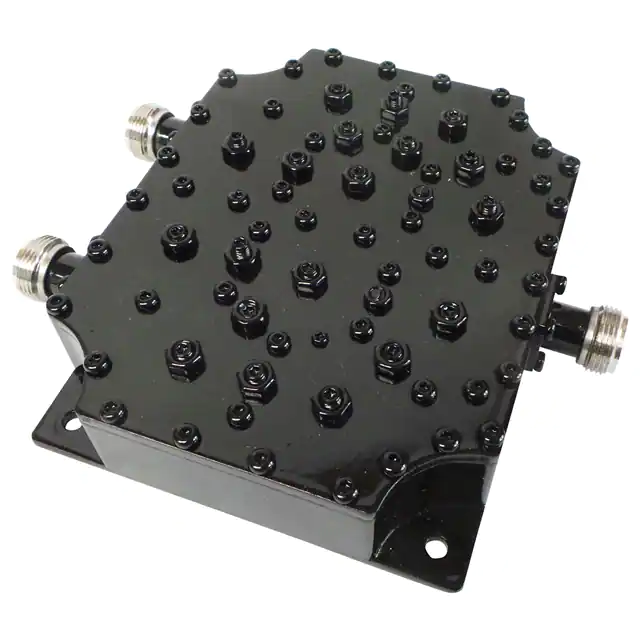

AE2310-2355DB54732310 MHZ / 2355 MHZ CAVITY DUPLE |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 2.305GHz ~ 2.315GHz / 2.35GHz ~ 2.36GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AD1880-1960D2741850-1910 MHZ / 1930-1990 MHZ LT |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 1.85GHz ~ 1.91GHz / 1.93GHz ~ 1.99GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AD1732-2132D4331732.5 MHZ / 2132.5 MHZ CAVITY D |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 1.71GHz ~ 1.755GHz / 2.11GHz ~ 2.155GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AE2075-5125DB54582075 / 5125 MHZ CAVITY DIPLEXER |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Diplexer | 1.65GHz ~ 2.5GHz / 4.4GHz ~ 5.85GHz | - | - | 12.0dB / 12.0dB | - | - | Chassis Mount |
|
|
AD820-1927C118820 MHZ / 1927.5 MHZ SINGLE IN/O |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 698MHz ~ 942MHz / 1.71GHz ~ 2.145GHz | - / 40.00dB | - / 50.00dB | 15.0dB / 15.0dB | - | - | Chassis Mount |
