RF Shields
Use the filters and product table below to compare RF Shields components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Height - Overall | Length - Overall | Width - Overall | Ventilation | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
44-CBSA-1.0X1.0X0.4RF SHIELD 1" X 1" THROUGH HOLE |
642 | - |
|
Datasheet | - | Bulk | Active | Shield, 2-Piece | 0.400" (10.16mm) | 1.000" (25.40mm) | 1.000" (25.40mm) | Non-Vented | Through Hole |
|
SMS-460FRF SHIELD 1.07" X 1.767" SMD |
1,722 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Frame | 0.236" (6.00mm) | 1.767" (44.88mm) | 1.070" (27.18mm) | - | Surface Mount |
|
SMS-407FRF SHIELD 1.747" X 1.747" SMD |
336 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Frame | 0.384" (9.75mm) | 1.747" (44.37mm) | 1.747" (44.37mm) | - | Surface Mount |
|
|
SMS-406CRF SHIELD 1.348" X 1.472" SMD |
242 | - |
|
Datasheet | - | Bulk | Active | Cover | 0.079" (2.01mm) | 1.472" (37.39mm) | 1.348" (34.24mm) | Non-Vented | Surface Mount |
|
|
SMS-105RF SHIELD 1" X 1.5" SMD 1PC |
245 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cover | 0.236" (6.00mm) | 1.500" (38.10mm) | 1.000" (25.40mm) | Vented | Surface Mount |
|
|
49-CBSU-24RF SHIELD 24" THROUGH HOLE |
377 | - |
|
Datasheet | 40-CBS | Bulk | Active | Shield, 2-Piece | 0.400" (10.16mm) | - | 24.000" (609.60mm) | Non-Vented | Through Hole |
|
SMS-201FRF SHIELD 0.5" X 0.538" SMD |
2,104 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Frame | 0.100" (2.54mm) | 0.538" (13.67mm) | 0.500" (12.70mm) | - | Surface Mount |
|
SMS-203FRF SHIELD 1.058" X 1.058" SMD |
874 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Frame | 0.200" (5.08mm) | 1.058" (26.87mm) | 1.058" (26.87mm) | - | Surface Mount |
|
|
9100-0004-94EMI VENT PANEL - 5" X 5" |
3,474 | - |
|
Datasheet | - | Bulk | Active | Shield, 1-Piece | 0.725" (18.42mm) | 5.000" (127.00mm) | 5.000" (127.00mm) | Vent Holes in Pattern | - |
|

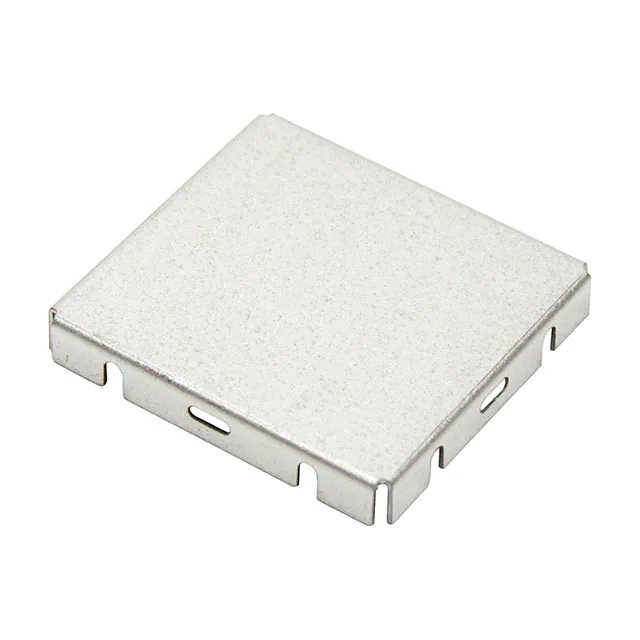

SMS-401CRF SHIELD 0.522" X 0.56" SMD |
748 | - |
|
Datasheet | - | Bulk | Active | Cover | 0.079" (2.01mm) | 0.560" (14.22mm) | 0.522" (13.26mm) | Non-Vented | Surface Mount |
RF Shields FAQ
Common questions about filtering, comparing and sourcing RF Shields components.
How can I narrow the RF Shields selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Shields part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
