RF Shields
Browse available RF Shields part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Height - Overall | Length - Overall | Width - Overall | Ventilation | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BMI-S-201-CRF SHIELD 0.514"X0.552" SNAP FIT |
130,758 | - |
|
Datasheet | SMT 2 Piece | Tray | Active | Cover | 0.079" (2.00mm) | 0.552" (14.02mm) | 0.514" (13.06mm) | Vent Holes in Pattern | Snap Fit |
|
36900000RF SHIELD 0.315" X 0.256" |
22,172 | - |
|
Datasheet | WE-SHC | Tape & Reel (TR) | Active | - | 0.050" (1.27mm) | 0.256" (6.50mm) | 0.315" (0.80mm) | - | - |
|
S1811-46RRFI SHIELD CLIP MIDI TIN SMD |
51,596 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 0.122" (3.11mm) | 0.350" (8.89mm) | 0.122" (3.10mm) | - | - |
|
2118706-2RF SHIELD 0.5" X 0.538" SMD 1PC |
13,300 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cover | 0.100" (2.54mm) | 0.538" (13.66mm) | 0.500" (12.70mm) | Vented | Surface Mount |
|
36003200SRF COVER 0.823" X 0.823" SMD |
3,389 | - |
|
Datasheet | WE-SHC | Tape & Reel (TR) | Active | Cover | 0.118" (3.00mm) | 0.823" (20.90mm) | 0.823" (20.90mm) | Non-Vented | Surface Mount |
|
|
MS110-10FRF SHIELD 0.433"X0.433" SOLDER |
5,013 | - |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Frame | 0.110" (2.80mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | - | Solder |
|
2118716-2RF SHIELD 0.65" X 0.65" SMD |
27,497 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Frame | 0.142" (3.60mm) | 0.650" (16.50mm) | 0.650" (16.50mm) | - | Surface Mount |
|
36103205SRF SHIELD 0.787" X 0.787" SMD |
1,474 | - |
|
Datasheet | WE-SHC | Tape & Reel (TR) | Active | Frame | 0.118" (3.00mm) | 0.787" (20.00mm) | 0.787" (20.00mm) | - | Surface Mount |
|
2118714-2RF SHIELD 0.5" X 0.538" SMD |
45,667 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Frame | 0.100" (2.54mm) | 0.538" (13.66mm) | 0.500" (12.70mm) | - | Surface Mount |
|
|
MS320-10FRF SHIELD 0.445"X1.260" SOLDER |
6,283 | - |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Frame | 0.079" (2.00mm) | 1.260" (32.00mm) | 0.445" (11.30mm) | - | Solder |
|
|
MS320-10CRF SHIELD 0.461X1.276" SNAP FIT |
1,820 | - |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Cover | 0.079" (2.00mm) | 1.276" (32.40mm) | 0.461" (11.70mm) | Non-Vented | Snap Fit |
|
SMS-255FRF SHIELD 0.75" X 0.75" SMD |
11,875 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Frame | 0.200" (5.08mm) | 0.750" (19.05mm) | 0.750" (19.05mm) | - | Surface Mount |
|
|
MS110-10CRF SHIELD 0.457X0.457" SNAP FIT |
3,611 | - |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Cover | 0.110" (2.80mm) | 0.457" (11.60mm) | 0.457" (11.60mm) | Non-Vented | Snap Fit |
|
|
MS233-20CRF SHIELD 0.587X0.933" SNAP FIT |
2,817 | - |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Cover | 0.118" (3.00mm) | 0.933" (23.70mm) | 0.587" (14.90mm) | Non-Vented | Snap Fit |
|
S03-15100300RRF SHIELD 0.394" X 0.591" SMD |
14,042 | - |
|
Datasheet | EZ BoardWare | Tape & Reel (TR) | Active | CAN | 0.118" (3.00mm) | 0.591" (15.00mm) | 0.394" (10.00mm) | Non-Vented | Surface Mount |
|
2118715-2RF SHIELD 0.665" X 0.665" SMD |
46,443 | - |
|
Datasheet | - | Bulk | Active | Cover | 0.079" (2.00mm) | 0.665" (16.90mm) | 0.665" (16.90mm) | Vented | Surface Mount |
|

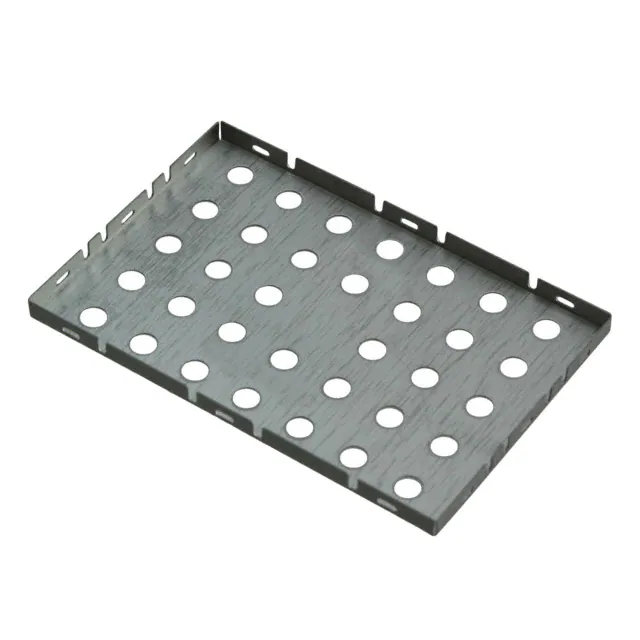

BMI-S-205-CRF SHIELD 1.018"X1.518" ADHESIVE |
18,952 | - |
|
Datasheet | SMT 2 Piece | Bulk | Active | Cover | 0.079" (2.00mm) | 1.518" (38.56mm) | 1.018" (25.86mm) | Vent Holes in Pattern | Snap Fit |
|
|
MS223-10SRF SHIELD 0.681"X0.878" SOLDER |
1,979 | - |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Shield, 1-Piece | 0.197" (5.00mm) | 0.878" (22.30mm) | 0.681" (17.30mm) | Non-Vented | Solder |
|
SMS-254FRF SHIELD 1.034" X 1.034" SMD |
2,970 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Frame | 0.098" (2.49mm) | 1.034" (26.26mm) | 1.034" (26.26mm) | - | Surface Mount |
|
BMI-S-201-FRF SHIELD 0.5" X 0.538" SOLDER |
64,033 | - |
|
Datasheet | SMT 2 Piece | Tape & Reel (TR) | Active | Frame | 0.100" (2.54mm) | 0.538" (13.66mm) | 0.500" (12.70mm) | - | Surface Mount |
RF Shields FAQ
Common questions about selecting, comparing and sourcing RF Shields components through Winsun (HK) Electronics.
What should I check when selecting RF Shields components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Shields part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Shields parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Shields components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
