RF Shields
Browse available RF Shields part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Height - Overall | Length - Overall | Width - Overall | Ventilation | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BMI-S-204-FRF SHIELD 1.26" X 1.26" SOLDER |
2,074 | - |
|
Datasheet | SMT 2 Piece | Tape & Reel (TR) | Active | Frame | 0.236" (6.00mm) | 1.260" (32.00mm) | 1.260" (32.00mm) | - | Surface Mount |
|
BMI-S-208-CRF SHIELD 1.583"X1.583" SNAP FIT |
1,158 | - |
|
Datasheet | SMT 2 Piece | Bulk | Active | Cover | 0.118" (3.00mm) | 1.583" (40.20mm) | 1.583" (40.20mm) | Non-Vented | Snap Fit |
|
BMI-S-206-CRF SHIELD 1.344"X1.468" SNAP FIT |
20,201 | - |
|
Datasheet | SMT 2 Piece | Bulk | Active | Cover | 0.079" (2.00mm) | 1.468" (37.29mm) | 1.344" (34.14mm) | Vent Holes in Pattern | Snap Fit |
|
BMI-S-206-FRF SHIELD 1.326" X 1.45" SOLDER |
23,852 | - |
|
Datasheet | SMT 2 Piece | Tape & Reel (TR) | Active | Frame | 0.200" (5.08mm) | 1.450" (36.83mm) | 1.326" (33.68mm) | - | Surface Mount |
|
S02-20150300RF SHIELD 0.591" X 0.787" SMD |
1,679 | - |
|
Datasheet | EZ BoardWare | Bulk | Active | CAN | 0.118" (3.00mm) | 0.787" (20.00mm) | 0.591" (15.00mm) | Non-Vented | Surface Mount |
|

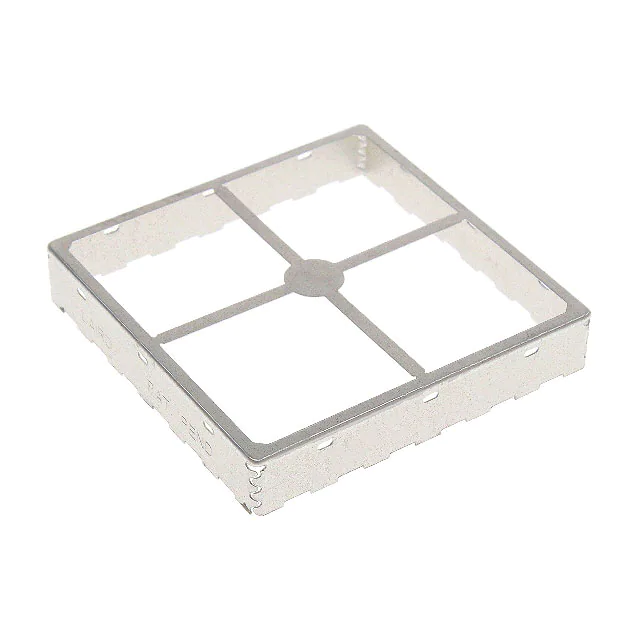

BMI-S-208-FRF SHIELD 1.559" X 1.559" SOLDER |
4,559 | - |
|
Datasheet | SMT 2 Piece | Tape & Reel (TR) | Active | Frame | 0.276" (7.00mm) | 1.559" (39.60mm) | 1.559" (39.60mm) | - | Surface Mount |
|
|
S02-25200300RF SHIELD 0.8" X 0.984" SMD |
4,174 | - |
|
Datasheet | EZ BoardWare | Bulk | Active | CAN | 0.118" (3.00mm) | 0.984" (25.00mm) | 0.787" (20.00mm) | Non-Vented | Surface Mount |
|
|
S02-30200250RF SHIELD 0.8" X 1.181" SMD |
2,277 | - |
|
Datasheet | EZ BoardWare | Bulk | Active | CAN | 0.100" (2.54mm) | 1.181" (30.00mm) | 0.787" (20.00mm) | Non-Vented | Surface Mount |
|

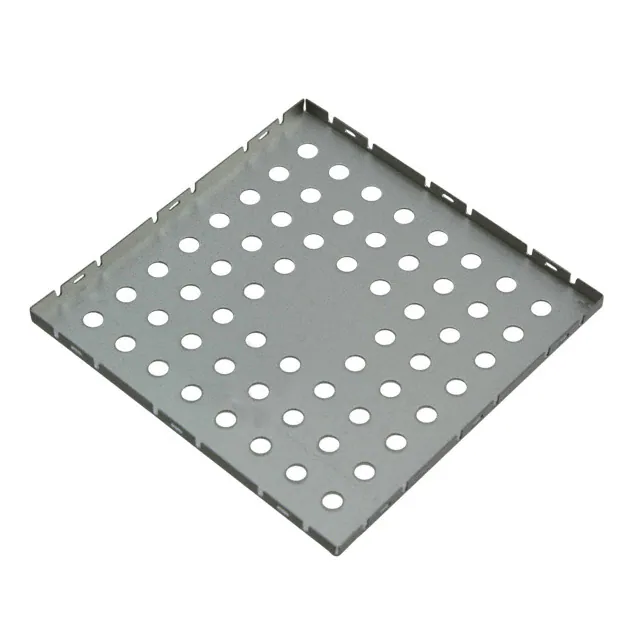

BMI-S-207-CRF SHIELD 1.765"X1.765" SNAP FIT |
1,663 | - |
|
Datasheet | SMT 2 Piece | Bulk | Active | Cover | 0.079" (2.00mm) | 1.765" (44.83mm) | 1.765" (44.83mm) | Vent Holes in Pattern | Snap Fit |
|
BMI-S-207-FRF SHIELD 1.747" X 1.747" SOLDER |
25,126 | - |
|
Datasheet | SMT 2 Piece | Tape & Reel (TR) | Active | Frame | 0.384" (9.75mm) | 1.747" (44.37mm) | 1.747" (44.37mm) | - | Surface Mount |
|
|
S01-30200500RF SHIELD 0.8" X 1.181" SMD |
1,871 | - |
|
Datasheet | EZ BoardWare | Bulk | Active | CAN | 0.200" (5.08mm) | 1.181" (30.00mm) | 0.787" (20.00mm) | Non-Vented | Surface Mount |
|
S01-30300500RF SHIELD 1.181" X 1.181" SMD |
2,773 | - |
|
Datasheet | EZ BoardWare | Bulk | Active | CAN | 0.197" (5.00mm) | 1.181" (30.00mm) | 1.181" (30.00mm) | Non-Vented | Surface Mount |
|
|
S01-50250500RF SHIELD 1" X 1.969" SMD |
423 | - |
|
Datasheet | EZ BoardWare | Bulk | Active | CAN | 0.200" (5.08mm) | 1.969" (50.00mm) | 1.000" (25.40mm) | Non-Vented | Surface Mount |
|
|
G-0315SC0670-0060ZCRF SHIELD 0.315" X 0.670" COVER |
726 | - |
|
Datasheet | GUARDIAN™ | Bulk | Active | Cover | 0.060" (1.52mm) | 0.670" (17.02mm) | 0.315" (8.00mm) | Non-Vented | Surface Mount |
|
|
9100-0002-94EMI VENT PANEL - 4" X 4" |
118 | - |
|
Datasheet | - | Bulk | Active | Shield, 1-Piece | 0.725" (18.42mm) | 4.000" (101.60mm) | 4.000" (101.60mm) | Vent Holes in Pattern | - |
|
|
SMS-210FRF SHIELD 1.201" X 1.732" SMD |
13,566 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Frame | 0.118" (3.00mm) | 1.732" (43.99mm) | 1.201" (30.51mm) | - | Surface Mount |
|
SMS-202CRF SHIELD 0.672" X 0.672" SMD |
10,805 | - |
|
Datasheet | - | Bulk | Active | Cover | 0.079" (2.01mm) | 0.672" (17.07mm) | 0.672" (17.07mm) | Vented | Surface Mount |
|
SMS-255CRF SHIELD 0.774" X 0.774" SMD |
6,572 | - |
|
Datasheet | - | Bulk | Active | Cover | 0.079" (2.01mm) | 0.774" (19.66mm) | 0.774" (19.66mm) | Vented | Surface Mount |
|
2118721-2RF SHIELD 1.02" X 1.52" SMD |
20,207 | - |
|
Datasheet | - | Bulk | Active | Cover | 0.079" (2.00mm) | 1.520" (38.60mm) | 1.020" (25.90mm) | Vented | Surface Mount |
|
SMS-409CRF SHIELD 0.75" X 1.178" SMD |
4,814 | - |
|
Datasheet | - | Bulk | Active | Cover | 0.079" (2.01mm) | 1.178" (29.92mm) | 0.750" (19.05mm) | Non-Vented | Surface Mount |
RF Shields FAQ
Common questions about selecting, comparing and sourcing RF Shields components through Winsun (HK) Electronics.
What should I check when selecting RF Shields components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Shields part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Shields parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Shields components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
