RF Shields
Browse available RF Shields part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Height - Overall | Length - Overall | Width - Overall | Ventilation | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

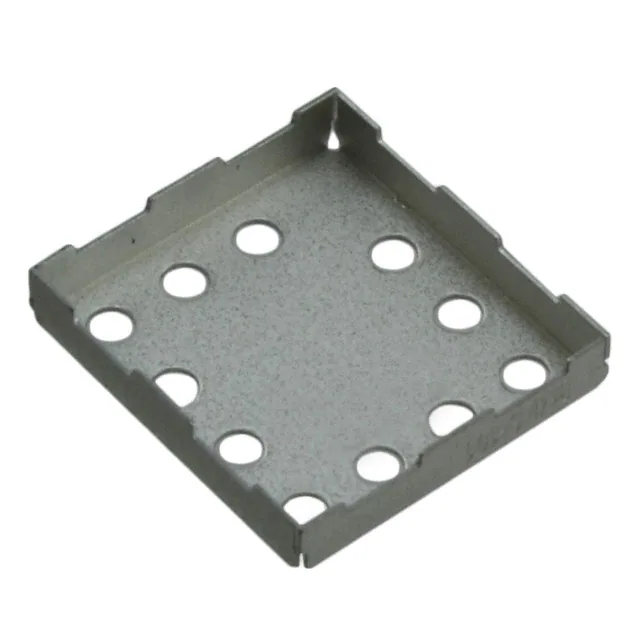

BMI-S-101RF SHIELD 0.5"X0.538" SOLDER 1PC |
22,636 | - |
|
Datasheet | SMT 1 Piece | Tape & Reel (TR) | Active | Shield, 1-Piece | 0.100" (2.54mm) | 0.538" (13.66mm) | 0.512" (13.00mm) | Vent Holes in Pattern | Surface Mount |
|

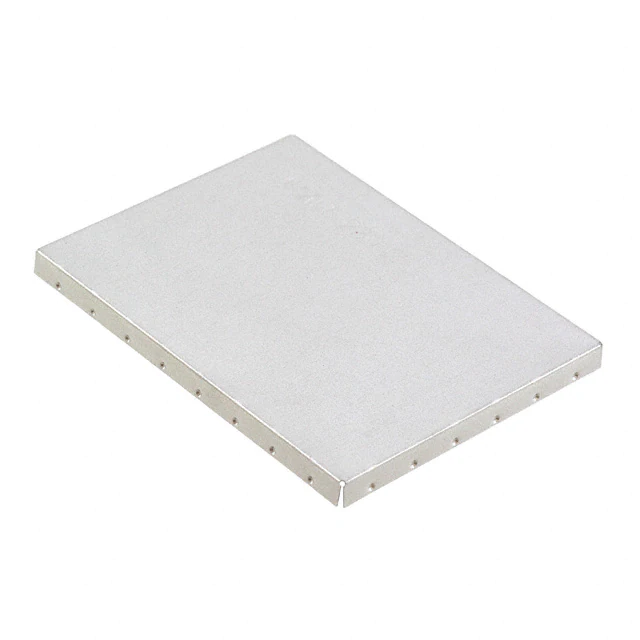

BMI-S-230-CRF SHIELD 2" X 1.5" SNAP FIT |
12,002 | - |
|
Datasheet | SMT 2 Piece | Bulk | Active | Cover | 0.125" (3.18mm) | 1.514" (38.46mm) | 2.014" (51.16mm) | Non-Vented | Snap Fit |
|
36903255SRF SHIELD 0.984" SNAP FIT |
361 | - |
|
Datasheet | WE-SHC | Tape & Reel (TR) | Active | Cover | 0.126" (3.20mm) | 0.984" (25.00mm) | - | Non-Vented | Snap Fit |
|

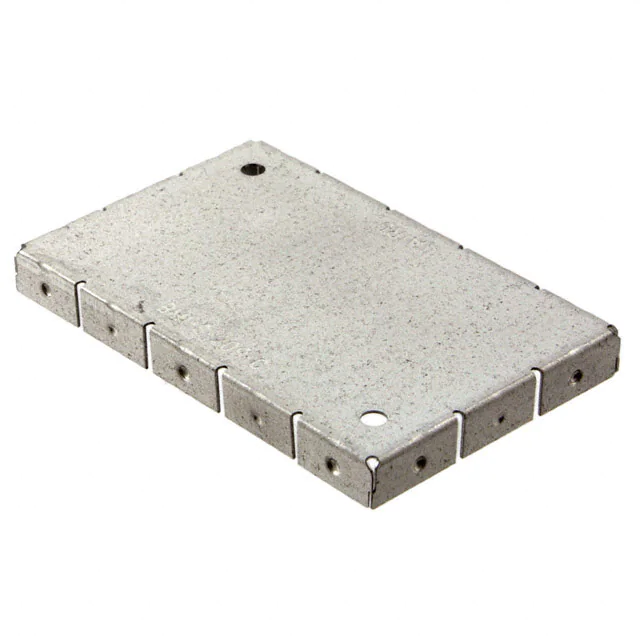

BMI-S-209-CRF SHIELD 0.728"X1.156" SNAP FIT |
10,166 | - |
|
Datasheet | SMT 2 Piece | Bulk | Active | Cover | 0.118" (3.00mm) | 1.180" (29.96mm) | 0.752" (19.10mm) | Non-Vented | Snap Fit |
|
BMI-S-202-CRF SHIELD 0.668"X0.668" SNAP FIT |
78,161 | - |
|
Datasheet | SMT 2 Piece | Bulk | Active | Cover | 0.079" (2.00mm) | 0.668" (16.96mm) | 0.668" (16.96mm) | Vent Holes in Pattern | Snap Fit |
|

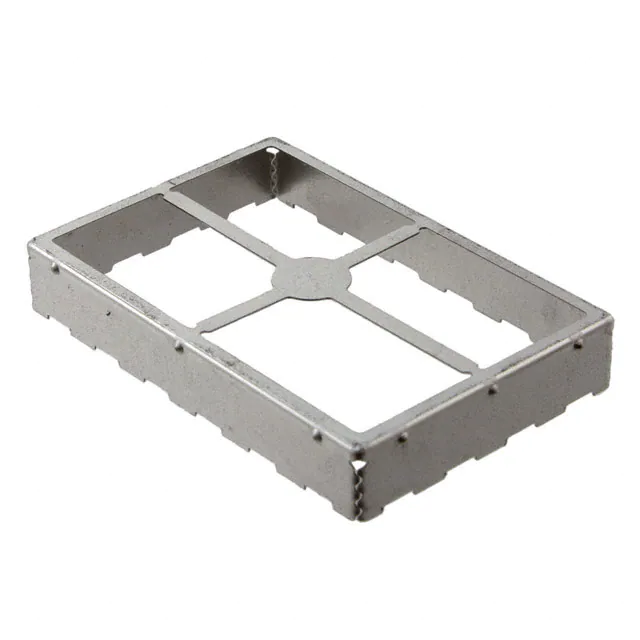

BMI-S-205-FRF SHIELD 1" X 1.5" SOLDER |
13,930 | - |
|
Datasheet | SMT 2 Piece | Tape & Reel (TR) | Active | Frame | 0.236" (6.00mm) | 1.500" (38.10mm) | 1.000" (25.40mm) | - | Surface Mount |
|
MS570-10FRF SHIELD 1.220"X2.244" SOLDER |
1,542 | - |
|
Datasheet | Drawn-Seamless EMI/RFI Shields | Tray | Active | Frame | 0.236" (6.00mm) | 2.244" (57.00mm) | 1.220" (31.00mm) | - | Solder |
|
|
36103205RF SHIELD 0.827" X 0.827" SMD |
3,630 | - |
|
Datasheet | WE-SHC | Tray | Active | Frame | 0.118" (3.00mm) | 0.827" (21.00mm) | 0.827" (21.00mm) | - | Surface Mount |
|

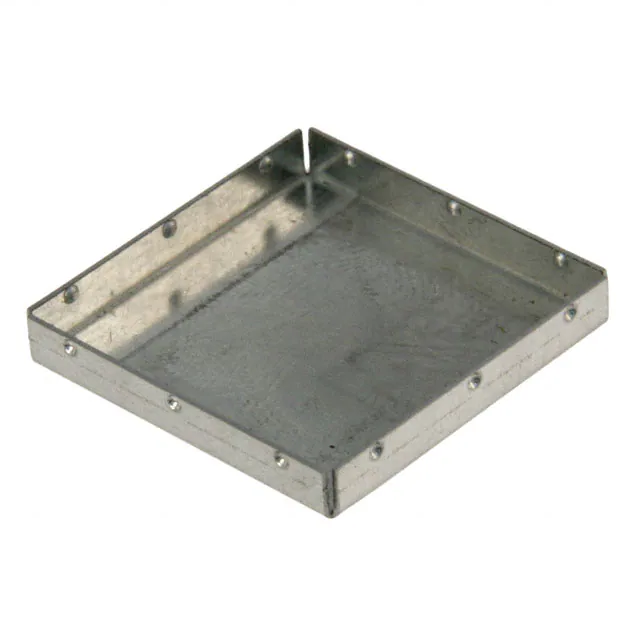

36003200RF SHIELD 0.858X0.858" SLDR/SNAP |
2,710 | - |
|
Datasheet | WE-SHC | Bulk | Active | Cover | 0.118" (3.00mm) | 0.858" (21.80mm) | 0.858" (21.80mm) | Non-Vented | Solder and Snap On |
|
BMI-S-202-FRF SHIELD 0.65" X 0.65" SOLDER |
19,128 | - |
|
Datasheet | SMT 2 Piece | Tape & Reel (TR) | Active | Frame | 0.142" (3.60mm) | 0.650" (16.50mm) | 0.650" (16.50mm) | - | Surface Mount |
|
BMI-S-203-CRF SHIELD 1.05" X 1.05" SNAP FIT |
44,170 | - |
|
Datasheet | SMT 2 Piece | Bulk | Active | Cover | 0.079" (2.00mm) | 1.050" (26.67mm) | 1.050" (26.67mm) | Vent Holes in Pattern | Snap Fit |
|

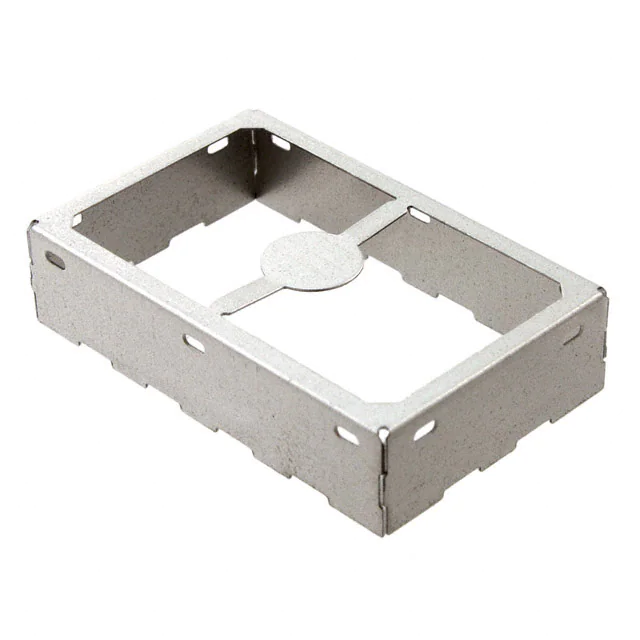

BMI-S-209-FRF SHIELD 0.728" X 1.156" SOLDER |
12,524 | - |
|
Datasheet | SMT 2 Piece | Tape & Reel (TR) | Active | Frame | 0.276" (7.00mm) | 1.156" (29.36mm) | 0.728" (18.50mm) | - | Surface Mount |
|

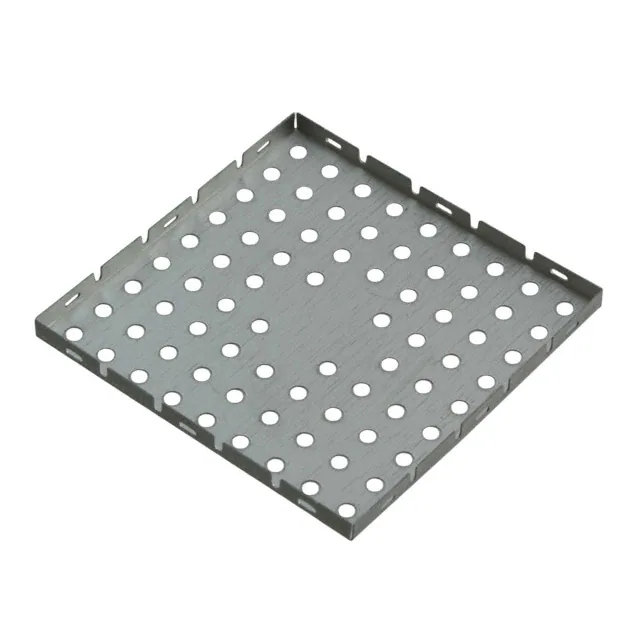

BMI-S-204-CRF SHIELD 1.278"X1.278" SNAP FIT |
34,085 | - |
|
Datasheet | SMT 2 Piece | Bulk | Active | Cover | 0.079" (2.00mm) | 1.278" (32.46mm) | 1.278" (32.46mm) | Vent Holes in Pattern | Snap Fit |
|
BMI-S-210-CRF SHIELD 1.201"X1.732" SNAP FIT |
7,321 | - |
|
Datasheet | SMT 2 Piece | Bulk | Active | Cover | 0.094" (2.40mm) | 1.756" (44.60mm) | 1.224" (31.10mm) | Non-Vented | Snap Fit |
|
|
BMI-S-102RF SHIELD 0.65"X0.65" SOLDER 1PC |
92,448 | - |
|
Datasheet | SMT 1 Piece | Tape & Reel (TR) | Active | Shield, 1-Piece | 0.142" (3.60mm) | 0.650" (16.50mm) | 0.650" (16.50mm) | Vent Holes in Pattern | Surface Mount |
|
BMI-S-210-FRF SHIELD 1.201" X 1.732" SOLDER |
10,574 | - |
|
Datasheet | SMT 2 Piece | Tape & Reel (TR) | Active | Frame | 0.118" (3.00mm) | 1.732" (44.00mm) | 1.201" (30.50mm) | - | Surface Mount |
|
|
BMI-S-103RF SHIELD 1.032"X1.032" SLDR 1PC |
131,541 | - |
|
Datasheet | SMT 1 Piece | Tape & Reel (TR) | Active | Shield, 1-Piece | 0.200" (5.08mm) | 1.032" (26.21mm) | 1.032" (26.21mm) | Vent Holes in Pattern | Surface Mount |
|
BMI-S-203-FRF SHIELD 1.032" X 1.032" SOLDER |
15,627 | - |
|
Datasheet | SMT 2 Piece | Tape & Reel (TR) | Active | Frame | 0.200" (5.08mm) | 1.032" (26.21mm) | 1.032" (26.21mm) | - | Surface Mount |
|
36103305RF SHIELD 1.22" X 1.22" SMD |
461 | - |
|
Datasheet | WE-SHC | Tray | Active | Frame | 0.118" (3.00mm) | 1.220" (31.00mm) | 1.220" (31.00mm) | - | Surface Mount |
|

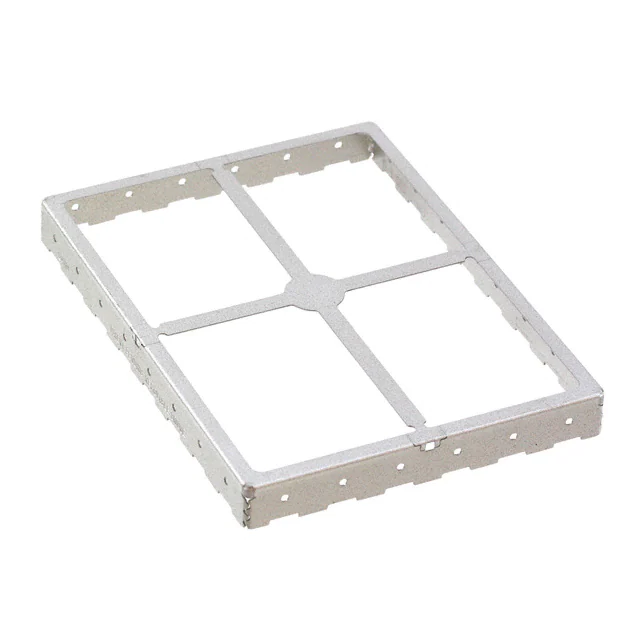

BMI-S-230-F-RRF SHIELD 2" X 1.5" SOLDER |
7,752 | - |
|
Datasheet | SMT 2 Piece | Tape & Reel (TR) | Active | Frame | 0.200" (5.08mm) | 1.500" (38.10mm) | 2.000" (50.80mm) | - | Surface Mount |
RF Shields FAQ
Common questions about selecting, comparing and sourcing RF Shields components through Winsun (HK) Electronics.
What should I check when selecting RF Shields components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Shields part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Shields parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Shields components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
