RF Switches
Use the filters and product table below to compare RF Switches components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE71S6274SP3T PIN Diode Switch Operating |
1,192 | - |
|
Datasheet | - | - | Retail Package | Active | General Purpose | Reflective | SP3T | 8GHz ~ 12GHz | 70dB (min) | 2.4dB | - | - | - | - | 50Ohm | -15V, 5V | -55°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6249Absorptive SP4T PIN Diode Switch |
3,962 | - |
|
Datasheet | - | - | Retail Package | Active | General Purpose | Absorptive | SP4T | 10MHz ~ 1GHz | 60dB (min) | 1.5dB (max) | - | - | - | - | 50Ohm | -15V, 5V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6443SPDT ELECTROMECHANICAL RELAY FAI |
1,538 | - |
|
Datasheet | - | - | Retail Package | Active | SATCOM | Absorptive | SPDT | 0Hz ~ 40GHz | 85dB | 0.35dB | 40GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6552SP6T, IP64 Rated Electromechanic |
1,106 | - |
|
Datasheet | - | - | Retail Package | Active | General Purpose | Absorptive | SP6T | 0Hz ~ 18GHz | 90dB | 0.2dB | 18GHz | - | - | - | 50Ohm | 11V ~ 13V | -54°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6528SPDT, IP64 Rated Electromechanic |
2,995 | - |
|
Datasheet | - | - | Retail Package | Active | SATCOM | Absorptive | SPDT | 0Hz ~ 18GHz | 90dB | 0.2dB | 18GHz | - | - | - | 50Ohm | 11V ~ 13V | -54°C ~ 85°C | - | - | Chassis Mount | - |
|

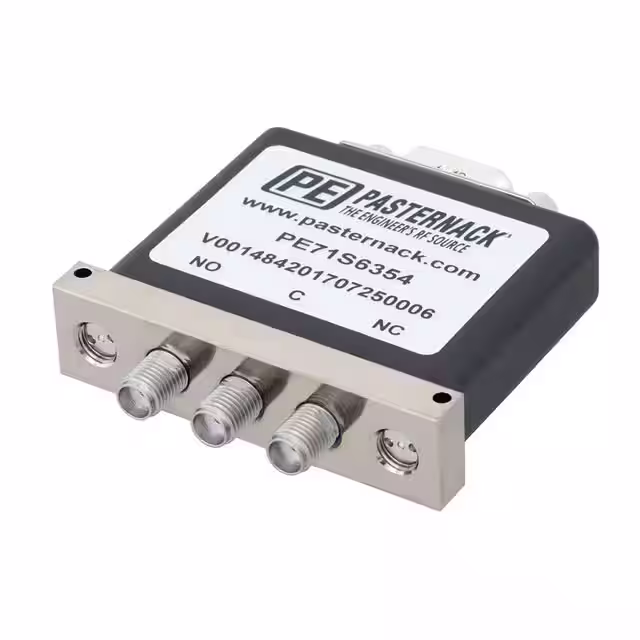

PE71S6354IC RF SWITCH SPDT 18GHZ MODULE |
4,927 | - |
|
Datasheet | - | Module, SMA Connectors | Bag | Active | General Purpose | - | SPDT | DC ~ 18GHz | 85dB | 0.15dB | 18GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 70°C | - | - | - | Module |
|
|
PE71S6509SPDT Electromechanical Relay Fai |
2,658 | - |
|
Datasheet | - | - | Retail Package | Active | SATCOM | Absorptive | SPDT | 0Hz ~ 12.4GHz | 80dB | 0.3dB | 12GHz | - | - | - | 50Ohm | 12V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6560SPDT Electromechanical Relay Lat |
3,307 | - |
|
Datasheet | - | - | Retail Package | Active | General Purpose | Absorptive | SPDT | DC ~ 53GHz | 85dB | 0.6dB | 53GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6079SP6T Electromechanical Relay Lat |
3,562 | - |
|
Datasheet | - | - | Retail Package | Active | General Purpose | Absorptive | SP6T | 0Hz ~ 26.5GHz | 50dB (min) | 0.7dB (max) | 26.5GHz | - | - | - | 50Ohm | 24V ~ 30V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6469SPDT Electromechanical Relay Fai |
2,011 | - |
|
Datasheet | - | - | Retail Package | Active | SATCOM | Absorptive | SPDT | 0Hz ~ 26.5GHz | 80dB | 0.3dB | 26.5GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 65°C | - | - | Chassis Mount | - |
RF Switches FAQ
Common questions about filtering, comparing and sourcing RF Switches components.
How can I narrow the RF Switches selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Switches part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
