RF Switches
Use the filters and product table below to compare RF Switches components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE71S3901USB Controlled High Isolation SP |
2,888 | - |
|
Datasheet | - | - | Retail Package | Active | General Purpose | Reflective | SPDT | 500MHz ~ 40GHz | 60dB (min) | 6dB (max) | - | - | - | - | - | - | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S2045Absorptive SP5T PIN Diode Switch |
4,012 | - |
|
Datasheet | - | - | Retail Package | Active | Radar | Absorptive | SP5T | 100MHz ~ 20GHz | 65dB (min) | 3.9dB (max) | - | - | - | - | 50Ohm | -12V, 5V | -55°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6456SP4T Electromechanical Relay Nor |
4,117 | - |
|
Datasheet | - | - | Retail Package | Active | General Purpose | Absorptive | SP4T | 0Hz ~ 40GHz | 85dB | 0.5dB | 40GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6460SPDT Electromechanical Relay Fai |
2,755 | - |
|
Datasheet | - | - | Retail Package | Active | SATCOM | Absorptive | SPDT | 0Hz ~ 12GHz | 80dB | 0.2dB | 12GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6253Absorptive SP4T PIN Diode Switch |
1,665 | - |
|
Datasheet | - | - | Retail Package | Active | General Purpose | Absorptive | SP4T | 8GHz ~ 12GHz | 70dB (min) | 2.6dB (max) | - | - | - | - | 50Ohm | -15V, 5V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6056SPDT Electromechanical Relay Fai |
1,971 | - |
|
Datasheet | - | - | Retail Package | Active | General Purpose | - | SPDT | 0Hz ~ 40GHz | 50dB | 0.8dB | 40GHz | - | - | - | 50Ohm | 24V ~ 30V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6567SP4T Electromechanical Relay Lat |
4,113 | - |
|
Datasheet | - | - | Retail Package | Active | SATCOM | Absorptive | SP4T | 0Hz ~ 18GHz | 80dB | 0.5dB | 18GHz | - | - | - | 50Ohm | 12V ~ 13V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6568SP4T ELECTROMECHANICAL RELAY LAT |
3,299 | - |
|
Datasheet | - | - | Retail Package | Active | General Purpose | Absorptive | SP4T | 0Hz ~ 18GHz | 80dB | 0.40dB | 18GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|

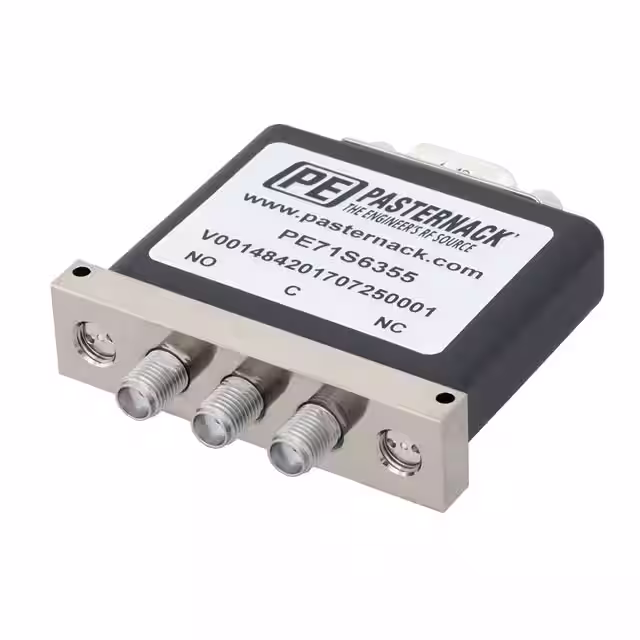

PE71S6355IC RF SWITCH SPDT 18GHZ MODULE |
3,158 | - |
|
Datasheet | - | Module, SMA Connectors | Bag | Active | General Purpose | - | SPDT | DC ~ 18GHz | 85dB | 0.15dB | 18GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 70°C | - | - | - | Module |
|
|
PE71S6269SPDT PIN Diode Switch Operating |
1,808 | - |
|
Datasheet | - | - | Retail Package | Active | General Purpose | Reflective | SPDT | 1GHz ~ 18GHz | 65dB | 2.5dB | - | - | - | - | 50Ohm | -15V, 5V | -55°C ~ 85°C | - | - | Chassis Mount | - |
RF Switches FAQ
Common questions about filtering, comparing and sourcing RF Switches components.
How can I narrow the RF Switches selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Switches part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
