Signal Relays, Up to 2 Amps
Browse available Signal Relays, Up to 2 Amps part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSBT2-M-2D-DC12VRELAY GEN PURPOSE DPDT 1A 12V |
2,466 | - |
|
Datasheet | DS-BT | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form D) | 1 A | 250VAC, 220VDC - Max | 500VA, 440W | 45 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 3 ms | 2 ms | -40°C ~ 60°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TQ4-L2-12VRELAY TELECOM 4PDT 1A 12V |
1,384 | - |
|
Datasheet | TQ | Tube | Obsolete | Through Hole | 12VDC | 4PDT (4 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 33.3 mA | Latching, Dual Coil | - | PC Pin | - | - | 9 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
TN2-3VRELAY GENERAL PURPOSE DPDT 1A 3V |
2,525 | - |
|
Datasheet | TN | Tube | Obsolete | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 46.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-9VRELAY GENERAL PURPOSE DPDT 1A 9V |
3,473 | - |
|
Datasheet | TN | Tube | Obsolete | Through Hole | 9VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 15.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

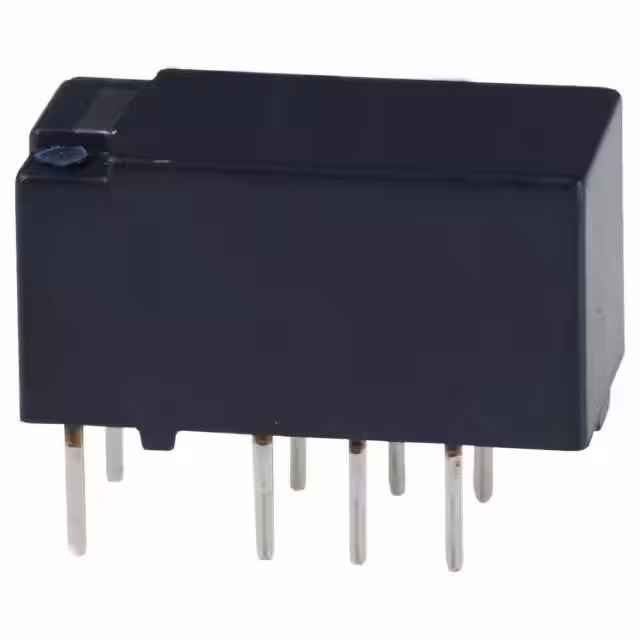

ASX20003RELAY TELECOM DPDT 10MA 3V |
4,790 | - |
|
Datasheet | ASX | Tube | Obsolete | Through Hole | 3VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 16.7 mA | Non Latching | - | PC Pin | - | - | 2.4 VDC | 0.3 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX2004HRELAY TELECOM DPDT 10MA 4.5V |
4,531 | - |
|
Datasheet | ASX | Tube | Obsolete | Through Hole | 4.5VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 11.1 mA | Non Latching | - | PC Pin | - | - | 3.6 VDC | 0.45 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX20024RELAY TELECOM DPDT 10MA 24V |
3,284 | - |
|
Datasheet | ASX | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 2.9 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
ASX200A03RELAY TELECOM DPDT 10MA 3V |
1,829 | - |
|
Datasheet | ASX | Tube | Obsolete | Surface Mount | 3VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 16.7 mA | Non Latching | - | Gull Wing | - | - | 2.4 VDC | 0.3 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX200A4HRELAY TELECOM DPDT 10MA 4.5V |
2,294 | - |
|
Datasheet | ASX | Tube | Obsolete | Surface Mount | 4.5VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 11.1 mA | Non Latching | - | Gull Wing | - | - | 3.6 VDC | 0.45 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX200A24RELAY TELECOM DPDT 10MA 24V |
4,984 | - |
|
Datasheet | ASX | Tube | Obsolete | Surface Mount | 24VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 2.9 mA | Non Latching | - | Gull Wing | - | - | 19.2 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
DS4E-S-DC12VRELAY GEN PURPOSE 4PDT 2A 12V |
1,038 | - |
|
Datasheet | DS | Tube | Obsolete | Through Hole | 12VDC | 4PDT (4 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
ASX21003RELAY TELECOM DPDT 10MA 3V |
1,237 | - |
|
Datasheet | ASX | Tube | Obsolete | Through Hole | 3VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 11.7 mA | Latching, Single Coil | - | PC Pin | - | - | 2.4 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX21012RELAY TELECOM DPDT 10MA 12V |
2,072 | - |
|
Datasheet | ASX | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 2.9 mA | Latching, Single Coil | - | PC Pin | - | - | 9.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX2104HRELAY TELECOM DPDT 10MA 4.5V |
1,652 | - |
|
Datasheet | ASX | Tube | Obsolete | Through Hole | 4.5VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 7.8 mA | Latching, Single Coil | - | PC Pin | - | - | 3.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX210A03RELAY TELECOM DPDT 10MA 3V |
1,042 | - |
|
Datasheet | ASX | Tube | Obsolete | Surface Mount | 3VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 11.7 mA | Latching, Single Coil | - | Gull Wing | - | - | 2.4 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX210A12RELAY TELECOM DPDT 10MA 12V |
3,254 | - |
|
Datasheet | ASX | Tube | Obsolete | Surface Mount | 12VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 2.9 mA | Latching, Single Coil | - | Gull Wing | - | - | 9.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX210A24RELAY TELECOM DPDT 10MA 24V |
4,146 | - |
|
Datasheet | ASX | Tube | Obsolete | Surface Mount | 24VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 2.1 mA | Latching, Single Coil | - | Gull Wing | - | - | 19.2 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX210A4HRELAY TELECOM DPDT 10MA 4.5V |
1,966 | - |
|
Datasheet | ASX | Tube | Obsolete | Surface Mount | 4.5VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 7.8 mA | Latching, Single Coil | - | Gull Wing | - | - | 3.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX22003RELAY TELECOM DPDT 10MA 3V |
4,395 | - |
|
Datasheet | ASX | Tube | Obsolete | Through Hole | 3VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 23.3 mA | Latching, Dual Coil | - | PC Pin | - | - | 2.4 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX22012RELAY TELECOM DPDT 10MA 12V |
3,077 | - |
|
Datasheet | ASX | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 5.8 mA | Latching, Dual Coil | - | PC Pin | - | - | 9.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
Signal Relays, Up to 2 Amps FAQ
Common questions about selecting, comparing and sourcing Signal Relays, Up to 2 Amps components through Winsun (HK) Electronics.
What should I check when selecting Signal Relays, Up to 2 Amps components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Signal Relays, Up to 2 Amps part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Signal Relays, Up to 2 Amps parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Signal Relays, Up to 2 Amps components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
