Switching Converter, SMPS Transformers
Browse available Switching Converter, SMPS Transformers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
760390012XFMR FWD P-P DC/DC CONV 475UH SM |
30,816 | - |
|
Datasheet | WE-PP, MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | SN6501 | Texas Instruments | - | - | 3125Vrms | 475µH @ 10kHz | 10kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.265" L x 0.281" W (6.73mm x 7.14mm) | 0.170" (4.32mm) | 0.265" L x 0.395" W (6.73mm x 10.05mm) | - |
|
|
760390013XFMR FWD P-P DC/DC CONV 475UH SM |
22,460 | - |
|
Datasheet | WE-PP, MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | SN6501 | Texas Instruments | - | - | 3125Vrms | 475µH @ 10kHz | 10kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.265" L x 0.281" W (6.73mm x 7.14mm) | 0.170" (4.32mm) | 0.265" L x 0.395" W (6.73mm x 10.05mm) | - |
|
760390015XFMR FWD P-P DC/DC CONV 475UH SM |
20,737 | - |
|
Datasheet | WE-PP, MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | SN6501 | Texas Instruments | - | - | 3125Vrms | 475µH @ 10kHz | 10kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.265" L x 0.281" W (6.73mm x 7.14mm) | 0.170" (4.32mm) | 0.265" L x 0.395" W (6.73mm x 10.05mm) | - |
|
|
760390011XFMR FWD P-P DC/DC CONV 1MH SMD |
1,448 | - |
|
Datasheet | WE-PP, MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | SN6501 | Texas Instruments | - | - | 1500Vrms | 1mH @ 10kHz | 10kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.265" L x 0.281" W (6.73mm x 7.14mm) | 0.170" (4.32mm) | 0.265" L x 0.395" W (6.73mm x 10.05mm) | - |
|
|
760390014XFMR FWD P-P DC/DC CONV 475UH SM |
5,710 | - |
|
Datasheet | WE-PP, MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | SN6501 | Texas Instruments | - | - | 3125Vrms | 475µH @ 10kHz | 10kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.265" L x 0.281" W (6.73mm x 7.14mm) | 0.170" (4.32mm) | 0.265" L x 0.395" W (6.73mm x 10.05mm) | - |
|
750315228XFMR FWD P-P SMD |
1,187 | - |
|
Datasheet | MID-PPMAX | Tape & Reel (TR) | Active | - | Forward, Push-Pull Converters | - | - | 3.3V | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.165" (4.19mm) | - | - |
|
750316769XFMR FWD P-P DC/DC CONV 60UH SMD |
4,347 | - |
|
Datasheet | MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 60µH @ 10kHz | 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.281" L x 0.265" W (7.14mm x 6.73mm) | 0.165" (4.19mm) | 0.412" L x 0.265" W (10.46mm x 6.73mm) | - |
|
|
750316819XFMR FWD P-P DC/DC CONV 86UH SMD |
1,500 | - |
|
Datasheet | MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 86µH @ 10kHz | 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.364" L x 0.327" W (9.25mm x 8.30mm) | 0.161" (4.10mm) | 0.496" L x 0.327" W (12.60mm x 8.30mm) | - |
|
|
750316818XFMR FWD P-P DC/DC CONV 86UH SMD |
931 | - |
|
Datasheet | MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 86µH @ 100kHz | 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.364" L x 0.327" W (9.25mm x 8.30mm) | 0.161" (4.10mm) | 0.496" L x 0.327" W (12.60mm x 8.30mm) | - |
|
|
750316770XFMR FWD P-P DC/DC CONV 350UH SM |
414 | - |
|
Datasheet | MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 350µH @ 100kHz | 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.281" L x 0.265" W (7.14mm x 6.73mm) | 0.165" (4.19mm) | 0.401" L x 0.265" W (10.20mm x 6.73mm) | - |
|
P1597NLTXFMR ISOL DC/DC CONV SMD |
458 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Isolation | LTC1535 | Linear Technology | - | - | 2000Vrms | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.453" L x 0.339" W (11.50mm x 8.60mm) | 0.354" (9.00mm) | 0.453" L x 0.512" W (11.50mm x 13.00mm) | - |
|
PA2369NLXFMR SWITCH MODE 5A |
1,968 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | 0.551" L x 0.695" W (14.00mm x 17.65mm) | - |
|
PA3855.006NLTXFMR FLYBACK DC/DC CONV SMD |
1,130 | - |
|
Datasheet | EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
750316028XFMR FWD P-P DC/DC CONV 72UH SMD |
2,632 | - |
|
Datasheet | WE-PP, MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 3.3V | - | 3125Vrms | 72µH @ 100kHz | 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.327" L x 0.364" W (8.30mm x 9.25mm) | 0.161" (4.10mm) | - | - |
|
750316029XFMR FWD P-P DC/DC CONV 72UH SMD |
164 | - |
|
Datasheet | WE-PP, MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 3.3V | - | 3125Vrms | 72µH @ 100kHz | 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.327" L x 0.364" W (8.30mm x 9.25mm) | 0.161" (4.10mm) | - | - |
|
PA0367ANLTXFMR FLYBACK DC/DC CONV SMD |
338 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3420 | Linear Technology | - | - | 500Vrms | - | - | -40°C ~ 130°C | - | - | Surface Mount | 0.360" L x 0.360" W (9.14mm x 9.14mm) | 0.215" (5.45mm) | 0.460" L x 0.460" W (11.68mm x 11.68mm) | - |
|
750313445XFMR FLYBACK DC/DC CONV 9UH SMD |
2,084 | - |
|
Datasheet | WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8302 | Linear Technology | 8 ~ 32V | - | 1500Vrms | 9µH @ 10kHz | - | - | - | - | Surface Mount | - | 0.450" (11.43mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|

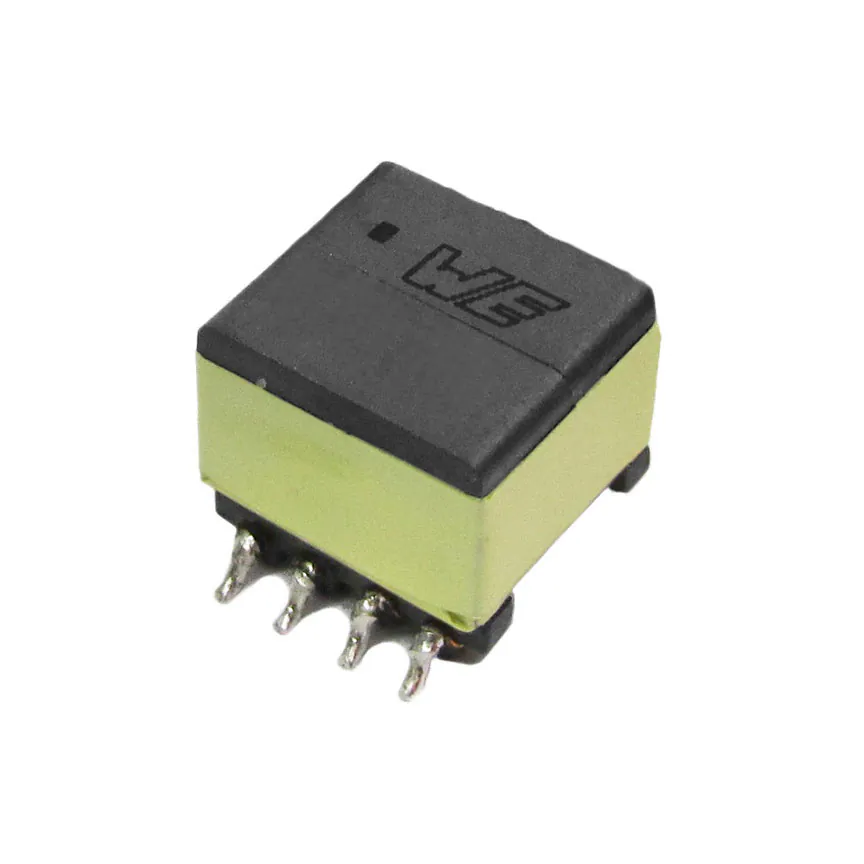

750313443XFMR FLYBACK DC/DC CONV 9UH SMD |
6,304 | - |
|
Datasheet | WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8302 | Linear Technology | 8 ~ 32V | - | 1500Vrms | 9µH @ 10kHz | - | - | - | - | Surface Mount | - | 0.450" (11.43mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
PH0416NLTXFMR FLYBACK DC/DC CONV SMD |
3,834 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | ACPL-32JT, ACPL-302J | - | 8 ~ 18V | - | 5000Vrms | - | 75kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.502" (12.75mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - |
|
750315126XFMR FLYBACK DC/DC CONV 40UH SMD |
121 | - |
|
Datasheet | WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8304 | Linear Technology | 36 ~ 72V | - | 1500Vrms | 40µH @ 10kHz | 150 ~ 300kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.500" (12.70mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
Switching Converter, SMPS Transformers FAQ
Common questions about selecting, comparing and sourcing Switching Converter, SMPS Transformers components through Winsun (HK) Electronics.
What should I check when selecting Switching Converter, SMPS Transformers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Switching Converter, SMPS Transformers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Switching Converter, SMPS Transformers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Switching Converter, SMPS Transformers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
