Switching Converter, SMPS Transformers
Browse available Switching Converter, SMPS Transformers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TGMR-340V6LFTRISO MOD DC 1C:1.33C 22VUS 3KV |
300 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Isolated Buck Converters | MAX253, MAX845, MAX3535 | Analog Devices, Inc | - | - | 3000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | - | Wirewound |
|
|
750315811XFMR ISOL BUCK DC/DC CON 60UH SM |
205 | - |
|
Datasheet | MID-IBTI | Tape & Reel (TR) | Active | For DC/DC Converters | Isolated Buck Converters | - | Texas Instruments | 36 ~ 72V | - | 1500Vrms | 60µH @ 10kHz | 300kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.450" (11.43mm) | - | Laminated Core |
|
|
750342984XFMR FLYBACK DC/DC CONV 30UH SMD |
115 | - |
|
Datasheet | MID-FLYTI | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Texas Instruments | 9 ~ 16V | 15V @ 10mA | 1500Vrms | 30µH @ 50kHz | 600kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.415" (10.54mm) | - | Laminated Core |
|
ECO2017SEO-D04V015XFMR FLYBCK AC/DC CONV 3.18MH TH |
210 | - |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 160 ~ 288V | 12V @ 300mA | 3000Vrms | 3.18mH @ 10kHz | 100kHz | -30°C ~ 120°C | - | - | Through Hole | 0.768" L x 0.886" W (19.50mm x 22.50mm) | 0.945" (24.00mm) | 0.768" L x 0.886" W (19.50mm x 22.50mm) | - |
|
ECO2425SLD-D02H0111XFMR FLYBACK AC/DC CONV 446UH TH |
183 | - |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 85 ~ 276V | 5V @ 2.2A, 12V @ 200mA | 3000Vrms | 446µH @ 10kHz | 67kHz | -30°C ~ 120°C | - | - | Through Hole | 1.024" L x 1.181" W (26.00mm x 30.00mm) | 0.787" (20.00mm) | 1.024" L x 1.181" W (26.00mm x 30.00mm) | - |
|
|
POEB2FB1V30W2X5XFMR POE 100UH SMD |
150 | - |
|
Datasheet | POEB1FB | Tape & Reel (TR) | Active | - | Power Over Ethernet (PoE) | - | - | 33 ~ 57V | 12V | 1500Vrms | 100µH | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.472" (12.00mm) | - | - |
|
ECO2225SEO-D02V0112XFMR FLYBCK AC/DC CONV 1.33MH TH |
138 | - |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 180 ~ 276V | 12.3V @ 3.2A | 4000Vrms | 1.33mH @ 10kHz | - | -30°C ~ 120°C | - | - | Through Hole | 1.122" L x 0.906" W (28.50mm x 23.00mm) | 1.220" (31.00mm) | 1.122" L x 0.906" W (28.50mm x 23.00mm) | - |
|
|
094931XFMR FLYBACK TH |
241 | - |
|
Datasheet | Kaschke | Tray | Active | - | Flyback Converters | - | - | 85 ~ 265V | - | 4200V | - | 66kHz ~ 132kHz | -25°C ~ 125°C | - | - | Through Hole | 0.827" L x 0.984" W (21.00mm x 25.00mm) | 0.728" (18.50mm) | - | Laminated Core |
|
|
POEB2FB1V42W1X12XFMR POE 100UH SMD |
145 | - |
|
Datasheet | POEB1FB | Tape & Reel (TR) | Active | - | Power Over Ethernet (PoE) | - | - | 40 ~ 60V | 12V | 1500Vrms | 100µH | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.472" (12.00mm) | - | - |
|

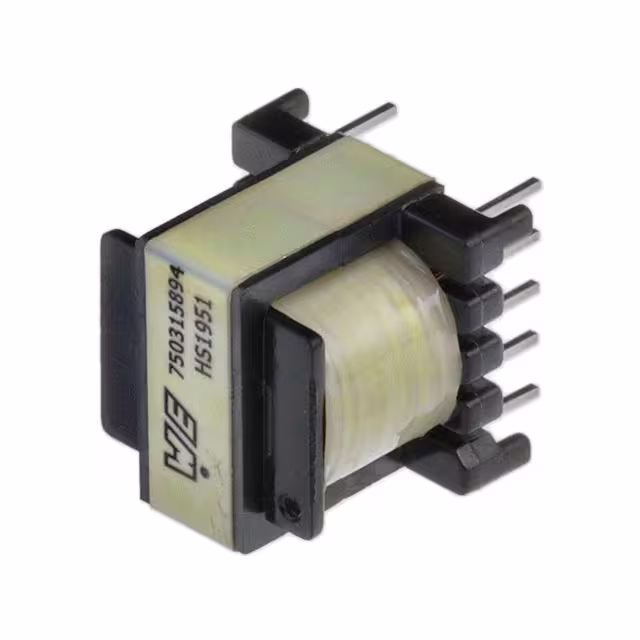

750315894XFMR 2.3MH TH |
1,192 | - |
|
Datasheet | - | Tray | Active | - | - | - | - | 110 ~ 385V | - | 625VAC | 2.3mH @ 10kHz | 60kHz | -40°C ~ 125°C | - | - | Through Hole | 0.580" L x 0.580" W (14.73mm x 14.73mm) | 0.600" (15.24mm) | 0.580" L x 0.580" W (14.73mm x 14.73mm) | - |
|
|
TGM-H281NFLFTRISO MOD DC 1:1:2.6:2.6 18.5VUS |
300 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | - | MAX256 | Analog Devices, Inc | - | - | 1500Vrms | - | - | - | - | - | Surface Mount | 0.475" L x 0.455" W (12.07mm x 11.56mm) | 0.340" (8.64mm) | - | Wirewound |
|

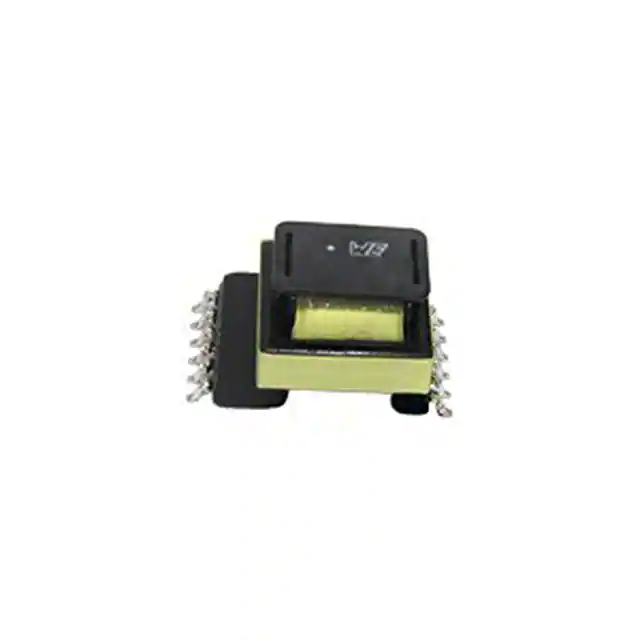

7508111323XFMR FLYBACK AC/DC CONV 2MH TH |
130 | - |
|
Datasheet | MID-OLTI | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | Texas Instruments | 120 ~ 375V | - | 4000Vrms | 2mH @ 10kHz | 50 ~ 102kHz | -40°C ~ 125°C | - | - | Through Hole | 1.059" L x 0.700" W (26.90mm x 17.78mm) | 0.543" (13.80mm) | 1.059" L x 0.700" W (26.90mm x 17.78mm) | - |
|
|
PDC015-FD15A05SXFMR POE DC/DC CONV 95UH SMD |
200 | - |
|
Datasheet | PDC-FD | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 37 ~ 57V | - | 1500Vrms | 95µH @ 250kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.689" W (18.00mm x 17.50mm) | 0.354" (9.00mm) | - | - |
|
|
TGMR-511V6LFTRISO MOD DC 1:1C 60VUS 0.3A 5KV |
300 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | - | MAX13256 | Analog Devices, Inc | - | - | 5000V | - | - | -40°C ~ 85°C | - | - | Surface Mount | 0.428" L x 0.372" W (10.87mm x 9.45mm) | 0.395" (10.03mm) | - | Wirewound |
|
|
750311805XFMR FLYBACK DC/DC 166.5UH SM |
193 | - |
|
Datasheet | MID-FLYTI | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Texas Instruments | 36 ~ 57V | - | 1500Vrms | 166.5µH @ 100kHz | 150kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.350" (8.89mm) | - | Laminated Core |
|
|
SUOST-12-0505UNIV OFFLINE SMTXFMR2X |
690 | - |
|
Datasheet | SUOST | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 125 ~ 375V | - | - | 1.31mH @ 100kHz | 60 ~ 150kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.811" L x 0.654" W (20.60mm x 16.60mm) | 0.531" (13.50mm) | - | - |
|
|
SUOST-15-0505UNIV OFFLINE SMTXFMR2X |
690 | - |
|
Datasheet | SUOST | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 125 ~ 375V | - | - | 1.5mH @ 100kHz | 60 ~ 150kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.811" L x 0.654" W (20.60mm x 16.60mm) | 0.531" (13.50mm) | - | - |
|
|
SUOST-13-1212UNIV OFFLINE SMTXFMR2X |
690 | - |
|
Datasheet | SUOST | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 125 ~ 375V | - | - | 1.25mH @ 100kHz | 60 ~ 150kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.811" L x 0.654" W (20.60mm x 16.60mm) | 0.531" (13.50mm) | - | - |
|
|
SUOST-12-2405UNIV OFFLINE SMTXFMR1X |
690 | - |
|
Datasheet | SUOST | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 125 ~ 375V | - | - | 1.31mH @ 100kHz | 60 ~ 150kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.811" L x 0.654" W (20.60mm x 16.60mm) | 0.531" (13.50mm) | - | - |
|
|
SUOST-15-1205UNIV OFFLINE SMTXFMR1X |
690 | - |
|
Datasheet | SUOST | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 195 ~ 265V | - | - | 1.5mH @ 100kHz | 60 ~ 150kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.811" L x 0.654" W (20.60mm x 16.60mm) | 0.531" (13.50mm) | - | - |
Switching Converter, SMPS Transformers FAQ
Common questions about selecting, comparing and sourcing Switching Converter, SMPS Transformers components through Winsun (HK) Electronics.
What should I check when selecting Switching Converter, SMPS Transformers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Switching Converter, SMPS Transformers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Switching Converter, SMPS Transformers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Switching Converter, SMPS Transformers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
