Switching Converter, SMPS Transformers
Use the filters and product table below to compare Switching Converter, SMPS Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

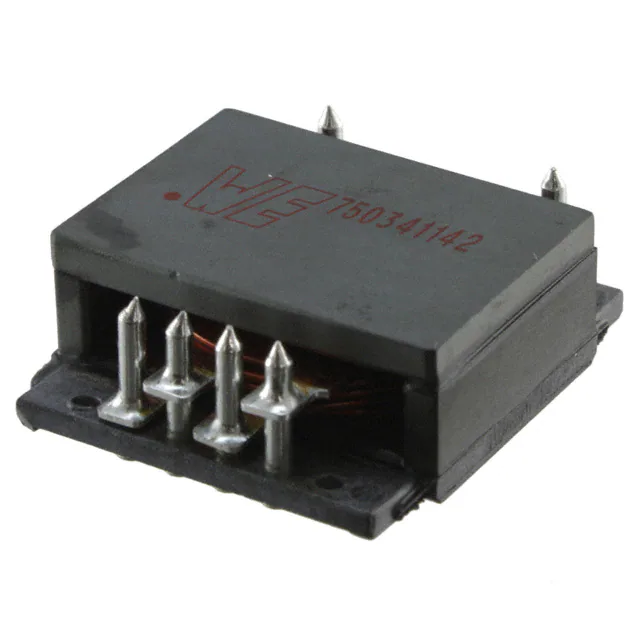

750341142XFMR FWD P-P DC/DC CONV 70UH SMD |
2,256 | - |
|
Datasheet | WE-FW, MID-PLN | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 500VDC | 70µH @ 100kHz | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.050" L x 1.154" W (26.67mm x 29.30mm) | 0.418" (10.62mm) | 1.050" L x 1.154" W (26.67mm x 29.30mm) | Planar |
|
750341137XFMR FWD P-P DC/DC CONV 480UH SM |
3,621 | - |
|
Datasheet | WE-FW, MID-PLN | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 500VDC | 480µH @ 100kHz | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.050" L x 1.154" W (26.67mm x 29.30mm) | 0.418" (10.62mm) | 1.050" L x 1.154" W (26.67mm x 29.30mm) | Planar |
|
750341141XFMR FWD P-P DC/DC CONV 480UH SM |
3,810 | - |
|
Datasheet | WE-FW, MID-PLN | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 500VDC | 480µH @ 100kHz | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.050" L x 1.154" W (26.67mm x 29.30mm) | 0.418" (10.62mm) | 1.050" L x 1.154" W (26.67mm x 29.30mm) | Planar |
|
750813021XFMR LED DR DC/DC CONV 1.6MH TH |
3,966 | - |
|
Datasheet | WE-UNIT | Tray | Obsolete | For DC/DC Converters | LED Drivers, AC/DC SMPS | LM3445 | Texas Instruments | 120 ~ 191V | 12V @ 20mA | 3000Vrms | 1.6mH @ 60kHz | 60kHz | -40°C ~ 125°C | - | - | Through Hole | 0.874" L x 0.984" W (22.20mm x 25.00mm) | 0.635" (16.13mm) | 0.874" L x 0.984" W (22.20mm x 25.00mm) | - |
|
750813049XFMR LED DR DC/DC CONV 1.3MH TH |
2,384 | - |
|
Datasheet | WE-UNIT | Tray | Obsolete | For DC/DC Converters | LED Drivers, AC/DC SMPS | LM3447 | Texas Instruments | 127 ~ 191V | 15V @ 20mA | 3000Vrms | 1.3mH @ 70kHz | 70kHz | -40°C ~ 125°C | - | - | Through Hole | 0.665" L x 0.740" W (16.90mm x 18.80mm) | 0.529" (13.44mm) | 0.665" L x 0.740" W (16.90mm x 18.80mm) | - |
|
750815045XFMR LED DR AC/DC CONV 3.45MH TH |
3,020 | - |
|
Datasheet | WE-UNIT | Tray | Obsolete | For AC/DC Converters | LED Drivers, AC/DC SMPS | LM3448 | Texas Instruments | 250 ~ 375V | - | 4500Vrms | 3.45mH @ 10kHz | 72kHz | - | - | - | Through Hole | 0.665" L x 0.740" W (16.90mm x 18.80mm) | 0.529" (13.44mm) | 0.665" L x 0.740" W (16.90mm x 18.80mm) | - |
|

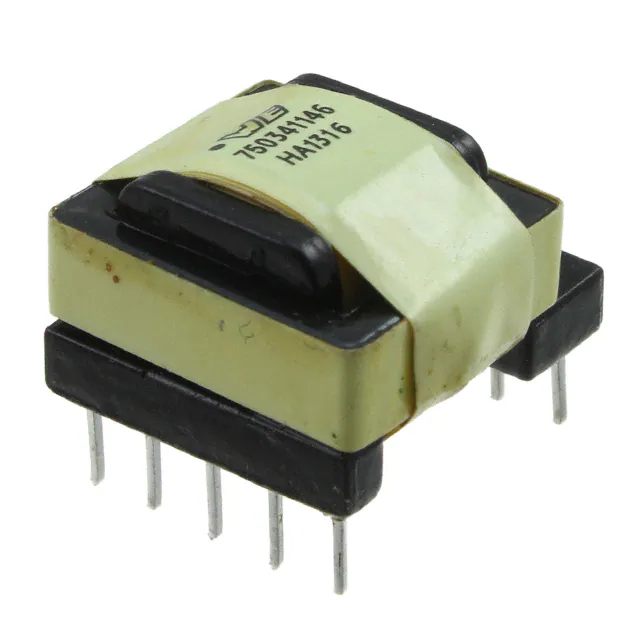

750341146XFMR FLYBACK DC/DC CONV 750UH TH |
2,948 | - |
|
Datasheet | WE-FB | Tray | Obsolete | For DC/DC Converters | Flyback Converters | LM3445 | Texas Instruments | 180 ~ 265V | 20V @ 50mA | 3000Vrms | 750µH @ 100kHz | 60kHz | - | - | - | Through Hole | 0.695" L x 0.740" W (17.65mm x 18.80mm) | 0.555" (14.10mm) | 0.695" L x 0.740" W (17.65mm x 18.80mm) | - |
Switching Converter, SMPS Transformers FAQ
Common questions about filtering, comparing and sourcing Switching Converter, SMPS Transformers components.
How can I narrow the Switching Converter, SMPS Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Switching Converter, SMPS Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
