Switching Converter, SMPS Transformers
Browse available Switching Converter, SMPS Transformers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

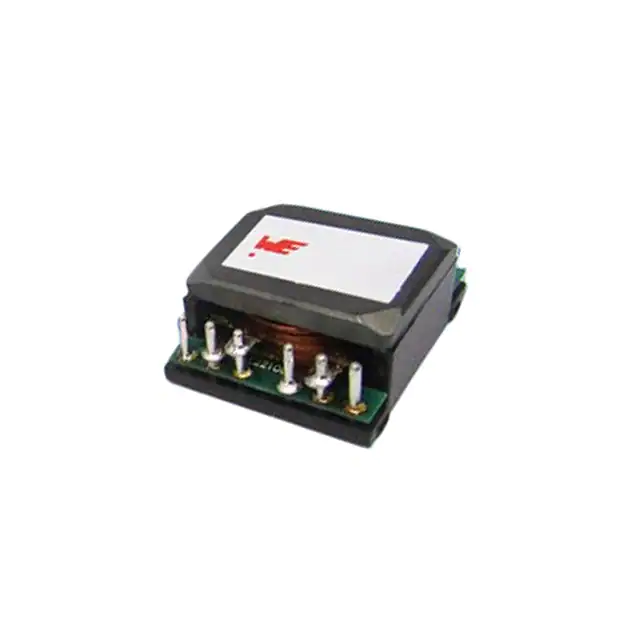

750343164XFMR POE AC/DC CONV 153UH SMD |
2,637 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For AC/DC Converters | Power Over Ethernet (PoE) | - | Texas Instruments | 40 ~ 57V | 12V | - | 153µH @ 10kHz | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.830" L x 0.920" W (21.08mm x 23.37mm) | 0.413" (10.50mm) | 0.621" L x 0.800" W (15.77mm x 20.32mm) | - |
|
750318962XFMR POE DC/DC CONV 70UH SMD |
2,307 | - |
|
Datasheet | MID-POE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 33 ~ 57V | 12V | 1500Vrms | 70µH @ 10kHz | 200 ~ 300kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.969" L x 0.858" W (24.60mm x 21.80mm) | 0.450" (11.43mm) | 1.167" L x 0.858" W (29.65mm x 21.80mm) | - |
|
750845240XFMR FLYBACK AC/DC CONV 2.6MH TH |
3,926 | - |
|
Datasheet | WE UNIT, MID-OLIFX | Tray | Active | For AC/DC Converters | Flyback Converters | BCR450, TDA4863 | Infineon Technologies | 280 ~ 380V | 15V @ 20mA | 3600Vrms | 2.6mH @ 10kHz | 47kHz | -40°C ~ 125°C | - | - | Through Hole | 1.240" L x 1.386" W (31.50mm x 35.20mm) | 0.950" (24.13mm) | 1.240" L x 1.386" W (31.50mm x 35.20mm) | - |
|
749196518XFMR FLEX DC/DC CONV 22.3UH SMD |
4,544 | - |
|
Datasheet | WE-FLEX | Tape & Reel (TR) | Active | For DC/DC Converters | Flexible | - | - | - | - | 1500Vrms | 22.3µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.846" W (21.01mm x 21.49mm) | 0.472" (11.99mm) | 1.161" L x 0.846" W (29.49mm x 21.49mm) | - |
|
750811290XFMR FLYBACK AC/DC CONV 461UH TH |
1,088 | - |
|
Datasheet | WE-FB, MID-OLLT | Tray | Active | For AC/DC Converters | Flyback Converters | LT3799 | Linear Technology | 85 ~ 265V | - | 4500Vrms | 461µH @ 10kHz | 150kHz | -40°C ~ 125°C | - | - | Through Hole | 1.220" L x 1.220" W (31.00mm x 31.00mm) | 0.989" (25.12mm) | 1.220" L x 1.220" W (31.00mm x 31.00mm) | - |
|
VP4-0060-RXFMR 4.9UH SMD |
4,338 | - |
|
Datasheet | VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.969" W (18.00mm x 24.60mm) | 0.394" (10.00mm) | - | - |
|
|
VP4-0860-RXFMR 87UH SMD |
1,368 | - |
|
Datasheet | VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.969" W (18.00mm x 24.60mm) | 0.394" (10.00mm) | - | - |
|
750319032XFMR POE DC/DC CONV 22UH SMD |
1,335 | - |
|
Datasheet | MID-POE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 33 ~ 57V | 12V | 1500Vrms | 22µH @ 10kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.102" L x 1.064" W (28.00mm x 27.03mm) | 0.550" (13.97mm) | 1.278" L x 1.064" W (32.45mm x 27.03mm) | - |
|
|
VPH4-0860-RXFMR 159.65UH SMD |
3,419 | - |
|
Datasheet | VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.969" W (18.00mm x 24.60mm) | 0.394" (10.00mm) | - | - |
|
760895441XFMR RES CONV AC/DC 600UH TH |
1,249 | - |
|
Datasheet | WE-LLCR | Tray | Active | For AC/DC Converters | Resonant Converters | - | - | 360 ~ 400V | - | 4000Vrms | 600µH @ 100kHz | 70 ~ 120kHz | -40°C ~ 125°C | - | - | Through Hole | 1.417" L x 1.417" W (36.00mm x 36.00mm) | 1.024" (26.00mm) | 1.417" L x 1.417" W (36.00mm x 36.00mm) | - |
|
760895431XFMR RES CONV AC/DC 600UH TH |
4,354 | - |
|
Datasheet | WE-LLCR | Tray | Active | For AC/DC Converters | Resonant Converters | - | - | 360 ~ 400V | - | 4000Vrms | 600µH @ 100kHz | 70 ~ 120kHz | -40°C ~ 125°C | - | - | Through Hole | 1.417" L x 1.417" W (36.00mm x 36.00mm) | 1.024" (26.00mm) | 1.417" L x 1.417" W (36.00mm x 36.00mm) | - |
|
PA0909NLXFMR SMD |
3,646 | - |
|
Datasheet | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 1.160" L x 1.000" W (29.46mm x 25.40mm) | 0.402" (10.20mm) | 1.000" L x 1.160" W (25.40mm x 29.46mm) | - |
|
760895741XFMR RES CONV AC/DC 400UH TH |
1,810 | - |
|
Datasheet | WE-LLCR | Tray | Active | For AC/DC Converters | Resonant Converters | - | - | 360 ~ 400V | - | 4000Vrms | 400µH @ 100kHz | 70 ~ 120kHz | -40°C ~ 125°C | - | - | Through Hole | 1.811" L x 1.890" W (46.00mm x 48.00mm) | 1.083" (27.50mm) | 1.811" L x 1.890" W (46.00mm x 48.00mm) | - |
|
760895731XFMR RES CONV AC/DC 475UH TH |
4,086 | - |
|
Datasheet | WE-LLCR | Tray | Active | For AC/DC Converters | Resonant Converters | - | - | 360 ~ 400V | - | 4000Vrms | 475µH @ 100kHz | 70 ~ 120kHz | -40°C ~ 125°C | - | - | Through Hole | 1.811" L x 1.890" W (46.00mm x 48.00mm) | 1.083" (27.50mm) | 1.811" L x 1.890" W (46.00mm x 48.00mm) | - |
|
760895751XFMR RES CONV AC/DC 400UH TH |
2,823 | - |
|
Datasheet | WE-LLCR | Tray | Active | For AC/DC Converters | Resonant Converters | - | - | 360 ~ 400V | - | 4000Vrms | 400µH @ 100kHz | 70 ~ 120kHz | -40°C ~ 125°C | - | - | Through Hole | 1.811" L x 1.890" W (46.00mm x 48.00mm) | 1.083" (27.50mm) | 1.811" L x 1.890" W (46.00mm x 48.00mm) | - |
|
7508151501XFMR FLYBCK DC/DC CONV 1.78MH TH |
3,629 | - |
|
Datasheet | WE-UNIT, MID-OLTI | Tray | Active | For DC/DC Converters | Flyback Converters | UCC287xx, UCC289xx | Texas Instruments | 255 ~ 275V | 14V @ 20mA | 4500Vrms | 1.78mH @ 70kHz | 70kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.438" (11.13mm) | 0.543" L x 0.941" W (13.80mm x 23.90mm) | - |
|
PA5099.004NLTXFMR FLYBACK DC/DC CONV SMD |
100 | - |
|
Datasheet | PA5099.XXXNLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | - | 2250VDC | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
B82802A0012A215XFMR FLYBACK DC/DC CONV 100UH SM |
2,499 | - |
|
Datasheet | B82802A | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 36 ~ 60V | - | 1500Vrms | 100µH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.650" L x 0.681" W (16.50mm x 17.30mm) | 0.341" (8.65mm) | 0.650" L x 0.902" W (16.50mm x 22.90mm) | - |
|
ECO2023SEO-D02V015XFMR FLYBACK AC/DC CONV TH |
4,644 | - |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | - | - | 50kHz | -30°C ~ 120°C | - | - | Through Hole | - | 1.181" (30.00mm) | - | - |
|
|
ECO2020SEO-D14V014XFMR FLYBACK AC/DC CONV TH |
4,894 | - |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | - | - | 50kHz | -30°C ~ 120°C | - | - | Through Hole | - | 1.063" (27.00mm) | - | - |
Switching Converter, SMPS Transformers FAQ
Common questions about selecting, comparing and sourcing Switching Converter, SMPS Transformers components through Winsun (HK) Electronics.
What should I check when selecting Switching Converter, SMPS Transformers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Switching Converter, SMPS Transformers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Switching Converter, SMPS Transformers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Switching Converter, SMPS Transformers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
