Switching Converter, SMPS Transformers
Browse available Switching Converter, SMPS Transformers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
750317236XFMR FLYBACK DC/DC CONV 84UH SMD |
2,355 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Maxim Integrated | 18 ~ 60VDC | - | 1500Vrms | 84µH @ 100kHz | 143.5kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.385" L x 0.374" W (9.78mm x 9.50mm) | 0.415" (10.54mm) | 0.324" L x 0.360" W (8.23mm x 9.14mm) | Wirewound |
|
750311524XFMR LED DR AC/DC CONV 180UH TH |
4,986 | - |
|
Datasheet | MID-LLIT | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | SSL2101 | NXP Semiconductors | 230V | - | 1000Vrms | 180µH @ 100kHz, 95µH @ 100kHz | - | -40°C ~ 125°C | - | - | Through Hole | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.505" (12.83mm) | 0.550" L x 0.550" W (13.97mm x 13.97mm) | - |
|

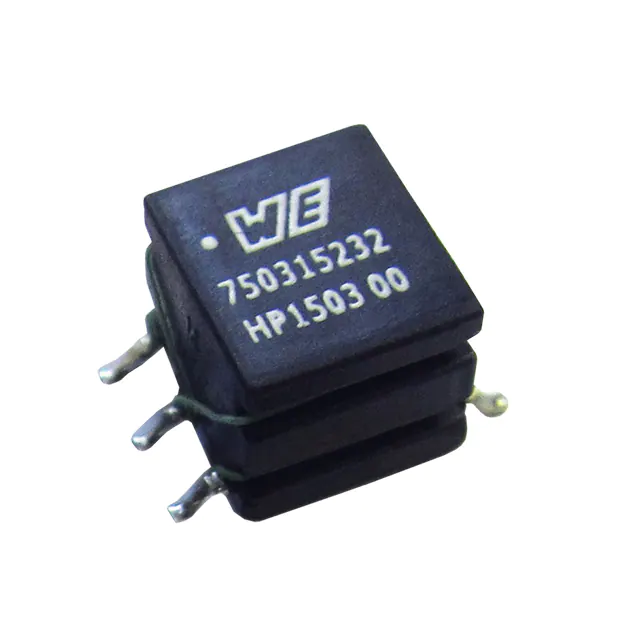

750315232XFMR FWD P-P SMD |
3,360 | - |
|
Datasheet | MID-PPMAX | Tape & Reel (TR) | Active | - | Forward, Push-Pull Converters | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.360" L x 0.315" W (9.14mm x 8.00mm) | 0.300" (7.62mm) | - | - |
|
ECO2020SEO-D10V017XFMR FLYBACK AC/DC CONV 770UH TH |
4,735 | - |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 96 ~ 276V | 15V @ 150mA, 18V @ 150mA | 3000Vrms | 770µH @ 10kHz | - | -30°C ~ 120°C | - | - | Through Hole | 0.886" L x 0.768" W (22.50mm x 19.50mm) | 1.063" (27.00mm) | 0.886" L x 0.768" W (22.50mm x 19.50mm) | - |
|
7491199331XFMR POE DC/DC CONV 127UH SMD |
2,201 | - |
|
Datasheet | WE-PoE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 | - | 34 ~ 72V | 12V @ 15mA | 1500Vrms | 127µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.530" L x 0.591" W (13.46mm x 15.00mm) | 0.500" (12.70mm) | 0.530" L x 0.713" W (13.46mm x 18.10mm) | - |
|
750310007XFMR POE DC/DC CONV 127UH SMD |
4,594 | - |
|
Datasheet | WE-PoE, MID-POE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LM5070, LM5071, LM5072 | National Semiconductor | 35 ~ 57V | 12V @ 15mA | 1500Vrms | 127µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.505" (12.83mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|
7491194501XFMR POE DC/DC CONV 42UH SMD |
3,769 | - |
|
Datasheet | WE-PoE+ | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 36 ~ 72V | 12V | 1500Vrms | 42µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.910" L x 1.044" W (23.11mm x 26.52mm) | 0.450" (11.43mm) | 0.910" L x 1.145" W (23.11mm x 29.08mm) | - |
|
|
749119450XFMR POE DC/DC CONV 65UH SMD |
4,062 | - |
|
Datasheet | WE-PoE+ | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 36 ~ 72V | 15V @ 20mA | 1500Vrms | 65µH @ 100kHz | 250 ~ 400kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.910" L x 1.145" W (23.11mm x 29.08mm) | - |
|
7508170310XFMR FLYBCK AC/DC CONV 1.99MH SM |
4,002 | - |
|
Datasheet | WE-UNIT, MID-OLEE | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | 78 ~ 375V | 16V @ 50mA | 3000Vrms | 1.99mH @ 10kHz | 50kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.438" (11.13mm) | 0.543" L x 0.941" W (13.80mm x 23.90mm) | - |
|
750341087XFMR LED DR AC/DC CONV 3MH TH |
2,825 | - |
|
Datasheet | WE-UNIT, MID-OLTI | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 180 ~ 265V | 22V @ 10mA | 4500Vrms | 3mH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 0.665" L x 0.740" W (16.90mm x 18.80mm) | 0.529" (13.44mm) | 0.665" L x 0.740" W (16.90mm x 18.80mm) | - |
|
750342860XFMR FLYBACK DC/DC CONV 80UH SMD |
1,118 | - |
|
Datasheet | WE-FB, MID-IBMAX | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 18 ~ 36V | 24V @ 100mA | 1875Vrms | 80µH @ 50kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
750313959XFMR ISOL AC/DC CONV 1.8MH TH |
4,117 | - |
|
Datasheet | WE-FB, MID-OLTI | Tray | Active | For AC/DC Converters | Isolation | - | - | 120 ~ 375V | 18V @ 10mA | 4500Vrms | 1.8mH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 0.540" L x 0.805" W (13.72mm x 20.45mm) | 0.405" (10.29mm) | 0.540" L x 0.805" W (13.72mm x 20.45mm) | - |
|
7491196331XFMR POE DC/DC CONV 128UH SMD |
4,229 | - |
|
Datasheet | WE-PoEH | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 33 ~ 57V | 10V | 1500Vrms | 128µH @ 100kHz | 200 ~ 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.551" L x 0.591" W (14.00mm x 15.00mm) | 0.571" (14.50mm) | 0.551" L x 0.591" W (14.00mm x 18.10mm) | - |
|
VPH4-0047-RXFMR 7.94UH SMD |
4,294 | - |
|
Datasheet | VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.969" W (18.00mm x 24.60mm) | 0.394" (10.00mm) | - | - |
|
B78304B1031A003XFMR DC/DC CONV 1MH SMD |
3,798 | - |
|
Datasheet | B78304B | Tape & Reel (TR) | Active | For DC/DC Converters | - | - | - | - | - | 500Vrms | 1mH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.315" L x 0.276" W (8.00mm x 7.00mm) | 0.224" (5.70mm) | 0.315" L x 0.374" W (8.00mm x 9.50mm) | - |
|
7508112330XFMR LED DR AC/DC CONV 800UH TH |
4,049 | - |
|
Datasheet | WE-UNIT, MID-OLEDF | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 120 ~ 375V | 20V | 4500Vrms | 800µH @ 10kHz | 68 ~ 130kHz | -40°C ~ 125°C | - | - | Through Hole | 0.846" L x 1.142" W (21.50mm x 29.00mm) | 0.477" (12.12mm) | 0.846" L x 1.142" W (21.50mm x 29.00mm) | - |
|
749118205XFMR LED DR AC/DC CONV 900UH TH |
1,300 | - |
|
Datasheet | WE-UNIT | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | NCP101x, NCP105x | On Semiconductor | 120 ~ 385V | - | 4000Vrms | 900µH @ 10kHz | 132kHz | -40°C ~ 125°C | - | - | Through Hole | 0.709" L x 0.650" W (18.00mm x 16.50mm) | 0.709" (18.00mm) | 0.709" L x 0.650" W (18.00mm x 16.50mm) | - |
|
750319565XFMR FLYBACK DC/DC CONV 256UH SM |
2,110 | - |
|
Datasheet | WE-AGDT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 15V | - | 4000V | 256µH @ 10kHz | 250kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.445" L x 0.431" W (11.30mm x 10.95mm) | 0.470" (11.94mm) | - | Wirewound |
|
750311567XFMR FLYBACK DC/DC CONV 7UH SMD |
1,647 | - |
|
Datasheet | WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 10 ~ 40V | 10V @ 20mA | 1500Vrms | 7µH @ 250kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
750319020XFMR POE DC/DC CONV 17UH SMD |
4,908 | - |
|
Datasheet | MID-POE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 33 ~ 57V | 12V | 1500Vrms | 17µH @ 10kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.102" L x 1.064" W (28.00mm x 27.03mm) | 0.550" (13.97mm) | 1.278" L x 1.064" W (32.45mm x 27.03mm) | - |
Switching Converter, SMPS Transformers FAQ
Common questions about selecting, comparing and sourcing Switching Converter, SMPS Transformers components through Winsun (HK) Electronics.
What should I check when selecting Switching Converter, SMPS Transformers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Switching Converter, SMPS Transformers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Switching Converter, SMPS Transformers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Switching Converter, SMPS Transformers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
