SCRs - Modules
Browse available SCRs - Modules part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

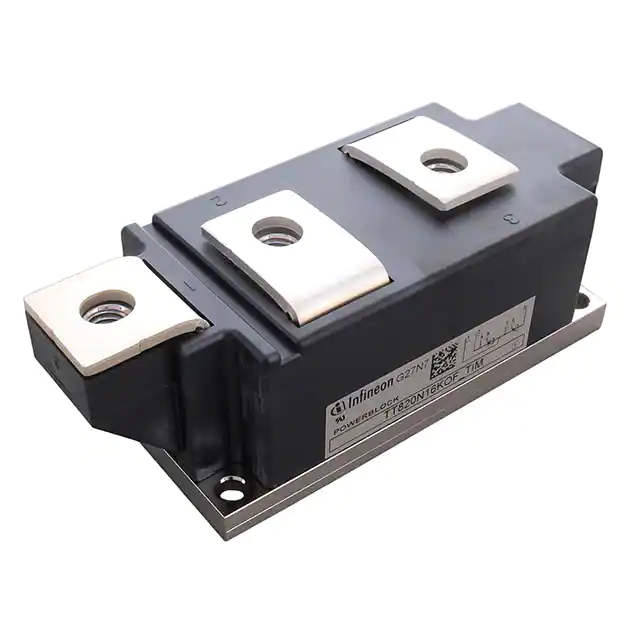

TT820N16KOFTIMHPSA1THYR / DIODE MODULE DK BG-PB60AT |
6,071 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 820 A | 1050 A | 2 V | 250 mA | 24800A @ 50Hz | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
TT600N16KS20XPSA1THYR / DIODE MODULE DK |
8,516 | - |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TT780N18KOFXPSA1THYR / DIODE MODULE DK |
6,366 | - |
|
Datasheet | TT | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 775 A | 1050 A | 2 V | 250 mA | 23500A @ 50Hz | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
|
TD700N22KOFXPSA1THYR / DIODE MODULE DK |
4,285 | - |
|
Datasheet | TD | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 700 A | 1050 A | 2.2 V | 250 mA | 20400A @ 50Hz | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
TD700N22KOFHPSA1THYR / DIODE MODULE DK |
8,325 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 700 A | 1050 A | 2.2 V | 250 mA | 20400A @ 50Hz | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
|
TA20081803DHSCR PHASE CTRL 800V 1800A |
2,774 | - |
|
Datasheet | - | TO-200AE Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 800 V | 1800 A | 2820 A | 4.5 V | 200 mA | 36500A, 40000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
TT400N26KOFHPSA1SCR MODULE 2.6KV 800A MODULE |
2,894 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 2.6 kV | 510 A | 800 A | 2.2 V | 250 mA | 13000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
T930N36TOFVTXPSA1SCR MODULE 3600V 2200A DO200AC |
4,146 | - |
|
Datasheet | - | TO-200AC | Tray | Active | Single | 1 SCR | 3.6 kV | 930 A | 2200 A | 2.2 V | 250 mA | 19500A @ 50Hz | 500 mA | -40°C ~ 120°C | - | - | Clamp On |
|
|
STT1400N16P55HPSA1THYR / DIODE MODULE DK |
2,052 | - |
|
Datasheet | TT | Module | Tray | Active | 1-Phase Controller - All SCRs | 2 SCRs | 1.6 kV | - | - | 2 V | 200 mA | 10500A @ 50Hz | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
T1190N12TOFVTXPSA1SCR MODULE 1800V 2800A DO200AC |
3,820 | - |
|
Datasheet | - | TO-200AC | Tray | Obsolete | Single | 1 SCR | 1.8 kV | 1190 A | 2800 A | 2 V | 250 mA | 22500A @ 50Hz | 500 mA | -40°C ~ 125°C | - | - | Clamp On |
|
|
TT600N16KS20HPSA1THYR / DIODE MODULE DK |
2,944 | - |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TT700N22KOFXPSA1THYR / DIODE MODULE DK |
9,262 | - |
|
Datasheet | TT | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 700 A | 1050 A | 2.2 V | 250 mA | 20400A @ 50Hz | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
|
TA20101803DHSCR PHASE CTRL 1000V 1800A |
3,478 | - |
|
Datasheet | - | TO-200AE Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1 kV | 1800 A | 2820 A | 4.5 V | 200 mA | 36500A, 40000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
TD500N16KOFTIMHPSA1SCR MODULE 1800V 900A MODULE |
3,603 | - |
|
Datasheet | - | Module | Tray | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 500 A | 900 A | 2.2 V | 250 mA | 17000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
STT1400N18P55XPSA1THYR / DIODE MODULE DK |
5,584 | - |
|
Datasheet | - | Module | Tray | Active | 1-Phase Controller - All SCRs | 2 SCRs | 1.8 kV | - | - | 2 V | 200 mA | 10500A @ 60Hz | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
TA20121803DHSCR PHASE CTRL 1200V 1800A |
7,111 | - |
|
Datasheet | - | TO-200AE Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.2 kV | 1800 A | 2820 A | 4.5 V | 200 mA | 36500A, 40000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
TAK7361202DHSCR PHASE CTRL 3600V 1200A |
8,801 | - |
|
Datasheet | - | TO-200AE Variation | Bulk | Obsolete | Single | 1 SCR | 3.6 kV | 1200 A | 1700 A | 5 V | 300 mA | 36500A, 40000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
TT500N16KOFTIMHPSA1SCR MODULE 1800V 900A MODULE |
4,675 | - |
|
Datasheet | - | Module | Tray | Obsolete | Series Connection - SCR/Diode | 2 SCRs | 1.8 kV | 500 A | 900 A | 2.2 V | 250 mA | 17000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
VS-VSKT500-08PBFMODULE THY 500A SMAGN-A-PAK |
2,973 | - |
|
Datasheet | - | SUPER MAGN-A-PAK | Bulk | Last Time Buy | Series Connection - All SCRs | 2 SCRs | 800 V | 500 A | 785 A | 3 V | 200 mA | 17800A, 18700A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
STT1400N16P55XPSA1SCR MODULE POWERBLOCK PS55-1 |
6,838 | - |
|
Datasheet | - | Module | Tray | Discontinued at Digi-Key | 1-Phase Controller - All SCRs | 2 SCRs | 1.6 kV | - | - | 2 V | 200 mA | 10500A @ 50Hz | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
SCRs - Modules FAQ
Common questions about selecting, comparing and sourcing SCRs - Modules components through Winsun (HK) Electronics.
What should I check when selecting SCRs - Modules components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific SCRs - Modules part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find SCRs - Modules parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for SCRs - Modules components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
