SCRs - Modules
Browse available SCRs - Modules part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TBS704350HHESCR PHASE CTRL 400V 3500A |
2,263 | - |
|
Datasheet | - | TO-200AE Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 400 V | 3500 A | 5600 A | 4 V | 250 mA | 44200A, 48000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
T1220N26TOFVTXPSA1SCR MODULE 2800V 2625A DO200AC |
5,605 | - |
|
Datasheet | - | TO-200AC | Tray | Obsolete | Single | 1 SCR | 2.8 kV | 1220 A | 2625 A | 2 V | 250 mA | 25000A @ 50Hz | 500 mA | -40°C ~ 125°C | - | - | Clamp On |
|
T860N36TOFVTXPSA1SCR MODULE 3600V 2000A DO200AC |
3,236 | - |
|
Datasheet | - | TO-200AC | Tray | Discontinued at Digi-Key | Single | 1 SCR | 3.6 kV | 860 A | 2000 A | 2 V | 250 mA | 18000A @ 50Hz | 500 mA | -40°C ~ 125°C | - | - | Clamp On |
|

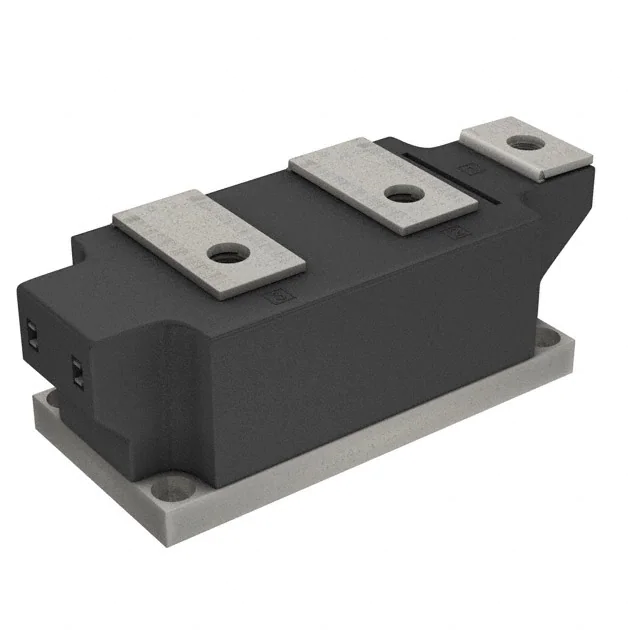

VSKT500-12SCR DBL 2SCR 1200V 500A MAGNAPAK |
5,365 | - |
|
Datasheet | - | SUPER MAGN-A-PAK | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 500 A | 785 A | 3 V | 200 mA | 17800A, 18700A | 500 mA | - | - | - | Chassis Mount |
|
|
C781PNTHYRISTOR DISC 1800V 2500A TBK |
7,119 | - |
|
Datasheet | - | TO-200AF | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.8 kV | 2500 A | 3925 A | 4.2 V | 250 mA | 41500A, 45000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
T3710N04TOFVTXPSA1SCR MODULE 600V 7000A DO200AD |
9,501 | - |
|
Datasheet | - | DO-200AD | Tray | Active | Single | 1 SCR | 600 V | 3710 A | 7000 A | 1.5 V | 250 mA | 70000A @ 50Hz | 300 mA | -40°C ~ 140°C | - | - | Chassis Mount |
|
|
VSKL430-18SCR DBL HISCR 1800V 430A MAGNPAK |
8,148 | - |
|
Datasheet | - | SUPER MAGN-A-PAK | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 430 A | 675 A | 3 V | - | 15700A, 16400A | 500 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
|
VSKT430-16SCR DBL 2SCR 1600V 430A MAGNAPAK |
2,236 | - |
|
Datasheet | - | SUPER MAGN-A-PAK | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 430 A | 675 A | 3 V | - | 15700A, 16400A | 500 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
|
T2180N14TOFVTXPSA1SCR MODULE 1800V 4460A DO200AD |
8,738 | - |
|
Datasheet | - | DO-200AD | Tray | Active | Single | 1 SCR | 1.8 kV | 2180 A | 4460 A | 2 V | 250 mA | 44000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
C781LTHYRISTOR DISC 2000V 2500A TBK |
2,981 | - |
|
Datasheet | - | TO-200AF | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 2 kV | 2500 A | 3925 A | 4.2 V | 250 mA | 41500A, 45000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
TBS706350HHESCR PHASE CTRL 600V 3500A |
2,691 | - |
|
Datasheet | - | TO-200AE Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 600 V | 3500 A | 5600 A | 4 V | 250 mA | 44200A, 48000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC700-16IO1WSCR THY PHASE LEG 1600V WC-500 |
2,513 | - |
|
Datasheet | - | WC-500 | Tray | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 700 A | 1331 A | - | - | 18200 @ 50MHz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
T2180N16TOFVTXPSA1SCR MODULE 1800V 4460A DO200AD |
2,493 | - |
|
Datasheet | - | DO-200AD | Tray | Active | Single | 1 SCR | 1.8 kV | 2180 A | 4460 A | 2 V | 250 mA | 44000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
C781LATHYRISTOR DISC 2100V 2500A TBK |
2,927 | - |
|
Datasheet | - | TO-200AF | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 2.1 kV | 2500 A | 3925 A | 4.2 V | 250 mA | 41500A, 45000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
C782LBTHYRISTOR DISC 2200V 2300A TBK |
5,157 | - |
|
Datasheet | - | TO-200AF | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 2.2 kV | 2300 A | 3610 A | 4.5 V | 250 mA | 32000A, 35000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
C783CPTHYRISTOR DISC 3000V 1800A TBK |
7,005 | - |
|
Datasheet | - | TO-200AF | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 3 kV | 1800 A | 2826 A | 4.5 V | 250 mA | 27000A, 29000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
PS431215SCR MODULE SGL 1200V 1500A |
9,552 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.2 kV | 1500 A | 2355 A | 4.5 V | 400 mA | 71000A, 78000A | 600 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
T1590N26TOFVTXPSA1SCR MODULE 2800V 3200A DO200AD |
8,747 | - |
|
Datasheet | - | DO-200AD | Tray | Active | Single | 1 SCR | 2.8 kV | 1590 A | 3200 A | 3 V | 300 mA | 32000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
PS431415SCR MODULE SGL 1400V 1500A |
5,078 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.4 kV | 1500 A | 2355 A | 4.5 V | 400 mA | 71000A, 78000A | 600 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
PS431615SCR MODULE SGL 1600V 1500A |
5,150 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.6 kV | 1500 A | 2355 A | 4.5 V | 400 mA | 71000A, 78000A | 600 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
SCRs - Modules FAQ
Common questions about selecting, comparing and sourcing SCRs - Modules components through Winsun (HK) Electronics.
What should I check when selecting SCRs - Modules components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific SCRs - Modules part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find SCRs - Modules parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for SCRs - Modules components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
