SCRs
Browse available SCRs part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Off State | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Voltage - On State (Vtm) (Max) | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) (Max) | Current - Off State (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | SCR Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TN4050HP-12GY-TR1200 V, 40 A AUTOMOTIVE GRADE SC |
612 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1.2 kV | 1.3 V | 50 mA | 1.55 V | 25 A | 40 A | 100 mA | 5 µA | 400A, 440A | Standard Recovery | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
VS-25TTS08FP-M3SCR 800V 25A TO220AB FP |
2,335 | - |
|
Datasheet | - | TO-220-3 Full Pack | Tube | Active | 800 V | 2 V | 45 mA | 1.25 V | 16 A | 25 A | 150 mA | 500 µA | 270A @ 50Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB Full-Pak |
|
CLA40E1200NPZ-TUBSCR 1.2KV 63A TO263 |
791 | - |
|
Datasheet | CLA40E1200NPZ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 1.2 kV | 1.7 V | 35 mA | 1.3 V | 40 A | 63 A | 70 mA | - | 520A, 560A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263HV |
;;3.jpg "VS-40TPS12LHM3")
|
VS-40TPS12LHM3SCR 1.2KV 55A TO247AD |
648 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1.2 kV | 1.7 V | 150 mA | 1.85 V | 35 A | 55 A | 300 mA | 500 µA | 600A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247AD |
|
|
VS-40TPS16LHM3SCR 1.6KV 55A TO247AD |
480 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1.6 kV | 2.5 V | 150 mA | 1.92 V | 35 A | 55 A | 300 mA | 500 µA | 500A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247AD |
|
TN3050H-12GY-TRSCR 1.2KV 30A D2PAK |
983 | - |
|
Datasheet | ECOPACK®1 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1.2 kV | 1.3 V | 50 mA | 1.65 V | 19 A | 30 A | 100 mA | 5 µA | 300A, 330A | Sensitive Gate | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
|
CS19-12HO1S-TRLSCR 1.2KV 29A TO263 |
644 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1.2 kV | 1.5 V | 28 mA | 1.6 V | 19 A | 29 A | 50 mA | 5 mA | 160A, 180A | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-263AA |
|
CS45-16IO1RSCR 1.6KV 75A ISOPLUS247 |
172 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1.6 kV | 1.5 V | 100 mA | 1.64 V | 48 A | 75 A | 100 mA | 5 mA | 520A, 560A | Standard Recovery | -40°C ~ 140°C | - | - | Through Hole | ISOPLUS247™ |
|
TN6050-12PISCR 1.2KV 60A TOP3 |
437 | - |
|
Datasheet | ECOPACK®2 | TOP-3 | Tube | Active | 1.2 kV | 1.3 V | 50 mA | 1.75 V | 38 A | 60 A | 100 mA | 10 µA | 700A, 763A | Standard Recovery | -40°C ~ 125°C (TJ) | - | - | Through Hole | TOP3 |
, TO-218AC.jpg "S4055MTP")
|
S4055MTPSCR 400V 55A TO218 |
177 | - |
|
Datasheet | - | TO-218-3, TO-218AC | Tube | Active | 400 V | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 10 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-218 Non-Isolated Tab |
|
VS-40TPS12-M3SCR 1.2KV 55A TO247AC |
787 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1.2 kV | 2.5 V | 150 mA | 1.85 V | 35 A | 55 A | 200 mA | 500 µA | 500A @ 50Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-247AC |
|
CS30-12IO1SCR 1.2KV 49A TO247AD |
255 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1.2 kV | 1 V | 55 mA | 1.63 V | 30 A | 49 A | 100 mA | 50 µA | 400A, 430A | Standard Recovery | -40°C ~ 150°C | - | - | Through Hole | TO-247AD |
|
TN4050HP-12WY1200 V, 40 A AUTOMOTIVE GRADE AE |
1,221 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1.2 kV | 1.3 V | 50 mA | 1.55 V | 25 A | 40 A | 100 mA | 5 µA | 400A, 440A | Standard Recovery | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
|
BTW68-800RGSCR 800V 30A TOP3 |
722 | - |
|
Datasheet | - | TOP-3 | Tube | Active | 800 V | 1.5 V | 50 mA | 2.1 V | 19 A | 30 A | 75 mA | 20 µA | 400A, 420A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TOP3 |
|
|
S4055NRPSCR 400V 55A TO263 |
1,643 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 400 V | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 10 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (D2PAK) |
|
S6035KTPSCR 600V 35A TO218 |
146 | - |
|
Datasheet | - | TO-218-3 Isolated Tab, TO-218AC | Tube | Active | 600 V | 1.5 V | 40 mA | 1.8 V | 22 A | 35 A | 50 mA | 10 µA | 425A, 500A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-218 Isolated Tab |
|
|
BTW68-1200RGSCR 1.2KV 30A TOP3 |
323 | - |
|
Datasheet | - | TOP-3 | Tube | Active | 1.2 kV | 1.5 V | 50 mA | 2.1 V | 19 A | 30 A | 75 mA | 20 µA | 400A, 420A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TOP3 |
|
|
S8035KTPSCR 800V 35A TO218 |
207 | - |
|
Datasheet | - | TO-218-3 Isolated Tab, TO-218AC | Tube | Active | 800 V | 1.5 V | 40 mA | 1.8 V | 22 A | 35 A | 50 mA | 20 µA | 425A, 500A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-218 Isolated Tab |
|
|
SJ6040N2RPSCR 600V 40A TO263 |
529 | - |
|
Datasheet | SJxx40xx | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 600 V | 1.5 V | 15 mA | 1.7 V | 25 A | 40 A | 50 mA | 10 µA | 430A, 520A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|

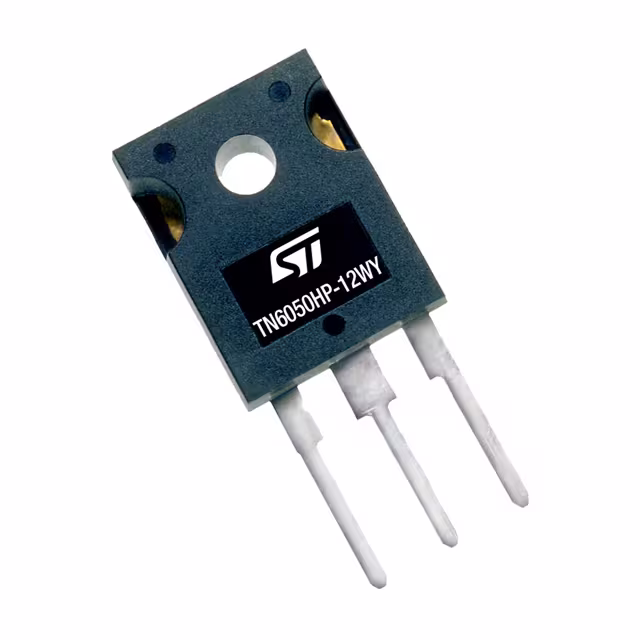

TN6050HP-12WYAVAILABLE IN TO-247 HIGH POWER P |
211 | - |
|
Datasheet | ECOPACK®2 | TO-247-3 | Tube | Active | 1.2 kV | 1.3 V | 50 mA | 1.5 V | 38 A | 60 A | 100 mA | 5 µA | 600A, 660A | Standard Recovery | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
SCRs FAQ
Common questions about selecting, comparing and sourcing SCRs components through Winsun (HK) Electronics.
What should I check when selecting SCRs components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific SCRs part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find SCRs parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for SCRs components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
